SuperServer SYS-112C-TN (Complete System Only)

1U UP CloudDC with DC-MHS, up to 12 hot-swap 2.5" NVMe/SAS/SATA bays and 2 PCIe 5.0 x16 slots + 1 PCIe 5.0 x16 AIOM slot

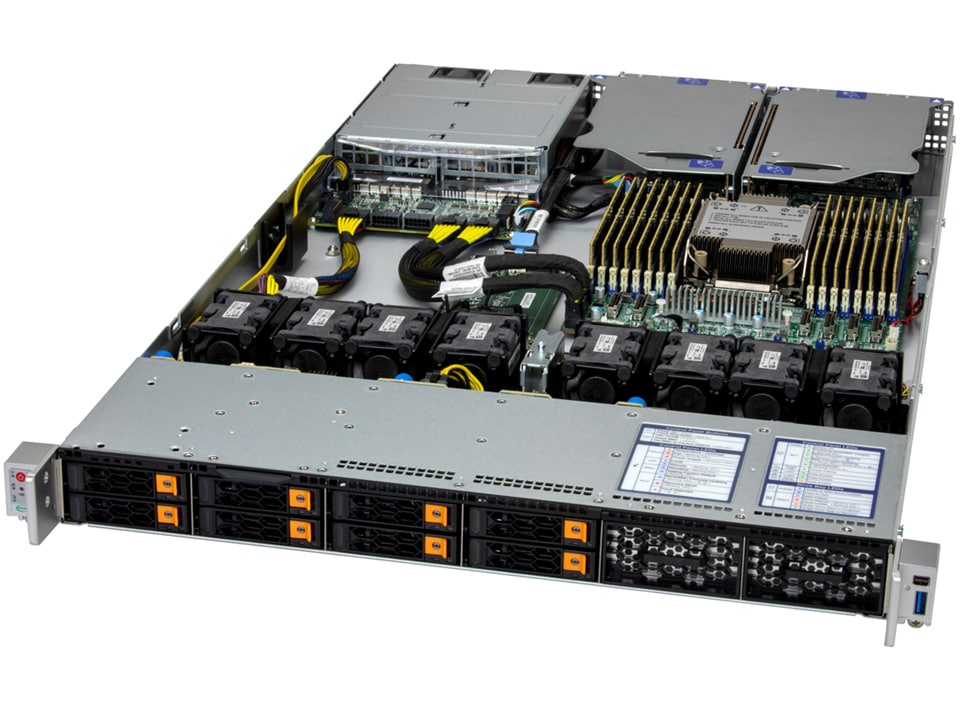

SYS-112C-TN Main SYS-112C-TN Angle SYS-112C-TN Top SYS-112C-TN Front SYS-112C-TN Rear
Integrated Board: X14SBHM
Learn more

Key Applications

  • Virtualization
  • HPC
  • CDN, Edge Nodes
  • Cloud Computing
  • Data Center Optimized
  • Storage Headnode

Key Features

  1. All-in-one platform for cloud data centers, based on the OCP Data Center Modular Hardware System (DC-MHS) with flexible I/O and storage configurations
    Based on Modular Scalable DeNsity Optimized HPM Form Factor (M-SDNO)
    Support DC-SCM module with OpenBMC
  2. Single Intel® Xeon® 6 6700 series processor with E-cores
  3. 16 DIMM slots supporting up to 2TB of memory (6700E series CPU)
  4. Support FH DPU and single slot GPU
  5. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible).
  6. Breeze through high throughput workloads with PCIe 5.0 NVMe drive support
  7. Trusted Platform Module (TPM) 2.0 9670 onboard
...
...
SYS-112C-TN
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-112C-TN
Motherboard
Super X14SBHM
Processor
CPU
Core Count
  • Up to 144C/144T; Up to 108MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 single-width GPUs
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 16 DIMM slots/8 Channels
  • Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM
  • View Memory Options
On-Board Devices
NVMe
Chipset
  • System on Chip
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.2 Gen1 Type-A ports(rear)
Video
  • 1 Mini-DP port(Rear)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-MD101TS-R000NDP
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 29.4" (747 mm)
Package
  • 8.1" (H) x 23.8" (W) x 40.6" (D)
Weight
  • Gross Weight: 47 lbs (21.3 kg)
  • Net Weight: 31 lbs (14.1 kg)
Available Color
  • Black
Front Panel
LED
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power Failed LED
  • Power status
  • System information
Buttons
  • Power On/Off button
  • UID button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default

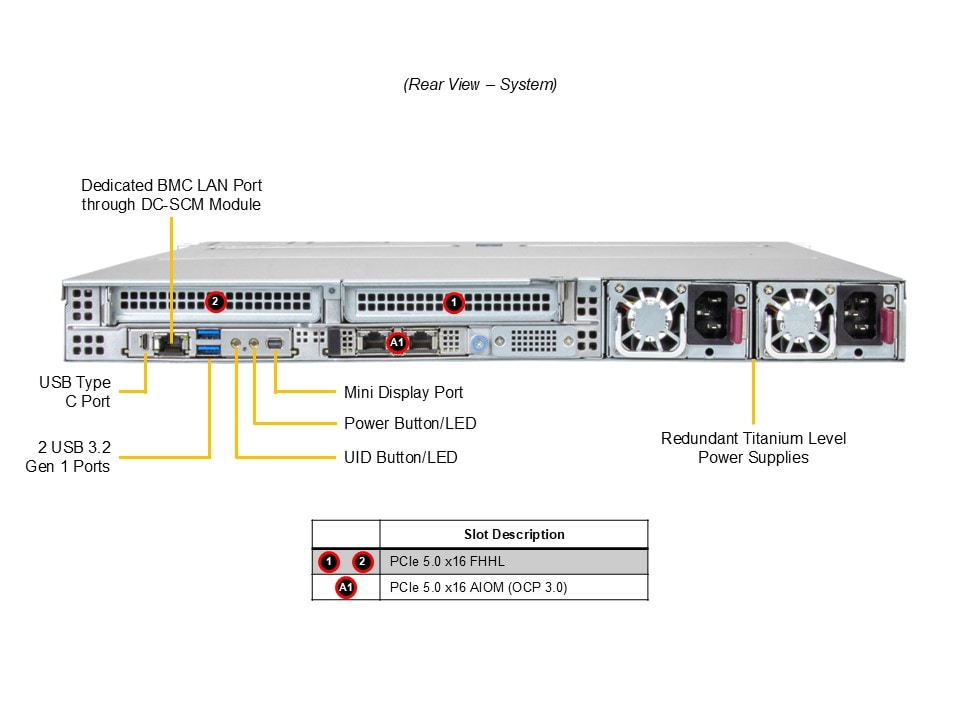

    • 2 PCIe 5.0 x16 FHHL slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration

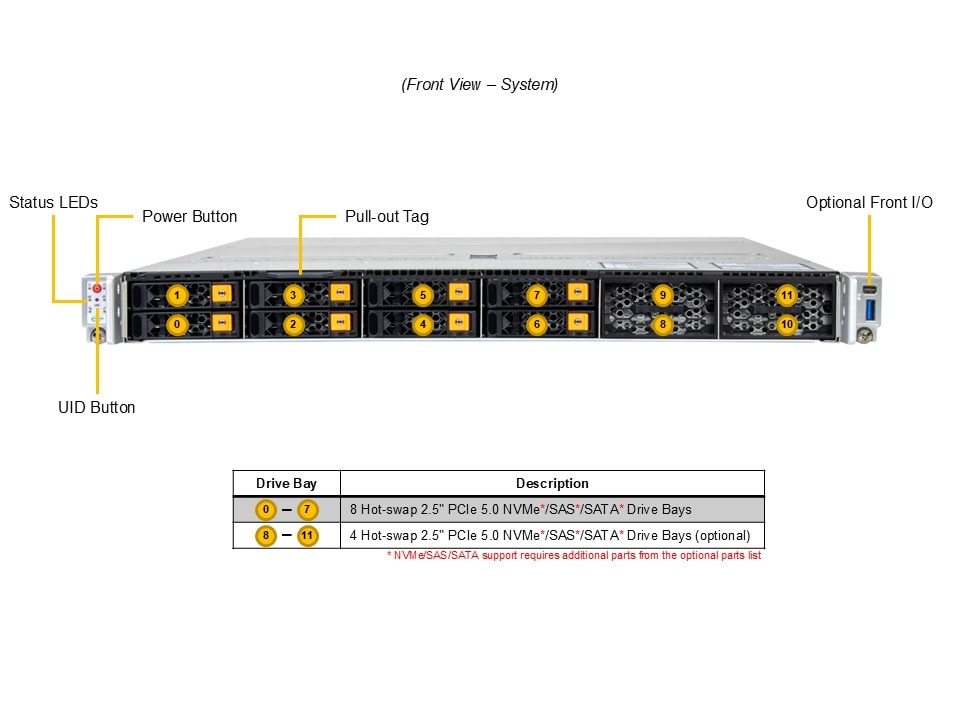

  • Default: Total 8 bays
    • 8 front hot-swap 2.5" PCIe 5.0 NVMe/SAS*/SATA* drive bays
  • Option A: Total 12 bays
    • 8 front hot-swap 2.5" PCIe 5.0 NVMe*/SAS*/SATA* drive bays
    • 4 front hot-swap 2.5" SAS*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
  • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280(default)/22110; VROC required for RAID)
  • View M.2 Options
System Cooling
Fans
  • 8 Counter-Rotating PWM 40x40x56mm Fan(s)
Power Supply
2x 1000W
2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 185 mm
AC Input800W: 100-127Vac / 50-60Hz
1000W: 200-240Vac / 50-60Hz
+12VMax: 66.7A (100Vac-127Vac)
Max: A (100Vdc-240Vdc)
Max: 83A (200Vac-240Vac)
12V SBMax: 2.1A
Output TypeBackplanes (gold finger)
CertificationTitanium Level94%+  Titanium Level

[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
CacheVault for Broadcom 3916/3908 BTR-CVPM05 • + MCP-240-00203-0N • (For S3908/S3916) 1 SuperCap mounting bracket for PCIe location
BTR-CVPM05 • + MCP-240-21747-0N (For S3908/S3916) 1 SuperCap mounting bracket for AIOM location
Heat Sink Options SNK-P0087P • 1 1U Passive CPU Regular Heat Sink
SNK-P0087V 1 1U Passive CPU Vapor Chamber Heat Sink
Intel VROC RAID Key for NVMe AOC-VROCSTNMOD 1 Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
AOC-VROCPREMOD 1 Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
NVMe Cable (Drive Bay 0-3) CBL-MCIO-1255M5REL 2 MCIO x8 (RE to LE), 55CM, 85OHM
NVMe Cable (Drive Bay 4-7) CBL-MCIO-1330M5L 2 MCIO x8 (STR to LE), 30CM, 85OHM
Optional M.2 Carrier and Cable AOM-DCM2-BOOT + 1x CBL-NSKS-1240K5-E 1 Internal M.2 Carrier (support RAID thru additional VROC module))
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Storage Control Card and Cable(s) AOC-S3908L-H8iR-16DD + 1x CBL-SAST-1273LP-100 1 Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
AOC-S3916L-H16iR-32DD + 1x CBL-SAST-1273LP-100 + 1x CBL-SAST-1262LP-100 • 1 Standard LP, 16 internal ports (12Gb/s) PCIe 4.0 x8, 32HDD; RAID 0, 1, 5, 6, 10, 50, 60
Storage Control Card and Cable(s) (HBA) AOC-S3808L-L8IT + 1x CBL-SAST-1273LP-100 1 Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
AOC-S3816L-L16IT + 1x CBL-SAST-1273LP-100 + 1x CBL-SAST-1262LP-100 • 1 Standard LP, 16 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
