SuperServer SYS-112H-TN (Complete System Only)

1U UP Hyper with 8 hot-swap 2.5” NVMe/SAS/SATA bays and 2 PCIe 5.0 + 1 PCIe 5.0 AIOM slots

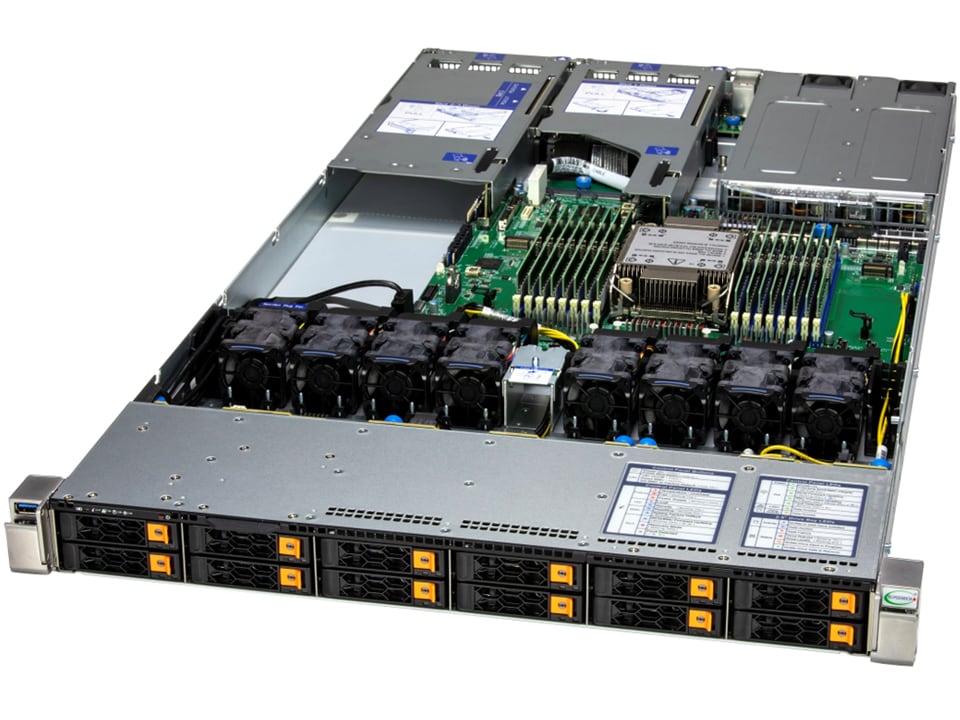

SYS-112H-TN Main SYS-112H-TN Angle SYS-112H-TN Top SYS-112H-TN Front SYS-112H-TN Rear
Integrated Board: X14SBH
Learn more

Key Applications

  • Virtualization
  • Financial
  • Scale Out All-Flash NVMe Storage
  • Data Center Enterprise Applications
  • Cloud Computing
  • AI Inference
  • CDN/vCDN/Cloud CDN

Key Features

  1. Hyper is a flagship performance rackmount server optimized for scale-out cloud workloads.
  2. Single Intel® Xeon® 6 Processor.
  3. 16 DIMM slots supporting up to 2TB of memory (6700E series CPU).
  4. Double width add-on card support.
  5. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible).
  6. Breeze through high throughput workloads with PCIe 5.0 NVMe drive support.
  7. Trusted Platform Module (TPM) 2.0 onboard.
  8. Modularized and Tool-less design for easy serviceability.
...
...
SYS-112H-TN
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-112H-TN
Motherboard
Super X14SBH
Processor
CPU
Core Count
  • Up to 144C/144T; Up to 108MB Cache
Note
  • Supports up to 330W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width or 2 single-width GPUs
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM
  • View Memory Options
On-Board Devices
NVMe
Chipset
  • System on Chip
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
  • 1 USB 3.0 port(front)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 64MB SPI Flash
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-HS101-R000NFP
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 30.66" (778.7 mm)
Package
  • 8.82" (H) x 26.46" (W) x 43.31" (D)
Weight
  • Gross Weight: 41.4 lbs (18.8 kg)
  • Net Weight: 19.2 lbs (8.7 kg)
Available Color
  • Silver

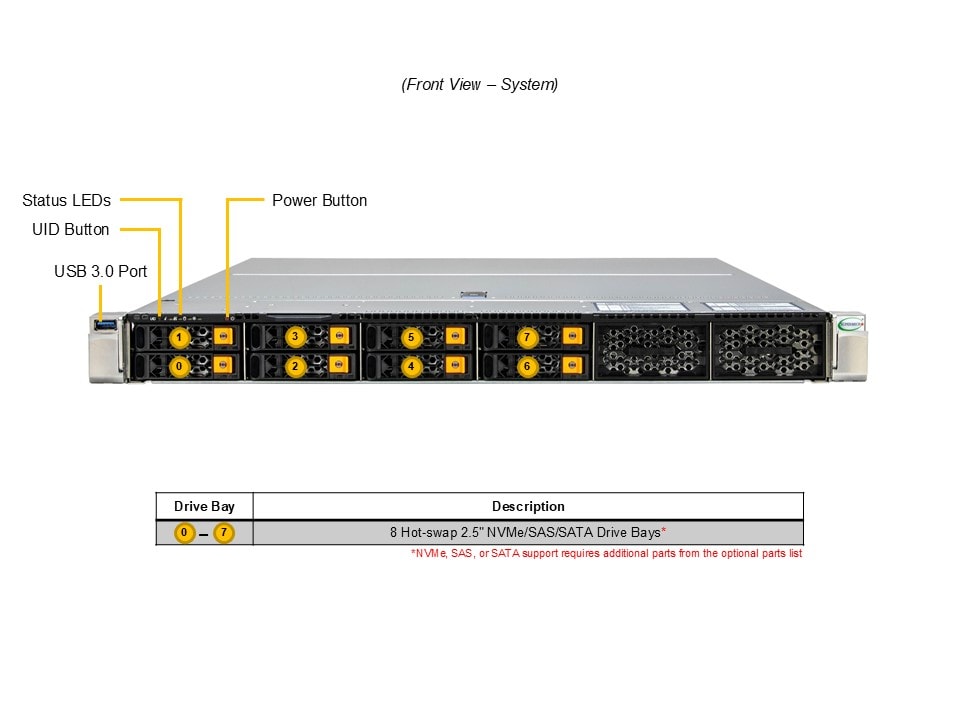

Front Panel
LED
  • HDD activity
  • LAN1 activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • UID button

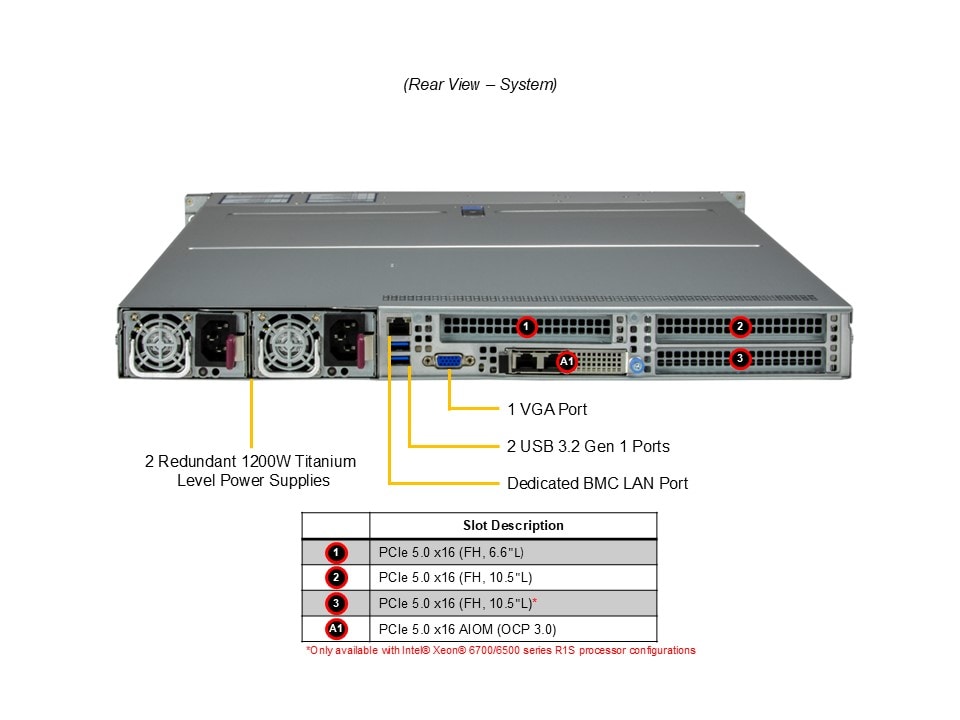

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 5.0 x16 FHHL slot
    • 1 PCIe 5.0 x16 FHFL double-width slot
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays
    • 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
  • Option A: Total 12 bays
    • 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
    • 4 front hot-swap 2.5" SAS*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
  • 2 M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID)
  • View M.2 Options

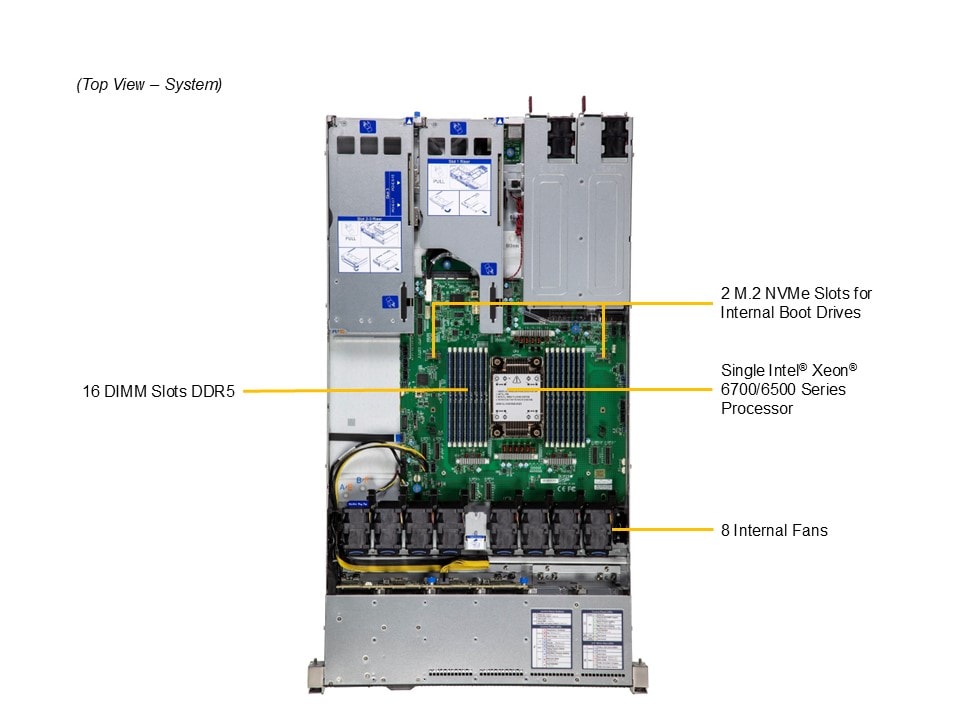

System Cooling
Fans
  • 8 counter-rotating 40x40x56mm Fan(s)
Air Shroud
  • 1 CPU Air Shroud
Power Supply
2x 1200W
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 265 mm
AC Input800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12VMax: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SBMax: 2.1A / Min: 0A
Output TypeBackplanes (gold finger)
2x 1300W
2x 1300W Redundant (1 + 1) Gold (Certification Pending) Level power supplies
Dimension (WxHxL)73.5 x 40 x 265 mm
AC Input1300W: -44--65Vdc
+12VMax: 108.3A / Min: 0A
12V SBMax: 2.1A
Output TypeBackplanes (gold finger)
2x 1600W
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 265 mm
AC Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12VMax: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SBMax: 3.5A / Min: 0A
Max: 3.5A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
Cable Management Arm + Rail Set MCP-290-00168-0N + MCP-290-11901-0N 1 7.5" cable management arm + 41" long ball-bearing rail set
CacheVault for Broadcom 3916/3908 BTR-CVPM05 • + MCP-120-00092-0N 1 CacheVault Flash Cache Protection Module for Broadcom 3916/3908 RAID controller (CVPM05) + slot 2-3 riser cage mounting bracket
Drive Bay Configuration Options Refer to User's Manual - 8 & 12 drive bay configuration options for NVMe, SAS, or SATA support
Front Bezel MCP-210-11909-0B • 1 Front bezel for 1U Hyper
Global Services & Support OS4HR3/2/1 1 Gold Level, 3/2/1-year onsite 24x7x4 SLA
OSNBD3/2/1 1 Silver Level, 3/2/1-year onsite NBD SLA
SMSAD3/2/1 1 Bronze Level, 3/2/1-year 3BD SLA
Rail Set MCP-290-11902-0N (included in the system ) - 30.5" ball-bearing rail set for Hyper servers
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)

Hyper SuperServer SYS-112H-TN (Complete System Only ) New
