SuperServer SYS-120U-TNR (Complete System Only)

1U Ultra with 12 NVMe/SAS/SATA bays

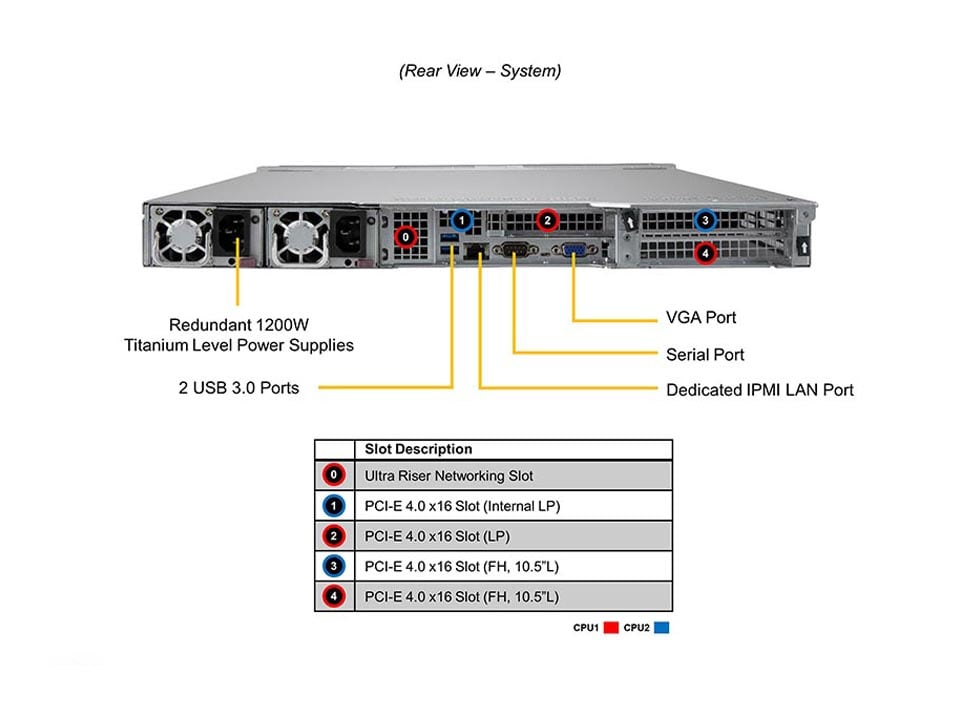

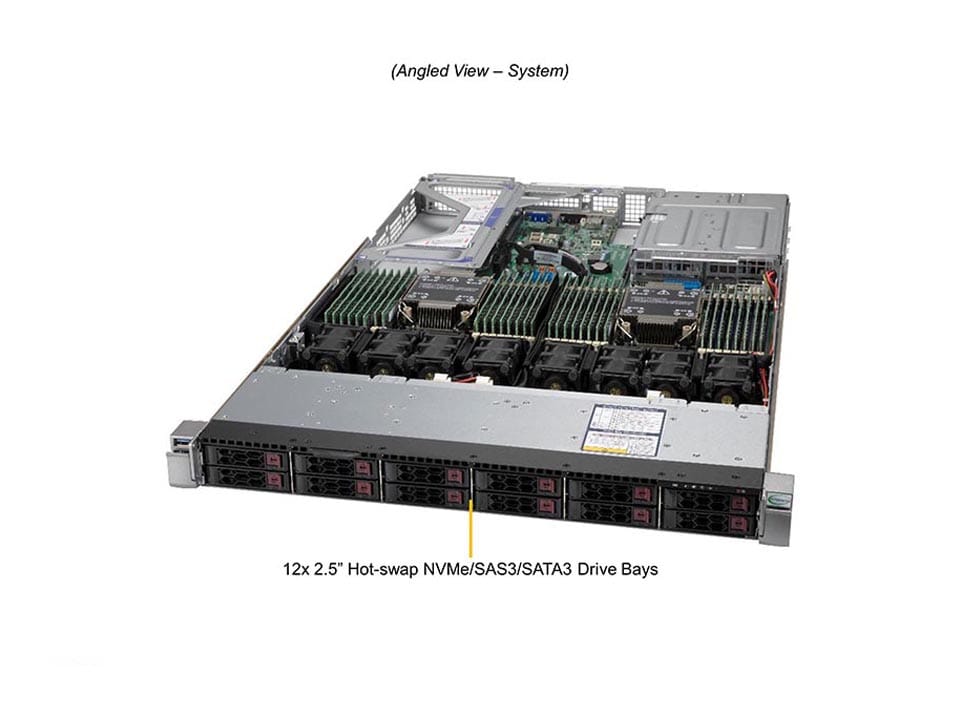

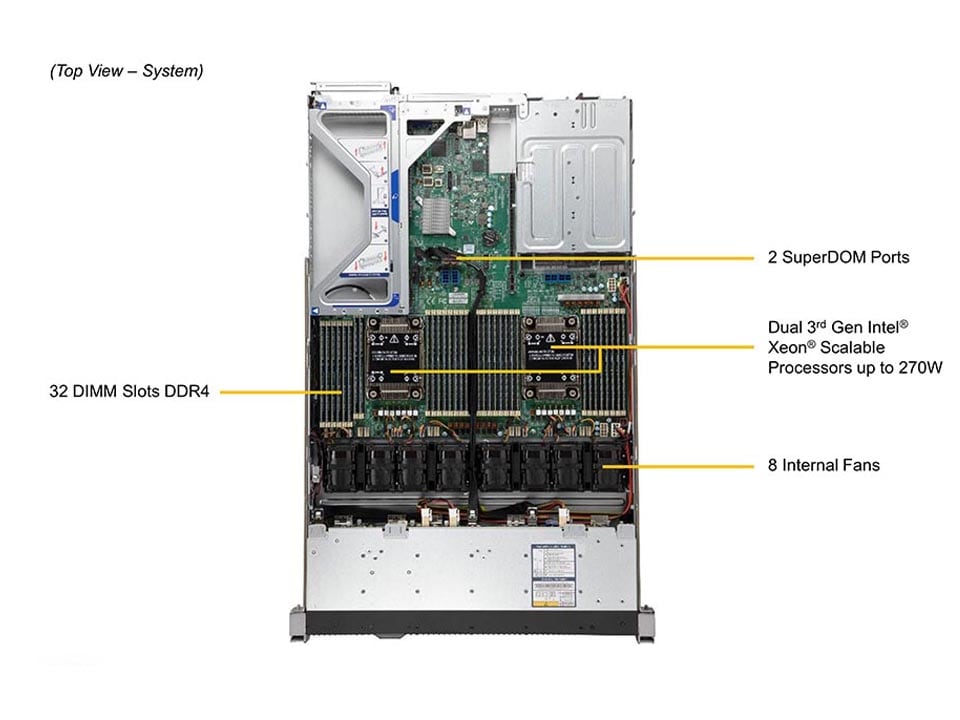

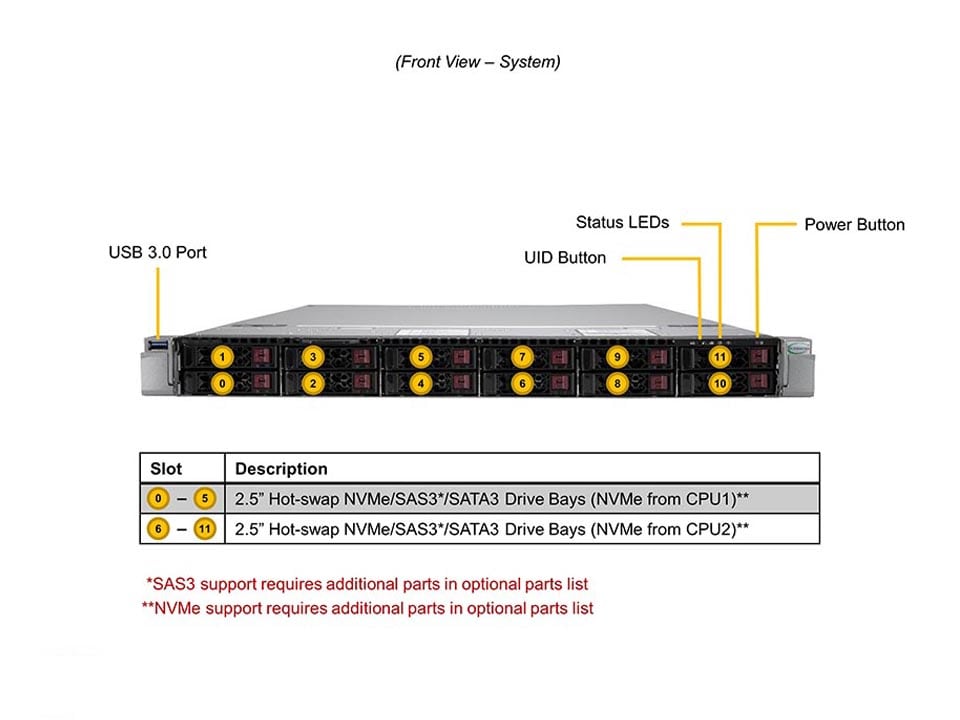

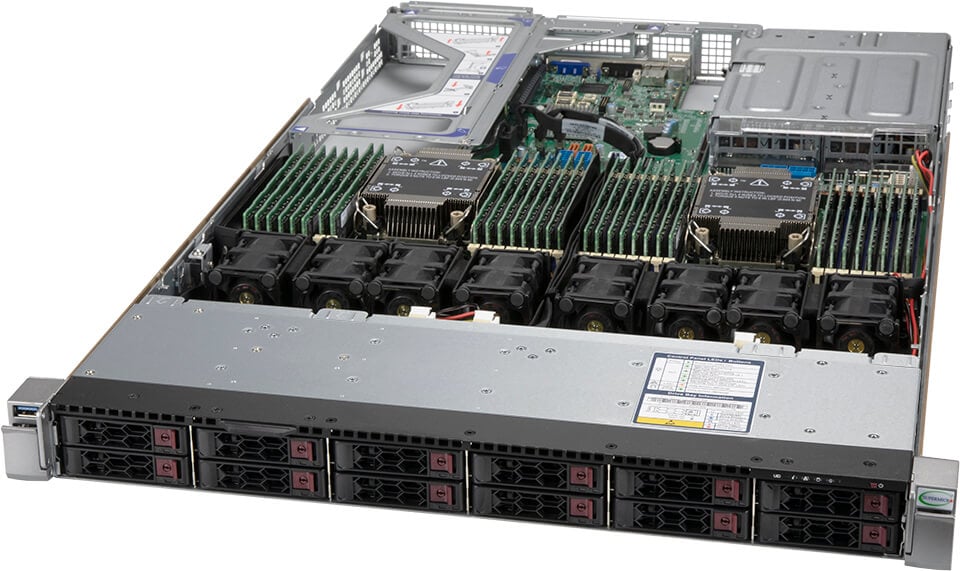

SYS-120U-TNR Main SYS-120U-TNR Angle SYS-120U-TNR Top SYS-120U-TNR Front SYS-120U-TNR Rear
Integrated Board: X12DPU-6
Learn more

Key Applications

  • Virtualization
  • HPC
  • Cloud Computing
  • High End Enterprise Server
  • Software Defined Storage
  • Application Tier Service Provider
  • 5G/Telco

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
  4. 2 PCIe 4.0 x16 (FH, 10.5"L)
    1 PCIe 4.0 x16 (LP)
    1 Internal PCIe 4.0 x16
  5. Flexible networking options
  6. 12x2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
  7. 8 heavy duty fans with optimal fan speed control
  8. 1200W redundant Titanium level power supplies
...
...
SYS-120U-TNR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-120U-TNR
Motherboard
Super X12DPU-6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width or 2 single-width GPUs
Supported GPU
Certification
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
Chipset
  • Intel® C621A
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
  • 1 USB 3.0 port(front)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 +1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-119UH3TS-R1K22P-T
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 29.1" (739 mm)
Package
  • 7.99" (H) x 23.81" (W) x 37.4" (D)
Weight
  • Gross Weight: 41 lbs (18.6 kg)
  • Net Weight: 26.5 lbs (12.2 kg)
Available Color
  • Black Front & Silver Body
Front Panel
LED
  • HDD activity
  • LAN1 activity
  • Power status
  • System information (overheat/UID)
Buttons
  • Power On/Off
  • UID button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 4.0 x16 LP slot
    • 1 PCIe 4.0 x16 LP slot
    • 2 PCIe 4.0 x16 FH/10.5"L slots
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bays
    • 12 front hot-swap 2.5" NVMe/SAS*/SATA drive bays
  • (*SAS support may require additional storage controller and/or cables)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 8x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shrouds
Power Supply
1x 1200W
1x 1200W Redundant Titanium Level (96%) Hot-plug power supply
Dimension (WxHxL)73.5 x 40 x 203 mm
AC Input800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vdc (For CCC Only)
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12VMax: 66.7A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc) (For CCC Only)
12V SBMax: 2.1A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
1U Cable Management Arm MCP-290-00165-0N • 1 1U Supermicro Cable Management Arm 3rd Gen
Add-on card for M.2 support AOC-SLG3-2H8M2-O - 2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS
CacheVaults BTR-CV3108-1U1 - CacheVault for Broadcom 3108 with Supercap mounting in 1U 40x56 fan tray
BTR-CVPM05 • + BKT-BBU-BRACKET-05 - CacheVault for Broadcom 3908/3916 with Supercap
Drive Tray MCP-220-00178-0B • 1 ~ 12 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
Global Services & Support OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
OSNBD3/2/1 - 3/2/1-year onsite NBD service
Intel® VROC RAID Key Options AOC-VROCINTMOD 1 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10
AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10
Internal Drive Tray for Two 2.5" Drives MCP-120-82916-0N 1 2.5” Internal Drive Bay (Slim DVD Tray)
CBL-PWEX-0650CBL-0080L 12 Power Cable for Two internal 2.5" drives
CBL-0484L OrCBL-SAST-0654 OrCBL-SAST-0948 211 SATA3 S-S CableminiSAS(iPass) to 4 SATA CableminiSAS HD to 4 SATA Cable
Network Card(s) AOC Compatibility Matrix - Standard Networking AOC Matrix
NVMe Support Cable Kit CBL-KIT-120U-TNR-12-1 1 12 NVMe Cables Kit for X12 Ultra SYS-120U-TNR
Optional Storage Controller Card + Cable(s) AOC-S3916L-H16iR-32DD-O + 1x CBL-SAST-1265F-100 •, 1x CBL-SAST-1271F-100 • - Standard LP, 16 internal ports (12Gb/s) Gen-4; RAID 0, 1, 5, 6, 10, 50, 60
AOC-S3908L-H8iR-16DD-O + 1x CBL-SAST-1271F-100 • - Standard LP, 8 internal ports (12Gb/s) Gen-4; RAID 0, 1, 5, 6, 10, 50, 60
AOC-S3816L-L16iT-O + 1x CBL-SAST-1264F-100 •, 1x CBL-SAST-1265F-100 • - Standard LP, 16 internal ports (12Gb/s) Gen-4; HBA
AOC-S3808L-L8iT-O + 1x CBL-SAST-1264F-100 • - Standard LP, 8 internal ports (12Gb/s) Gen-4; HBA
AOC-S3108L-H8iR-16DD + 1x CBL-SAST-1260-100 - Standard LP, 8 internal ports (12Gb/s) Gen-3; RAID 0, 1, 5, 6, 10, 50, 60
AOC-S3008L-L8i + 1x CBL-SAST-1260-100 - Standard LP, 8 internal ports (12Gb/s) Gen-3; RAID 0,1,1E
AOC-S3008L-L8E+-O + 1x CBL-SAST-1260-100 - Standard LP, 8 internal ports (12Gb/s) Gen-3; HBA + I2C
AOC-S3008L-L8E + 1x CBL-SAST-1260-100 - Standard LP, 8 internal ports (12Gb/s) Gen-3; HBA
Power Supply PWS-1K62A-1R • 2 1U 1600W, Titanium Level, Redundancy, AC Input: 90 - 264 VAC/47-63Hz
PWS-1K30D-1R 2 1U 1300W, Redundancy, DC Input: -48Vdc
PWS-2K08A-1R • 2 1U 2000W, Titanium Level, Redundancy, AC Input: 90-264VAC/47-63Hz, and wide DC input 180Vdc~300Vdc
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Trusted Platform Module Options AOM-TPM-9671V-O 1 SPI Capable Vertical TPM 1.2 Module
AOM-TPM-9670V-O • 1 SPI TPM 2.0 using SLB9670
AOM-TPM-9670V-S-FIPS-P 1 AOM-TPM-9670V-S-FIPS TPM 2.0 support TAA and FIPS,RoHS
Ultra Riser Card Options + Rear Window AOC-URG4N4-I4XTS-O + MCP-240-81911-0N 1 1U Ultra Riser with 2-port 10GBase-T RJ45 & 2-port 10G SFP+, based on Intel Carlsville X710-TM4, with 1 PCIe 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8),RoHS
AOC-URG4N4-O 1 1U Ultra Riser without NIC, with 1 PCIe 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8).,RoHS
AOC-URG4N4-m2TS + MCP-240-81915-0N 1 1U Ultra Riser 2-port 25GbE SFP28, based on Mellanox CX-6 LX, with 1 PCIe 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8),RoHS
AOC-URG4N4-I2XT-O + MCP-240-81909-0N 1 1U Ultra Riser with 2-port 10GBase-T RJ45, based on Intel Carlsville X710-AT2, with 1 PCIe 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8),RoHS

Ultra SuperServer SYS-120U-TNR (Complete System Only )

Certain products may not be available in your region
