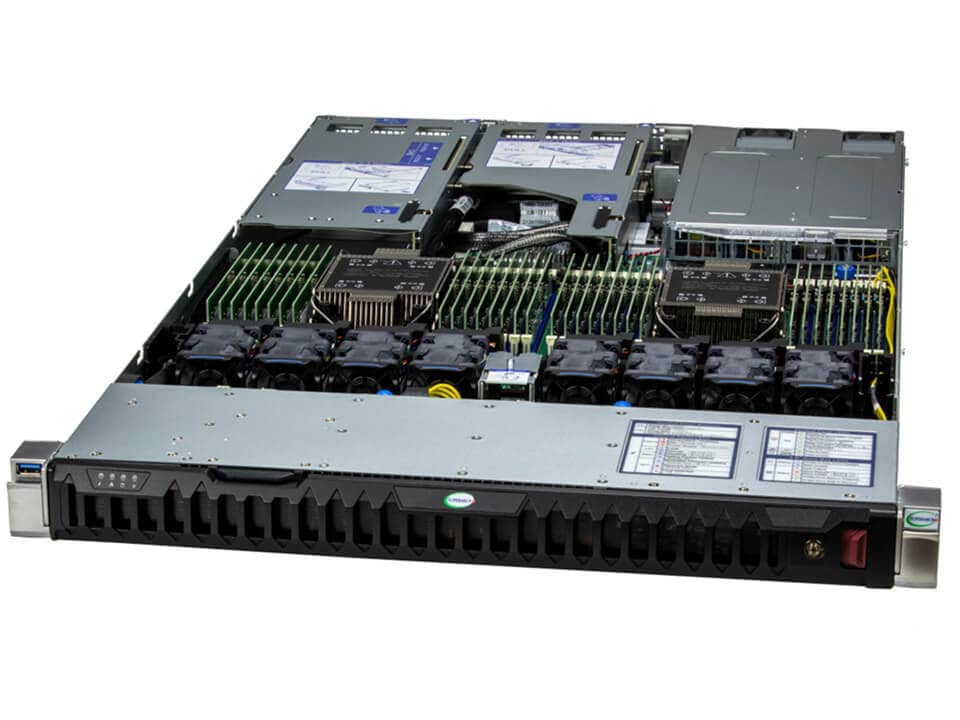

SuperServer SYS-121H-TNR (Complete System Only)

1U Hyper with 8 hot-swap 2.5" NVMe/SAS/SATA bays and 3 PCIe 5.0 x16 + 1 PCIe 5.0 x16 AIOM slot

SYS-121H-TNR Main SYS-121H-TNR Angle SYS-121H-TNR Top SYS-121H-TNR Front SYS-121H-TNR Rear SYS-121H-TNR Opt1
Integrated Board: X13DEM
Learn more

Key Applications

  • Virtualization
  • Software-defined Storage
  • AI Inference and Machine Learning
  • Cloud Computing
  • Enterprise Server

Key Features

  1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors

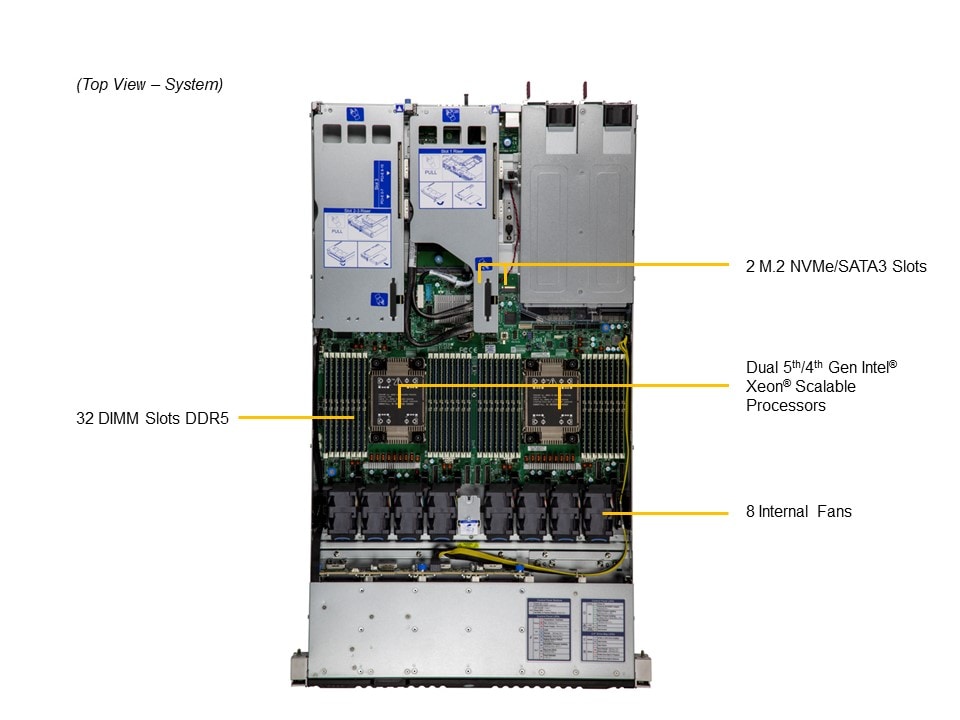

  2. 32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600
  3. 3 PCIe 5.0 x16 slots with support for GPU/Accelerator cards
  4. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)

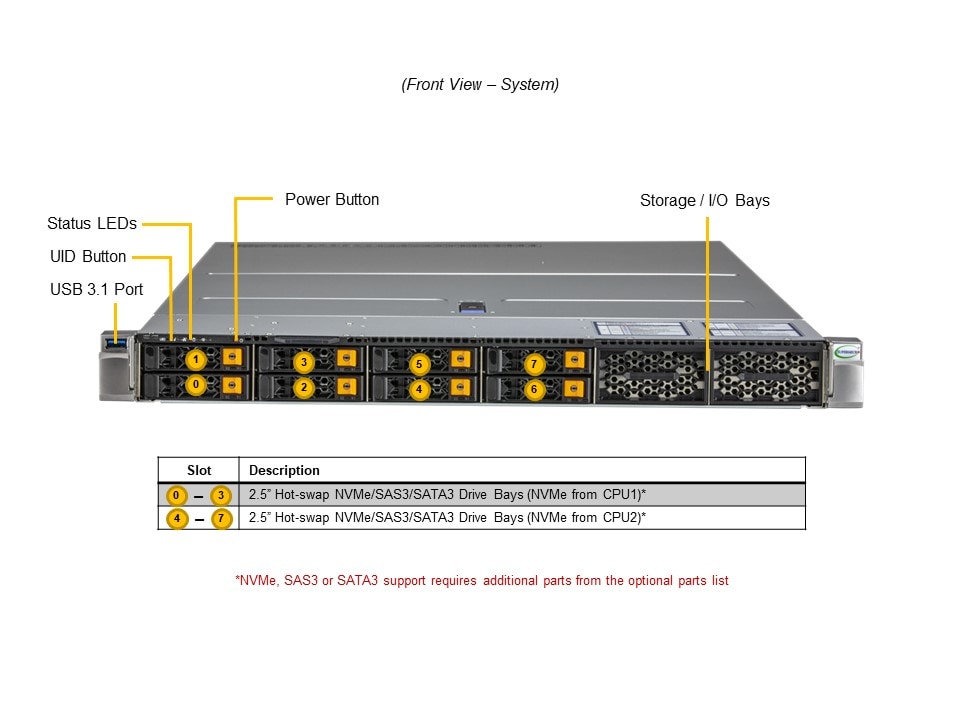

  5. 8x 2.5" hot-swap NVMe/SATA/SAS drive bays; Optional 4x 2.5" hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe/SATA drive slots; Optional RAID support via storage add-on card
  6. 8 heavy duty hot-swap fans with optimal fan speed control
...
...
SYS-121H-TNR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-121H-TNR
Motherboard
Super X13DEM
Processor
CPU
Core Count
  • Up to 64C/128T; Up to 320MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)*
  • Supports up to 350W TDP CPUs (Liquid Cooled)​
  • *Air Cooled CPUs with TDP over 250W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
  • Up to 1 double-width or 3 single-width GPUs
Supported GPU
Certification
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
Chipset
  • Intel® C741
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 2.0 ports(rear)
  • 1 USB 3.0 port(front)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 64MB SPI Flash
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-HS119-R1K24P2
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 29.4" (747 mm)
Package
  • 8.1" (H) x 23.8" (W) x 40.6" (D)
Weight
  • Gross Weight: 49 lbs (22.2 kg)
  • Net Weight: 34 lbs (15.4 kg)
Available Color
  • N/A
Front Panel
LED
  • HDD activity
  • LAN1 activity
  • Power
  • System information
Buttons
  • Power On/Off
  • UID button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 5.0 x16 FHHL slot
    • 2 PCIe 5.0 x16 FH/10.5"L slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • View AOC Options
M.2
  • 2 M.2 NVMe/SATA slots (B+M-key 2280/22110)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays
    • 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
  • Option A: Total 12 bays
    • 12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 8 counter-rotating 40x40x56mm Fan(s)
Liquid Cooling

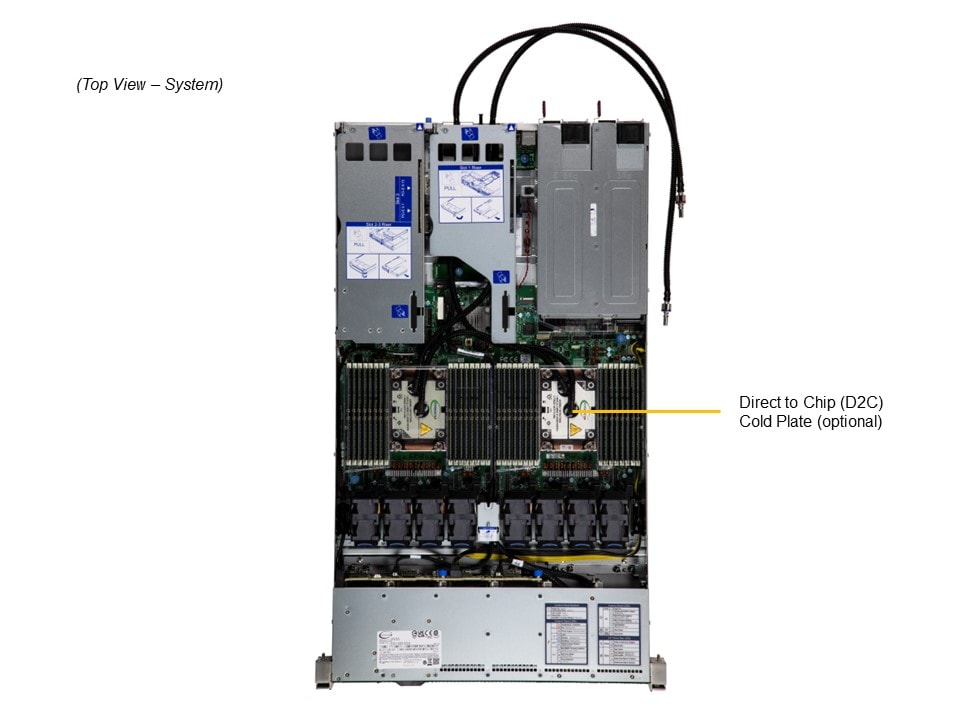

  • Direct to Chip (D2C) Cold Plate (optional)
Power Supply
2x 1200W
2x 1200W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 265 mm
AC Input800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12VMax: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SBMax: 2.1A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Environmental / Recycling
Recycle
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
Cable Management Arm + Rail Set MCP-290-00168-0N + MCP-290-11901-0N - 7.5" cable management arm + 41" long ball-bearing rail set
CacheVault for Broadcom 3916/3908 BTR-CVPM05 • + MCP-120-00092-0N 1 CacheVault Flash Cache Protection Module for Broadcom 3916/3908 RAID controller (CVPM05) + slot 2-3 riser cage mounting bracket
Drive Bay Configuration Options Refer to User's Manual - 8 & 12 drive bay configuration options for NVMe, SAS, or SATA support

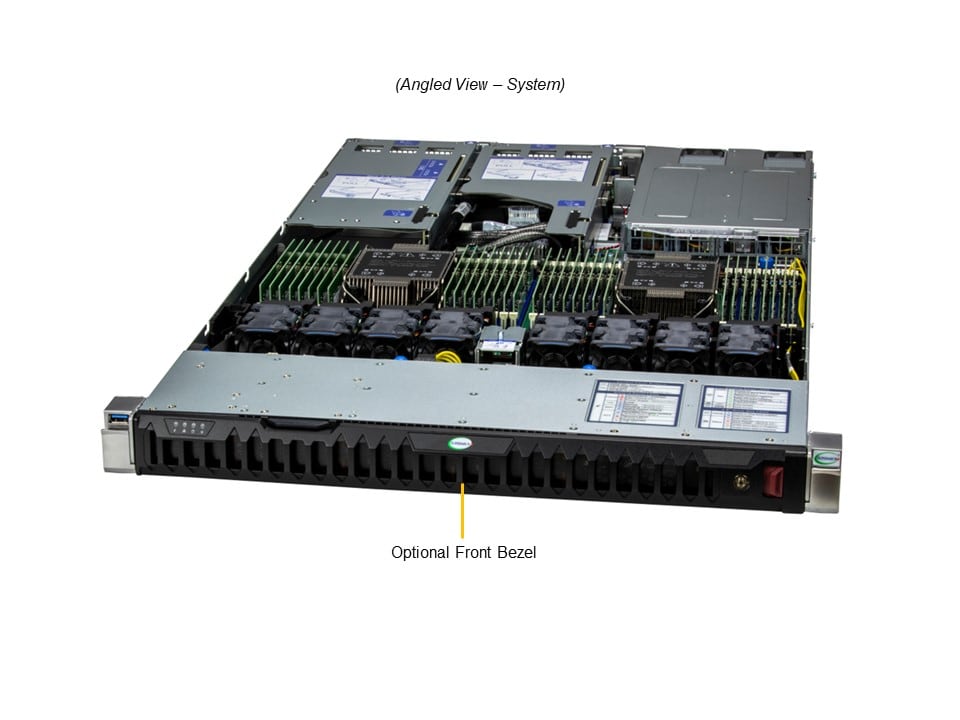

Front Bezel MCP-210-11909-0B • 1 Optional front bezel for 1U Hyper
Global Services & Support OS4HR3/2/1 - Gold Level, 3/2/1-year onsite 24x7x4 SLA
OSNBD3/2/1 - Silver Level, 3/2/1-year onsite NBD SLA
SMSAD3/2/1 - Bronze Level, 3/2/1-year 3BD SLA
Power Supply MCP-250-00025-0N - Single Power Supply Dummy Cover (W73.5mm) for 1U/2U Hyper Chassis
PWS-2K63A-1R • - 1U 2600W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C20 inlet
PWS-2K07A-1R • - 1U 1000W/2000W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C14 inlet
PWS-1K63A-1R • - 1U 1000W/1600W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C14 inlet
PWS-1K24A-1R • (included in the system) - 1U 800W/1200W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C14 inlet
Rail Set MCP-290-21103-0N 1 21.65" ball-bearing rail set for Hyper servers
MCP-290-11903-0N • (included in the system ) 1 30.5" ball-bearing rail set for Hyper servers
MCP-290-11902-0N 1 35.25" ball-bearing rail set for Hyper servers
MCP-290-11901-0N 1 41" ball-bearing rail set for Hyper servers
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Trusted Platform Module Options AOM-TPM-9672V-FIPS-O 1 AOM-TPM-9672V-FIPS TPM 2.0 support FIPS
AOM-TPM-9672V-O • 1 SPI capable vertical TPM 2.0

Hyper SuperServer SYS-121H-TNR (Complete System Only )

Certain products may not be available in your region
