SuperServer SYS-122H-TN (Complete System Only)

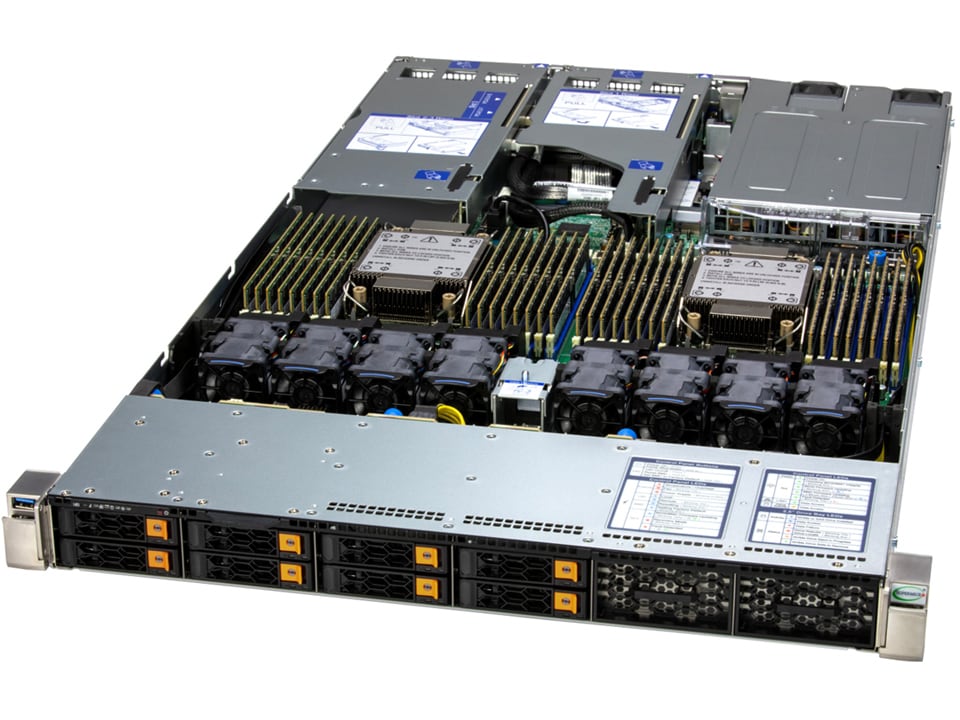

1U Hyper with 8 hot-swap 2.5" NVMe/SAS/SATA bays and 3 PCIe 5.0 x16 + 1 PCIe 5.0 x16 AIOM slot

SYS-122H-TN Main SYS-122H-TN Angle SYS-122H-TN Top SYS-122H-TN Front SYS-122H-TN Rear SYS-122H-TN Opt
Integrated Board: X14DBM-SP
Learn more

Key Applications

  • Virtualization
  • Software-defined Storage
  • High Performance Computing
  • Cloud Computing
  • Enterprise Server

Key Features

  1. Dual Intel® Xeon® 6 6700 series processors with E-cores
  2. 32 DIMM slots supporting up to 4TB of memory
  3. 3 PCIe 5.0 x16 slots with support for Network/Storage/GPU/Accelerator cards
  4. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
  5. 8x 2.5" hot-swap NVMe/SATA/SAS drive bays; Optional 4x 2.5" hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe drive slots; Optional RAID support via storage add-on card
...
...
SYS-122H-TN
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-122H-TN
Motherboard
Super X14DBM-SP
Processor
CPU
Core Count
  • Up to 144C/144T; Up to 108MB Cache per CPU
Note
  • Supports up to 330W TDP CPUs (Air Cooled)*
  • Supports up to 330W TDP CPUs (Liquid Cooled)​
  • *Air Cooled CPUs with TDP over 250W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
  • Up to 1 double-width or 3 single-width GPUs
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM
  • View Memory Options
On-Board Devices
NVMe
Chipset
  • System on Chip
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
  • 1 USB 3.0 port(front)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 64MB SPI Flash
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-HS119-R000NP2
Dimensions and Weight
Height
  • 1.71" (43.6 mm)
Width
  • 17.3" (438.4 mm)
Depth
  • 29.27" (743.38 mm)
Package
  • 7.99" (H) x 23.82" (W) x 27.4" (D)
Weight
  • Gross Weight: 41 lbs (18.6 kg)
  • Net Weight: 18.7 lbs (8.5 kg)
Available Color
  • Silver
Front Panel
LED
  • HDD activity
  • LAN1 activity
  • Power
  • System information
Buttons
  • Power On/Off
  • UID button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default

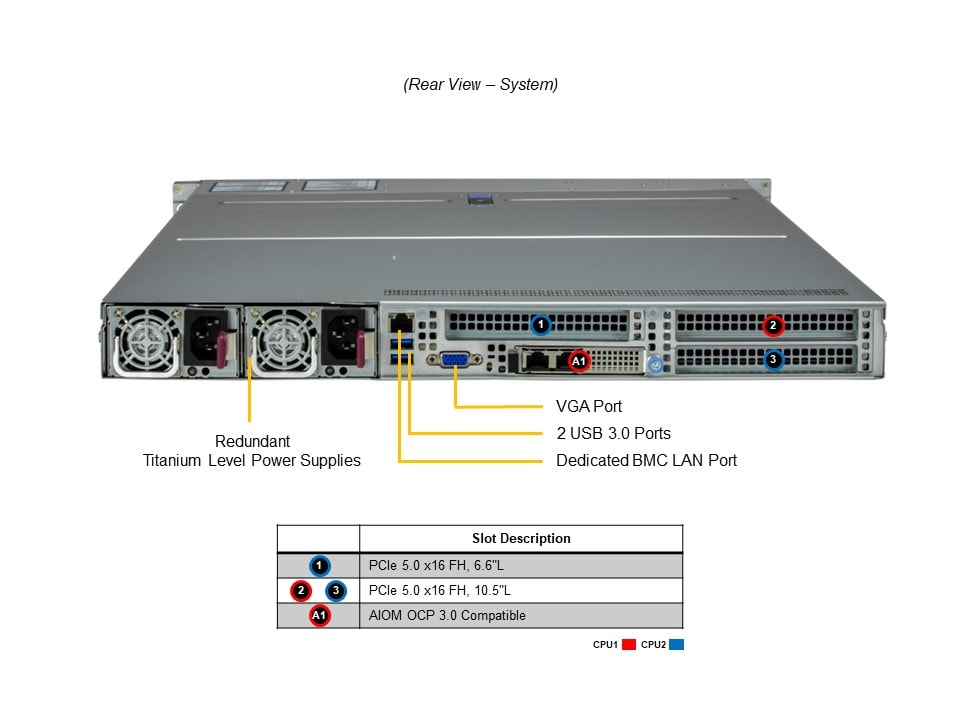

    • 1 PCIe 5.0 x16 FHHL slot
    • 2 PCIe 5.0 x16 FH/10.5"L slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration

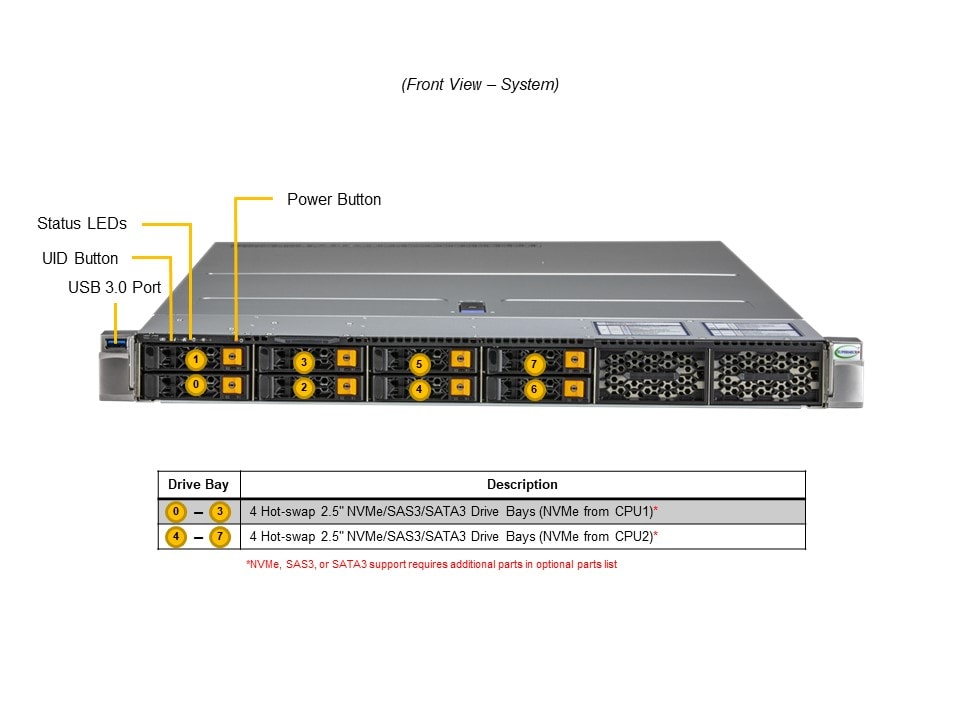

  • Default: Total 8 bays

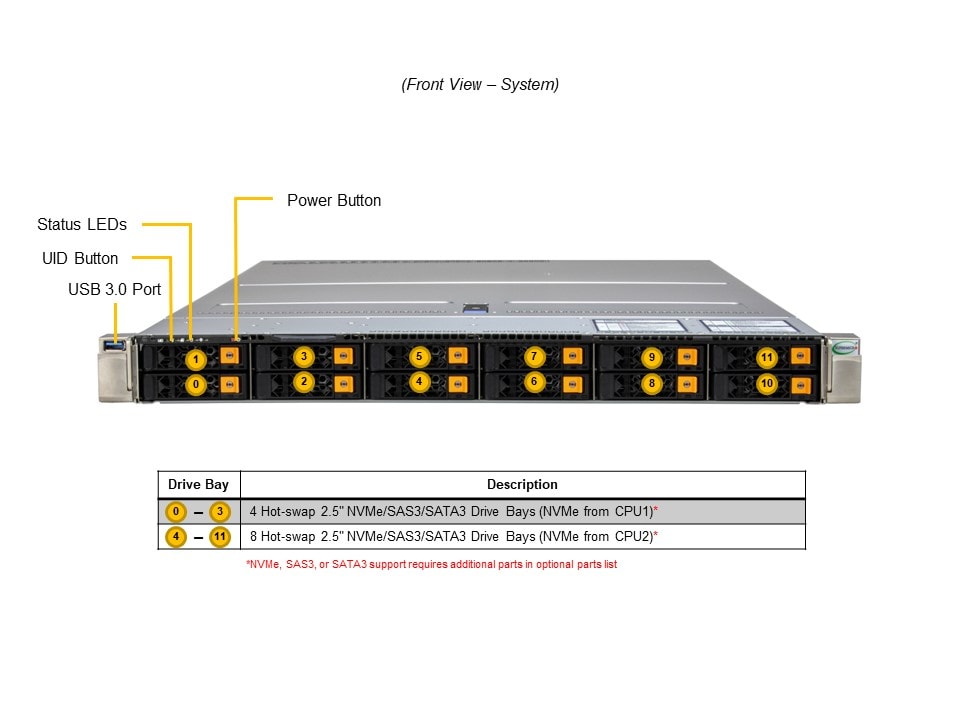

    • 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
  • Option A: Total 12 bays
    • 12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 8 counter-rotating 40x40x56mm Fan(s)
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate (optional)
Power Supply
2x 1200W
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 265 mm
AC Input800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12VMax: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SBMax: 2.1A / Min: 0A
Output TypeBackplanes (gold finger)
2x 2000W
2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 265 mm
AC Input1000W: 100-120Vac / 50-60Hz
100-127Vac
1800W: 200-220Vac / 50-60Hz
200-240Vac
2000W: 200-240Vac / 50-60Hz (for UL/cUL only)
1980W: 220-230Vac / 50-60Hz
2000W: 230-240Vdc
2000W: 230-240Vac / 50-60Hz
+12VMax: 83.3A / Min: 0A (100Vac-120Vac)
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 166.7A / Min: 0A (200Vac-240Vac)
Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166.7A / Min: 0A (230Vac-240Vac)
12V SBMax: 2.1A / Min: 0A
Output TypeBackplanes (gold finger)
2x 1600W
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 265 mm
AC Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12VMax: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SBMax: 3.5A / Min: 0A
Max: 3.5A
Output TypeBackplanes (gold finger)
2x 2600W
2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 265 mm
AC Input2600W: 200-240Vac
2600W: 200-240Vdc (For CQC Only)
2600W: 200-240Vac / 50-60Hz
2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12VMax: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)
Max: 216A / Min: 0A (200Vac-240Vac)
12V SBMax: 3.5A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
Cable Management Arm + Rail Set MCP-290-00168-0N + MCP-290-11901-0N - 7.5" cable management arm + 41" long ball-bearing rail set
Drive Bay Configuration Options Refer to User's Manual - 8 & 12 drive bay configuration options for NVMe, SAS, or SATA support
Front Bezel MCP-210-11909-0B • 1 Optional front bezel for 1U Hyper
Global Services & Support OS4HR3/2/1 - Gold Level, 3/2/1-year onsite 24x7x4 SLA
SMSAD3/2/1 - Bronze Level, 3/2/1-year 3BD SLA
OSNBD3/2/1 - Silver Level, 3/2/1-year onsite NBD SLA
Power Supply Options & Accessories PWS-1K24A-1R • - 1U 800W/1200W redundant power supply 90-264Vac
PWS-1K63A-1R • - 1U 1000W/1600W redundant power supply 90-264Vac
PWS-2K07A-1R • - 1U 2000W redundant power supply 90-264Vac
PWS-2K63A-1R • - 1U 2600W redundant power supply 220-264Vac, C19 plug
MCP-250-00025-0N - Power supply slot cover for Hyper systems
CBL-PWCD-0376-IS • - PWCD,US,IEC60320 C19 TO C20,940mm (3ft),14AWG,15A,250V,Black
CBL-PWCD-0578-1 • - PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
Rail Set MCP-290-11901-0N 1 41" ball-bearing rail set for Hyper servers
MCP-290-11902-0N 1 35.25" ball-bearing rail set for Hyper servers
MCP-290-11903-0N • (included in the system ) 1 30.5" ball-bearing rail set for Hyper servers
MCP-290-21103-0N 1 21.65" ball-bearing rail set for Hyper servers
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Trusted Platform Module Options AOM-TPM-9672V-FIPS-O 1 AOM-TPM-9672V-FIPS TPM 2.0 support FIPS
AOM-TPM-9672V-O • 1 SPI capable vertical TPM 2.0

Hyper SuperServer SYS-122H-TN (Complete System Only ) New
