SuperServer 2029U-MTNRV-NEBS-DC (Complete System Only)

  Products  Systems   Ultra   [ 2029U-MTNRV-NEBS-DC ]




Integrated Board
Super X11DPU-V

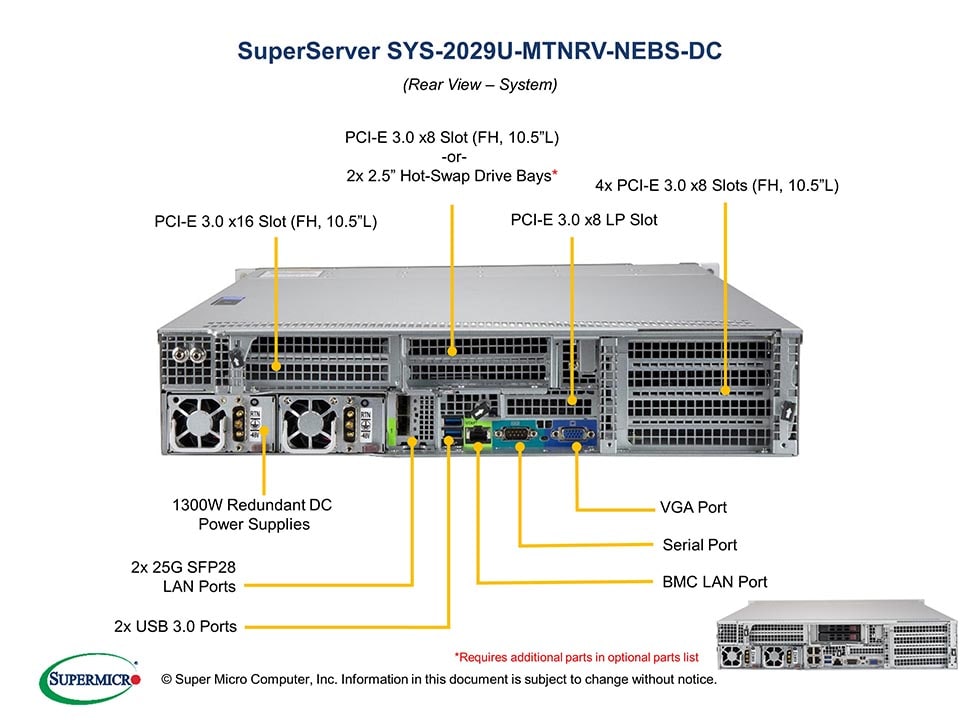

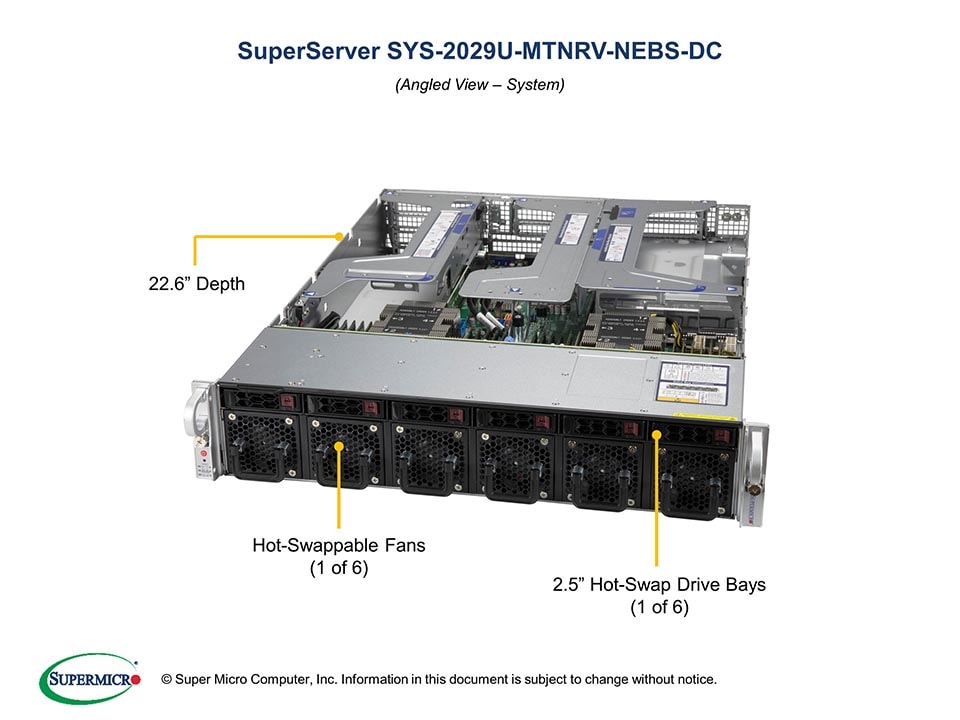

Views: | Angled View 1 | Angled View 2 | Top View |
| Front View | Rear View |
" class="video-embed-field-launch-modal">



Key Applications
NEBS Level 3 - Telecom Central Office and Data Center
- 5G Core and Edge Computing
- AI Inference and Machine Learning
- Network Functions Virtualization
- Cloud Computing

Key Features
1. NEBS Level 3 Certified
2. Dual Socket P (LGA 3647):
    Intel® Xeon® Gold 6240R
3. 24 DIMMs; up to 1.5TB 3DS ECC
    DDR4-2933MHz† RDIMM
4. Up to 8 PCI-E Add-on Cards
5. Flexible LAN options
6. 6 Hot-swap 2.5" drive bays
    6 NVMe/SATA ports (NVMe
    from CPU1) or 6 SATA ports
7. 6 Hot-swap Heavy duty 6cm PWM fans
8. Redundant Power Supplies
    1300W DC Power Supplies
9. GPU Support (Optional)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs, 1 NIC adapter*). *NIC adapter requirement includes 1 Ultra Riser card.

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals

Product SKUs
SYS-2029U-MTNRV-NEBS-DC
  • SuperServer 2029U-MTNRV-NEBS-DC

Motherboard

Super X11DPU-V

Processor
CPU
  • Dual Socket P (LGA 3647)
  • Intel® Xeon® Gold 6240R Processors (2.4GHZ) integrated for Complete System, CPU TDP 165W
Cores
  • 24 Cores

System Memory
Memory Capacity
  • 24 DIMM slots
  • Up to 1.5TB 3DS ECC DDR4-2933MHz† RDIMM
Memory Type
  • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM
  • 2666 ECC DDR4 NVDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Connectivity
  • Flexible Networking options
Graphics
  • ASPEED AST2500 BMC

Input / Output
SATA
  • 6 SATA3 (6Gbps) ports
LAN
  • Flexible LAN options
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA Connector
Serial Header
  • 1 Serial header
DOM
  • 2 SuperDOM (Disk on Module) ports

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM

Management
Software
Power Configurations
  • ACPI Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Short Depth Rackmount
Model
  • CSE-219ULTS-R1K30P-NEBS

Dimensions and Weight
Width
  • 17.2" (432mm)
Height
  • 3.5" (89mm)
Depth
  • 22.6" (574mm)
Weight
  • Net Weight: 35 lbs (16 kg)
  • Gross Weight: 56.5 lbs (25.6 kg)
Available Colors
  • Silver

Front Panel
Front Bezel
  • 2U Front Bezel
  • Replaceable UL900-2004 certified air filter
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • System information (overheat/UID) LED

Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 (FH, 10.5"L)
  • 4 PCI-E 3.0 x8 (FH, 10.5"L)
  • 1 PCI-E 3.0 x8 (LP)
  • 1 PCI-E 3.0 x8 (int)


    • (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays / Storage
Hot-swap
  • 6 Hot-swap 2.5" drive bays, 6 NVMe/SATA ports (NVMe from CPU1) or 6 SATA ports; Optional SAS support via SAS storage controller

    Note: SAS3 or NVMe support requires additional optional parts
M.2
  • 1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110) or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional parts
  • 2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2

System Cooling
Fans
  • 6 Hot-swap Heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Set of Air Shroud

-48Vdc Input Redundant Power Supplies
1300W DC48V Redundant Power Supplies
Total Output Power
  • 1300W: -44Vdc to -65Vdc
Dimension
(W x H x L)
  • 73.5 x 40 x 265 mm
+12V
  • Max: 108.3A / Min: 0A (-44 to -65Vdc)
+12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 pair Gold Finger

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       Continuous: 5°C ~ 40°C (41°F ~ 104°F)
       Short term: -5°C ~ 55°C (23°F ~ 131°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       5% to 85% with excursion of
       5% to 93% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List
NEBS Tested Parts List
  Part Number Qty Description
CPU P4X-CLX6240R-SRGZ8 2 CLX 6240R 2P 24C/48T 2.4G 35.75M 10.4GT 165W 3647 B1
Memory MEM-DR464L-CL01-ER29
MEM-DR464L-HL02-ER29
MEM-DR432L-HL01-ER29
MEM-DR432L-SL01-ER29
MEM-DR432L-CL01-ER29
MEM-DR416L-CL01-ER29
MEM-DR416L-HL04-ER29 		2
2
2
4
2
6
6 		Micron 64GB DDR4-2933 2RX4 (16Gb) LP ECC RDIMM
Hynix 64GB DDR4-2933 2Rx4 (16Gb) ECC RDIMM
Hynix DDR4 1.2V 2933 ECC REG, 32GB DIMM
Samsung DDR4 1.2V 2933 ECC REG, 32GB DIMM
Micron DDR4 1.2V 2933 ECC REG, 32GB DIMM
16GB DDR4-2933 2RX8 LP ECC RDIMM
16GB DDR4-2933 2Rx8 ECC REG DIMM
Hard Drives HDS-SUN1-MZQLB7T6HMLA07
HDS-IUN0-SSDPE2KE076T8
HDS-MUN-MTFDHAL7T6TDP1AT
HDS-I2T0-SSDSC2KG076T8
HDS-S2T1-MZ7LH3T8HMLT05
HDS-M2T-MTFDDAK7T6TDS1AW 		1 Samsung PM983 7.68TB NVMePCIe3x4 V4TLC 2.5"7mm(1.3 DWPD)
Intel DC P4610 7.6TB NVMe PCIe3.1 3D TLC 2.5" 3DWPD Rev.1
Micron 9300 PRO 7.6TB NVMe PCIe 3.0 3D TLC U.2 15mm
Intel D3-S4610 7.68TB SATA6Gb/s3DTLC 2.5"7mm 3DWPD Rev.2
Samsung PM883 3.84TB SATA 6Gb/s V4 TLC 2.5" 7mm (1.3 DWPD)
Micron 5300 PRO 7.68TB,SATA,2.5",3D TLC,0.6DWPD
GPUs GPU-NVTT4
GPU-NVTV100S-32
GPU-FPGA-INNVVN3000-3 		1 NVIDIA Tesla T4 16GB GDDR6 PCIe 3.0 – Passive Cooling 70
Tesla V100S 32
Intel N3000-N FPGA
Add on Cards AOC-S3108L-H8iR-16DD
AOC-STG-I2T
AOC-2UR68-m2TS-P
AOC-SLG3-2E4R
AOM-TPM-9670H-S
AOC-2UR66-I4G
AOC-2UR66-I4XTF
AOC-S100G-M2C-O 		1 Boardcom 3108L SAS controller
Intel® X540 2-port RJ45 10GbE Gen3 x8 Standard Low profile
2U Ultra 2-port 25G SFP28, 1x PCI-E 3.0 x8 (internal)
LP, PCIe3 x8, 2 internal Mini-SAS HD port redriver NVMe card
TCG 2.0 compliant trusted platform module (TPM), Horizontal FF
2U Ultra Riser with 4 GbE ports and 2 PCI-E x16 3.0, Intel i350
2U Ultra Riser 4-port 10GBase-T, Intel XL710-BM1 and X557-AT4
Standard low-profile adapter card based on Mellanox ConnectX-4 chipset; two QSFP28 100Gpbs Ethernet ports, PCI-E 3.0 x16 host interface,RoHS
NVMe PCI-E HDS-MMN-MTFDHBA256TCK1AS 1 Micron 2200 256GB NVMe PCIe3.0x4 TLC M.2 22x80mm
Fan FAN-0214L4 6 60x60x56 mm, Counter-rotating Cooling Fan for 2U Ultra Short Depth Series Servers
Power Supplies PWS-1K30D-1R 2 1U 1300W -48Vdc single output power supply gold Level, Redundant
Hide Parts List
