SuperServer SYS-210GP-DNR (Complete System Only)

2U 2-Node System with UP Intel and Up to 3 GPUs per Node

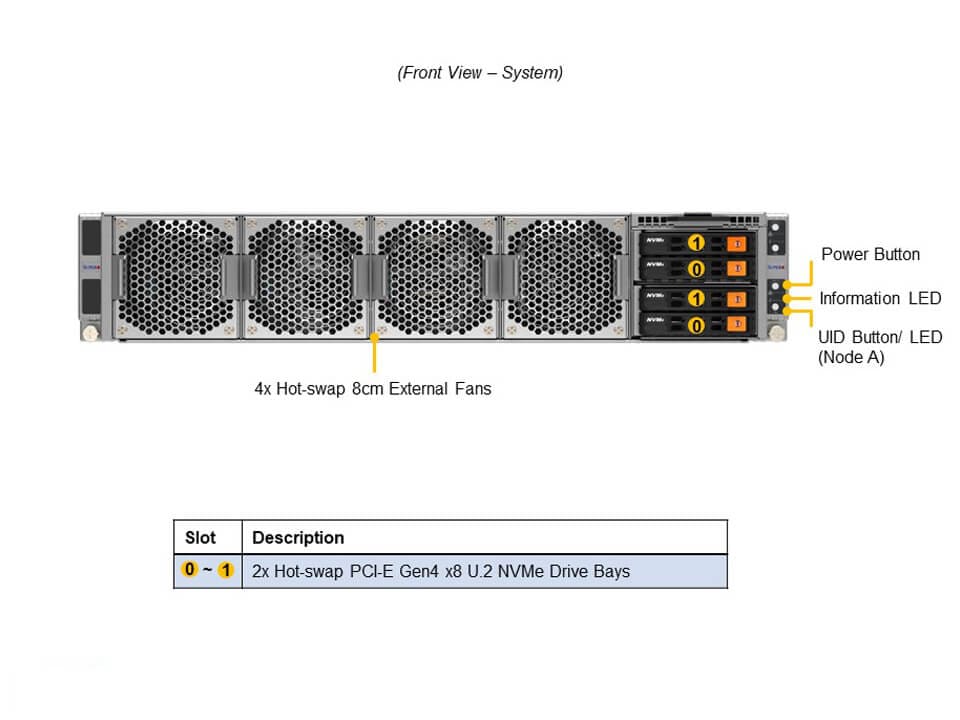

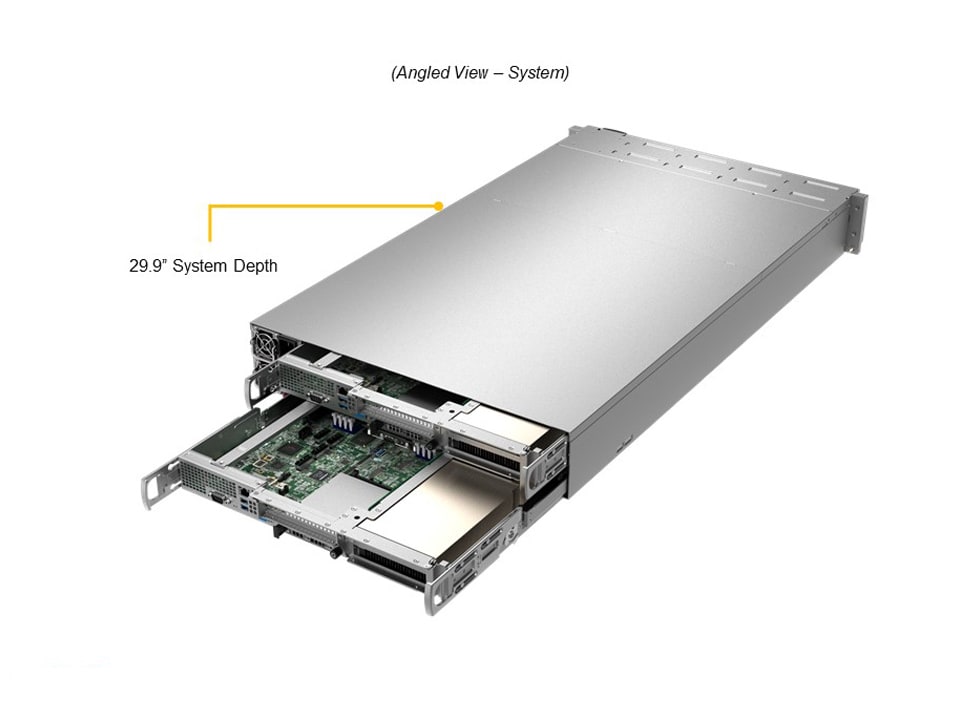

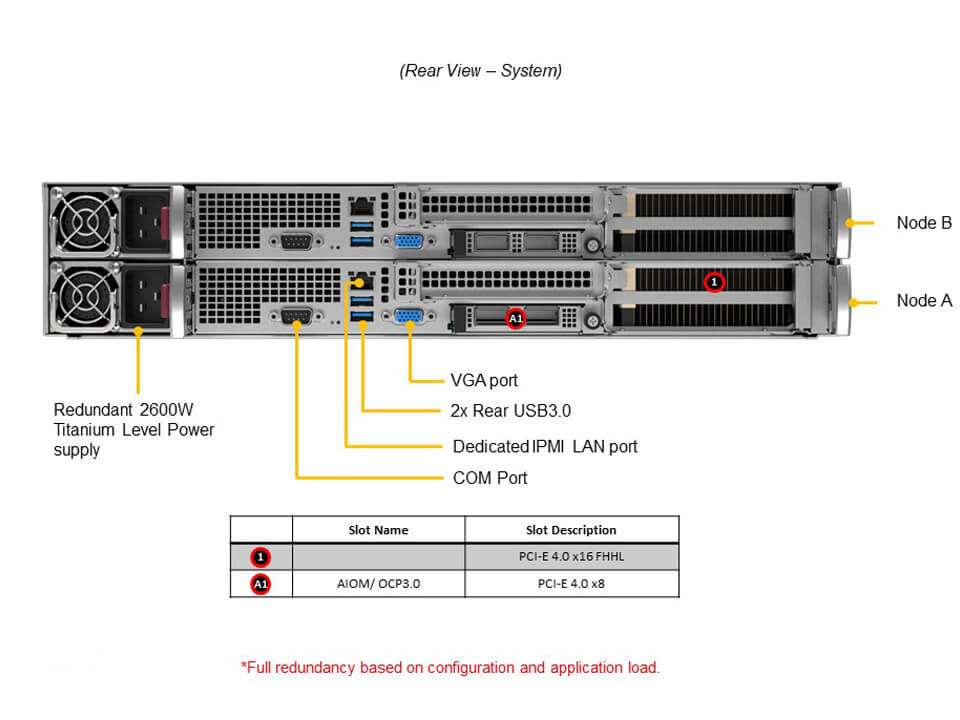

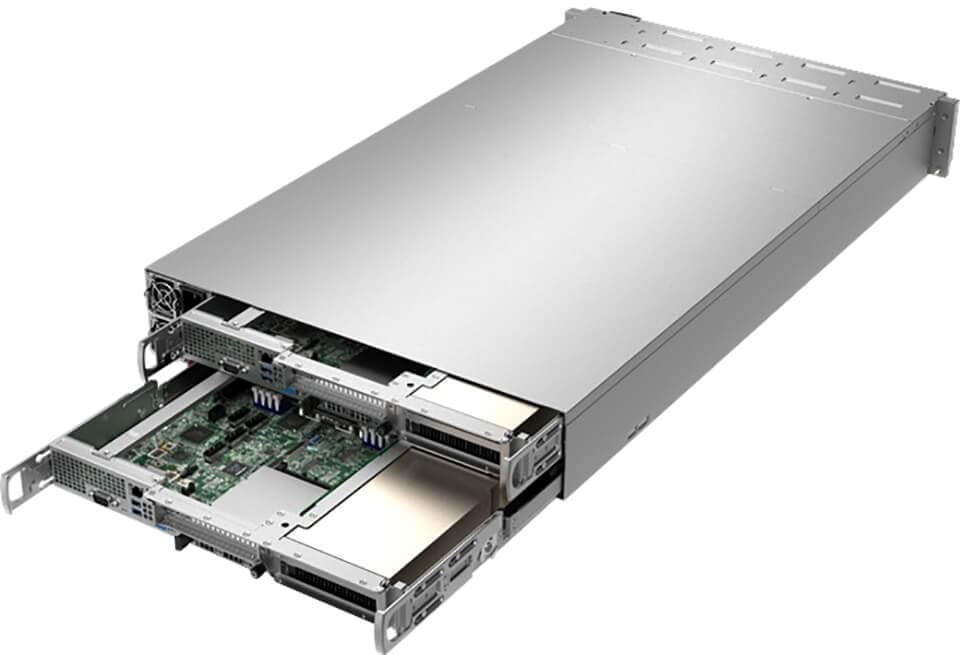

SYS-210GP-DNR Main SYS-210GP-DNR Angle SYS-210GP-DNR Front SYS-210GP-DNR Rear
Integrated Board: X12SPG-NF
Learn more

Key Applications

  • High Performance Computing
  • AI/Deep Learning Training
  • Media/Video Streaming
  • Industrial Automation, Retail
  • Cloud Gaming

Key Features

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

  1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processor
  2. Intel® C621A Chipset
  3. 1TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
  4. 3 PCIe Gen 4.0 x16 FHFL DW
  5. 2 front Hot-swap 2.5" U.2 NVMe Gen4 drive bays
    2 M.2 NVMe and SATA for boot drive only
  6. AST2500 BMC
...
...
SYS-210GP-DNR
Specifications Resources & Downloads
Specifications
Product SKUs
SuperServer SYS-210GP-DNR
Motherboard
Super X12SPG-NF
Processor (per Node)
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU (per Node)
Max GPU Count
  • Up to 3 double-width or 3 single-width GPUs
Supported GPU
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
Certification
System Memory (per Node)
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (2DPC): Up to 1TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices (per Node)
Chipset
  • Intel® C621A
Network Connectivity
Input / Output (per Node)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 +1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-227GTS-R2K63P
Dimensions and Weight
Height
  • 3.47" (88 mm)
Width
  • 17.6" (447 mm)
Depth
  • 29.9" (760 mm)
Package
  • 9.44" (H) x 23.62" (W) x 43.3" (D)
Weight
  • Gross Weight: 60 lbs (27.21 kg)
  • Net Weight: 55 lbs (24.94 kg)
Available Color
  • Black Front & Silver Body
Front Panel
LED
  • Hard drive activity LED
  • Information LED as manual description
  • Network activity LEDs
  • Power status LED
Buttons
  • Power On/Off button
  • System UID button/LED
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
Drive Bays / Storage (per Node)
Drive Bays Configuration
M.2
System Cooling
Fans
  • 4 Removable heavy-duty Fan(s)
Power Supply
1x 2600W
1x 2600W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)73.5 x 40 x 265 mm
AC Input2600W: 200-240Vac
2600W: 200-240Vdc (For CQC Only)
2600W: 200-240Vac / 50-60Hz
2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12VMax: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)
Max: 216A / Min: 0A (200Vac-240Vac)
12V SBMax: 3.5A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
