SuperServer SYS-211E-FRDN2T

X13 2U Short-depth front I/O System with 2 x 10G ports, 2x 2.5" NVMe drive bays and redundant DC PSU

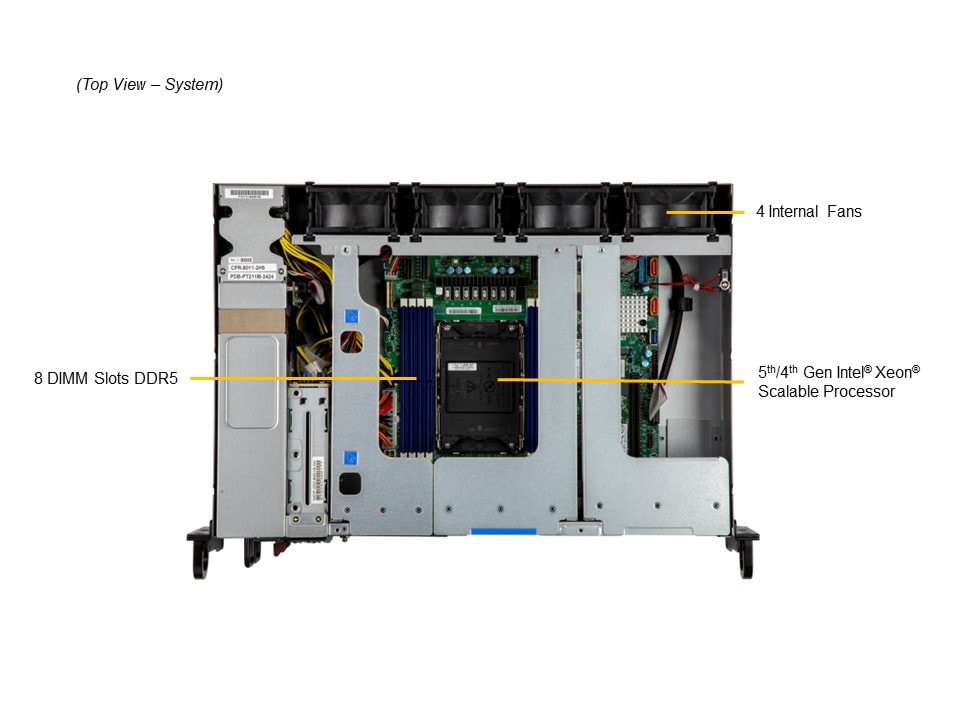

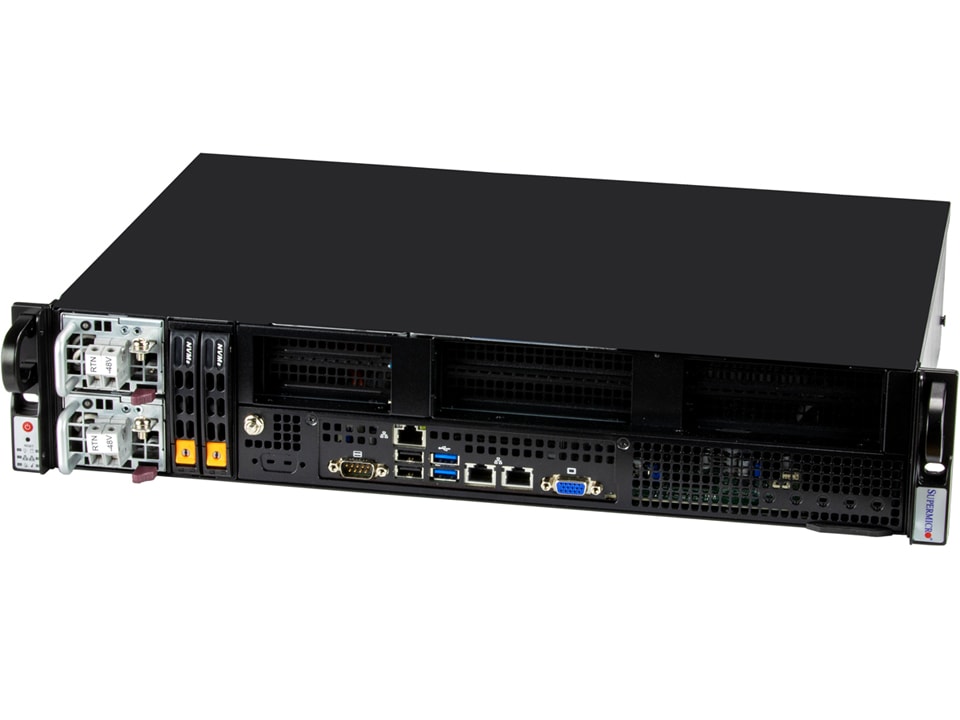

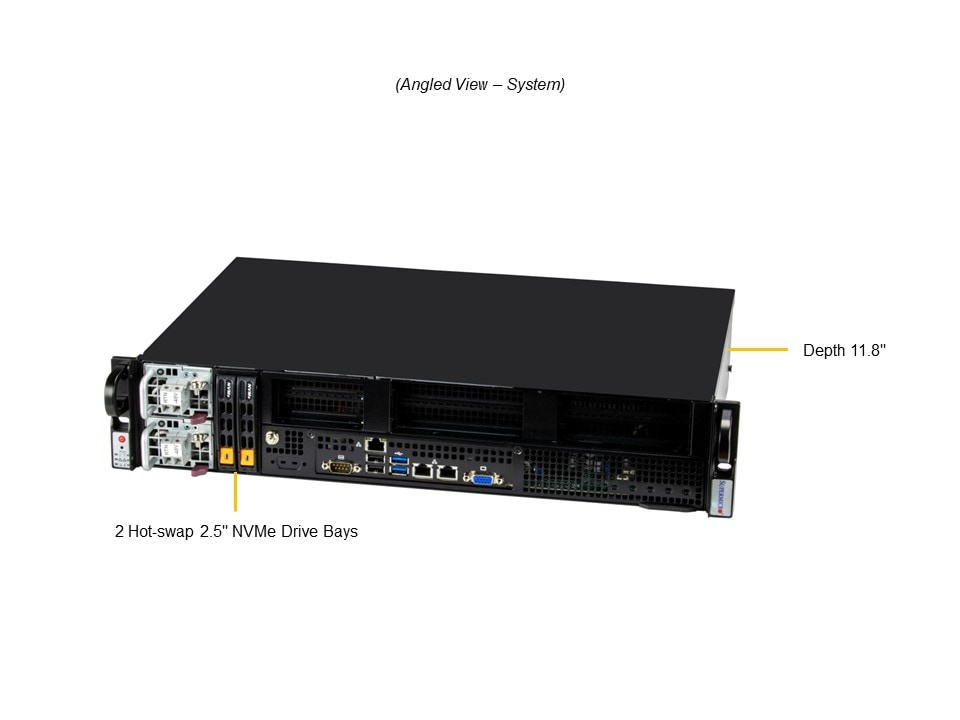

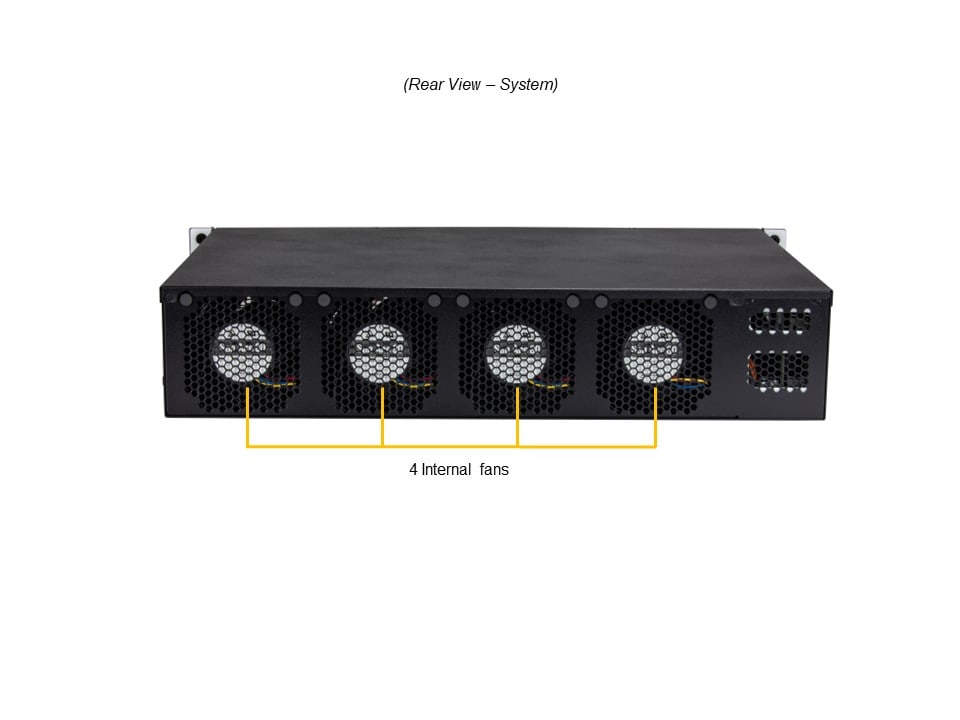

SYS-211E-FRDN2T Main SYS-211E-FRDN2T Angle SYS-211E-FRDN2T Top SYS-211E-FRDN2T Front SYS-211E-FRDN2T Rear
Integrated Board: X13SEM-TF
Learn more

Key Applications

  • 5G Core and Edge
  • AI Inference and Machine Learning
  • Network Function Virtualization
  • Cloud Computing

Key Features

  1. Design with compliance to NEBS-Level 3
  2. Single Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
  3. 8 DIMM slots; Up to 2TB 3DS ECC DDR5-5600; R-DIMM/R-DIMM 3DS
  4. Up to 3 PCIe 5.0 x16 FHHL, 1 PCIe 5.0 X16 HHHL & 1 PCIe 5.0 x8 FHHL expansion slots for Accelerator Add-On-Cards
    Up to 6 Configurable PCIe 5.0 slots (4 standard + 2 optional)
  5. Onboard 2x 10GbE ports
  6. 2x 2.5" NVMe drive bays
  7. Redundant 600W DC -48V Power Supplies
  8. Ultra short depth, 2U Front I/O Edge Server
...
...
SYS-211E-FRDN2T
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-211E-FRDN2T
Motherboard
Super X13SEM-TF
Processor
CPU
Core Count
  • Up to 60C/120T; Up to 112.5MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
  • Up to 3 single-width GPUs
Supported GPU
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (2DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
NVMe
Chipset
  • Intel® C741
Network Connectivity
  • 2 QSFP28 25GbE with Intel® XXV710 (optional)
  • 2 QSFP+ 40GbE with Intel® X710-BM2 (optional)
  • 4 RJ45 1GbE with Intel® I350 (optional)
  • 2 QSFP28 100GbE with Intel® E810-CAM2 (optional)
  • 2 RJ45 10GBASE-T with Intel® X550
  • 2 SFP+ 10GbE with Intel® X710-BM2 (optional)
  • 2 QSFP56 100GbE (optional)
  • 4 QSFP28 25GbE with Intel® E810-CAM1 (optional)
  • 2 QSFP56 200GbE (optional)
  • View AOC Options
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GbE LAN ports (Intel® X550-AT2)
USB
  • 2 USB 2.0 ports(front)
  • 2 USB 3.2 Gen1 ports(front)
Video
  • 1 VGA port
Serial
  • 1 port
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support, PEPI
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-211M
Dimensions and Weight
Height
  • 3.5" (88.9 mm)
Width
  • 17.2" (436.88 mm)
Depth
  • 11.8" (298.8 mm)
Package
  • 7.4" (H) x 19.3" (W) x 23.3" (D)
Weight
  • Gross Weight: 22 lbs (10 kg)
  • Net Weight: 17 lbs (7.7 kg)
Available Color
  • Silver/Black
Front Panel
LED
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • UID button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 5.0 x16 FHHL slots
    • 1 PCIe 5.0 x16 HHHL slot
    • 1 PCIe 5.0 x8 HHHL slot
  • Option A*
    • 3 PCIe 5.0 x16 FHHL slots
    • 1 PCIe 5.0 x16 HHHL slot
    • 1 PCIe 5.0 x8 FHHL slot
  • Option B*
    • 3 PCIe 5.0 x16 FHHL slots
    • 2 PCIe 5.0 x8 HHHL slots
    • 1 PCIe 5.0 x8 HHHL slot

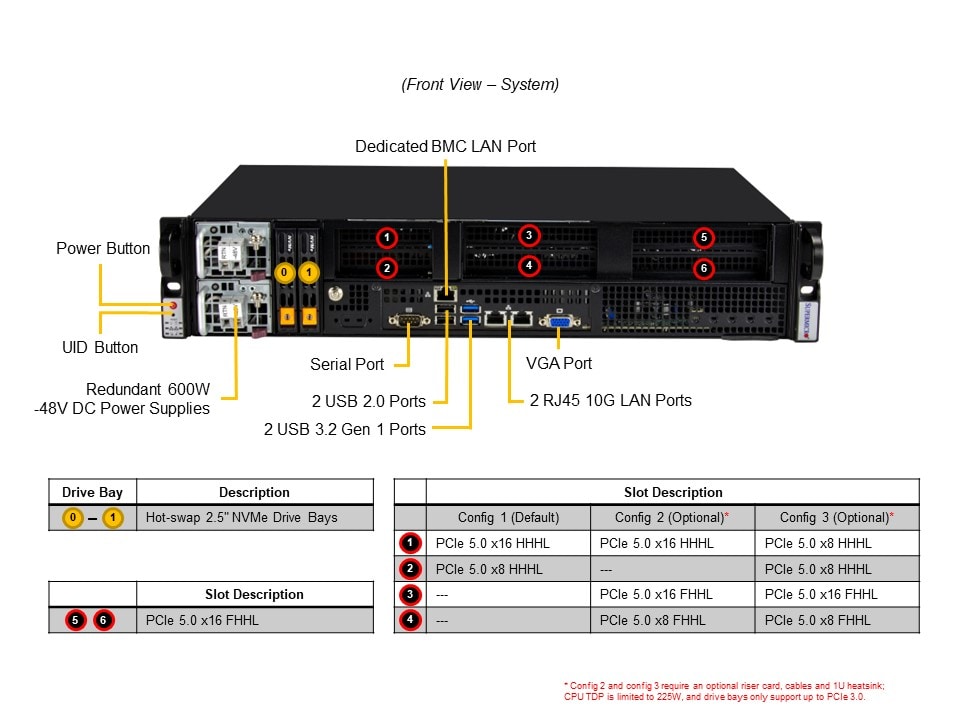

  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
  • View AOC Options
Drive Bays / Storage
M.2
Drive Bays Configuration
System Cooling
Fans
  • 4x 4-PIN PWM 8cm Fan(s)
Power Supply
2x 600W
2x 600W Redundant Typical 90%+ Level (96%) power supplies
Dimension (WxHxL)54.5 x 40 x 220 mm
Total Output Power
AC Input600W: -44--65Vdc / 50-60Hz
+12VMax: 50A / Min: 0A
Max: 50A
5V SBMax: 3A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 0°C ~ 45°C (32°F ~ 113°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13SEM-TF

CSE-211M 		1

1 		Super X13SEM-TF Motherboard

2U Chassis
Backplane BPN-NVME5-826N-B2B 1 2-Port PCIe Gen 5 U.2 NVMe SSD Storage Backplane
Cable CBL-MCIO-1230M5 1 MCIO x8 (STR to STR),30CM,85OHM,RoHS
CBL-PCBA-G5T16-0809 1 [NR] 2 PCIe Gen5 x16+pwr 08/09cm,30AWG,85 Ohm,RoHS
CBL-PWCD-0974 2 48VDC input power cable, 2M, 12AWG, 3 wires, RoHS/REACH,RoHS
CBL-MCIO-1218M5 OR 1 MCIO x8 (STR to STR),18CM,85OHM,RoHS
CBL-MCIO-1218M5-1 MCIO x8 (STR to STR),18CM,85OHM,RoHS
CBL-MCIO-1218M5R OR 1 MCIO (x8 STR to x8 RA),18CM,85OHM,RoHS
CBL-MCIO-1218M5R-1 MCIO x8 (STR to RA),18CM,85OHM,RoHS
CBL-MCIO-1230M5R OR 1 MCIO x8 (STR to RA),30CM,85OHM,RoHS
CBL-MCIO-1230M5R-1 [NR] MCIO x8 (STR to RA),30CM,85OHM,RoHS
CBL-CDAT-1058 1 [NR] NCSI 2x8 to 2x8, Ph2.54, 60cm shielded,28AWG, RoHS,RoHS
Drive Tray(s) MCP-220-00167-0B 2 Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS
MCP-220-00147-0B 2 Black gen-3 hot-swap 2.5"; Tool-less HDD tray (clip design)
Parts MCP-260-21102-0B 1 1U height IO shield for X13SEM-F/TF MBD, with gasket, bl
Air Shroud MCP-310-21105-0B 1 Mylar air shroud for 211M w/ X13SEM-TF
Manual MNL-2519-QRG 1 211E-FRDN2T/FRN2T Quick Reference Guide
Power Distributor PDB-PT211M-3424 1 2U support redundancy powers up to 800W for SC211M with 2 Mi
Power Supply PWS-601S-1R 2 1U 600W Redundant DC48V input w/PMBus power supply, W54.5xH4
Riser Card RSC-S-68G5 1 1U LHS Standard riser card with one PCIe 5.0X16andonePC
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0088P 1 2U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems
*Fan FAN-0220L4 4 80x80x38 mm, 14.9K RPM Exhaust Fan for SYS-120P-FRDN6T Serve
*Front Panel FPB-TB826 1 16 pin Cable Adaptor Board for SC826
*Rail Set MCP-290-21106-0N 1 1U height sliding rail for SC211M chassis
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
