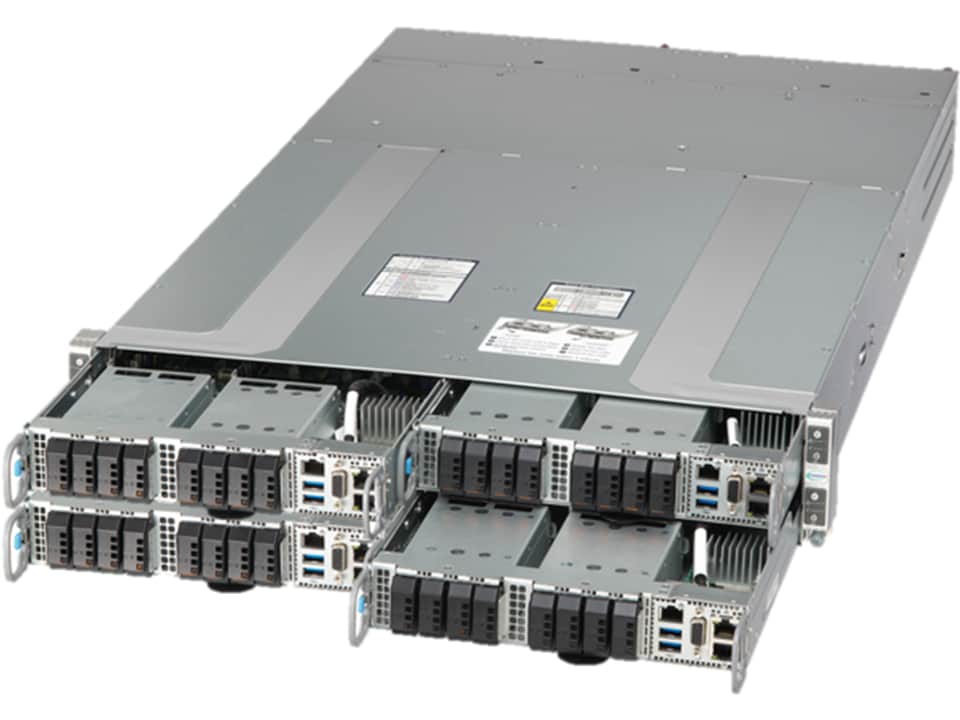

SuperServer SYS-212GT-HNF (Complete System Only)

2U 4-Node GrandTwin with up to 8 hot-swap E1.S NVMe drives per node and Front I/O

SYS-212GT-HNF Main SYS-212GT-HNF Angle SYS-212GT-HNF Node SYS-212GT-HNF Front SYS-212GT-HNF Rear SYS-212GT-HNF Opt1 SYS-212GT-HNF Opt2
Integrated Board: X14SBT-G
Learn more

Key Applications

  • Enterprise Applications
  • Scale-Out Object Storage
  • Cloud Computing, Compact Server
  • Web/Hosting Application
  • Cloud Gaming
  • MEC (Multi-Access Edge Computing)
  • Multi-Purpose CDN
  • Telco Edge Cloud
  • Mission Critical Web Applications
  • IoT Edge Computing / Gateway
  • Edge AI Inferencing

Key Features

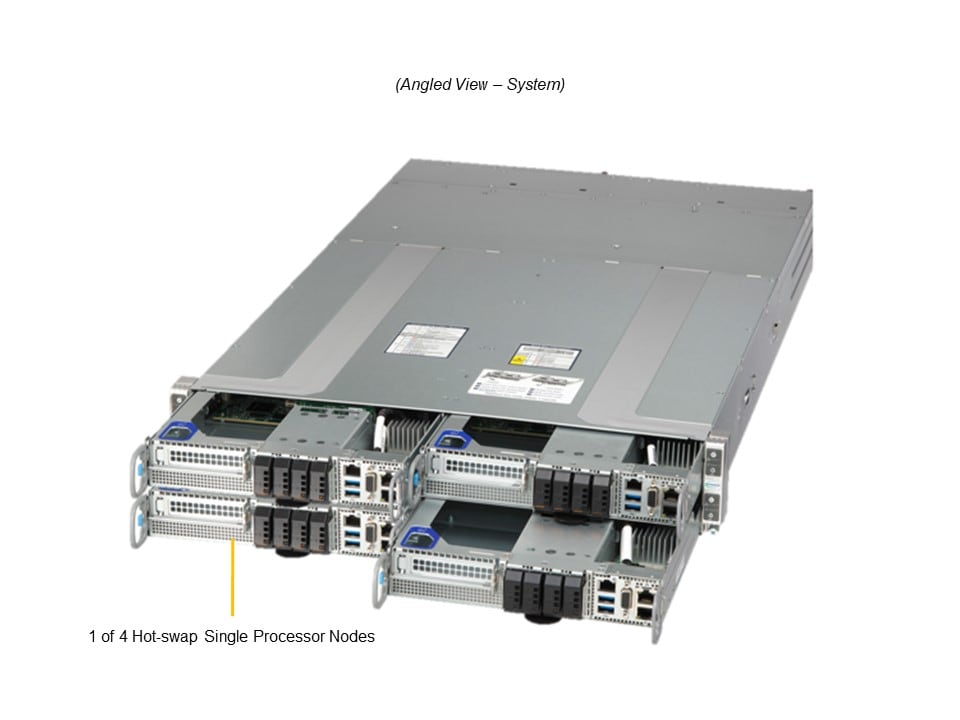

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

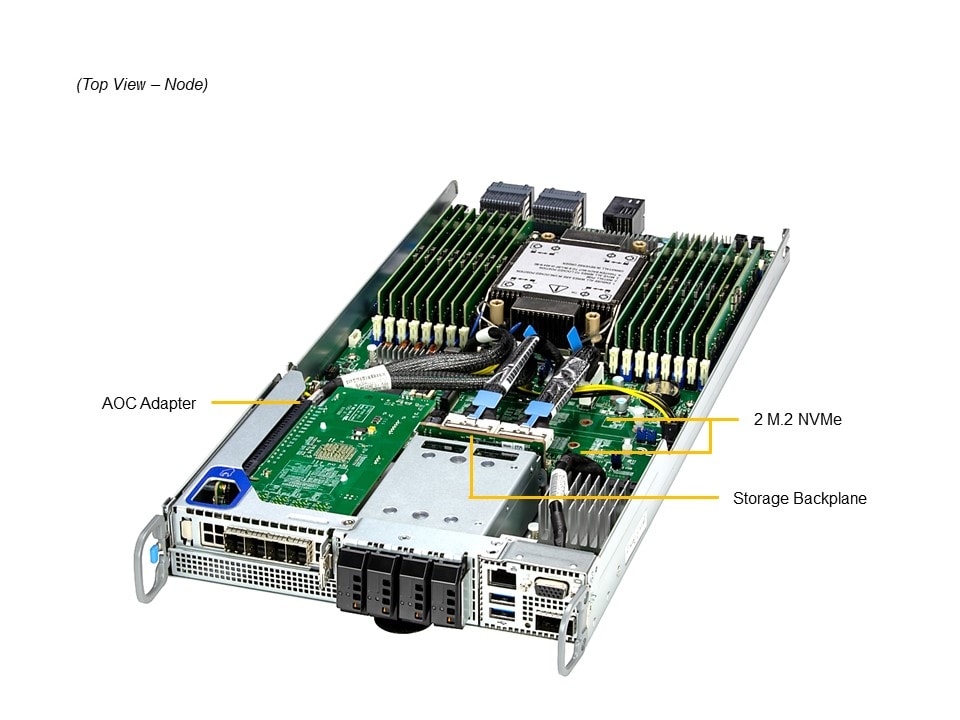

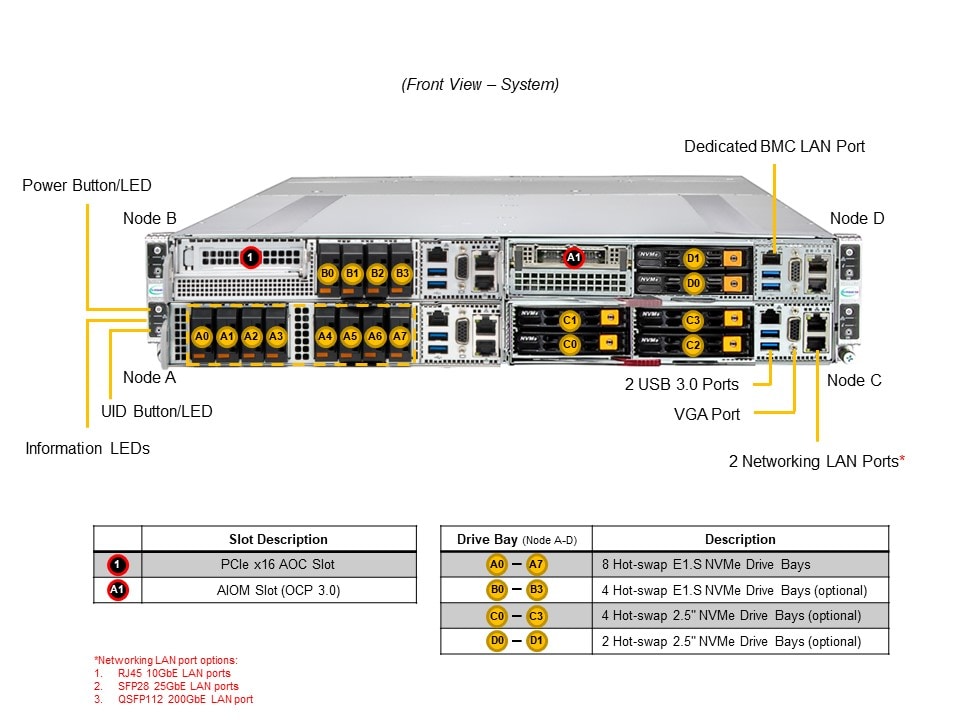

  1. Highly configurable 2U 4-Node front access nodes for cold aisle serviceability with up to 8x E1.S NVMe drives per node
  2. 1 PCIe 5.0 x16 LP slot(offering with 4x E1.S drives), or 1 OCP3.0 slot (offering with 2x U.2 drives) for networking expansions
  3. GrandTwin front IO module offers additional networking options (10G/25G/200G) with NCSI support
  4. Single-Socket, Intel® Xeon® 6 6700 series processors
  5. 16 DIMM Slots supporting up to 1TB of memory; ECC RDIMMs up to DDR5-6400
...
...
SYS-212GT-HNF
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-212GT-HNF
Motherboard
Super X14SBT-G
Processor (per Node)
CPU
Core Count
  • Up to 144C/144T; Up to 108MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots/2 Channels
  • Max Memory (2DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM
  • View Memory Options
On-Board Devices (per Node)
NVMe
Chipset
  • System on Chip
Network Connectivity
Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 64MB Flash ROM
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 8+4 Phase-switching voltage regulator
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSV-GT214E-R3K01TBP
Dimensions and Weight
Height
  • 3.46" (88 mm)
Width
  • 17.67" (449 mm)
Depth
  • 28" (711.2 mm)
Package
  • 9.76" (H) x 24.65" (W) x 45.28" (D)
Weight
  • Gross Weight: 88 lbs (39.9 kg)
  • Net Weight: 68 lbs (30.8 kg)
Available Color
  • Silver
Front Panel
LED
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Buttons
  • Power On/Off button
  • UID button
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default*
    • 1 PCIe 5.0 x16 LP slot
  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
  • View AOC Options
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default); VROC required for RAID)
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 8 bays
    • 8 front hot-swap E1.S PCIe 5.0 x4 NVMe* drive bays
  • Option A: Total 4 bays
    • 4 front hot-swap E1.S PCIe 5.0 x4 NVMe* drive bays
  • Option B: Total 4 bays
    • 4 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays
  • Option C: Total 2 bays
    • 2 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays
  • (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default)/2280; USB 2.0; VROC required for RAID)
  • View M.2 Options
System Cooling
Fans
  • 2x 16K RPM Heavy Duty 8cm Fan(s)
Power Supply

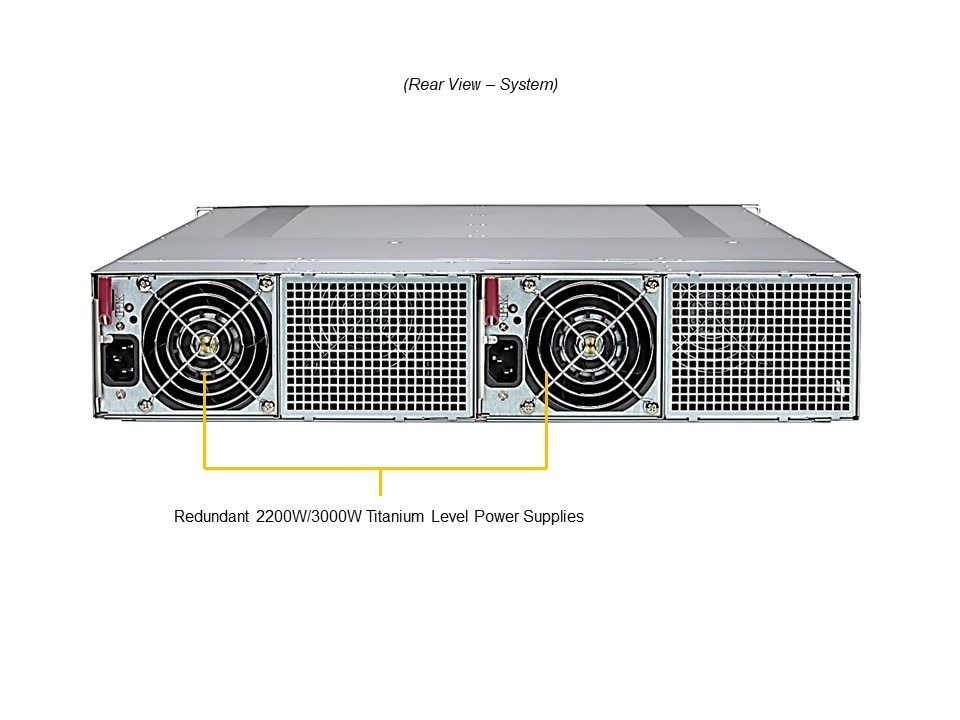

2x 3000W
2x 3000W Redundant (1 + 1) Titanium (certification pending) Level (96%) power supplies
Dimension (WxHxL)106.5 x 84 x 245.3 mm
AC Input3000W: 200-240Vac / 50-60Hz
2880W: 240-240Vdc / 50-60Hz (for CQC only)
+12VMax: 250A / Min: 0A (200Vac-240Vac)
Max: 240A / Min: 0A (240Vdc-240Vdc) (for CQC safety rating only)
12V SBMax: 3A / Min: 0A
Output TypeBackplanes (gold finger)
2x 2200W
2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)106.5 x 84 x 245.3 mm
AC Input100-127Vdc (1200W for the Rest of the World)
1200W: 100-127Vac / 50-60Hz
2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)
200-220Vdc (1800W for the Rest of the World)
200-220Vdc (2090W for North America - UL & cUL)
1800W: 200-220Vac / 50-60Hz
220-230Vdc (1980W for the Rest of the World)
1980W: 220-230Vac / 50-60Hz
220-240Vdc (2200W for North America - UL & cUL)
2200W: 220-240Vac / 50-60Hz (For UL/cUL Only)
230-240Vdc (2090W for the Rest of the World)
2090W: 230-240Vdc / 50-60Hz (for CQC only)
2090W: 230-240Vac / 50-60Hz (for TUV/CB)
+12VMax: 100A / Min: 0A (100Vac-127Vac)
Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)
Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 183.3A / Min: 0A (220Vac-240Vac)
Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only)
Max: 174.17A (230Vac-240Vac)
12V SBMax: 2A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 5°C ~ 40°C (41°F ~ 104°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
AIOM Dummy Tray MCP-120-21406-0N 1 GT214 FIO AIOM dummy bracket
AIOM Enablement Kit MCP-450-21413-ASM 0 - 1 GT214 front AIOM 80W KIT
Cable CBL-PWCD-0200 0-2 PWCD, IEC60320, C20 to C21,12AWG,1.8M
E1.S tray MCP-220-12603-0B 0-8 E1.S_FRONT_LATCH_ASM with Tray (33.75mm height x15mm W)
GrandTwin I/O Module 2x10GbE AOC-GTG-I2T-O 1 Grand Twin I/O card 2-Port 10GbE RJ45, Intel Carlsville X710-AT2, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS
AOC-GTG-B2T-O 1 Grand Twin I/O card 2-Port 10GbE RJ45, Broadcom BCM57416, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS
GrandTwin I/O Module 2x25GbE AOC-G25G-M2S-O 1 Grand Twin I/O card 2-Port 25GbE SFP28, Mellanox CX-4 Lx EN, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS
GT214E FIO MB tray MCP-220-21411-0N 0-4 GT214E FIO 8x E1.S MB tray
MCP-220-21410-0N 0-4 GT214E FIO 4x E1.S MB tray
MCP-220-21401-0N 0-4 GT214 FIO U.2 MB tray w/o HDD cage
HDD Dummy Tray MCP-120-21401-0N 0 - 2 GT214 FIO HDD dummy bracket(1slot)
NVMe Enablement Kit MCP-450-21408-ASM 0 - 2 GT214BF PCIe Gen5 FIO KIT of U.2 NVMe x2
Power Supply PWS-2K21A-BR • 0-2 2200W Titanium Power Supply; LxWxH: 245.3x106.5x84mm
PWS-3K01A-BR • 0-2 3000W Titanium Power Supply; LxWxH: 245.3x106.5x82.1mm, C20 inlet
Rail MCP-290-00172-0N 0-1 2U non-tip rail set, quick release, default for 2,3U 17.6"(W)
SPI Capable TPM 2.0 AOM-TPM-9670V-S-P 0-1 SPI Capable TPM 2.0 Provisioned for Server, Vertical Form Factor
VROC Premium AOC-VROCPREMOD 0-1 Intel VROC Premium, RAID 0, 1, 5, 10
VROC Standard AOC-VROCSTNMOD 0-1 Intel VROC Standard, RAID 0, 1, 10

GrandTwin SuperServer SYS-212GT-HNF (Complete System Only ) New
