SuperServer SYS-212GT-HNR (Complete System Only)

2U 4-Node GrandTwin with up to 6 hot-swap 2.5" NVMe drives per node and rear I/O

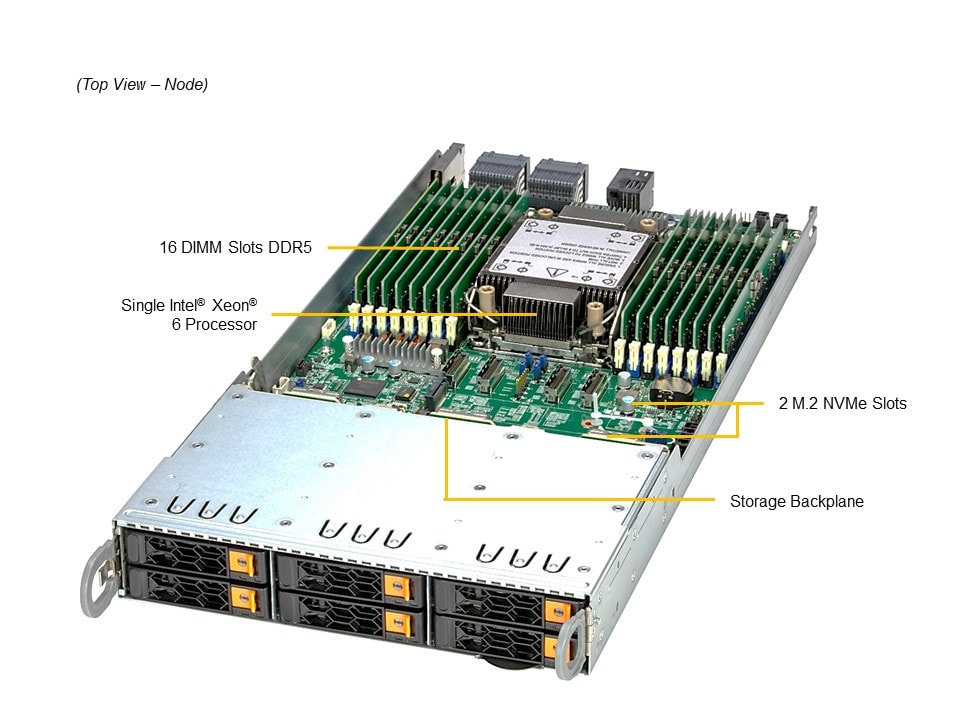

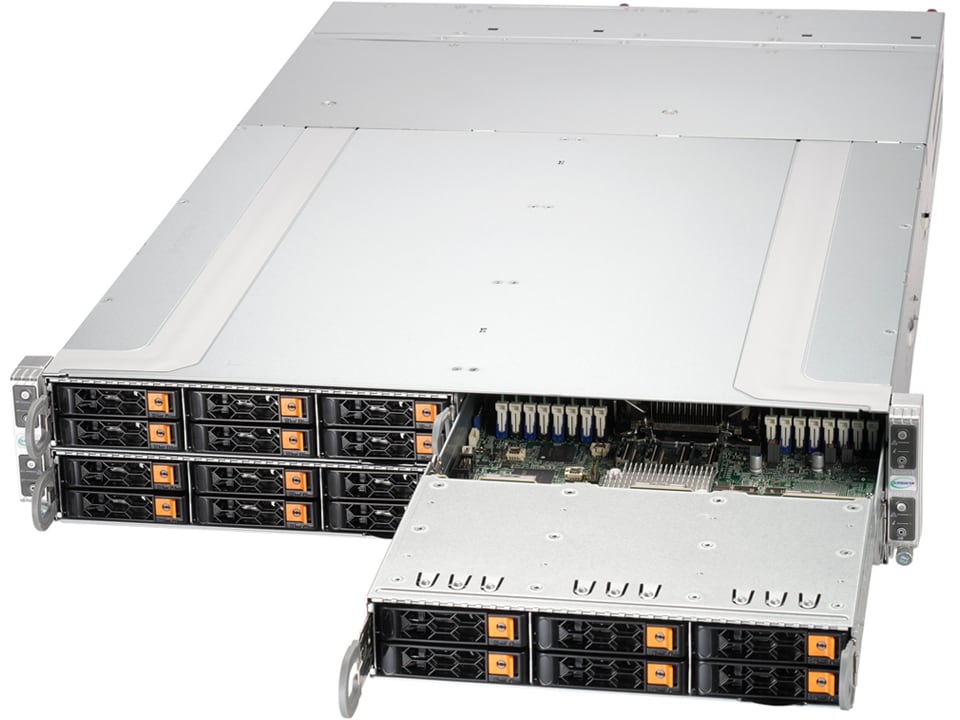

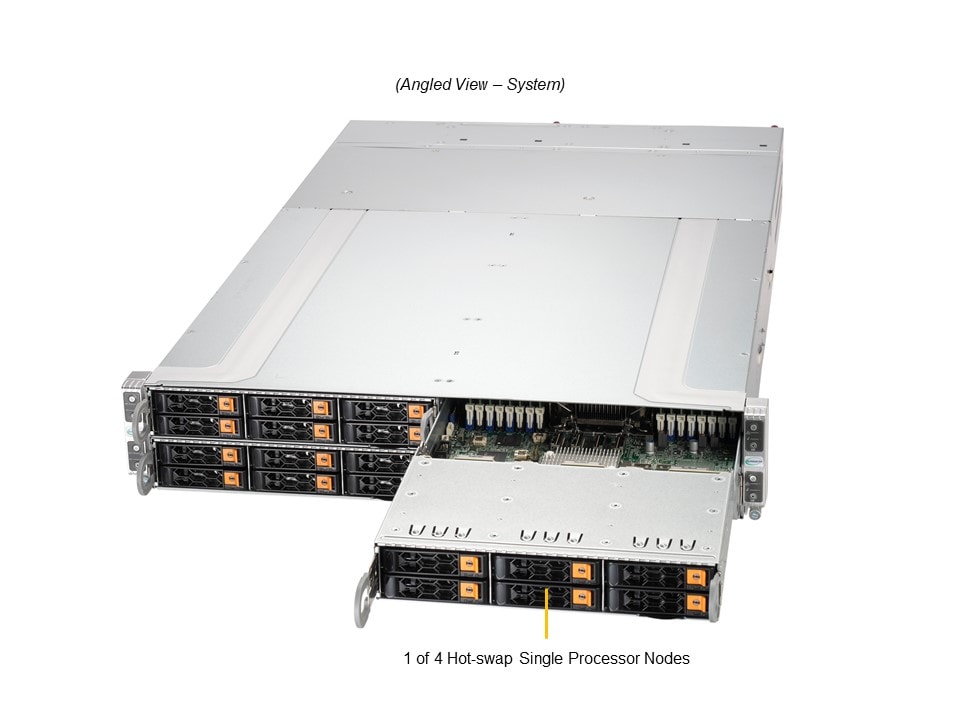

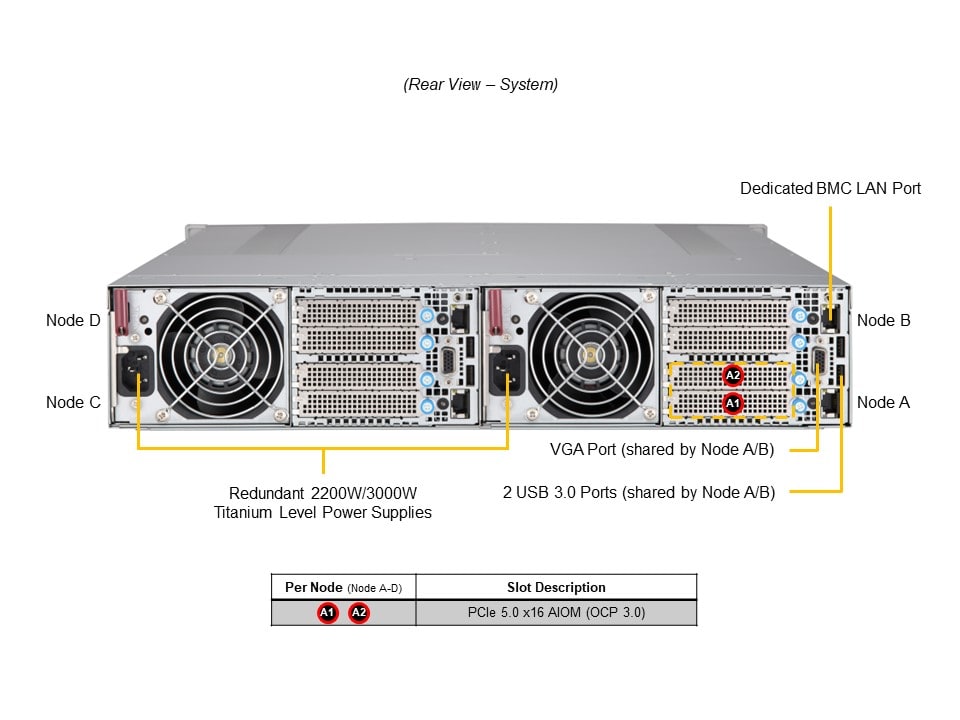

SYS-212GT-HNR Main SYS-212GT-HNR Angle SYS-212GT-HNR Node SYS-212GT-HNR Front SYS-212GT-HNR Rear
Integrated Board: X14SBT-G
Learn more

Key Applications

  • Scale Out All-Flash NVMe Storage
  • Scale-Out Object Storage
  • Web Server, Firewall Application
  • Data Center Optimized, Value IaaS
  • Cloud Computing, Compact Server
  • Virtualization Server (VSAN)
  • Network Function Virtualization
  • Software Defined Storage
  • General Purpose
  • Multi-Purpose CDN
  • Mission Critical Web Applications

Key Features

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

  1. Compact 2U 4-Node GrandTwin Rear IO with up to 6 hot-swap 2.5 NVMe drives and 2 OCP3.0 slots per node
  2. Dense compute, storage and flexible networking configurations optimized for software-defined storage applications
  3. Front access nodes for cold aisle serviceability
  4. Single-Socket, Intel® Xeon® 6 6700 series processors
  5. 16 DIMM Slots supporting up to 1TB of memory; ECC RDIMMs up to DDR5-6400
...
...
SYS-212GT-HNR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-212GT-HNR
Motherboard
Super X14SBT-G
Processor (per Node)
CPU
Core Count
  • Up to 144C/144T; Up to 108MB Cache
Note
  • Supports up to 330W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots/2 Channels
  • Max Memory (2DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM
  • View Memory Options
On-Board Devices (per Node)
Chipset
  • System on Chip
Network Connectivity
Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 64MB Flash ROM
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 8+4 Phase-switching voltage regulator
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSV-GT214BC-R2K21BP
Dimensions and Weight
Height
  • 3.46" (88 mm)
Width
  • 17.67" (449 mm)
Depth
  • 28" (711.2 mm)
Package
  • 9.76" (H) x 24.65" (W) x 45.28" (D)
Weight
  • Gross Weight: 88 lbs (39.9 kg)
  • Net Weight: 68 lbs (30.8 kg)
Available Color
  • Silver
Front Panel
LED
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Buttons
  • Power On/Off button
  • UID button
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible)
  • View AOC Options
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 6 bays
    • 6 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays
  • View NVMe Options
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default)/2280; VROC required for RAID)
  • View M.2 Options
System Cooling
Fans
  • 2x 16K RPM Heavy Duty 8cm Fan(s)
Power Supply
2x 2200W
2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)106.5 x 84 x 245.3 mm
AC Input100-127Vdc (1200W for the Rest of the World)
1200W: 100-127Vac / 50-60Hz
2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)
200-220Vdc (1800W for the Rest of the World)
200-220Vdc (2090W for North America - UL & cUL)
1800W: 200-220Vac / 50-60Hz
220-230Vdc (1980W for the Rest of the World)
1980W: 220-230Vac / 50-60Hz
220-240Vdc (2200W for North America - UL & cUL)
2200W: 220-240Vac / 50-60Hz (For UL/cUL Only)
230-240Vdc (2090W for the Rest of the World)
2090W: 230-240Vdc / 50-60Hz (for CQC only)
2090W: 230-240Vac / 50-60Hz (for TUV/CB)
+12VMax: 100A / Min: 0A (100Vac-127Vac)
Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)
Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 183.3A / Min: 0A (220Vac-240Vac)
Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only)
Max: 174.17A (230Vac-240Vac)
12V SBMax: 2A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
SPI Capable TPM 2.0 AOM-TPM-9670V-S-P - SPI Capable TPM 2.0 Provisioned for Server, Vertical Form Factor
VROC Premium AOC-VROCPREMOD - Intel VROC Premium, RAID 0, 1, 5, 10
VROC Standard AOC-VROCSTNMOD - Intel VROC Standard, RAID 0, 1, 10
