SuperServer SYS-212HA-TN (Complete System Only)

2U UP Hyper with 8 hot-swap 2.5” NVMe/SAS/SATA bays and up to 3 PCIe 5.0 + 1 PCIe 5.0 AIOM slots

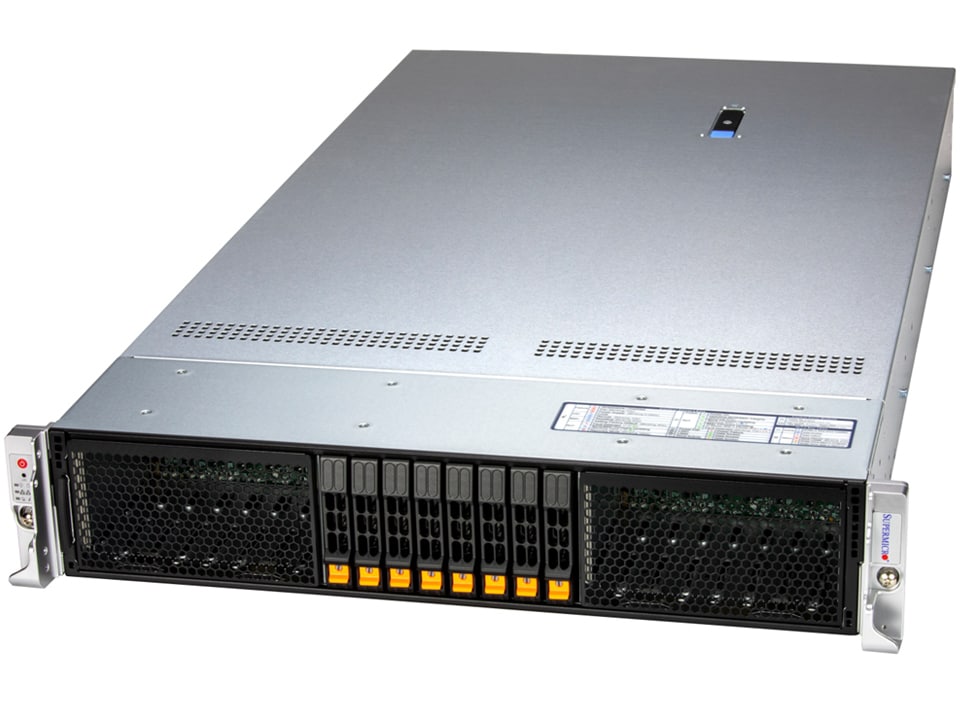

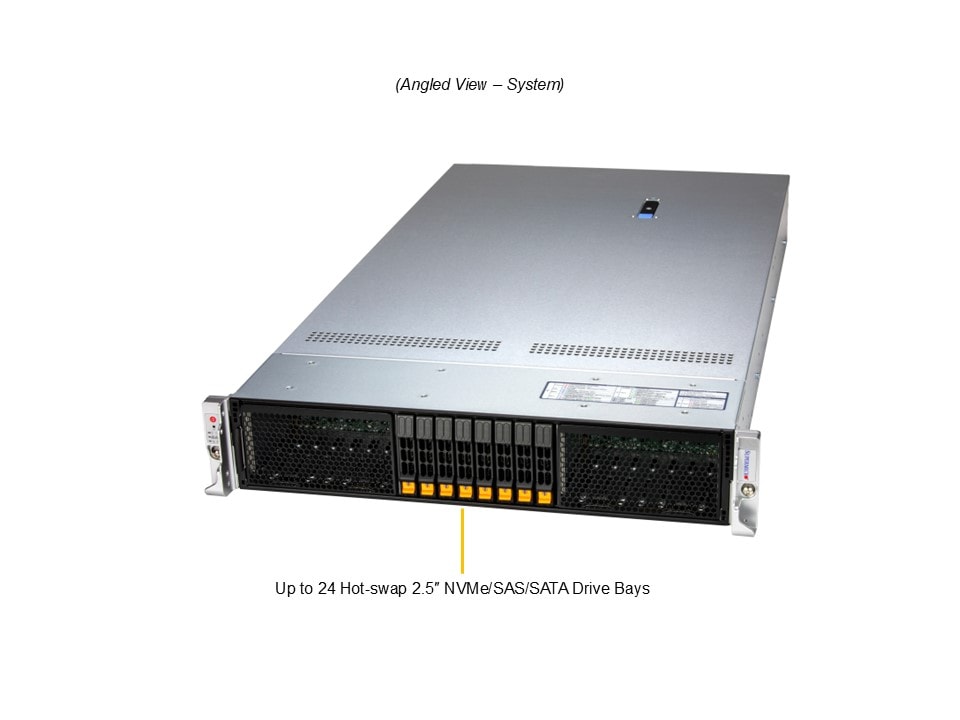

SYS-212HA-TN Main SYS-212HA-TN Angle SYS-212HA-TN Front SYS-212HA-TN Rear
Integrated Board: X14SBH-AP
Learn more

Key Applications

  • Virtualization
  • Software-defined Storage
  • AI Inference and Machine Learning
  • Cloud Computing
  • Enterprise Server
  • Data Center Optimized
  • Database Processing and High Density Storage

Key Features

  1. Hyper is a flagship performance rackmount server designed for scale-out cloud workloads.
  2. Single Intel® Xeon® 6 6900 series Processor.
  3. 12 DIMM slots supporting up to 3TB of 8800 MRDIMM
  4. Double width add-on card support.
  5. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible).
  6. Breeze through high throughput workloads with PCIe 5.0 NVMe drive support.
  7. Trusted Platform Module (TPM) 2.0 onboard.
  8. Modularized and Tool-less design for easy serviceability.
...
...
SYS-212HA-TN
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-212HA-TN
Motherboard
Super X14SBH-AP
Processor
CPU
Core Count
  • Up to 128C/256T; Up to 504MB Cache
Note
  • Supports up to 500W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 12 DIMM slots
  • Max Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 MRDIMM
  • Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM
On-Board Devices
NVMe
  • NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Chipset
  • System on Chip
Network Connectivity
  • Via AIOM
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 64MB SPI Flash
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-HS201-R000NFP
Dimensions and Weight
Height
  • 3.5" (88.9 mm)
Width
  • 17.2" (437 mm)
Depth
  • 31.74" (806.2 mm)
Package
  • 9.96" (H) x 26.46" (W) x 43.31" (D)
Weight
  • Gross Weight: 75 lbs (34 kg)
  • Net Weight: 45 lbs (20.5 kg)
Available Color
  • Silver

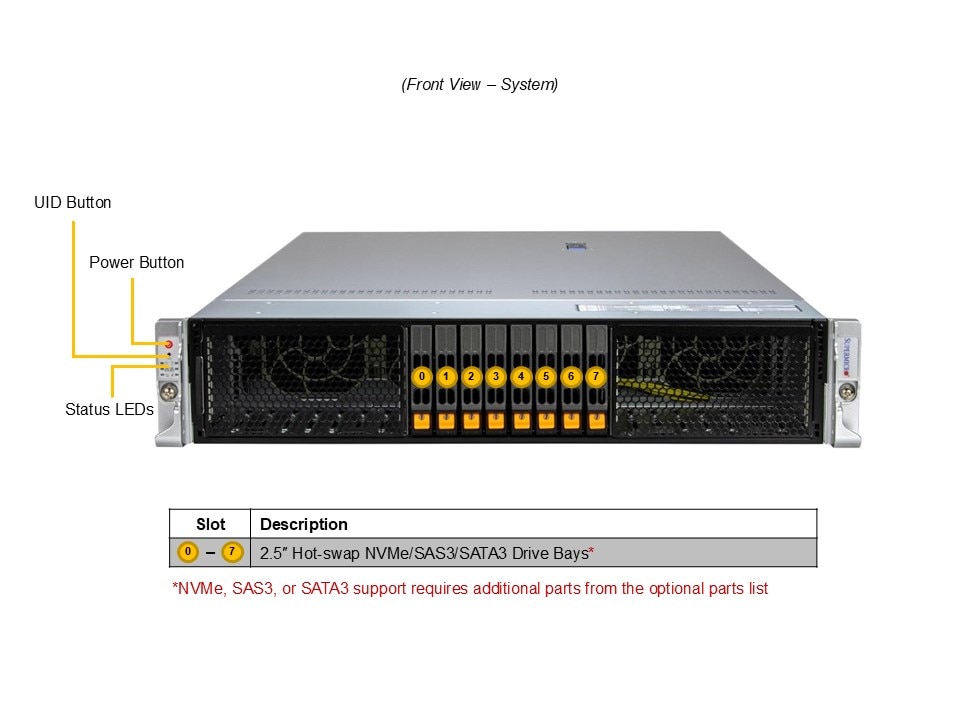

Front Panel
LED
  • HDD activity
  • LAN1 activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • UID button

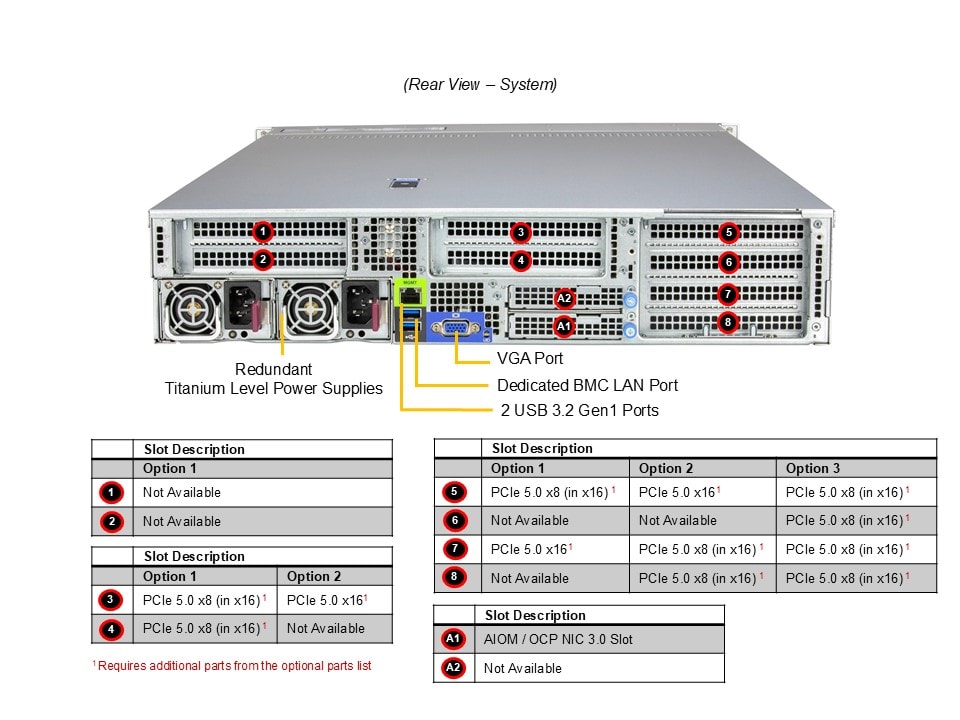

Expansion Slots
PCI-Express (PCIe) Configuration
  • Option A
    • 1 PCIe 5.0 x16 FHFL double-width slot
    • 1 PCIe 5.0 x16 FH/10.5"L double-width slot
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • Option B
    • 1 PCIe 5.0 x16 FHFL double-width slot
    • 2 PCIe 5.0 x8 FH/10.5"L slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays
    • 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables)
M.2
  • 2 M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID)
System Cooling
Air Shroud
  • 1 CPU Air Shroud
Fans
  • 6 counter-rotating 60x60x56mm Fan(s)
Power Supply
2x 1200W
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 265 mm
AC Input800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12VMax: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SBMax: 2.1A / Min: 0A
Output TypeBackplanes (gold finger)
2x 1300W
2x 1300W Redundant (1 + 1) Gold (Certification Pending) Level power supplies
Dimension (WxHxL)73.5 x 40 x 265 mm
AC Input1300W: -44--65Vdc
+12VMax: 108.3A / Min: 0A
12V SBMax: 2.1A
Output TypeBackplanes (gold finger)
2x 1600W
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 265 mm
AC Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12VMax: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SBMax: 3.5A / Min: 0A
Max: 3.5A
Output TypeBackplanes (gold finger)
2x 2600W
2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 265 mm
AC Input2600W: 200-240Vac
2600W: 200-240Vdc (For CQC Only)
2600W: 200-240Vac / 50-60Hz
2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12VMax: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)
Max: 216A / Min: 0A (200Vac-240Vac)
12V SBMax: 3.5A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Parts List
Optional Parts List
Part Number Qty Description
Cable Management Arm + Rail Set MCP-290-00168-0N + MCP-290-11901-0N 1 7.5" cable management arm + 41" long ball-bearing rail set
Drive Bay Configuration Options Refer to User's Manual - 8, 16 & 24 drive bay configuration options for NVMe, SAS, or SATA support
Drive Tray Label LBL-0968 - Pack of 4 "NVMe" labels for hot-swap drive tray
Front Bezel MCP-210-21903-0B 1 Front bezel for 2U Hyper
Global Services & Support OS4HR3/2/1 1 Gold Level, 3/2/1-year onsite 24x7x4 SLA
OSNBD3/2/1 1 Silver Level, 3/2/1-year onsite NBD SLA
SMSAD3/2/1 1 Bronze Level, 3/2/1-year 3BD SLA
PCIe Slot Configuration Options Refer to User's Manual - PCIe slot configuration options to enable PCIe slots 1-8
Rail Set MCP-290-11902-0N (included in the system ) - 35.25" ball-bearing rail set for Hyper servers
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)

Hyper SuperServer SYS-212HA-TN (Complete System Only ) Coming Soon

Certain products may not be available in your region
