SuperServer SYS-220BT-DNTR (Complete System Only)

2U 2-node BigTwin with 12 2.5" NVMe/SATA drives per node

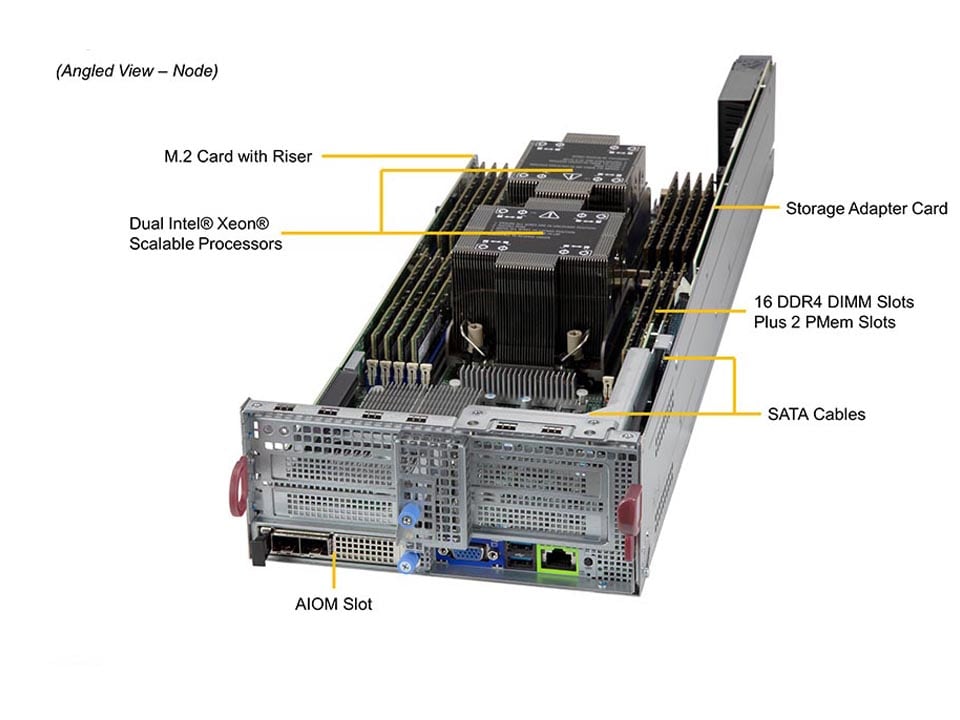

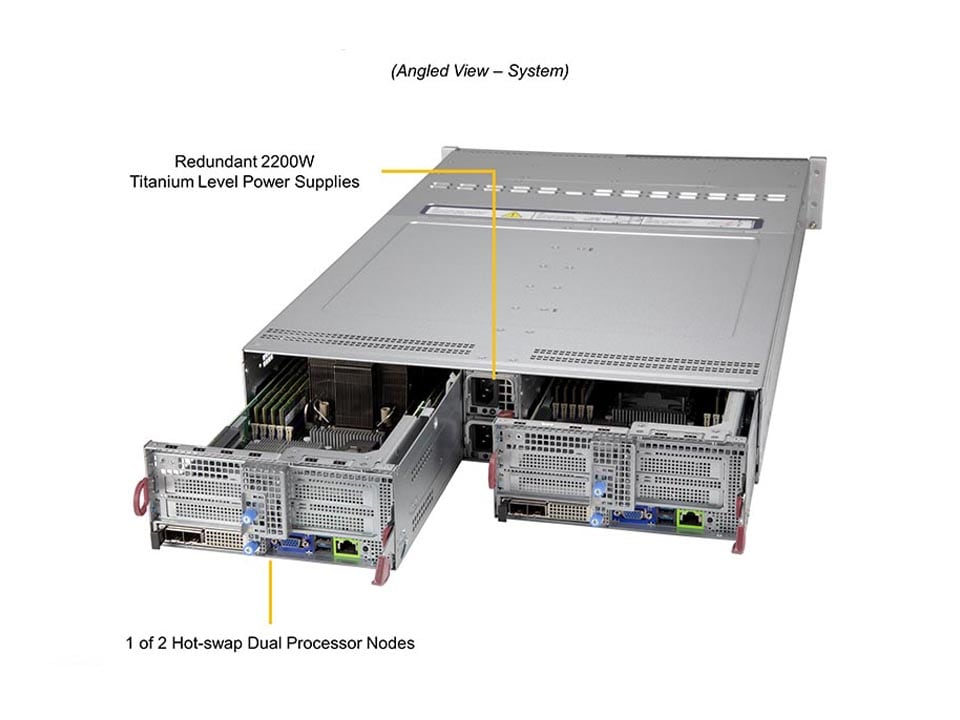

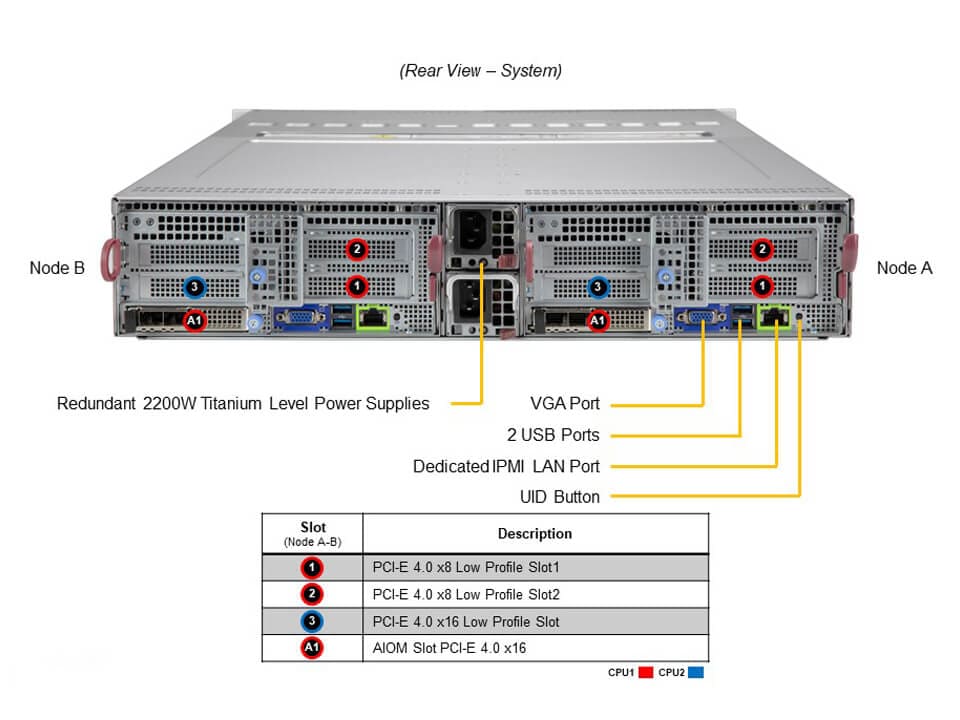

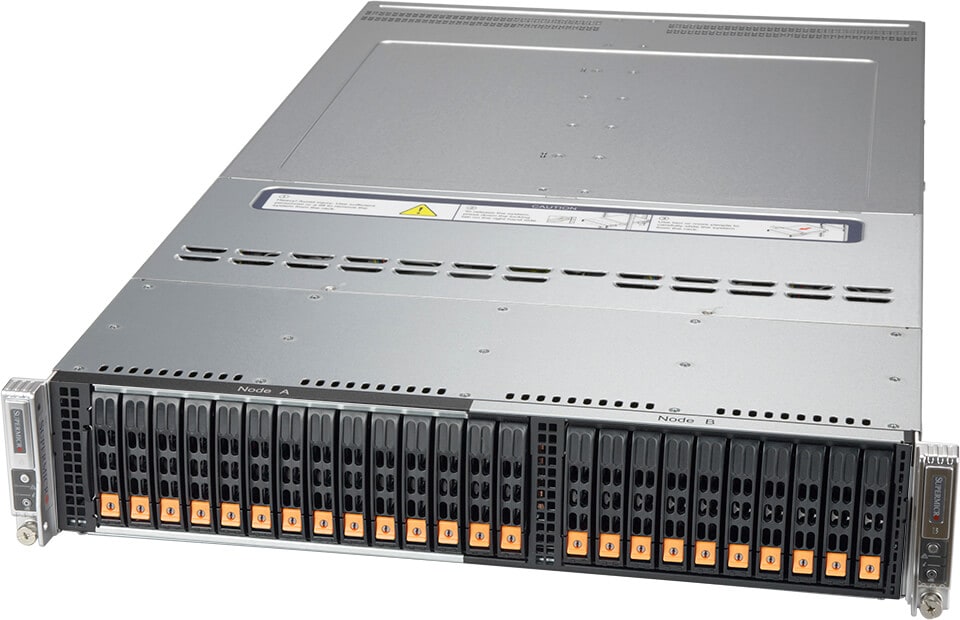

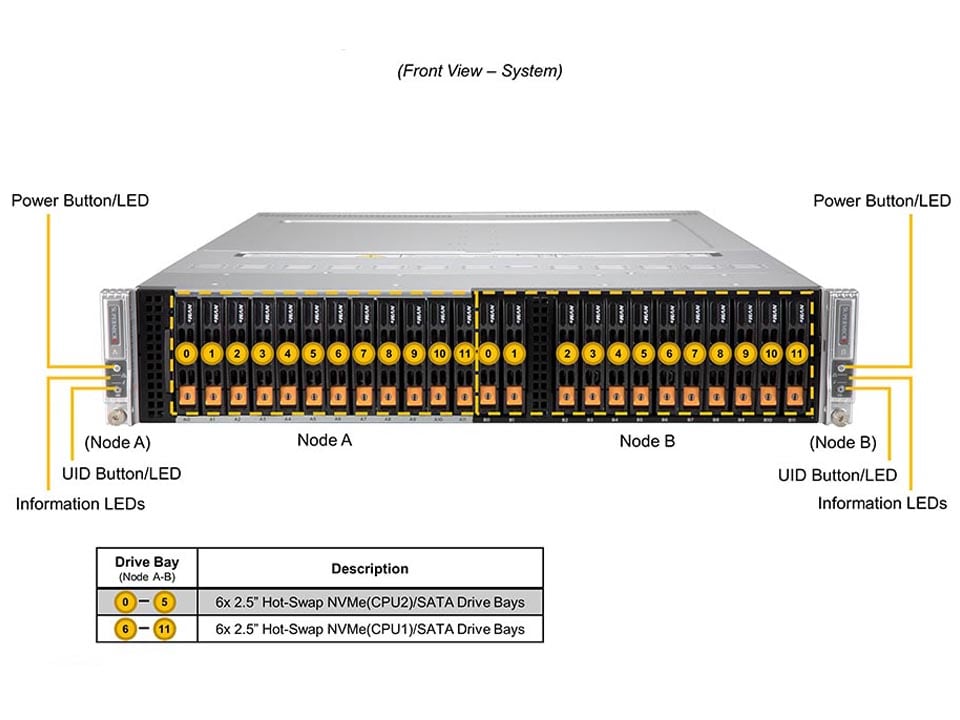

SYS-220BT-DNTR Main SYS-220BT-DNTR Angle SYS-220BT-DNTR Node SYS-220BT-DNTR Front SYS-220BT-DNTR Rear
Integrated Board: X12DPT-B6
Learn more

Key Applications

  • High-Performance File System
  • Diskless HPC Clusters
  • Scale Out All-Flash NVMe Storage
  • Big Data Analytics and AI

Key Features

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

  1. Socket P+ (LGA 4189) support 3rd Gen Intel® Xeon® Scalable processors
  2. Intel® C621A
  3. 20 DIMM Slots (16 DIMM Slots + 4 Intel® Optane™ Persistent Memory Slots)
  4. Optional 2U Riser for Slot 1, CPU1 x16 PCIe 4.0 (RSC-P2R-6G4)
    1 PCIe 4.0 x16 (LP) slot;
    2 PCIe 4.0 x8 (LP) slot;
    Tool-less support
    Optional HW RAID Boot Controller via AOC-SMG3-2M2-B (NVMe Only)
    Internal PCIe 3.0 for 2 x4 M.2 NVMe/SATA support onboard
  5. Network connectivity via AIOM (OCP 3.0 compliant)
  6. 12 Hot-swap 2.5" drive bays; 12 PCIe 4.0 NVMe/SATA 2.5" drives
  7. 2 cooling fans per node, 16.5K RPM
  8. 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
  9. Balanced IO Performance (6 PCIe 4.0 NVMe drives per Socket)
...
...
SYS-220BT-DNTR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-220BT-DNTR
Motherboard
Super X12DPT-B6
Processor (per Node)
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU (per Node)
Max GPU Count
  • Up to 1 double-width or 1 single-width GPU
Supported GPU
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM
  • Supports Intel® Optane™ persistent memory 200 series
  • View Memory Options
On-Board Devices (per Node)
Chipset
  • Intel® C621A
Network Connectivity
Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 Type-A ports(Rear)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB Flash ROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 7+1 Phase-switching voltage regulator
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-217BD-000NP
Dimensions and Weight
Height
  • 3.47" (88 mm)
Width
  • 17.68" (449 mm)
Depth
  • 28.75" (730 mm)
Package
  • 9.76" (H) x 24.65" (W) x 45.28" (D)
Weight
  • Gross Weight: 80.7 lbs (36.6 kg)
  • Net Weight: 55.1 lbs (25 kg)
Available Color
  • Black front & silver body
Front Panel
LED
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Buttons
  • Power On/Off button
  • UID button
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
Drive Bays / Storage (per Node)
Drive Bays Configuration
M.2
  • 2 M.2 PCIe 3.0 x4 NVMe/SATA slots (M-key 2280(default); VROC required for RAID)
  • View M.2 Options
System Cooling
Fans
  • 4x 16.5K RPM Heavy Duty 8cm Fan(s)
Power Supply
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
2.5" Tool-less NVMe Tray MCP-220-00167-0B - Black gen 8 hot-swap 2.5" Tool-less NVMe tray, orange tab (Qty as Needed)
2.5" Tool-less SAS/SATA Tray MCP-220-00147-0B - Black gen 3 hot-swap 2.5" Tool-less HDD tray, red tab (Qty as Needed)
2U Riser for Slot 1, CPU1 x16 PCIe 4.0 RSC-P2R-6G4 - expansion slots
CacheVault for RAID Controller BTR-CVPM05
BKT-BBU-BRACKET-05
1 Broadcom CacheVault
Mounting Bracket (Qty per Node)
M.2 NVMe RAID Controller AOC-SMG3-2M2-B-P - 2x M.2 NVMe RAID Controller Card, x8 Gen3
SAS3916 RAID Controller AOC-S3916L-H16IR-32DD
CBL-SAST-1233F-100
CBL-SAST-1234F-100
1 SAS3916 HW RAID Controller 12Gb/s SAS, x8 Gen4 (Qty per Node)
Slimline x8 (STR) to Slimline x4 (STR) for 4 drives support
Slimline x8 (STR) to Slimline x8 (STR) for 8 drives support
SPI Capable TPM Options AOM-TPM-9670H-S 1 SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor (Qty per Node)
AOM-TPM-9671H-S 1 SPI Capable TPM 1.2 Provisioned for Server, Horizontal Form Factor (Qty per Node)
AOM-TPM-9670H-FIPS 1 SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor, Supporting FIPS 140-2 (Qty per Node)
SuperCloud Composer License SFT-SDDC-SINGLE - SDDC Monitor License - Single License per Monitored host
System Management Suite SFT-DCMS-Single - Supermicro System Management Software Suite node
VROC Options AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10 (Qty per Node)
AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10 (Qty per Node)
