SuperServer SYS-220HE-TNR (Complete System Only)

X12 DP 2U Short-depth rear I/O System with 6 NVMe/SATA bays and redundant AC PSU

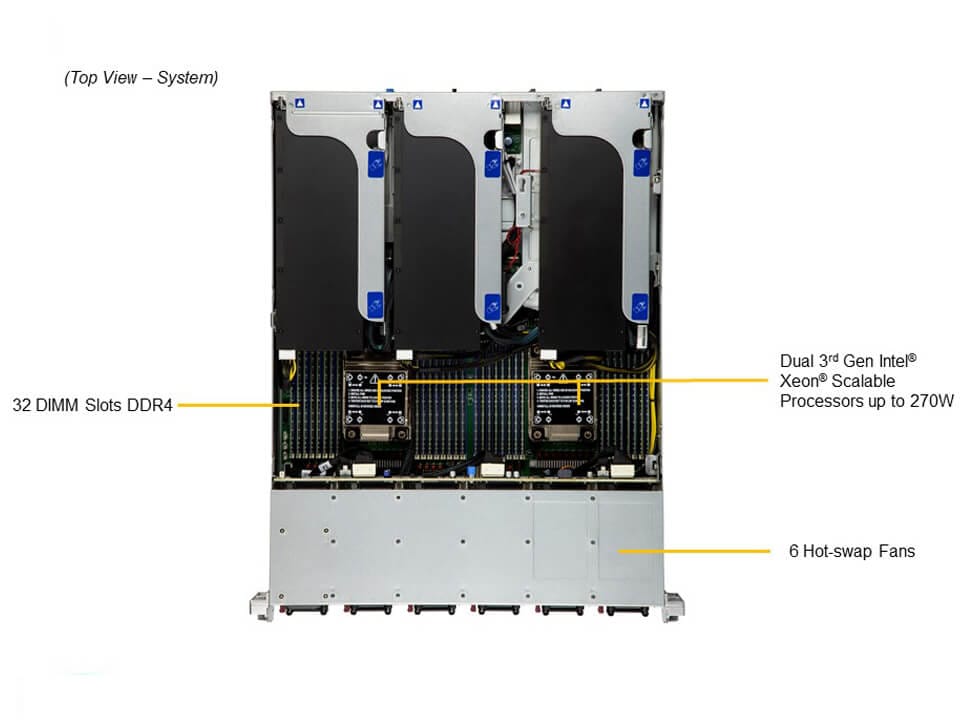

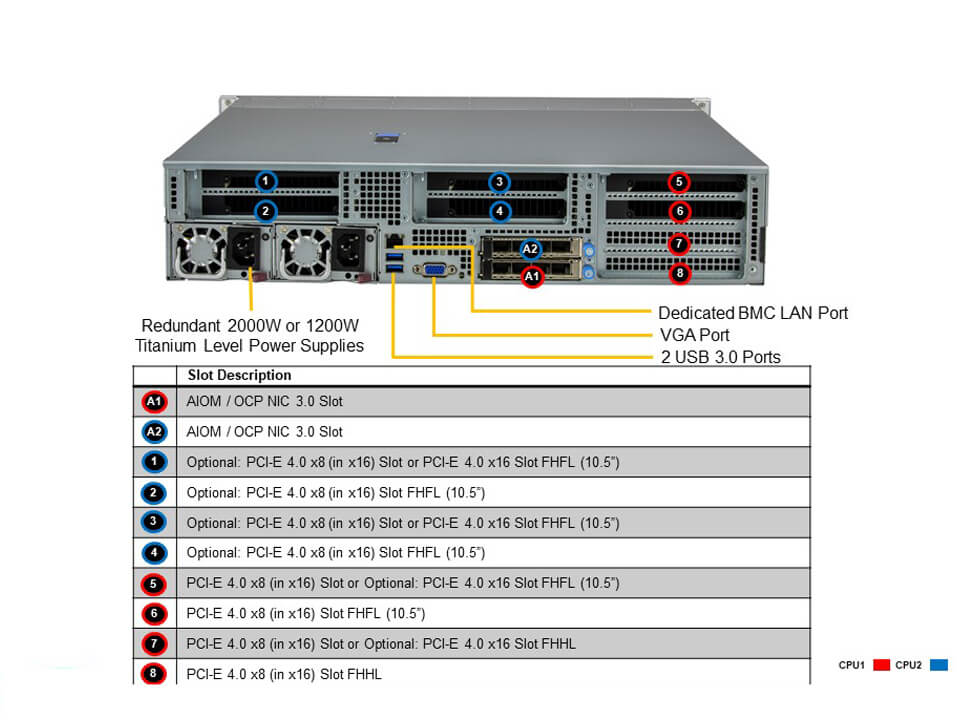

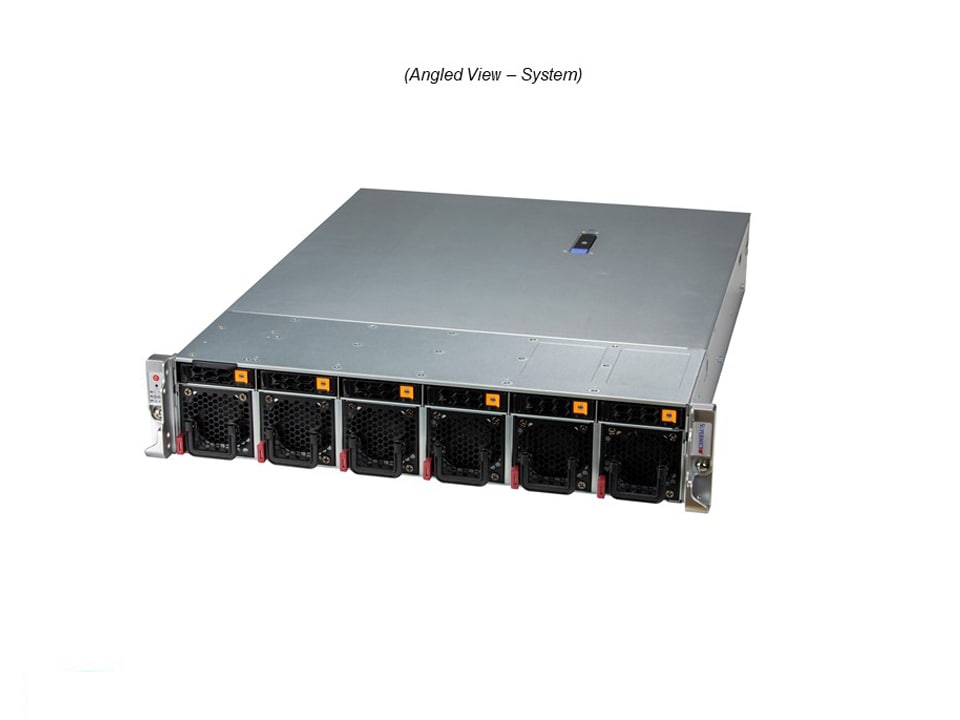

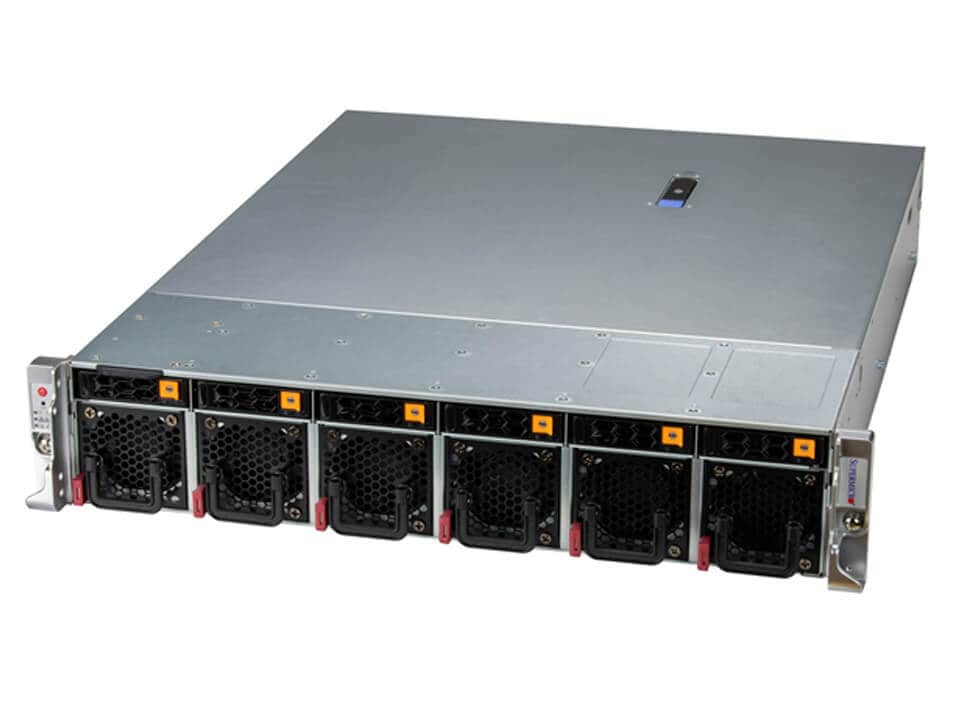

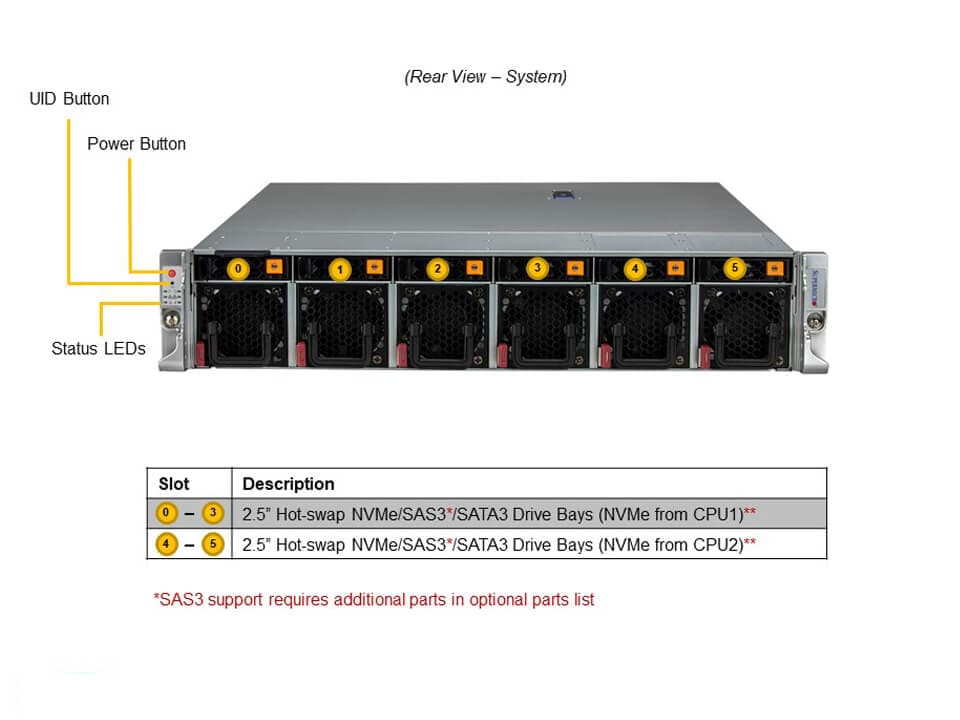

SYS-220HE-TNR Main SYS-220HE-TNR Angle SYS-220HE-TNR Top SYS-220HE-TNR Front SYS-220HE-TNR Rear
Integrated Board: X12DHM-6
Learn more

Key Applications

  • 5G Core and Edge
  • Telecom Micro Data Center
  • AI Inference and Machine Learning
  • Network Function Virtualization
  • Cloud Computing

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
  3. 3 PCIe 4.0 x16 slots with GPU/Accelerator support (Default);
     1 PCIe 4.0 x16 expansion slots (Optional)
  4. Flexible networking options with 2 AIOM networking slots (OCP NIC 3.0 compatible)
  5. Up to 6x 2.5" hot-swap drive bays with options to support NVMe/SATA drives
  6. 6 heavy duty hot-swap fans with optimal fan speed control Rear I/O, tool-less design
  7. Redundant 2000W redundant AC power supplies
...
...
SYS-220HE-TNR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-220HE-TNR
Motherboard
Super X12DHM-6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 3 double-width or 3 single-width GPUs
Supported GPU
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
Chipset
  • Intel® C621A
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 2.0 ports(front)
Video
  • 1 VGA port
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-HE211-R000NFP
Dimensions and Weight
Height
  • 3.5" (88.9 mm)
Width
  • 17.2" (436.88 mm)
Depth
  • 22.6" (574 mm)
Package
  • 9.7" (H) x 23.5" (W) x 36.9" (D)
Weight
  • Gross Weight: 47.4 lbs (21.5 kg)
  • Net Weight: 34.4 lbs (15.6 kg)
Available Color
  • Silver
Front Panel
LED
  • HDD activity LED
  • LAN1 activity
  • LAN2 activity
  • Power Fail
  • Power status LED
  • System information
Buttons
  • Power On/Off
  • UID button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 4.0 x8 FH/10.5"L slots
    • 2 PCIe 4.0 x8 FHHL slots
    • 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
  • Option A
    • 1 PCIe 4.0 x16 FH/10.5"L slot
    • 1 PCIe 4.0 x16 FHHL slot
    • 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
  • Option B
    • 6 PCIe 4.0 x8 FH/10.5"L slots
    • 2 PCIe 4.0 x8 FHHL slots
    • 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
  • Option C
    • 3 PCIe 4.0 x16 FH/10.5"L slots
    • 1 PCIe 4.0 x16 FHHL slot
    • 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 6 bays
    • 6 front hot-swap 2.5" NVMe/SAS*/SATA drive bays
  • (*SAS support may require additional storage controller and/or cables)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 6 Hot-swappable 60x60x56mm Fan(s)
Power Supply
1x 2000W
1x 2000W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)73.5 x 40 x 203 mm
AC Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc
2000W: 230-240Vac
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for China only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
12V SBMax: 3.5A / Min: 0A
Max: 3.5A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 5°C ~ 35°C (41°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
6 Drive Bay Configuration (6 SAS/SATA) AOC-S3808L-L8IT-O • + CBL-SAST-1273LP-100 1 6 SAS/SATA (HBA/IT Mode) via Broadcom 3808 for drive bays 0-5
AOC-S3908L-H8IR-16DD-O + CBL-SAST-1273LP-100 1 6 SAS/SATA (HW RAID) via Broadcom 3908 (RAID 0, 1, 5, 6, 10, 50, 60) for drive bays 0-5
Cable Management Arm for Hyper-E MCP-290-00168-0N 1 Cable Management Arm for Hyper-E
CacheVault SuperCap BTR-CVPM05 • 1 CacheVault Flash Cache Protection Module for Broadcom 3916/3908 RAID controller (CVPM05)
CacheVault SuperCap to PCIe Card Bracket BKT-BBU-BRACKET-05 1 CacheVault Flash Cache Protection Module for Broadcom 3916/3908 RAID controller (CVPM05)
Optional Hyper-E RSC for slot 5 & 7 for 2 PCIe 4.0 x16 RSC-H2-668G4S 1 Hyper-E RSC for slot 5 & 7 for 2 PCIe 4.0 x16
Optional RSC and GPU AUX power cable for A40, A100 GPU CBL-PWEX-1172-2654 • 1,2,3 RSC and GPU AUX power cable for A40, A100 GPU
Optional RSC and GPU AUX power cable: PCIe Auxiliary 6 pin or 8 pin for RTX GPU, Intel N3000, Xilinx U200 CBL-PWEX-1171-2654 1,2,3 RSC and GPU AUX power cable: PCIe Auxiliary 6 pin or 8 pin for RTX GPU, Intel N3000, Xilinx U200
Optional sliding rail kit MCP-290-11902-0N 1 Optional sliding rail kit for Post to Post: 24" ~ 35.3"
MCP-290-11901-0N 1 Optional sliding rail kit for Post to Post: 26.5" ~ 41.2"
MCP-290-11903-0N • 1 30.5" ball-bearing rail set, without auto latch for Hyper 1U & 2U Project
Slim AIOM module AOC-A25G-i2SM 1 AIOM 2-Port 25GbE SFP28, based Intel E810-XXVAM2 w/ 0.5U height bracket,RoHS
AOC-A100G-b2CM 1 AIOM Dual Port 100GbE QSFP28, based on Broadcom BCM57508 with 0.5U Bracket,RoHS
AOC-AG-i4SM 1 AIOM 4-port GbE SFP, Intel i350-AM4 with 0.5U bracket,RoHS
AOC-A25G-m2SM 1 AIOM 2-port 25GbE SFP28, Mellanox CX-6 LX w/ 0.5U height bracket,RoHS
AOC-ATGC-i2TM 1 AIOM 2-port 10GBase-T RJ45, based on Intel Carlsville X710-AT2, w/ 0.5U BKT,RoHS
AOC-A100G-m2CM 1 AIOM 2-port 100GbE QSFP28, Mellanox CX-6 DX w/ 0.5U bracket,RoHS
AOC-AH25G-m2S2TM 1 AIOM Dual-Port 25GbE SFP28 based on Mellanox CX-4 Lx EN, and Dual-Port 10GbeE RJ45 based on Intel X550-AT2 with 0.5U Bracket, RoHS
AOC-A25G-b2SM 1 AIOM 2-port 25GbE SFP28, Broadcom BCM57414 with 0.5U bracket,RoHS
AOC-ATG-i4SM 1 AIOM Quad-Port 10GbE SFP+, based on Intel XL710-BM1 with 0.5U Bracket,RoHS
AOC-ATG-i2SM 1 AIOM Dual-Port 10GbE SFP+, based on X710-BM2 with 0.5U Bracket,RoHS
AOC-ATG-i2TM 1 AIOM 2-port 10GBase-T, Intel X550,RoHS
AOC-AG-i4M 1 AIOM Quad-Port 1GbE RJ45, based on i350-AM4 with 0.5U Bracket, RoHS
AOC-AG-i2M 1 AIOM Dual-Port 1GbE RJ45, based on i350-AM2 with 0.5U Bracket, RoHS
TPM security module AOM-TPM-9671V-O 1 SPI capable TPM 1.2 with Infineon 9671 controller with vertical form factor
AOM-TPM-9670V-O • 1 SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
