SuperServer SYS-221GE-NR (Complete System Only)

DP Intel 2U PCIe GPU System with up to 4 NVIDIA H100, H100 NVL, or L40S

SYS-221GE-NR Main SYS-221GE-NR Top SYS-221GE-NR Front SYS-221GE-NR Rear
Integrated Board: X13DEH
Learn more

Key Applications

  • High Performance Computing
  • AI/Deep Learning Training
  • Large Language Model (LLM) Natural Language Processing

Key Features

  1. High density 2U GPU system with up to 4 NVIDIA® PCIe GPUs
    Highest GPU communication using NVIDIA® NVLINK™ using
    PCIe-based H100 NVL with NVLink Support
  2. 5th/4th Gen Intel® Xeon® Scalable processor support
  3. 32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
  4. 7 PCIe 5.0 x16 FHFL Slots
  5. NVIDIA BlueField-3 Data Processing Unit Support for the most demanding accelerated computing workloads.
  6. 8 E1.S NVMe Storage Support
...
...
SYS-221GE-NR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-221GE-NR
Motherboard
Super X13DEH
Processor
CPU
Core Count
  • Up to 64C/128T; Up to 320MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 4 double-width GPUs
Supported GPU
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink® Bridge (optional)
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5
  • Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • Intel® C741
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 ports(rear)
Video
  • 1 mini-DP port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 8+4 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-GP201TS-R000NP
Dimensions and Weight
Height
  • 3.46" (88 mm)
Width
  • 17.25" (438.4 mm)
Depth
  • 35.43" (900 mm)
Package
  • 11" (H) x 22.5" (W) x 45.5" (D)
Weight
  • Gross Weight: 86.5 lbs (39.2 kg)
  • Net Weight: 67.5 lbs (30.6 kg)
Available Color
  • Black front & silver body

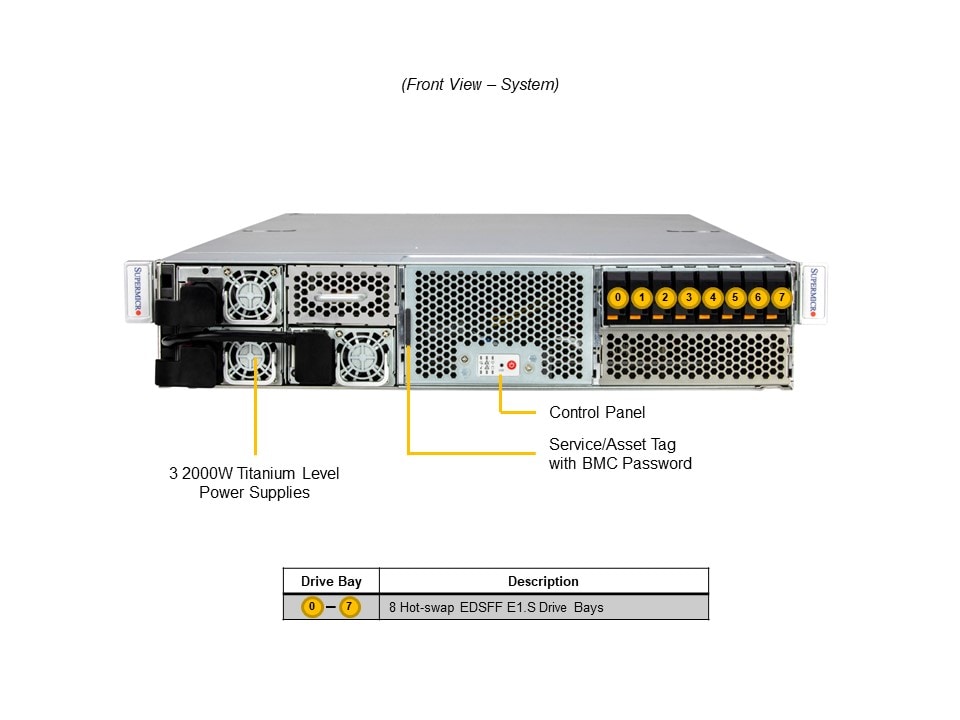

Front Panel
LED
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED
Buttons
  • Power On/Off button
  • System Reset button

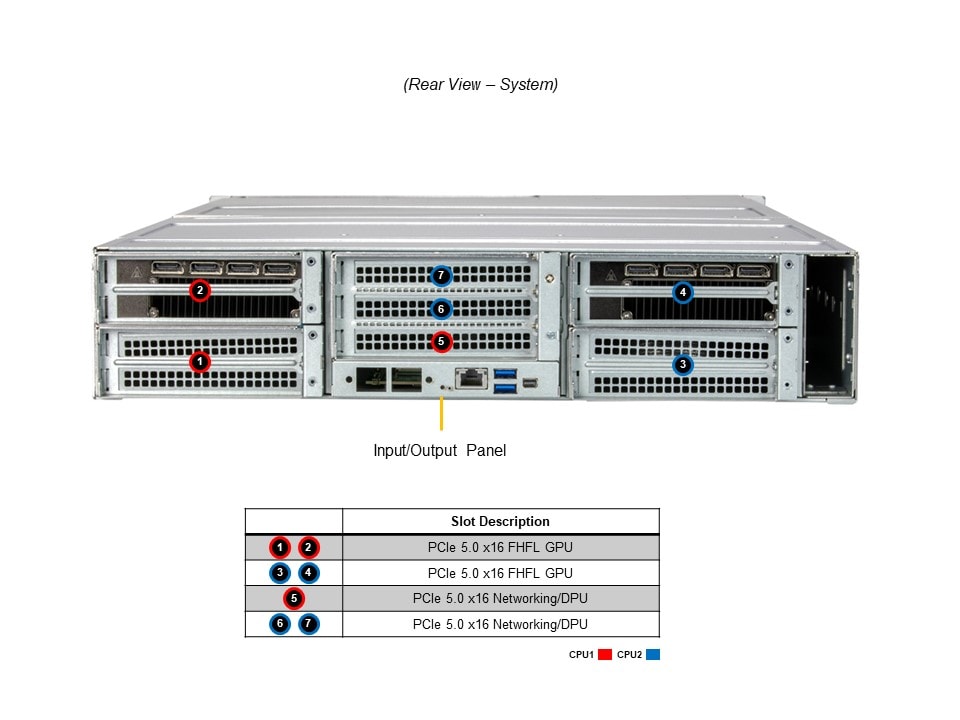

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 4 PCIe 5.0 x16 FHFL double-width slots
    • 3 PCIe 5.0 x16 FHFL slots
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays
    • 8 front hot-swap E1.S NVMe drive bays
M.2
System Cooling
Fans
  • 6x 6cm heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply
3x 2000W
3x 2000W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
Environmental / Recycling
Recycle
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
4-Slot GPU Bay for 2x GPU with NVLink MCP-220-20103-0N 2 MGX 2RU Height 4-Slot GPU Bay for 2x GPU with NVLink
Cables CBL-PWEX-1173-20 1 MicroHi 2x4F/P3.0 to PCIe 2x(3+1)F/P4.2,20cm,8.5A/p,RoHS
CBL-CDAT-1120-50W 1 Picoclasp SB,NCSI,2x10 to 2x10,WH,50cm,28AWG,1A/p,RoHS
NVIDIA NVLINK Bridge, Ampere, 2-Way 2-Slot x16 GPU-NVTNVLINK-A100 6 NVIDIA NVLINK Bridge, Ampere, 2-Way 2-Slot x16
Power Cord CBL-PWCD-0160-IS • 3 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
PSU PWS-2K09F-1R 3 AC-DC 1U 2000W 80 Plus Titanium CRPS, reverse airflow, W73.5
Rails MCP-290-20104-0N 1 37.3" ball bearing rail set with auto latch, no cable arm feature
Trusted Platform Module Options AOM-TPM-9672V-O • 1 TPM 2.0 with 10 pins SPI,RoHS

GPU SuperServer SYS-221GE-NR (Complete System Only )
