SuperServer SYS-221HE-FTNRD (Complete System Only)

X13 DP 2U Short-depth front I/O System with 6 NVMe/SATA bays and redundant DC PSU

SYS-221HE-FTNRD Main SYS-221HE-FTNRD Angle SYS-221HE-FTNRD Top SYS-221HE-FTNRD Front SYS-221HE-FTNRD Rear
Integrated Board: X13DEM
Learn more

Key Applications

  • 5G Core and Edge
  • Telecom Micro Data Center
  • AI Inference and Machine Learning
  • Network Function Virtualization
  • Cloud Computing

Key Features

  1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
  2. 32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600
  3. Configurable PCIe slot options up to 8 PCIe 5.0 x8 (6 FHFL+ 2 FHHL) or 4 PCIe 5.0 x16 (3 FHFL + 1 FHHL)
  4. Flexible networking options with 2 AIOM networking slots (OCP NIC 3.0 compatible)
  5. Up to 6x 2.5" hot-swap drive bays with options to support NVMe/SATA drives
  6. 6 heavy duty hot-swap fans with optimal fan speed control
  7. Redundant 1300W -48V DC power supplies
...
...
SYS-221HE-FTNRD
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-221HE-FTNRD
Motherboard
Super X13DEM
Processor
CPU
Core Count
  • Up to 64C/128T; Up to 320MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 3 double-width or 3 single-width GPUs
Supported GPU
  • NVIDIA PCIe: H100, L40, L40S, A40, A2, A10
  • Intel PCIe: Intel Data Center GPU Flex 170
  • View GPU Options
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory
Memory

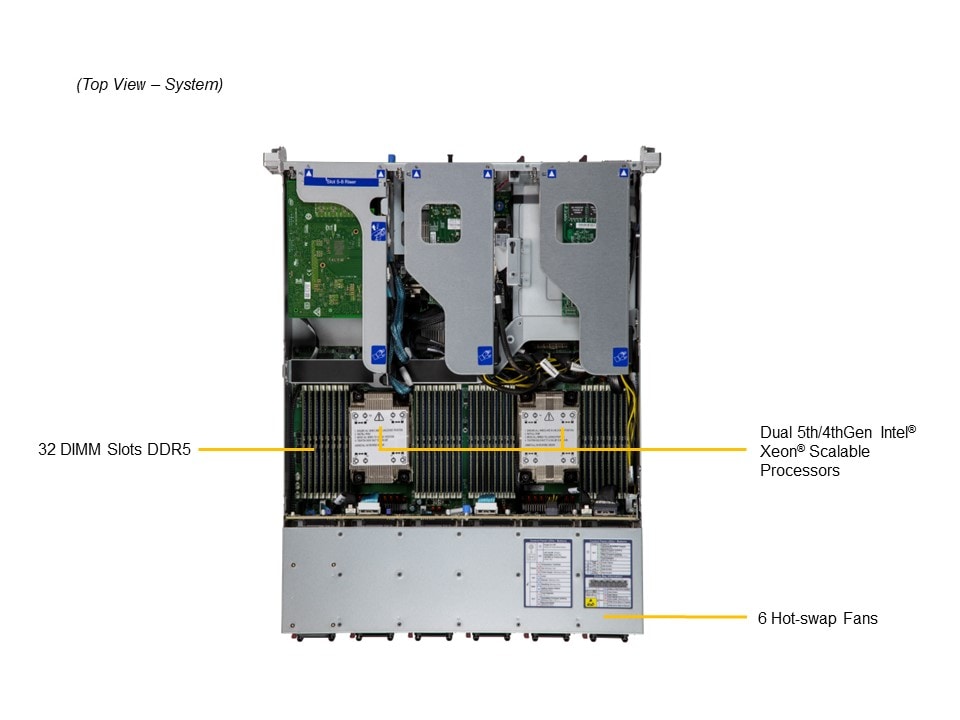

  • Slot Count: 32 DIMM slots/16 Channels
  • Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
Chipset
  • Intel® C741
Network Connectivity
  • 2 SFP28 25GbE with Broadcom® BCM57414 (optional)
  • 2 QSFP28 100GbE with Broadcom® BCM57508 (optional)
  • 2 QSFP28 100GbE with Intel® E810-CAM2 (optional)
  • 2 QSFP28 100GbE (optional)
  • 4 SFP+ 10GbE with Intel® X710-BM2 (optional)
  • 2 QSFP56 200GbE (optional)
  • 2 QSFP56 100GbE (optional)
  • 2 RJ45 1GbE with Intel® I350-AM2 (optional)
  • 4 SFP+ 10GbE with Intel® X710-TM4 (optional)
  • 1 OSFP 400GbE with NVIDIA® ConnectX®-7 NDR (optional)
  • 4 RJ45 10GbE with Intel® X550 (optional)
  • View AIOM Options
  • View AOC Options
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 2.0 ports(front)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
Power configurations
  • ACPI Power Management
  • Power-on mode for DC power recovery
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-HE211-R000NFP
Dimensions and Weight
Height
  • 3.5" (88.9 mm)
Width
  • 17.2" (436.88 mm)
Depth
  • 22.6" (574 mm)
Package
  • 9.7" (H) x 23.5" (W) x 36.9" (D)
Weight
  • Gross Weight: 47.4 lbs (21.5 kg)
  • Net Weight: 34.4 lbs (15.6 kg)
Available Color
  • Silver
Front Panel
LED
  • HDD activity LED
  • LAN1 activity
  • LAN2 activity
  • Power Fail
  • Power status LED
  • System information
Buttons
  • Power On/Off
  • UID button
Expansion Slots

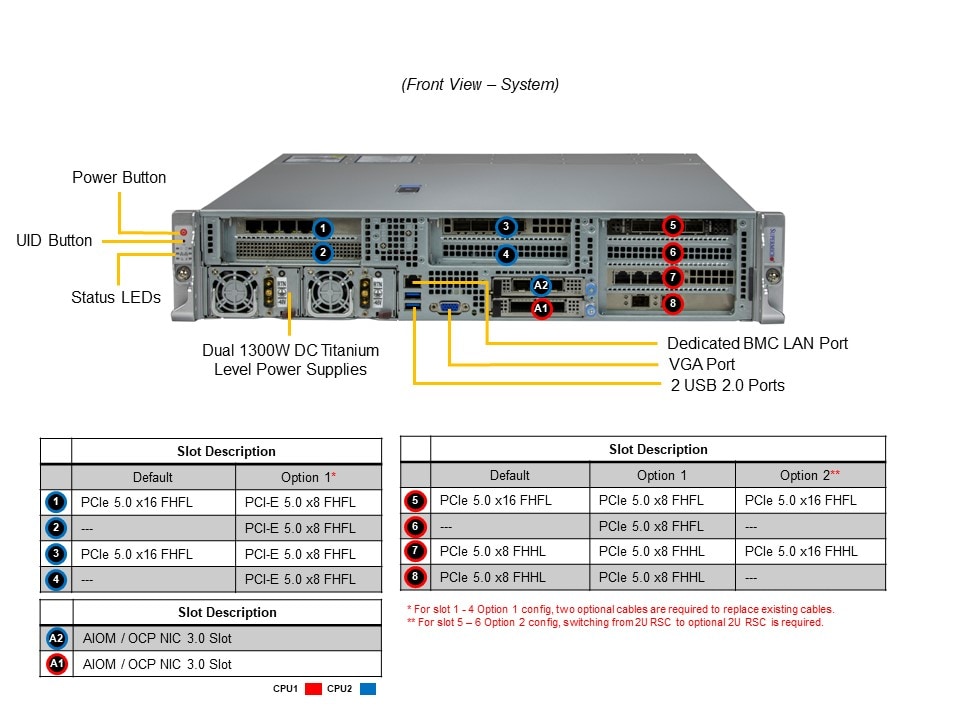

PCI-Express (PCIe) Configuration
  • Default
    • 3 PCIe 5.0 x16 FHFL slots
    • 2 PCIe 5.0 x8 FHHL slots
    • 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
  • Option A
    • 6 PCIe 5.0 x8 FHFL slots
    • 2 PCIe 5.0 x8 FHHL slots
    • 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
  • Option B
    • 3 PCIe 5.0 x16 FHFL slots
    • 1 PCIe 5.0 x16 FHHL slot
    • 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration

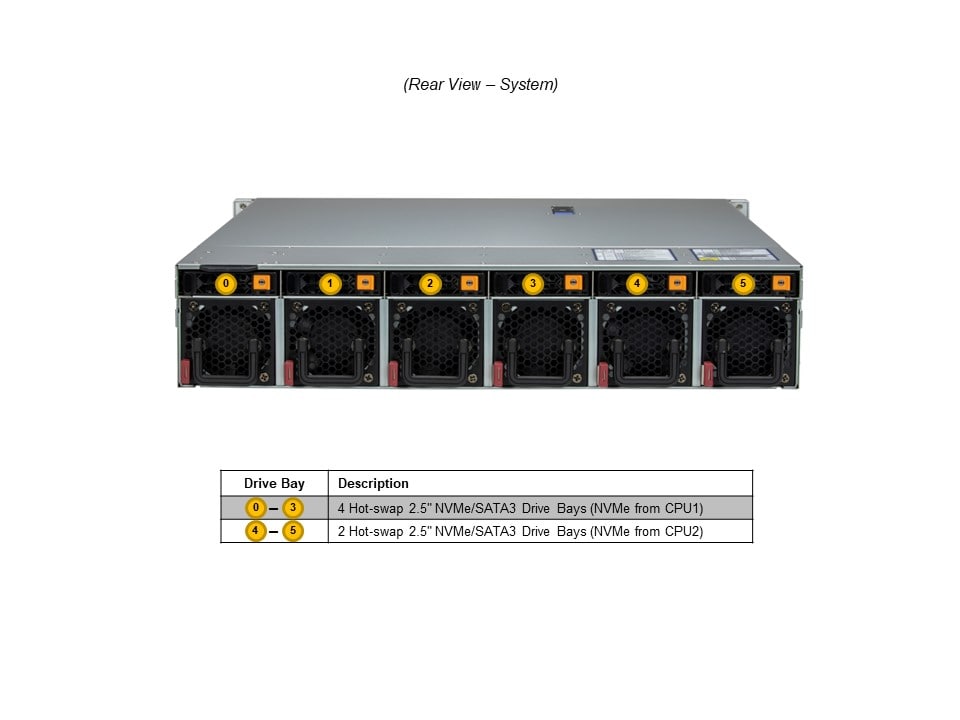

  • Default: Total 6 bays
    • 6 front hot-swap 2.5" NVMe/SAS*/SATA drive bays
  • (*SAS support may require additional storage controller and/or cables)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 6 Counter-rotating, Hot-swappable 6cm Fan(s)
Power Supply
Operating Environment
Environmental Spec.
  • Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
Cable CBL-GNZ4-1227M5YR21 0 Optional cable to config PCIe slots 3/4 x8/x8
CBL-MCIO-1232M5 0 Optional cable to config PCIe slots1/2 x8/x8
CBL-PWEX-0962Y-20 0 12VHPWR 2x6+4S to 2x 2x4 MicroHi power cable for PCIe slot 1/5 (H100, L40S, L40 RTX 6000 Ada, RTX 5000 Ada, RTX 4000 Ada)
CBL-PWEX-0962Y-30 0 12VHPWR 2x6+4S to 2x 2x4 MicroHi power cable for PCIe slot 3 (H100, L40S, L40 RTX 6000 Ada, RTX 5000 Ada, RTX 4000 Ada)
CBL-PWEX-1148-30 0 CPU 8-pin connector to 2x4 MicroHi power cable for PCIe slot 1/3/5 (A40, A100)
CBL-PWEX-1040 0 Cable to convert CPU 8-pin to 2 PCI 2x3 + 2x1
Optional sliding rail kit MCP-290-11901-0N 0 Optional sliding rail kit for Post to Post: 26.5" ~ 41.2"
MCP-290-11902-0N 0 Optional sliding rail kit for Post to Post: 24" ~ 35.3"
MCP-290-11903-0N 0 30.5" ball-bearing rail set, without auto latch for Hyper 1U & 2U Project
Riser Card RSC-H2-668G5S 0 Optional Riser Card for PCIe Slot 7 5.0 x16/ PCIe Slot 8 disable
