SuperServer SYS-222FT-HEA-LCC (Complete System Only)

2U 4-Node FlexTwin™ with 2 hot-swap E1.S drives per node

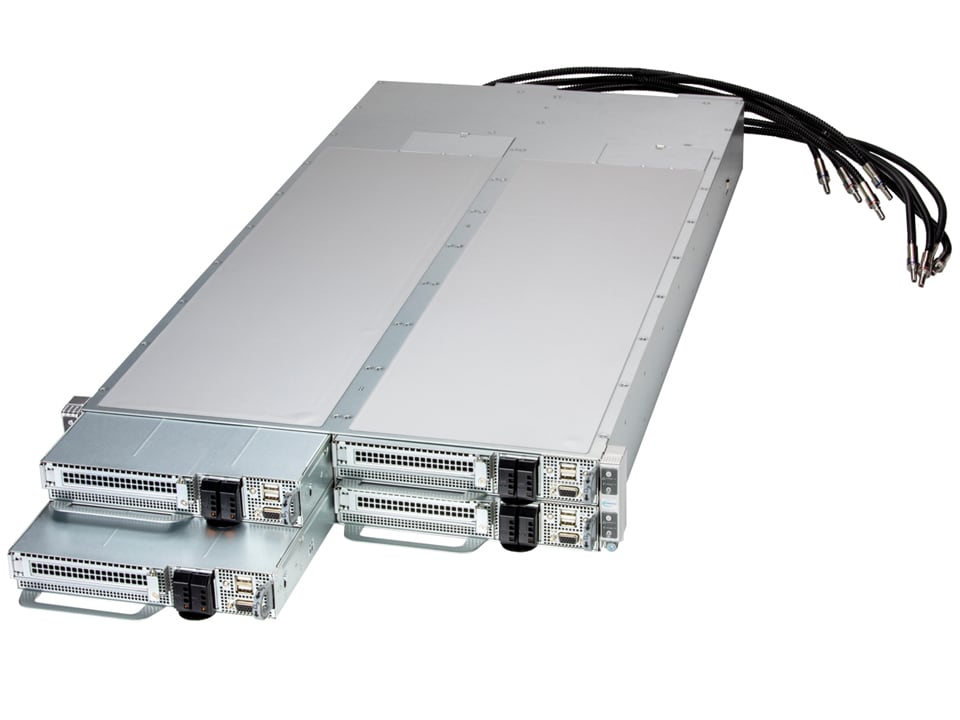

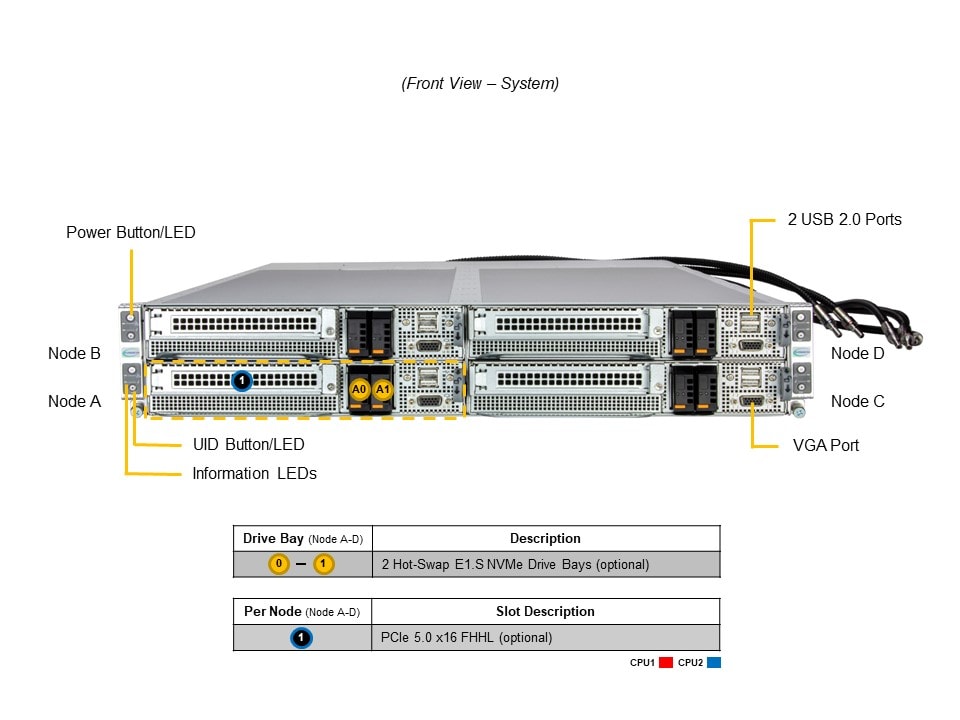

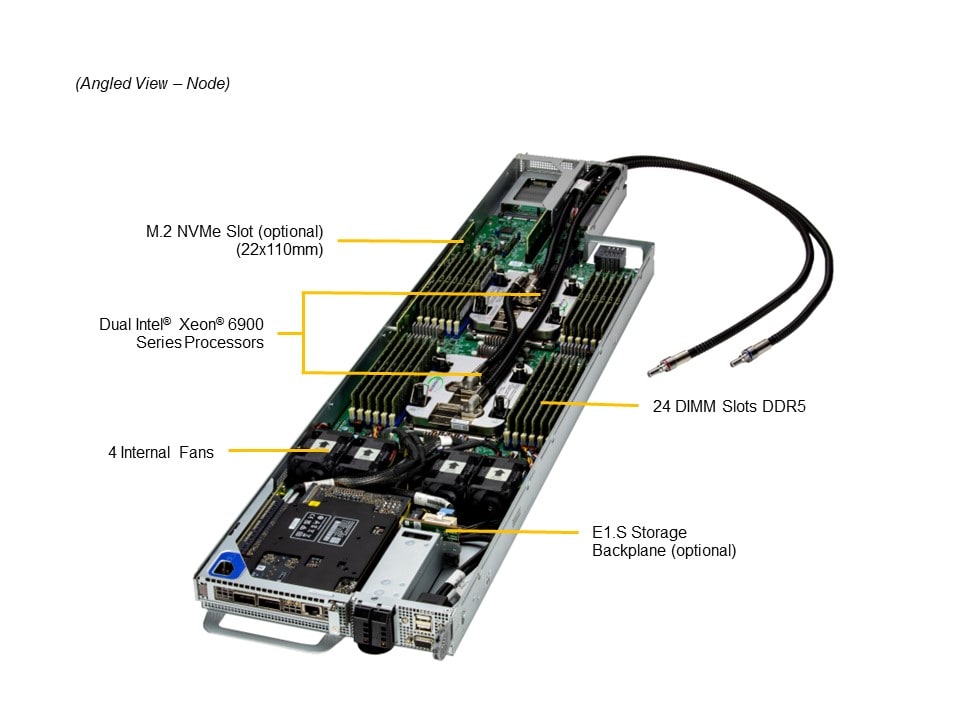

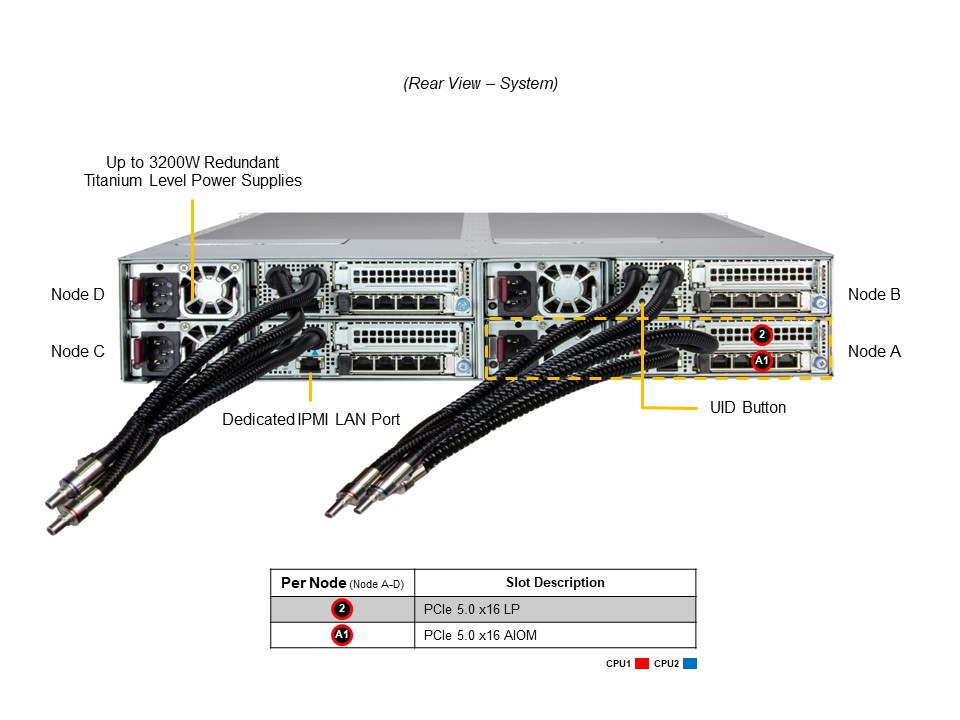

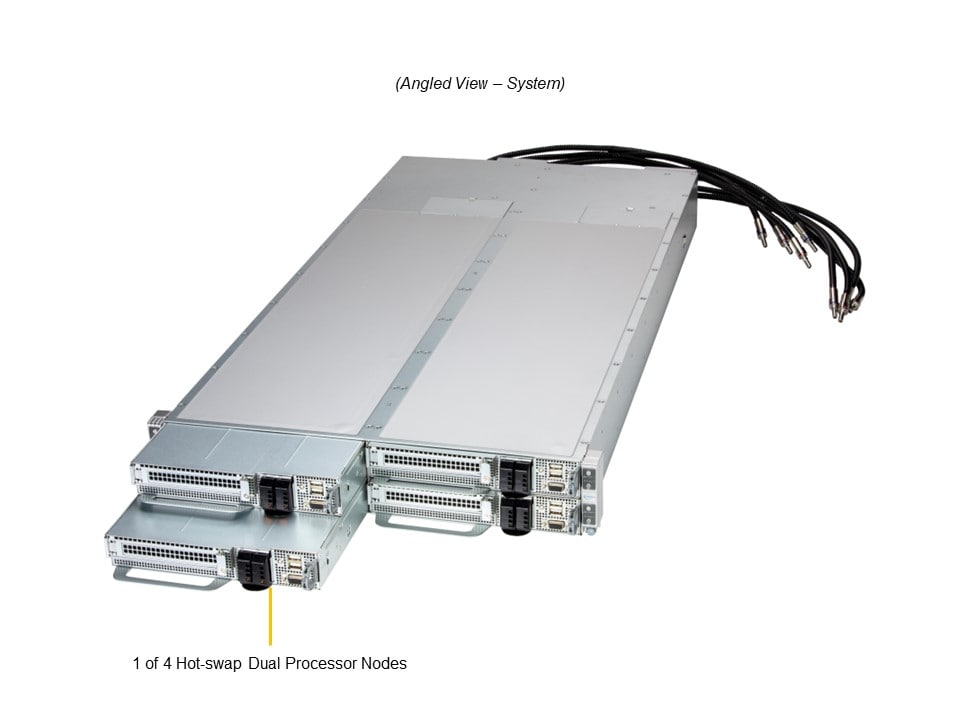

SYS-222FT-HEA-LCC Main SYS-222FT-HEA-LCC Angle SYS-222FT-HEA-LCC Node SYS-222FT-HEA-LCC Front SYS-222FT-HEA-LCC Rear
Integrated Board: X14DBT-FAP
Learn more

Key Applications

  • Oil & Gas
  • Scientific Research
  • High Performance Computing (HPC)
  • Research Lab

Key Features

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

  1. Dual Intel® Xeon® 6900 Series Processors with P-cores up to 500W with liquid cooling
  2. Up to 24 DIMMs supporting up to 6TB 6400MT/s DDR5 RDIMM or 3TB 8800MT/s DDR5 MRDIMM
  3. Flexible networking with up to 1 OCP 3.0 compatible AIOM slots
  4. Optional 1 PCIe 5.0 x16 FHHL slot + Default 1 PCIe 5.0 x16 LP slot
  5. Optional 2 E1.S Slots + Optional 2 M.2 NVME drive Slots
  6. 4 Redundant Up to 3200W Titanium Level Power Supplies
...
...
SYS-222FT-HEA-LCC
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-222FT-HEA-LCC
Motherboard
Super X14DBT-FAP
Processor (per Node)
CPU
Core Count
  • Up to 128C/256T; Up to 504MB Cache per CPU
Note
  • Supports up to 500W TDP CPUs (Liquid Cooled)​
System Memory (per Node)
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 MRDIMM
On-Board Devices (per Node)
NVMe
  • NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Chipset
  • System on Chip
Network Connectivity
  • Via AIOM
Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 2.0 Type-A ports(front)
Video
  • 1 VGA port(Front)
System BIOS
BIOS Type
  • AMI 64MB SPI Flash
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-F214EC-000NP
Dimensions and Weight
Height
  • 3.46" (88 mm)
Width
  • 17.67" (449 mm)
Depth
  • 37.09" (942 mm)
Package
  • 10.83" (H) x 27.29" (W) x 50.32" (D)
Weight
  • Gross Weight: 129 lbs (58.51 kg)
  • Net Weight: 105 lbs (47.63 kg)
Available Color
  • Silver
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 5.0 x16 LP slot
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • Option A*
    • 1 PCIe 5.0 x16 LP slot
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
    • 1 PCIe 5.0 x16 FHHL slot
  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
M.2
  • 2 M.2 NVMe slots (B+M-key 22110; VROC required for RAID)
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 2 bays
    • 2 front hot-swap E1.S PCIe 5.0 NVMe* drive bays
  • (*NVMe support may require additional storage controller and/or cables)
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default); VROC required for RAID)
System Cooling
Fans
  • 16x 31K RPM Counter Rotating 40x40x56mm Fan(s)
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate
Power Supply
4x 3200W
4x 3200W Redundant (2 + 2) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 185 mm
AC Input3200W: 0240Vdc / 50-60Hz (for CQC only)
1000W: 100-127Vac / 50-60Hz
2900W: 200-207Vac / 50-60Hz
3000W: 207-220Vac / 50-60Hz
3200W: 220-240Vac / 50-60Hz
+12VMax: 82A / Min: 0A (100Vac-127Vac)
Max: 237.7A / Min: 0A (200Vac-207Vac)
Max: 245.9A / Min: 0A (207Vac-220Vac)
Max: 262.3A / Min: 0A (220Vac-240Vac)
12V SBMax: 3A / Min: 0A
Output TypeBackplanes (gold finger)
4x 2000W
4x 2000W Redundant (2 + 2) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 203 mm
AC Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc
2000W: 230-240Vac
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for China only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
12V SBMax: 3.5A / Min: 0A
Max: 3.5A
Output TypeBackplanes (gold finger)
4x 2700W
4x 2700W Redundant (2 + 2) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 203 mm
AC Input2700W: 200-240Vac
2700W: 200-240Vac / 50-60Hz
2700W: 240-240Vdc / 50-60Hz (for CQC only)
+12VMax: 225A / Min: 0A (200Vac-240Vac)
Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SBMax: 3.5A / Min: 0A
Max: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
Parts List
Optional Parts List
Part Number Qty Description
Cold Plate Module and Air Shroud LCS-SLCM-X0009 1 LCM for FlexTwin DP X14 CPU, ROHS (Qty per Node)
MCP-310-21410-0B 1 FlexTwin F214 2U4N DP X14 plastic air shroud (Qty per Node)
E1.S BPN CBL-PWEX-1131-20 1 MicroHi (2x2 to 2x2) Power Cable (Qty per Node)
MCP-220-12603-0B 2 E1.S_FRONT_LATCH_ASM with Tray (Qty per Node)
BPN-E1Q5-F214N 1 1U 2-slots PCle GEN5 E1.S Storage backplane (Qty per Node)
CBL-MCIO-1221M5 • 1 MCIO (x8 to x8) Cable (Qty per Node)
MCP-240-21413-0N 1 FlexTwin 2U4N F214 E1.S cage (Qty per Node)
M.2 NVMe Controller SCC-P2N2M2-F1 1 2x Gen5 NVMe M.2 (Qty per Node)
Riser Cable Kit CBL-ASMC-1227DM5YP23 1 Front FHHL Slot Cable Kit PCIe Gen 5 X16 (connects to CPU2) (Qty per Node)
SPI Capable TPM Options AOM-TPM-9670H-S 1 SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor (Qty per Node)
AOM-TPM-9671H-S 1 SPI Capable TPM 1.2 Provisioned for Server, Horizontal Form Factor (Qty per Node)
AOM-TPM-9670H-FIPS 1 SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor, Supporting FIPS 140-2 (Qty per Node)
SuperCloud Composer License SFT-SDDC-SINGLE 1 SDDC Monitor License - Single License per Monitored host (Qty per Node)
System Management Suite SFT-DCMS-Single 1 Supermicro System Management Software Suite node (Qty per Node)
VROC Options AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10 (Qty per Node)
AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10 (Qty per Node)

FlexTwin SuperServer SYS-222FT-HEA-LCC (Complete System Only )
