SuperServer SYS-241E-TNRTTP (Complete System Only)

2U 4-socket system with 64 DIMMs and 24 NVMe/SAS/SATA drive bays

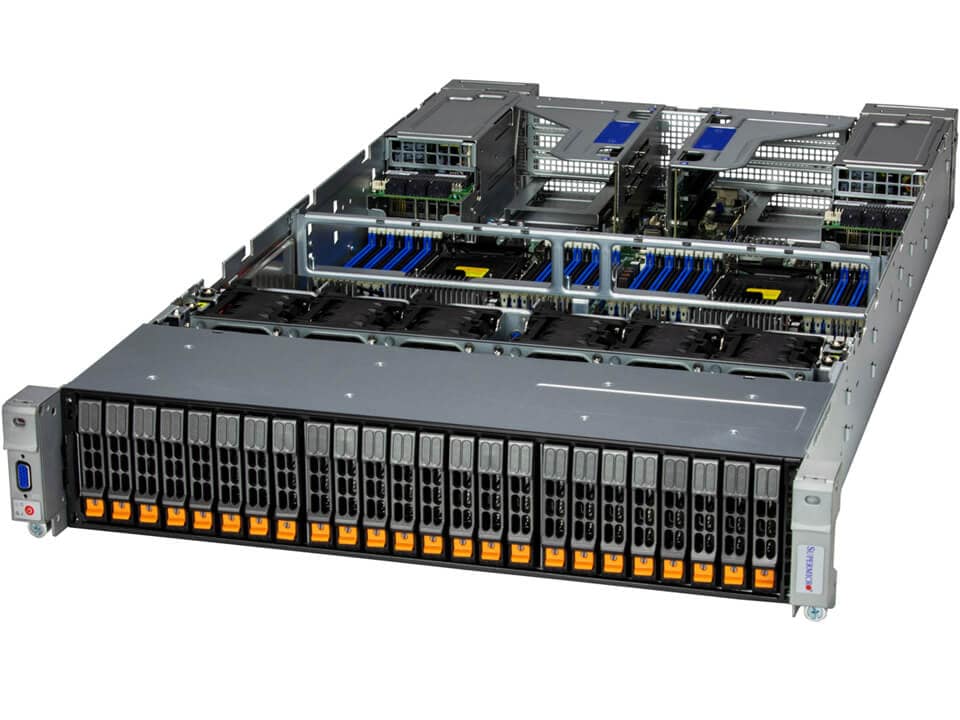

SYS-241E-TNRTTP Main SYS-241E-TNRTTP Angle SYS-241E-TNRTTP Top SYS-241E-TNRTTP Front SYS-241E-TNRTTP Rear
Integrated Board: X13QEH+
Learn more

Key Applications

  • Artificial Intelligence (AI)
  • Business Intelligence
  • ERP, CRM
  • Scientific Virtualization
  • In-Memory Database
  • HCI
  • SAP HANA

Key Features

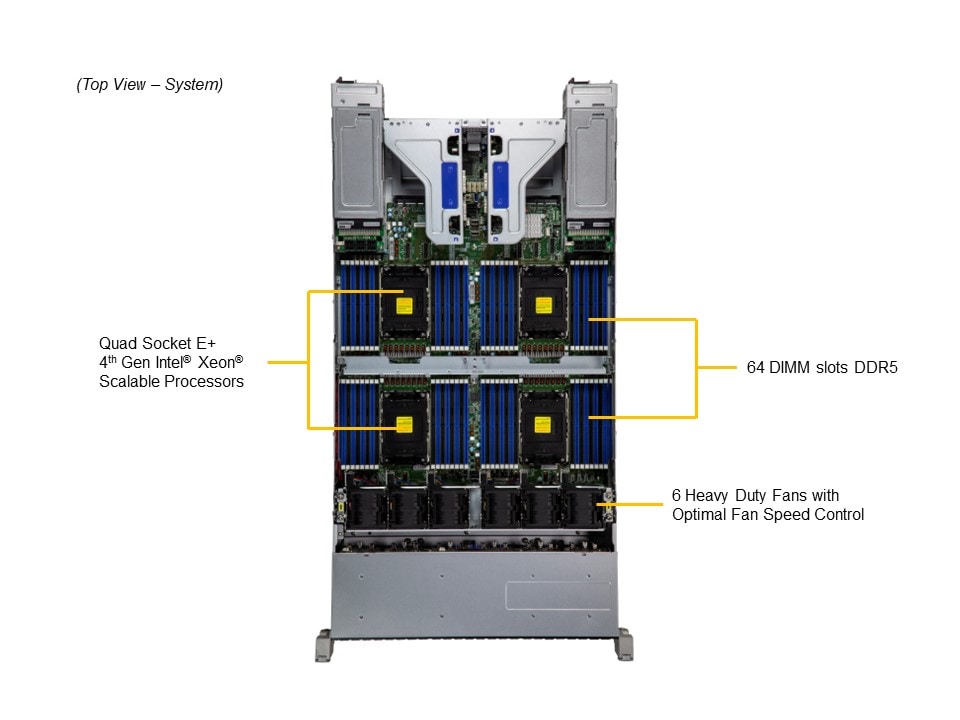

  1. Quad Socket E (LGA-4677) 4th Generation Intel® Xeon® Scalable processors
  2. 64 DIMM Slots; Up to 8TB DDR5-4800MHz ECC RDIMM/RDIMM-3DS
  3. Optional PCIe configurations up to 8 PCIe slots with support for two double-width GPU/Accerlator cards
  4. Flexible networking options with 2 AIOM networking slot (OCP NIC 3.0 compatible)

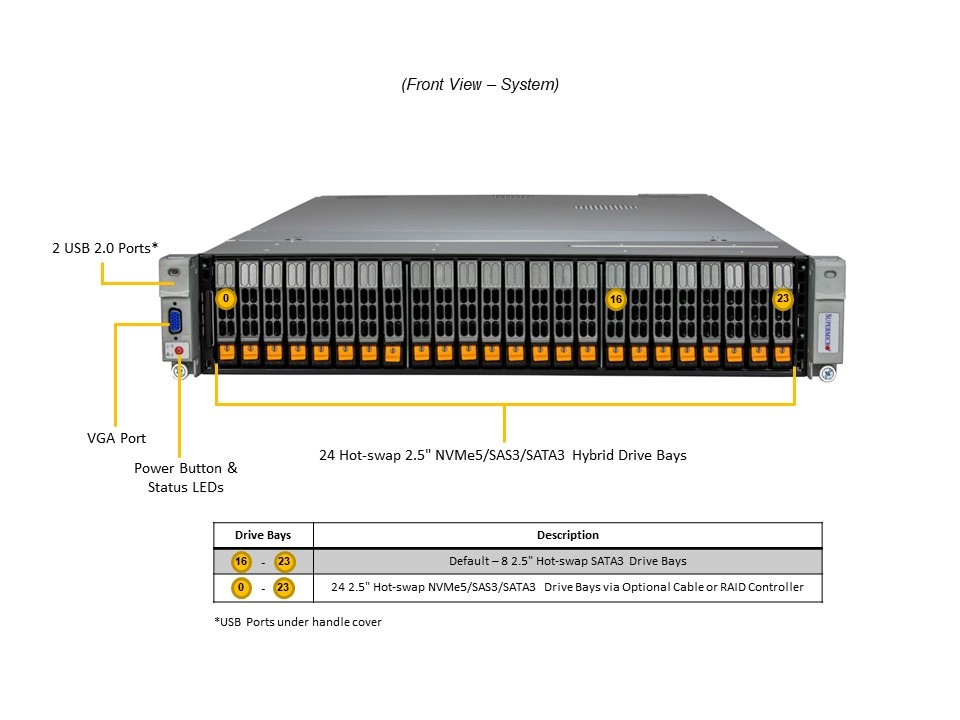

  5. 24x 2.5" Hot-swap NVMe/SAS3/SATA3 Hybrid Drive bays (Default with 24 SAS3/SATA3 drive bays); 2x internal M.2 NVMe/SATA; Optional RAID support via storage add-on card
  6. 6 heavy duty fans w/ optimal fan speed control
    Liquid cooling solution is available-please contact your Supermicro sales rep for more info.
...
...
SYS-241E-TNRTTP
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-241E-TNRTTP
Motherboard
Super X13QEH+
Processor
CPU
Note
  • Supports 165W - 250W TDP CPUs (Air Cooled)
  • Supports up to 350W TDP CPUs (Liquid Cooled)​
GPU
Max GPU Count
  • Up to 2 double-width GPUs
Supported GPU
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory
Memory
On-Board Devices
Chipset
  • Intel® C741
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
  • 2 USB 2.0 ports(front)
Video
  • 1 VGA port
  • 1 DisplayPort port
Serial
  • 1 COM port(Rear)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-218HTS-R3K2AWP
Dimensions and Weight
Height
  • 3.5" (87.9 mm)
Width
  • 17.3" (438.4 mm)
Depth
  • 33.4" (849.3 mm)
Package
  • 9.75" (H) x 26.5" (W) x 43.5" (D)
Weight
  • Gross Weight: 71.5 lbs (32.43 kg)
  • Net Weight: 45.5 lbs (20.64 kg)
Available Color
  • Black
Front Panel
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Buttons
  • Power On/Off
  • UID

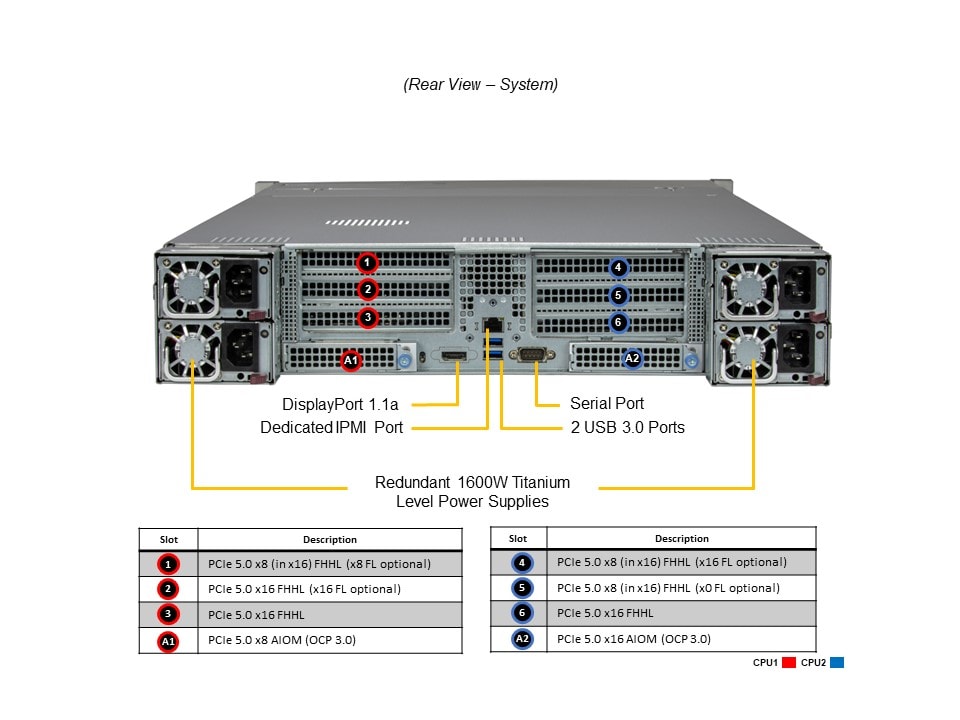

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 3 PCIe 5.0 x8 FHHL slots
    • 3 PCIe 5.0 x16 FHHL slots
    • 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • Option A
    • 2 PCIe 5.0 x16 FHFL double-width slots
    • 2 PCIe 5.0 x16 FHHL slots
    • 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays
    • 8 front hot-swap 2.5" SATA drive bays
  • Option A: Total 24 bays
    • 24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 6 Heavy duty counter-rotating 6cm Fan(s)
  • 4 Direct to Chip (D2C) Cold Plate Fan(s) (optional)
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate (optional)
Power Supply
4x 1600W
4x 1600W Redundant (2 + 2) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 203 mm
AC Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
+12VMax: 83.3A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 133A / Min: 0A (200Vac-240Vac)
12V SBMax: 2.1A / Min: 0A
Output TypeBackplanes (gold finger)
CertificationTitanium Level94%+  Titanium Level

[ Test Report ]
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
CPU Carrier (Require 4pcs of one PN only) SKT-1424L-001B-LTS 4 Intel SPR 64xxH Socket E E1B carrier LGA 4677 W/SHIM SPR MCC, DG1.0 ,RoHS (Brand LOTES)
SKT-1424L-001B-FXC 4 Intel SPR 64xxH Socket E E1B carrier LGA 4677 W/SHIM SPR MCC, DG1.0, RoHS (Brand FOXCONN)
SKT-1333L-0001-LTS 4 Intel SPR 84xxH Socket E LGA4677, E1A XCC carrier, DG 1.0, NO SHIM, (Brand LOTES)
SKT-1333L-0000-FXC 4 Intel SPR 84xxH Socket E LGA4677, E1A XCC carrier, DG 1.0, RoHS (Brand FOXCONN)
GPU DW FL Support Kit MCP-310-21820-0B 2 1U Evac CPU Air Shroud
MCP-240-21828-0N 1 GPU card bracket set for DW full length GPU (Supports 2x DW GPUs)
SNK-P2087PV-2 1 1U Right EVAC CPU Heat Sink
SNK-P2087PV-1 1 1U Left EVAC CPU Heat Sink
GPU Power Cable(s) CBL-PWEX-1040 • 1/GPU 8-pin CPU to 8-pin PCIe power connector (Requires 1x CBL-PWEX-1148-20)
CBL-PWEX-1148-20 • 1/GPU 8-pin CPU power cable (Example A6000, A100, A40 and etc.)
CBL-PWEX-0962Y-20 1/GPU 16-pin power cable (Example H100)
Intel 6434H High Frequency Support SNK-P2088P 2 2U Passive EVAC CPU Heat Sink for X13 241H/E Series Servers
NVMe Intel VROC Controller AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10
AOC-VROCSTNMOD 1 Intel VROC HW key (RSTe) standard upgrade module
NVMe Support Kit CBL-MCIO-1210M5 1 ~ 12 MCIO x8 (STR to STR),10CM,85OHM,RoHS (1 cable supports 2 NVMe U.2 Drives)
MCP-220-00196-0B 1 ~ 24 Metallic black gen-3 hot-swap 2.5" NVMe tool-less tray
Power Supply PWS-1K62A-1R • 1 ~ 4 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
RAID Controller 01-08pcs SATA3/SAS CBL-SAST-1281-100 1 Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM
AOC-S3908L-H8IR-16DD 1 8 int 12Gb/s ports, x8 Gen4, ROC - LP
RAID Controller 09-16pcs SATA3/SAS AOC-S3916L-H16IR-32DD 1 16 int 12Gb/s ports, x8 Gen4, ROC - LP
CBL-SAST-1281-100 2 Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM
RAID Controller 17-24pcs SATA3/SAS CBL-SAST-1281-100 3 Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM
AOC-S3916L-H16IR-32DD 1 16 int 12Gb/s ports, x8 Gen4, ROC - LP
AOC-S3908L-H8IR-16DD 1 8 int 12Gb/s ports, x8 Gen4, ROC - LP
RAID Controller CacheVault(s) MCP-240-00203-0N • 1 BTR-CVPM05 Supercap mounting bracket for PCIe location (Support up to 2 BTR)
BTR-CV3916-U1 1 ~ 2 CacheVault Supercap with chassis sidewall mounting kit
BTR-CVPM05 • 1 ~ 2 CacheVault for Broadcom RAID Controller (Ex. S3908/S3916)
Rail w/ Cable Arm Support Kit MCP-290-00127-0N 1 39" rail set, quick/quick, 17.2"W, for 2U Gen2 cable arm
MCP-290-00128-0N 1 Gen2 cable arm for Ultra 2U
TPM Security Module AOM-TPM-9672V 1 TPM 2.0 with 10 pins SPI,RoHS (Vertical)
AOM-TPM-9672V-FIPS 1 TPM 2.0 with 10 pins SPI support FIPS 140,RoHS (Vertical)
AOM-TPM-9670V 1 SPI TPM 2.0 using SLB9670 (Vertical)
