SuperServer SYS-421GE-TNHR2-LCC (Complete System Only)

DP Intel 4U Liquid-Cooled System with NVIDIA HGX H100/H200 8-GPU (onsite service is required for liquid-cooling)

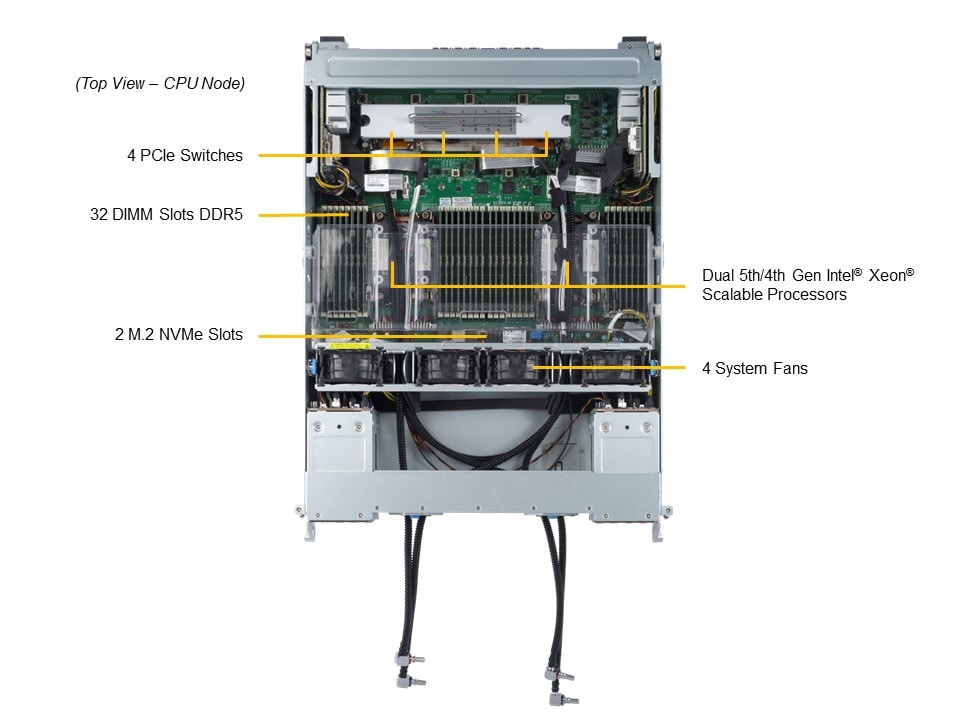

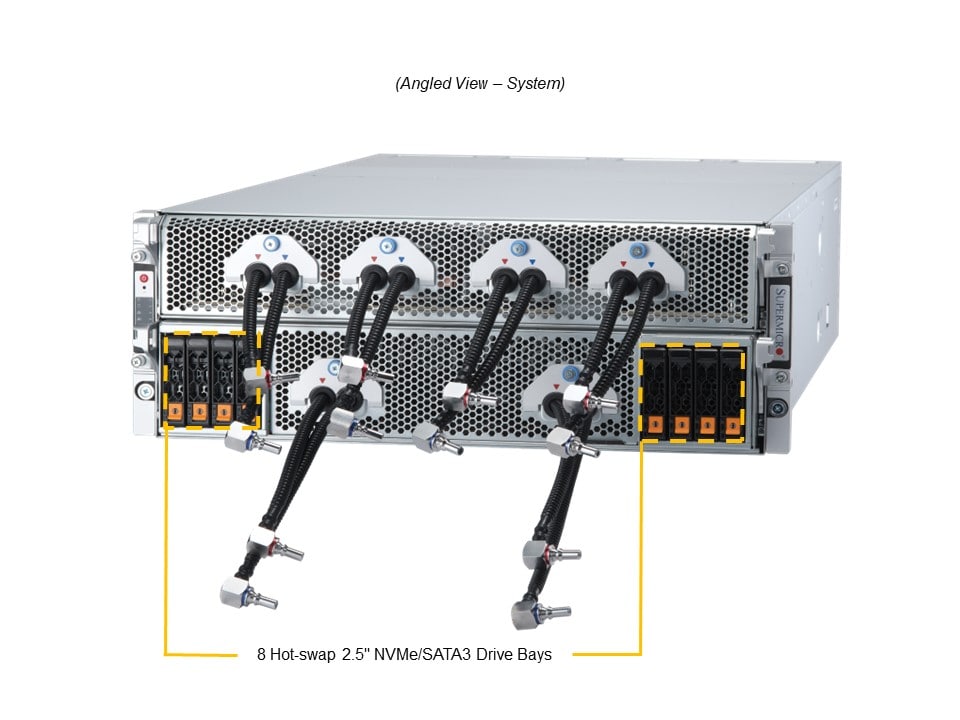

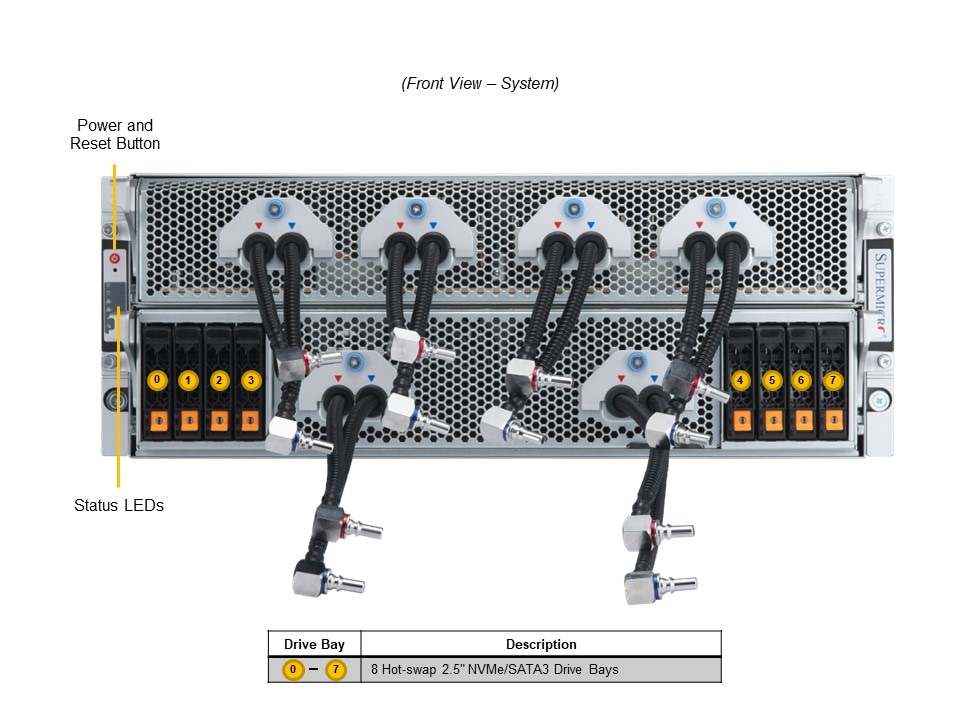

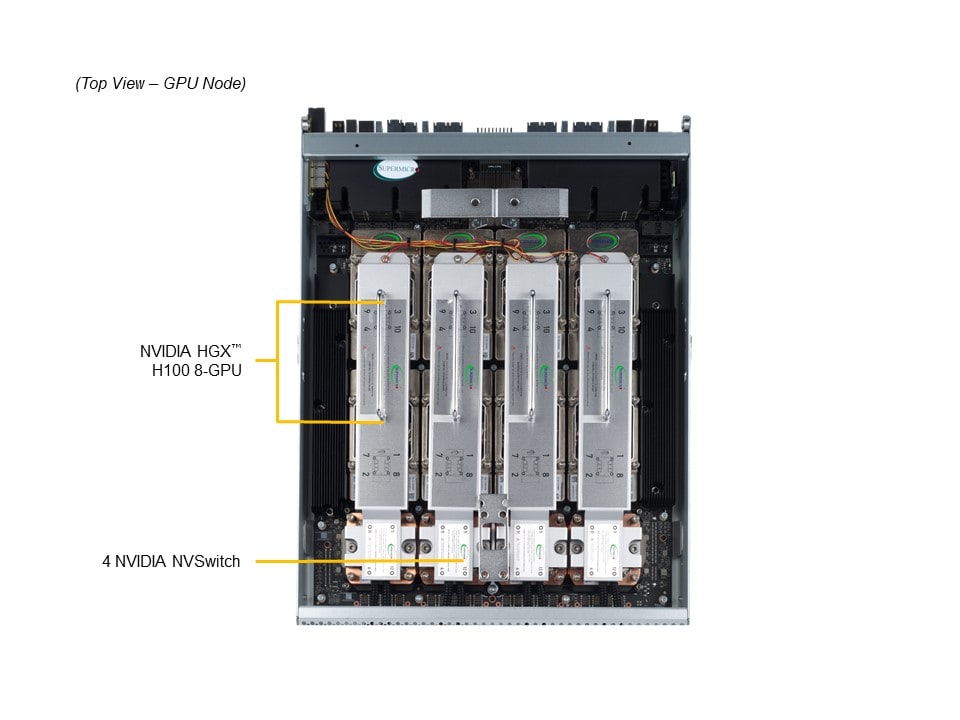

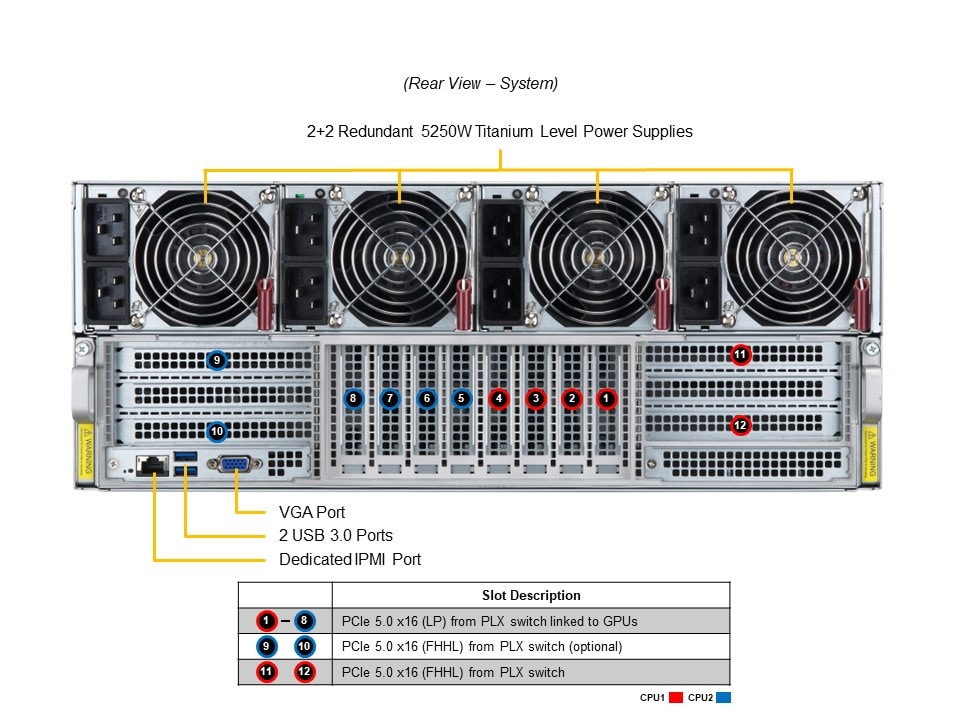

SYS-421GE-TNHR2-LCC Main SYS-421GE-TNHR2-LCC Angle SYS-421GE-TNHR2-LCC Top SYS-421GE-TNHR2-LCC Top1 SYS-421GE-TNHR2-LCC Front SYS-421GE-TNHR2-LCC Rear
Integrated Board: X13DEG-M
Learn more

Key Applications

  • High Performance Computing
  • AI/Deep Learning Training
  • Industrial Automation, Retail
  • Healthcare
  • Conversational AI
  • Business Intelligence & Analytics
  • Drug Discovery
  • Climate and Weather Modeling
  • Finance & Economics

Key Features

  1. 5th/4th Gen Intel®  Xeon® Scalable processor support
  2. 32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
  3. 8 PCIe Gen 5.0 X16 LP
    2 PCIe Gen 5.0 X16 FHHL Slots, 2 PCIe Gen 5.0 X16 FHHL Slots (optional)
  4. Flexible networking options
  5. 2 M.2 NVMe for boot drive only
    Optional: 8x 2.5" Hot-swap  SATA drive bays
    8x 2.5" Hot-swap  NVMe drive bays
  6. 4 heavy duty fans with optimal fan speed control
  7. 4x 5250W(2+2) Redundant Power Supplies, Titanium Level
...
...
SYS-421GE-TNHR2-LCC
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-421GE-TNHR2-LCC
Motherboard
Super X13DEG-M
Processor
CPU
Core Count
  • 64C/128T; 320MB Cache per CPU
Note
  • Supports up to 385W TDP CPUs (Liquid Cooled)​
GPU
Max GPU Count
  • Up to 8 onboard GPUs
Supported GPU
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink® with NVSwitch™
Certification
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): 4TB 5600MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): 8TB 4400MT/s ECC DDR5 RDIMM
  • View Memory Options
On-Board Devices
Chipset
  • Intel® C741
Network Connectivity
  • 2 SFP28 25GbE with Broadcom® BCM57414 (optional)
  • 2 RJ45 10GbE with Intel® X710-AT2 (optional)
  • View AOC Options
Input / Output
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 8+4 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-GP401TS-R000NP
Dimensions and Weight
Height
  • 6.85" (174 mm)
Width
  • 17.7" (449 mm)
Depth
  • 33.2" (842 mm)
Package
  • 13" (H) x 48" (W) x 26.4" (D)
Weight
  • Gross Weight: 138.89 lbs (63 kg)
  • Net Weight: 80.03 lbs (53 kg)
Available Color
  • Silver
Front Panel
Buttons
  • UID button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 8 PCIe 5.0 x16 LP slots
    • 2 PCIe 5.0 x16 FHHL slots
  • Option A
    • 8 PCIe 5.0 x16 LP slots
    • 4 PCIe 5.0 x16 FHHL slots
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
M.2
System Cooling
Fans
  • 4 Fan 8cm Fan(s)
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate (optional)
Power Supply
4x 5250W
4x 5250W Redundant Titanium (certification pending) Level (96%) power supplies
Dimension (WxHxL)106.5 x 82.1 x 245.3 mm
AC Input5250W: 200-240Vac / 50-60Hz
+12VMax: 125A / Min: 0A (200Vac-240Vac)
12V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Certification94%+  Titanium (certification pending) Level

[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
Side expention sets AOM-GP401-SW-P 1 NIC adaptor board with Switch for 4U Liquid-Cool GPU Sys
AOM-GP401-PCIE-P 1 NIC IO board for 4U Liquid-Cool GPU System,RoHS
CBL-PWEX-1142-30 1 MicroHi,(2x4 to 2x4),PH3.0,30CM,8A/pin,18AWG,RoHS
CBL-CDAT-0923A-40 1 I2C, (1x6F to 1x6F)/PH2.0,40CM,24AWG,2A/p,RoHS
CBL-MCIO-1419M5FXLC4-E 1 2 MCIOx8 (STR to STR),LtF,FOLD,19cm,32AWG,RoHS

GPU SuperServer SYS-421GE-TNHR2-LCC (Complete System Only )

Certain products may not be available in your region
