Key Applications / Features
Mainstream, Entry Appliance
Low Power, Cost effective
1. Single Socket H4 (LGA 1151) supports
Intel® Xeon® processor E3-1200 v6/v5,
Intel® 7th/6th Gen. Core™ i3 series
2. Intel® C232 chipset
3. 1 Fixed 3.5" drive support (default);
Up to 2 Fixed 2.5" drives (opt.)
4. Up to 64GB Unbuffered ECC UDIMM
DDR4 2400MHz; 4 DIMM slots
5. 1 PCI-E 3.0 x8 AOC slot
6. 2 GbE ports with Intel® i210-AT,
1 Dedicated IPMI port
7. 1 VGA, 1 COM, 2 USB 3.0, 2 USB 2.0
9. 200W Multi-output power supply
|
|
|
|
 |
|
|
|
|
| |

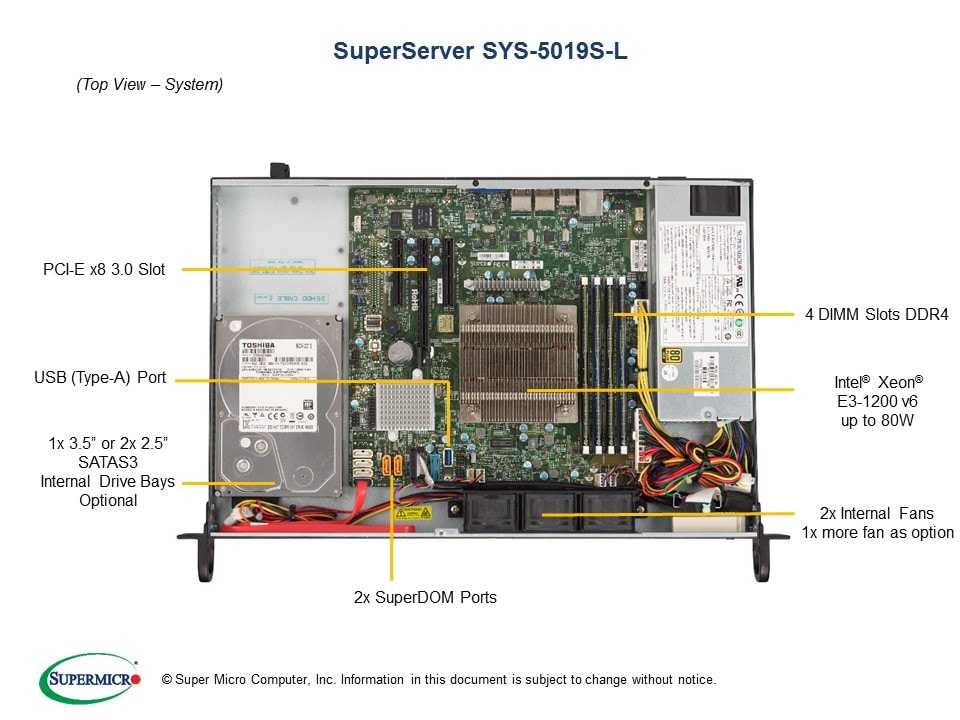

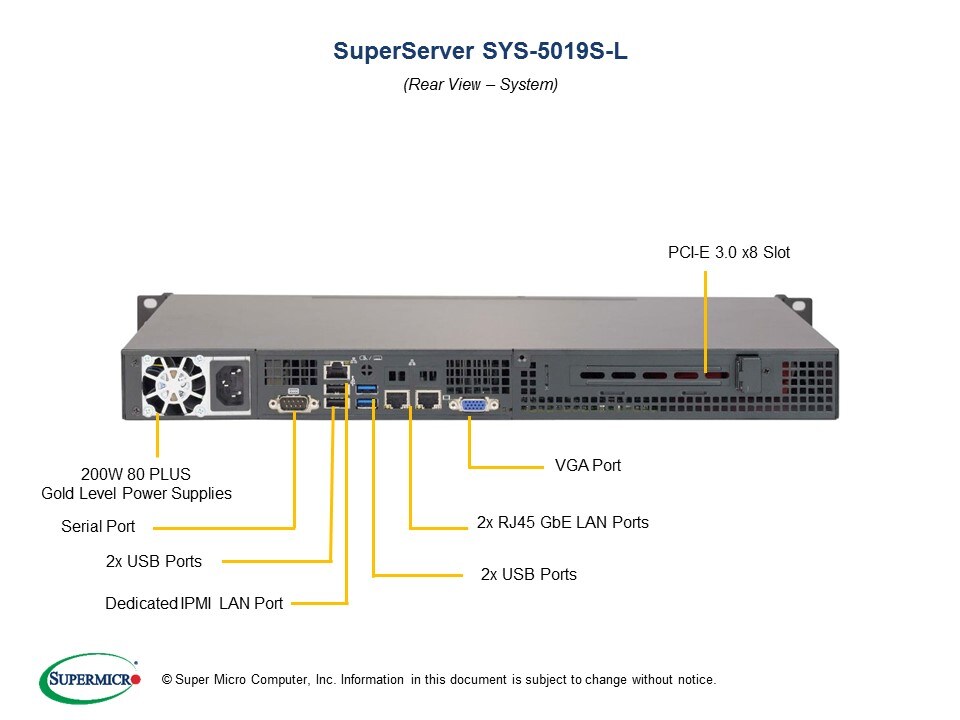

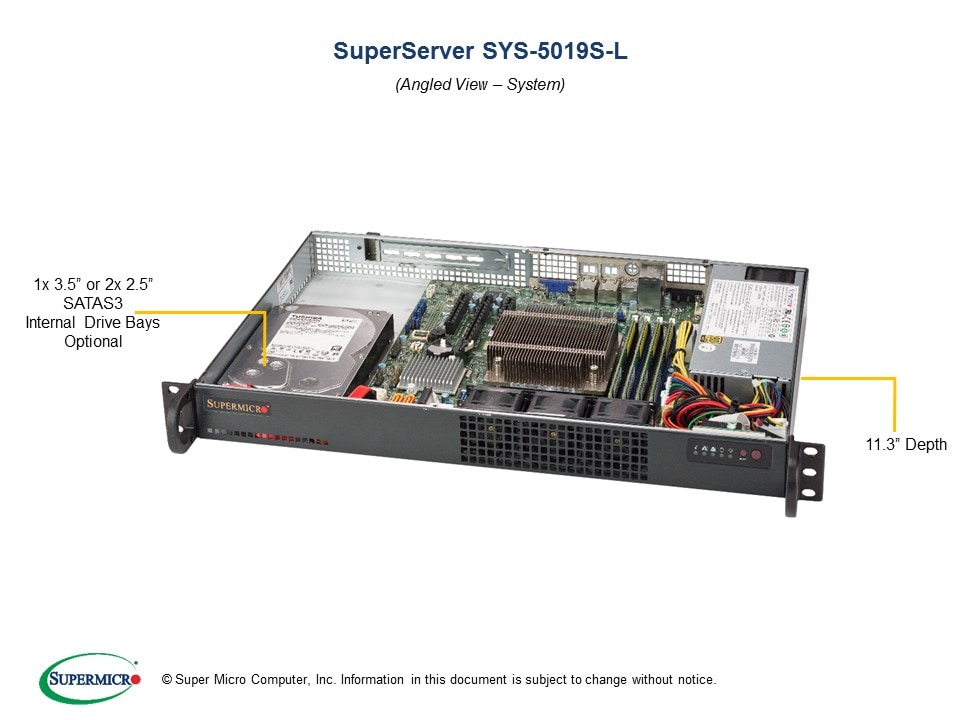

 | | SYS-5019S-L |
- SuperServer 5019S-L (Black)
|
| | |
| | CPU |
- Single Socket H4 (LGA 1151) supports:
-
Intel® Xeon® processor E3-1200 v6/v5,
Intel® 7th/6th Gen Core™ i3
- CPU TDP up to 45W, 80W option fan
|
| Note |
BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors |
| |
|
| Memory Capacity |
- 4x 288-pin DDR4 DIMM slots
- Up to 64GB DDR4
ECC UDIMM
|
| Memory Type |
-
2400/2133/1866/1600MHz
ECC DDR4 SDRAM 72-bit,
288-pin
(UDIMM) gold-plated DIMMs
|
| DIMM Sizes |
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| |
|
| Chipset |
|
| SATA |
- SATA3 (6Gbps) via C232 controller
- RAID 0, 1, 5, 10 support
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
|
| Network Controllers |
- Dual Intel® I210-AT Gigabit Ethernet LAN ports
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
|
| Video |
|
| |
|
| SATA |
|
| LAN |
- 2 RJ45 Gigabit Ethernet LAN ports
- 1 RJ45 DedicatedIPMI LAN port
|
| USB |
- 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
- 6 USB 2.0 ports (2 rear + 4 headers)
|
| Video |
|
| Serial Port / Header |
|
| SuperDOM |
- 2 SuperDOM (Disk on Module) ports with built-in power
|
| |
|
| Voltage |
- Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
|
| FAN |
- Total of 5 fan headers supporting up to 5 fans
- 4 fans with tachometer status monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
|
| Temperature |
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- PECI
|
| LED |
- System Information LED
- Suspend static indicator LED
- UID/Remote UID
|
| Other Features |
- Chassis intrusion detection
- Chassis intrusion header
- RoHS, Halogen Free
|
|
|
| |
| | Form Factor |
|
| Model |
|
| | |
| | Height |
|
| Width |
|
| Depth |
|
| Package |
- 6.1" (H) x 25.4" (W) x 19.8" (D)
|
| Weight |
- Net Weight: 8.45 lbs (3.83 kg)
- Gross Weight: 12.55 lbs (5.69 kg)
|
| Available Colors |
|
| | |

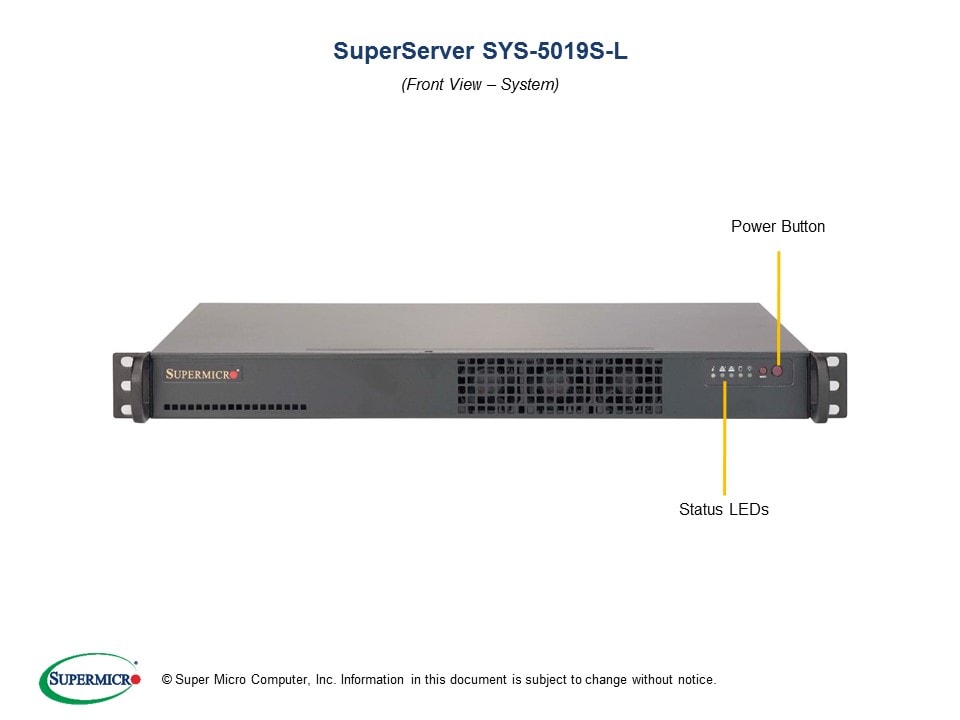

| | Buttons |
- Power On/Off button
- System Reset button
|
| LEDs |
- Power LED
- Hard drive activity LED
- 2 Network activity LEDs
- System Information LED
- Information LED (temp., status)
|
| |
|
| PCI-Express |
|
| | |
| | Fixed |
- 1 3.5" or 2x 2.5" internal drive bays (fixed)
|
| | |
| | Fans |
- 2x 40x28mm 4-pin PWM Cooling Fans
- 1x FAN-0147L4 option for 80W CPU
|
| | |
| | 200W Low Noise AC-DC power supply with PFC |
| AC Voltage |
- 100 - 240V, 50-60Hz, 2.6 Amp Max
|
| +5V |
|
| +5V standby |
|
| +12V |
|
| -12V |
|
| +3.3V |
|
| Certification |
Gold Certified
|
| |
|
| BIOS Type |
- 8MB SPI Flash EEPROM with AMI BIOS
|
| | |
| RoHS
|
|
| Environmental Spec. |
- Operating Temperature:
10°C to 35°C (50°F to 95°F)
- Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
|
|
|  | |
|
See Parts List
|
|
|
|
|
| |
|
|
Part Number
|
Qty
|
Description
|
| Internal 2.5" HDD Tray (FDD slot) |
MCP-220-00044-0N |
- |
Dual 2.5" fixed HDD bracket (without DVD) |
| Internal 2.5" HDD Tray (DVD slot) |
MCP-220-00051-0N |
- |
Single 2.5" fixed HDD bracket |
| Cable for internal HDD |
CBL-0484LCBl-0082L |
-- |
55cm 30AWG SATA straight to straigh cableY split, big 4 pin to two RA SATA power extension 15cm |
| Cooling Fan |
FAN-0147L4 |
1 |
40x40x28mm 17.5K RPM, SC813M Middle Cooling Fan |
| Riser Card |
RSC-RR1U-E16 |
1 |
1U riser card |
| Network Card(s) |
AOC-SGP-i2
AOC-SGP-i4
AOC-STGN-i2S
AOC-STGF-i2S
AOC-STG-B4S
AOC-STGS-i2T |
-
-
-
-
-
- |
Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2
Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2 |
| TPM security module |
AOM-TPM-9665VAOM-TPM-9655V |
11 |
TPM 2.0, vertical form factorTPM 1.2, vertical form factor |
| Global Services & Support |
OS4HR3/2/1
OSNBD3/2/1 |
-
- |
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service |
| Software |
SFT-OOB-LIC •  |
1 |
OOB Management Package (per node license) |
| Software |
SFT-DCMS-Single |
1 |
DataCenter Management Package (per node license) |
