SuperServer 5039MP-H8TNR

  Products  Systems   MicroCloud   [ 5039MP-H8TNR ]





Integrated Board
X11SPD-F

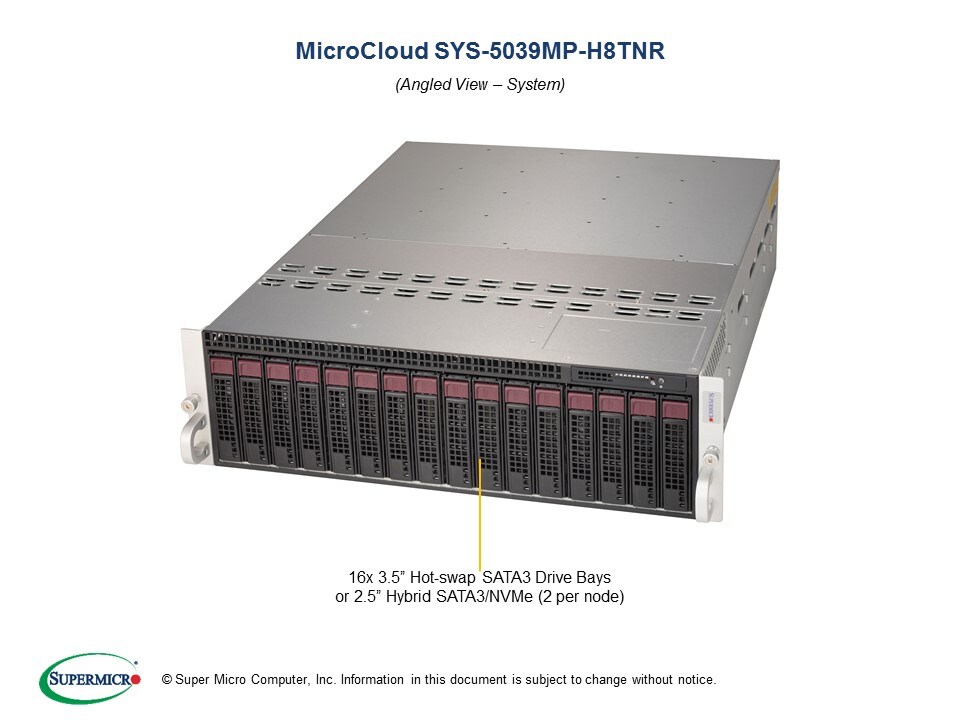

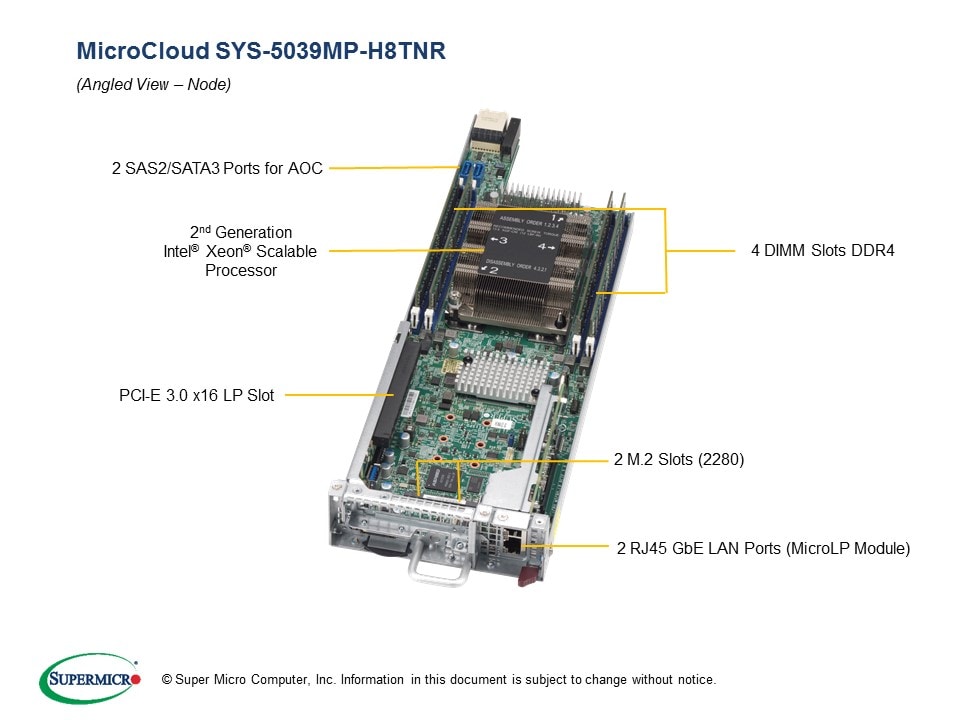

Views: | Angled View | Node View |

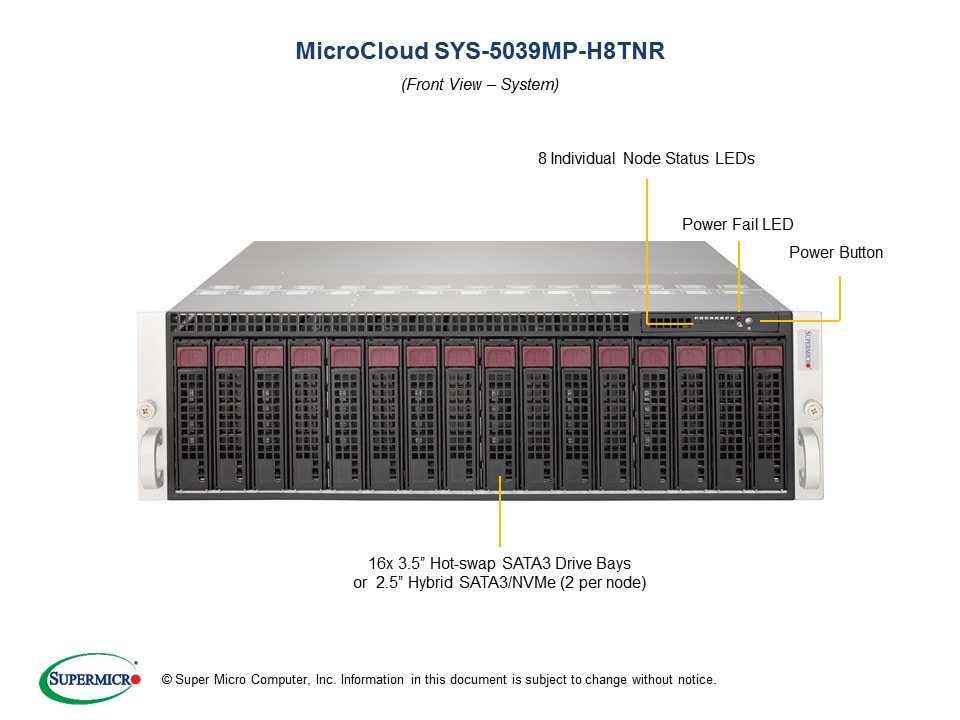

| Front View | Rear View |

 Key Features (per node)
• Big Data Analytics
• Cloud and Virtualization needs
• Web Hosting, VM
• Social Networking
• CDN, Business Hosting
1. Single Socket P (LGA 3647) supports
    2nd Gen Intel® Xeon® Scalable
    processor (Cascade Lake/Skylake)‡
2. 2x 3.5" SATA3 by default; 2x 2.5"
    hybrid SATA3/NVMe w/ Optional kits
3. 4 DIMMs; up to 1TB 3DS ECC
    DDR4-2933MHz† RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
4. 2 GbE LAN ports via Intel i350
5. 1 PCI-E 3.0 x16 (low-profile),
    1 Micro-LP, and 2 M.2
6. 2 USB 2.0, 1 VGA, 1 COM port,
    (with KVM dongle)
7. 4x 8cm hot-swap cooling fans with
    fan speed control (per system)
8. 2200W Redundant Power Supplies
    Titanium Level Certified (per system)


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   NVMe Options  Manuals   OS Certification Matrix   Drive Options

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SuperServer
  • SYS-5039MP-H8TNR (Black)

Motherboard
Super X11SPD-F

Processor/Cache (per Node)
CPU
  • Single Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡
  • Support CPU TDP 165W*
Cores
  • Up to 28 Cores
Note * Low TCase CPUs may require additional configuration. Please contact Supermicro Sales contact for additional information.
Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory (per node)
Memory Capacity
  • 4 DIMM slots
  • Up to 1TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

Network Devices (per node)
Micro-LP NIC

On-Board Devices (per node)
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps) via C621 controller
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM over LAN support
  • ASPEED AST2500 BMC
Graphics
  • ASPEED AST2500 Graphics (BMC with Graphic controller)

Input / Output (per node)
SATA
  • 2 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
KVM
  • 1 VGA, 1 COM and 2 USB 2.0 (with KVM dongle)

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • DMI 2.3
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3

Management
Software

Rear Window (each node)
Switch
  • Power / UID
Chassis
Form Factor
  • 3U
Model
  • CSE-938NH-R2K20BP

Dimensions and Weight
Height
  • 5.21" (132 mm)
Width
  • 17.26" (438 mm)
Depth
  • 23.2" (589 mm)
Package
  • 11.65" (H) x 26.26" (W) x 34" (D)
Weight
  • Net Weight: 62.2 lbs (28.21 kg)
  • Gross Weight: 88 lbs (39.92 kg)
Color
  • Black

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED
  • Node status LED

Expansion Slots (per node)
PCI-Express
  • 1 PCI-E 3.0 x16 (Low-profile) slot
  • 1 Micro-LP PCI-E 3.0 x8 slot
M.2
  • M.2 Interface: 2 SATA/PCI-E 3.0 x4
  • M.2 Form Factor: 2280
  • M.2 Key: M-Key

Drive Bays (per node)
Internal
  • 2x 3.5" SATA3 (6Gbps) HDDs per node (or 2x 2.5" Hybrid SATA3/NVMe with optional kits); up to 16 HDDs total
  • Enterprise SATA HDD only recommended

System Cooling
Fans
  • 4 Hot-swap 8cm cooling fans fan speed control

Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power and Input
  • 1200W with Input 100-127Vac
  • 1800W with Input 200-220Vac
  • 1980W with Input 220-230Vac
  • 2090W with Input 230-240Vac
  • 2200W with Input 220-240Vac (for UL/cUL use only)
  • 2090W with Input 230-240Vdc (for CCC only)
AC Input Frequency
  • 50-60Hz
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
+12V
  • Max: 100A / Min: 0A (100-127Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 174.17A / Min: 0A (230-240Vac)
  • Max: 183.3A / Min: 0A (220-240Vac)
5VSB
  • Max: 1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 5 Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
  • Cooling zone
Temperature
  • Monitoring for CPU and chassis environment

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X11SPD-F
CSE-938NH-R2K20BP 		8
1		 Super X11SPD-F Motherboard
3U Chassis
Add-on Card / Module AOC-CGP-I2-P 8 AOC-CGP-I2-O-P
Add-on Card / Module AOM-BPN-938NH-P 1 AOM-BPN-938NH, Backplane module for 8-node Microcloud system, 16xU.2, 2 per node, Dual PSU, Management LAN switch, chassis node ID.,HF,RoHS
Add-on Card / Module AOM-LAN-MC8-P 1 AOM-LAN-MC8, LAN front panel module for 8-node Microcloud system,HF,RoHS
Add-on Card / Module AOM-PDB-PT938-LSG-P 1 AOM-PDB-PT938-LSG, PDB module for 8-node Microcloud system,HF,RoHS
Add-on Card / Module AOM-PDB-PT938-RSG-P 1 AOM-PDB-PT938-RSG, PDB module for 8-node Microcloud system,HF,RoHS
Cable 1 CBL-0218L 1 USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG
Cable 2 CBL-0355L 2 ETHERNET,CAT5E,RJ45 W/BOOT,GREEN,UTP,2FT (60CM),24AWG
Cable 3 CBL-0458L 1 20 cm 30 pin to 30 pin Front control cable with tube. 28AWG
Cable 4 CBL-CDAT-0662 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG
Cable 5 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
FAN 1 FAN-0194L4 4 80x80x38 mm, 13.5K RPM Cooling Fan for 3U8N Microcloud Serie
Drive Tray(s) MCP-220-00094-0B 16 Black gen 6.5 hot-swap 3.5 inch HDD Tray
Air Shroud MCP-310-93805-0B 16 Mylar air shroud for 2-DIMMs (quick install on DIMM latch)
Heatsink SNK-P0067PS 8 Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Riser Card RSC-RR1U-E16 8 RSC-RR1U-E16 with PIC-E x16 output
Rail set MCP-290-00057-0N 1 set Rail set, quick/quick, default for 4U 17.2" W
Power Supply PWS-2K20A-1R 2 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm


Optional Parts List
  Part Number Qty Description
TPM security module AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller,
Vertical form factor
TPM security module AOM-TPM-9671V 1 SPI capable TPM 1.2 with Infineon 9670 controller,
Vertical form factor
Intel VROC RAID Key AOC-VROCINTMOD
AOC-VROCSTNMOD
AOC-VROCPREMOD		 1
1
1		 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
Intel VROC Standard, RAID 0, 1, 10
Intel VROC Premium, RAID 0, 1, 5, 10
Cable CBL-SAST-0610 - For AOC-S3008L-L8i/AOC-S3108L-H8IR
Storage Controller Card(s) AOC-S3008L-L8i
AOC-S3108L-H8IR
AOC-S3108L-H8IR-16DD		 - Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/10
Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/5/6/10/50/60
Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/5/6/10/50/60
Network Card(s) AOC-CTGS-i2T
AOC-CTG-i1S
AOC-CTG-i2S
AOC-S40G-i2Q
AOC-SGP-i2
AOC-SGP-i4
AOC-STG-i2
AOC-STG-i2T
AOC-STGN-i1S
AOC-STGN-i2S
AOC-S100G-m2C
AOC-SHFI-I1C		 - MicroLP, 2x 10GbE Base-T, PCI-E 3.0 x4, Intel® X550
MicroLP, 1 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599EN
MicroLP, 2 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599EN
Standard LP 2-port 40GbE controller, Intel Fortville XL710
Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
Standard LP 2-port 100GbE with 2 QSFP28, Mellanox CX-4 EN
Standard LP 1-port Omni Path controller, Intel 100HFA016LS
Drive Tray(s) MCP-220-93801-0B - Black gen 6 hot-swap 3.5-to-2.5 HDD tray
Drive Tray(s) MCP-220-00158-0B - Black gen 6.5 hot-swap 3.5-to-2.5 Tool-less drive tray
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
