 | | SuperServer |
|
| | |
| | CPU |

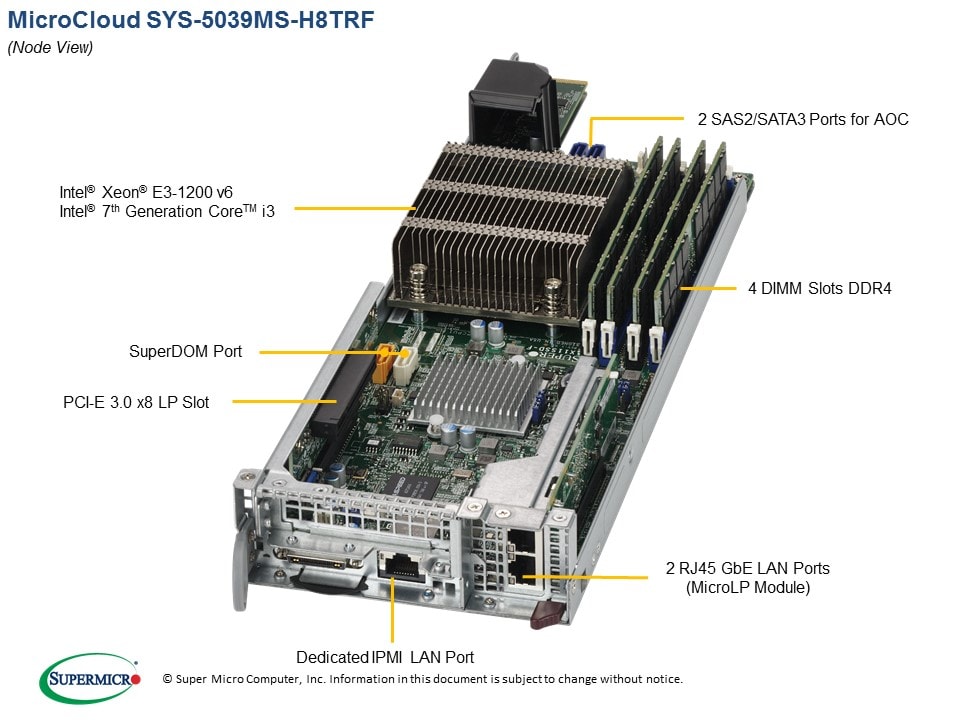

- Single Socket H4 (LGA 1151) supports:
-
Intel® Xeon® processor E3-1200 v6/v5,
Intel® 7th/6th Gen Core™ i3,
Intel® Pentium®,
Intel® Celeron® processors
- CPU TDP up to 80W
|
| Note |
BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors |
| |
|
| Memory Capacity |
- 4x 288-pin DDR4 DIMM slots
- Supports up to 64 GB DDR4 ECC Un-Buffered memory (UDIMM)
|
| Memory Type |
- 2400MHz/2133MHz ECC DDR4 SDRAM 72-bit, 288-pin gold-plated UDIMMs
|
| DIMM Sizes |
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| |
|
| PCI-Express |
- 1 PCI-E 3.0 x8 Low-profile slot
- 1 Micro-LP for Dual GbE (pre-installed); 10GbE or IB AOC optional
|
| |
|
| Micro-LP NIC |
- Intel® i350 GbE controller
- Dual RJ-45 connectors
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- Intel® I/O Acceleration Technology (I/O AT)
- MicroLP Adapter Matrix (Networking options)
|
| |
|
| Chipset |
|
| SATA |
- SATA3 (6Gbps) via C236 controller
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM over LAN support
- ASPEED AST2400 BMC
|
| Headers |
|
| Graphics |
- ASPEED AST2400 Graphics (BMC with Graphic controller)
|
| |
|
| SATA |
|
| LAN |
- 2 RJ45 Gigabit Ethernet LAN ports
- 1 RJ45 Dedicated IPMI LAN port
|
| DOM |
- SATA DOM (Disk on Module) power connector support
|
| KVM |
- 1 VGA, 1 COM and 2 USB 2.0 (with KVM dongle)
|
| |
|
| BIOS Type |
- 128Mb SPI Flash EEPROM with AMI BIOS
|
| BIOS Features |
- DMI 2.3
- ACPI 1.0 / 2.0
- USB Keyboard support
- SMBIOS 2.3
|
| | |
| | Switch |
|
|
|
| |
| | Form Factor |
|
| Model |
|
| | |
| | Height |
|
| Width |
|
| Depth |
|
| Package |
- 11.65" (H) x 26.26" (W) x 34" (D)
|
| Weight |
- Net Weight: 62.2 lbs (28.21 kg)
- Gross Weight: 88 lbs (39.92 kg)
|
| Color |
|
| | |
| | Buttons |
|
| LEDs |
- Power LED
- Node status LED
|
| | |
| | Internal |

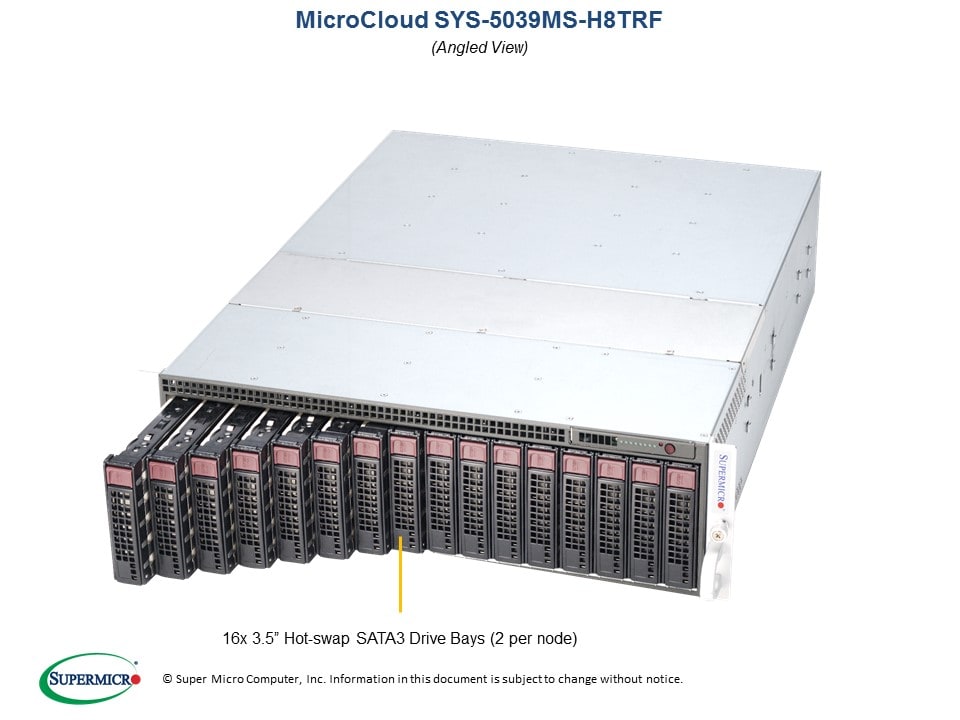

- 2 Hot-swap 3.5" SATA3 (6Gbps) HDDs per node (or 2x 2.5" SATA3 with optional kits); up to 16 HDDs total
- Enterprise SATA HDD only recommended
|
| | | |
| | Fans |
- 4 Heavy duty 8cm fans with optimal cooling zone
|
| | |
| 1600W 1U Redundant Power Supplies with PMBus |
| Total Output Power |
- 800W: 100 – 140Vac
- 1600W: 180 – 240Vac
|
Dimension
(W x H x L) |
|
| Input |
- 100-140Vac / 10-7A / 50-60Hz
- 180-240Vac / 11-8A / 50-60Hz
|
| +12V |
- Max: 67A / Min: 0A (100-140Vac)
- Max: 133A / Min: 0A (180-240Vac)
|
| +5Vsb |
|
| Output Type |
- 27 Pairs Gold Finger Connector
|
| Certification |
  Titanium Level
[ Test Report ]
|
| |
|
| CPU |
- Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
- 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
|
| FAN |
|
| Temperature |
- Monitoring for CPU and chassis environment
|
| | |
| RoHS
|
|
| Environmental Spec. |
- Operating Temperature:
10°C to 35°C (50°F to 95°F)
- Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
|
|
|  | |
|
See Parts List
|
|
| |
|
|
Part Number
|
Qty
|
Description
|
| Motherboard / Chassis |
MBD-X11SSD-F
CSE-938BH-R1K68B |
8
1 |
Super X11SSD-F Motherboard
3U Chassis |
| Add-on Card / Module |
AOC-CGP-I2-P |
8 |
AOC-CGP-I2-O-P |
| Air Shroud |
MCP-310-93804-0B |
8 |
938 mylar airshroud for X10SLD-F (X9 compatible),RoHS/REACH,PBF |
| Backplane |
BPN-SAS-938H |
1 |
16-port 3U (CSE-938) MicroCloud 6Gbps backplane, support up to 16x 3.5-inch SAS/SATA HDD |
| Cable 1 |
CBL-0218L |
1 |
USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG |
| Cable 2 |
CBL-PWCD-0578 |
2 |
PWCD,US,IEC60320 C14 TO C13,3FT,14AWG |
| Label |
LBL-0108 |
1 |
CAUTION LABEL FOR REDUNDANT PWR SYSTEMS |
| Riser Card |
RSC-RR1U-E8 |
8 |
RSC-RR1U-E8 |
| Rail set |
MCP-290-00057-0N |
1 set |
Rail set, quick/quick, default for 4U 17.2" W |
| Heatsink / Retention |
SNK-P0047PS+ |
8 |
Customized Passive CPU Heat Sink for Micro Cloud Series Servers |
| Power Supply |
PWS-1K68A-1R |
2 |
1U 1600W Redundant Titanium Power Supply 76mm width 27Pair,PBF |
|
|
|
| |
| | |
Part Number |
Qty |
Description |
| Cable |
CBL-SAST-0616
CBL-0118L-03
CBL-0476L |
- |
For AOC-S3008L-L8i/AOC-SAS3-9361-4I
For AOC-S2308L-L8i
For AOC-SAS2LP-H8iR |
| Storage Controller Card(s) |
AOC-S3008L-L8i
AOC-SAS3-9361-4I
AOC-S2308L-L8i
AOC-SAS2LP-H8iR |
- |
Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/10
Std LP, 4 ports, 12Gb/s Gen3, RAID 0/1/5/6/10/50/60
Std LP, 8 ports, 6Gb/s Gen3, RAID 0/1/10
Std LP, 8 ports, 6Gb/s Gen3, RAID 0/1/5/6/10/50/60
NOTE: SYS-5039MS-H8TRF is designed to support max 6GB/s
Heatsink SNK-P0047PSM is required for AOC HBA card |
| Network Card(s) |
AOC-CTGS-i2T
AOC-CTG-i1S
AOC-CTG-i2S
AOC-S40G-i2Q
AOC-SGP-i2
AOC-SGP-i4
AOC-STG-i2
AOC-STG-i2T
AOC-STGN-i1S
AOC-STGN-i2S |
- |
MicroLP, 2x 10GbE Base-T, PCI-E 3.0 x4, Intel® X550
MicroLP, 1 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599EN
MicroLP, 2 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599EN
Standard LP 2-port 40GbE controller, Intel Fortville XL710
Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES |
| Drive Tray(s) |
MCP-220-93801-0B |
- |
Black gen 6 hot-swap 3.5-to-2.5 HDD tray |
| Drive Tray(s) |
MCP-220-00158-0B |
- |
Black gen 6.5 hot-swap 3.5-to-2.5 Tool-less drive tray |
| Global Services & Support |
OS4HR3/2/1
OSNBD3/2/1 |
-
- |
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service |
| Software |
SFT-OOB-LIC •  |
1 |
OOB Management Package (per node license) |
| Software |
SFT-DCMS-Single |
1 |
DataCenter Management Package (per node license) |
