SuperServer SYS-510P-M

1U Mainstream with 4 hot-swap 3.5" NVMe/SAS/SATA bays, 1 PCIe 4.0 x16 slot and single PSU

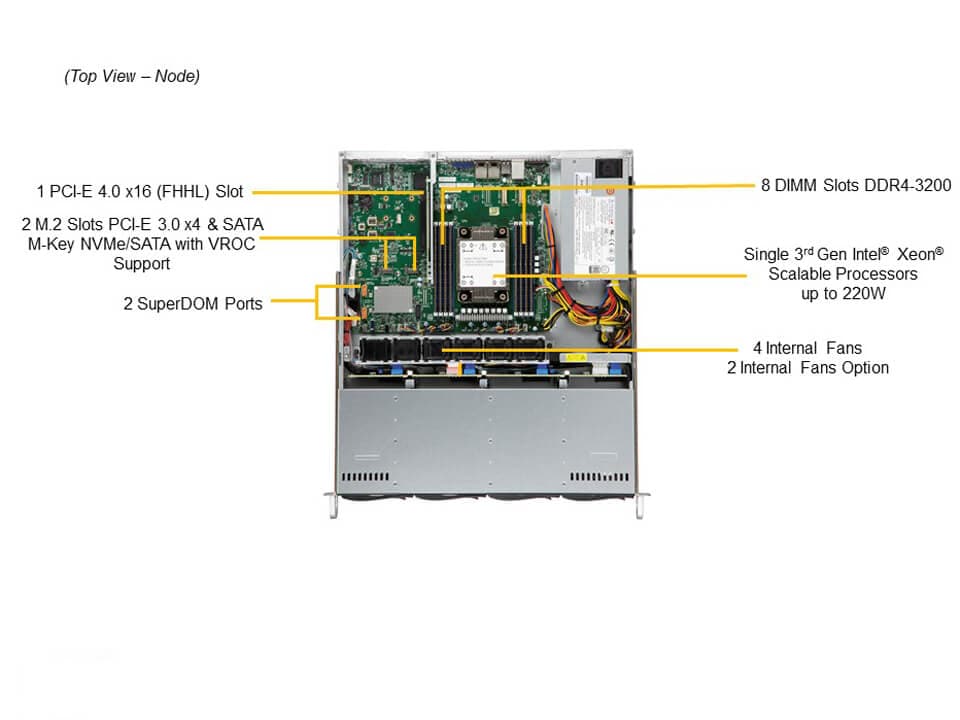

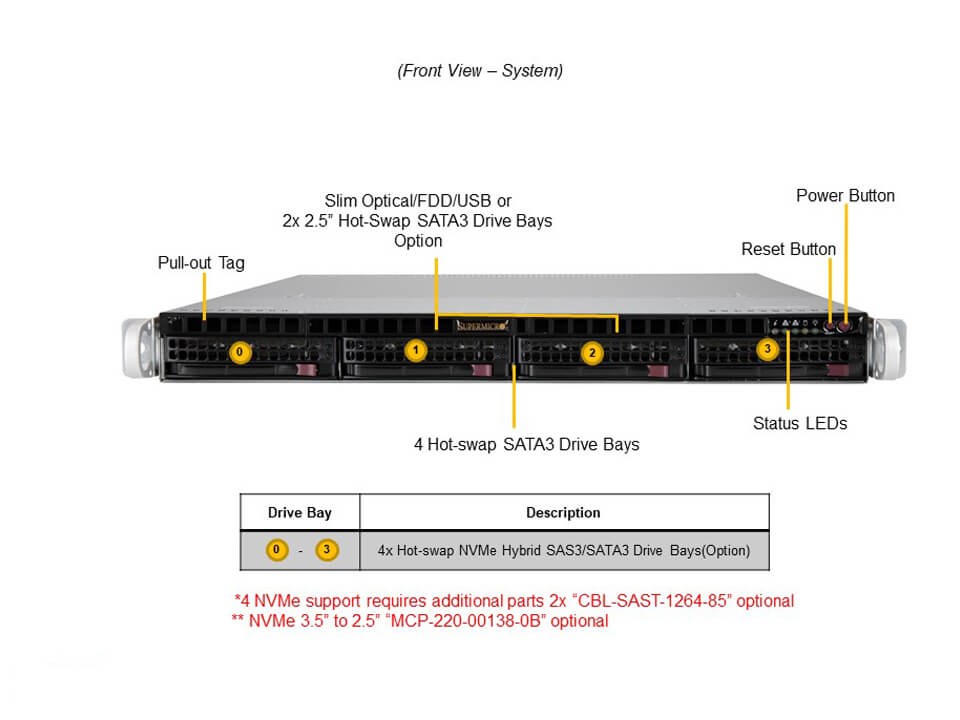

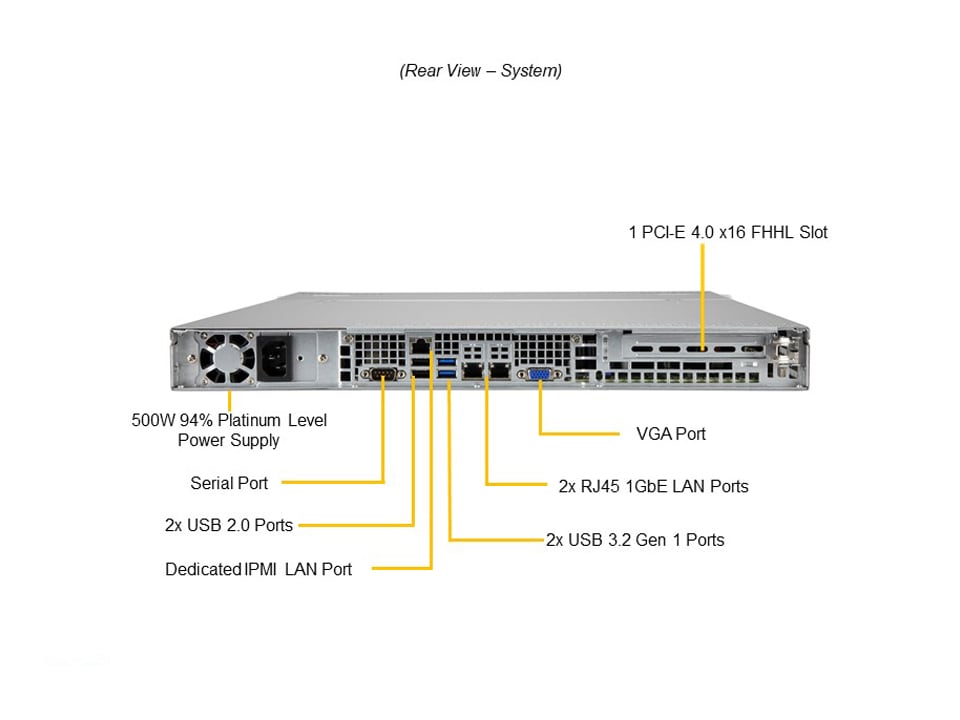

SYS-510P-M Main SYS-510P-M Angle SYS-510P-M Top SYS-510P-M Front SYS-510P-M Rear
Integrated Board: X12SPO-F
Learn more

Key Applications

  • Small Business
  • Web/Hosting Application
  • Email/Firewall/Print Server

Key Features

  1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 220W TDP.
  2. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM
  3. 1 PCIe 4.0 x16 (FHHL) slot
  4. Intel® Ethernet Controller i350 2x 1GbE RJ45
  5. 4x hot-swap 3.5'' Hybrid SATA3/NVMe drive bays, SAS3 with additional SAS controller card; Onboard 2x NVMe/SATA M.2
  6. Single Platinum 500W Power Supply
...
...
SYS-510P-M
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-510P-M
Motherboard
Super X12SPO-F
Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 36C/72T; Up to 54MB Cache
Note
  • Supports up to 220W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 single-width GPU
Supported GPU
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
Chipset
  • Intel® C621A
Network Connectivity
Input / Output
LAN
  • 2 RJ45 1 GbE LAN ports
  • 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB
  • 4 USB 2.0 ports(header)
  • 2 USB 3.2 Gen1 Type-A ports(rear)
  • 2 USB 2.0 Type-A ports(rear)
  • 2 USB 3.2 Gen1 ports(Header)
  • 1 USB 3.2 Gen1 Type-A port(Header)
Video
  • 1 VGA port
Serial
  • 1 COM port(Rear)
  • 1 COM port(Header)
DOM
  • 2 SuperDOM (Disk on Module) portswith built-in power
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-813MF2TS-505CBP
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 19.98" (507 mm)
Package
  • 8.5" (H) x 24" (W) x 29.5" (D)
Weight
  • Gross Weight: 30.4 lbs (13.8 kg)
  • Net Weight: 17.6 lbs (8 kg)
Available Color
  • Black
Front Panel
LED
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • System Reset
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays
    • 4 front hot-swap 3.5" PCIe 4.0 NVMe*/SAS*/SATA drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables)
  • View NVMe Options
  • View Drive Options
M.2
  • 2 M.2 PCIe 3.0 x4 NVMe/SATA slots (M-key 2280/22110; VROC required for RAID)
  • View M.2 Options
Peripheral Bays
  • 2 2.5" bays (optional)
System Cooling
Fans
  • 4 middle cooling PWM 40x40x28mm Fan(s)
  • 2 AOC cooling Fan(s) (optional)
Power Supply
1x 500W
1x 500W Platinum Level (93%) power supply
Dimension (WxHxL)100 x 40 x 180 mm
Total Output Power
AC Input500W: 100-240Vac
500W: 100-240Vac / 50-60Hz
+12VMax: 41A / Min: 0.5A (100Vac-240Vac)
Max: 41A / Min: 0.5A
5V SBMax: 3A / Min: 0A
Output Type24pin ATX
CertificationPlatinum Level Certified  Platinum Level

[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12SPO-F

CSE-813MF2TS-505CBP 		1

1 		Super X12SPO-F Motherboard

1U Chassis
Backplane BPN-SAS3-815TQ-N4 1 1U 4-Port Hybrid Backplane Support 4x3.5"SAS3/SATA3
Cable CBL-0182L 1 PWR EXTENSION.HDD TO RIGHT ANGLE HDD,PBF
CBL-SAST-0811 1 MINI SAS HD-4 SATA (RA),12G,INT,50/50/60/70,70CM SB,30AWG
CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Manual MNL-2267-QRG 1 510P-M/MR Quick Reference Guide
Riser Card RSC-S-6G4 1 1U LHS Standard riser card with one PCIe 4.0 x16 slot,HF,Ro
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077P 1 1U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
*Power Supply PWS-505P-1H 1 1U 500W Multi-output, Platinum level w/ PMbus 24pin, W100xL180xH40mm,RoHS/REACH
*Peripheral Drive CSE-PT93L-B 1 Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
*Fan FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
*Front Panel FPB-FP813-D 1 Front control board dual color for SC815,SC813M (C)
*Drive Tray(s) MCP-220-00075-0B 4 Black gen 5.5 hot-swap 3.5" HDD tray
*Parts MCP-260-00078-0N 1 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF
MCP-340-00001-01 2 Dummy fan 40x28mm
*Rail Set MCP-290-00102-0N 1set Outer rail, quick-release type, 25.6
MCP-290-00108-0N 1set Inner rail, front, short, quick-release type
MCP-290-00110-0N 1set Inner rail, extension (quick) for 1U 17.2
*Fan Holder MCP-320-00060-0N 1 Slim Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12"x10.15")
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
3.5" to 2.5" Converter Tray(s) MCP-220-00043-0N • - Hot-swap Gen-4 3.5" to 2.5" HDD tray, Black
3.5'' to 2.5" NVMe Drive Tray(s) MCP-220-00138-0B • - Tool-less Hot-swap Gen-5.5 NVMe 3.5'' to 2.5'' drive tray, Orange tab, Black
Add-on Card for additional M.2 AOC-SLG3-2H8M2 - Standard LP, PCIe 3.0 x8, supports 2x NVMe/SATA M-Key M.2 Modules; RAID 0,1
Cooling Fan(s) FAN-0154L4 • - 40x40x28 mm, 22.5K RPM, Middle Cooling Fan
DVD-ROM / DVD-RW DVM-TEAC-DVDRW-SBT5 1 PHILPS slim DVD-RW SATA drive
DVM-TEAC-DVD-SBT5 1 TEAC slim DVD-ROM SATA drive
DVD-ROM Accessory MCP-220-81502-0N • + 1pc CBL-0099 • (max 1pc) 1 Slim SATA DVD mounting kit
Front Bezel CSE-PTFB-813-02B 1 Black Front Bezel w/ Round Venting Holes
CSE-PTFB-813LB 1 Black Front Bezel
Hot-swap 2.5" kit (DVD slot) MCP-220-81506-0N • + 1pc CBL-0099 • (max 1pc) 1 Single 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor
Hot-swap 2.5" kit (FDD slot) MCP-220-81504-0N • 1 Single 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor
Inlet Thermal Sensor MCP-280-00034-0N 1 Universal Thermal sensor kit with 40cm I2C cable
Intel VROC RAID Key for NVMe AOC-VROCPREMOD 1 Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
AOC-VROCSTNMOD 1 Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
AOC-VROCINTMOD 1 Intel SSD Only Upgrade module; RAID 0/1/10/5
NVMe Cable(s) CBL-SAST-1264-85 - Slimline x8 (STR) to 2x Oculink x4 (STR),64CM,85 OHM,Ro
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Storage Control Card and Cable(s) AOC-S3908L-H8iR-16DD + 1x CBL-SAST-1275A-100 1 Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
AOC-S3108L-H8iR-16DD 1 Standard LP, 8 Internal ports (12Gb/s) PCIe 3.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
AOC-S3008L-L8I 1 Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 63HDD; RAID 0, 1, 10
Storage Control Card and Cable(s) (HBA) AOC-S3008L-L8E 1 Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 122HDD; HBA
AOC-S3808L-L8IT + 1x CBL-SAST-1275A-100 1 Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
TPM AOM-TPM-9670H-S-O 1 TPM 2.0, horizontal form factor, provisioned for server
AOM-TPM-9671H-S-O 1 TPM 1.2, horizontal form factor, provisioned for server
