SuperServer SYS-510P-WT

1U WIO with 4 hot-swap 3.5" NVMe/SATA bays, 3 PCIe 4.0 x16 slots and single PSU

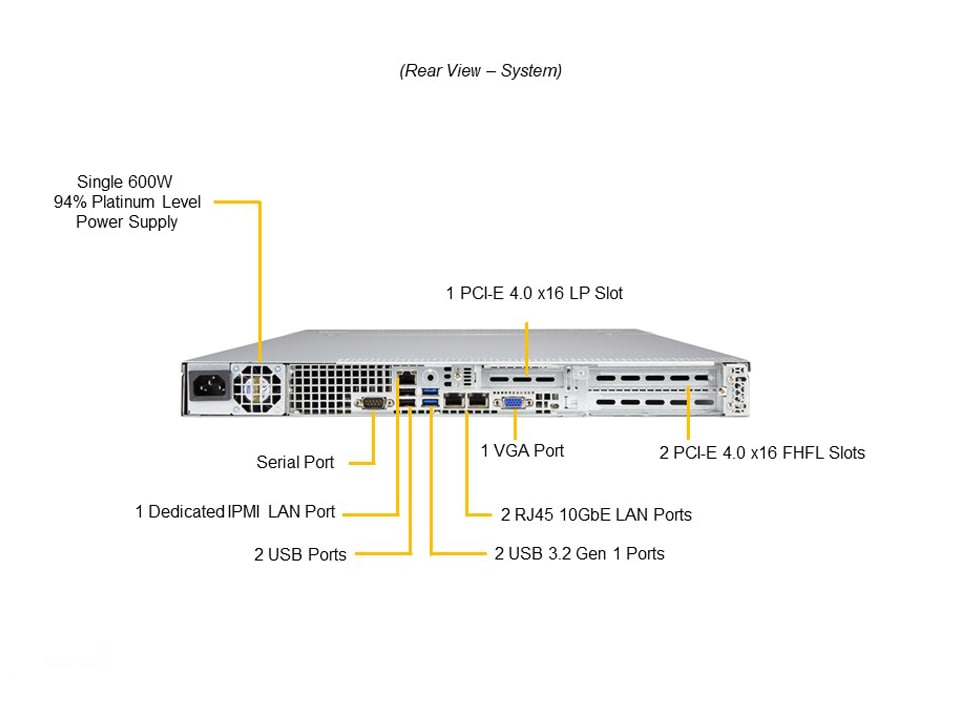

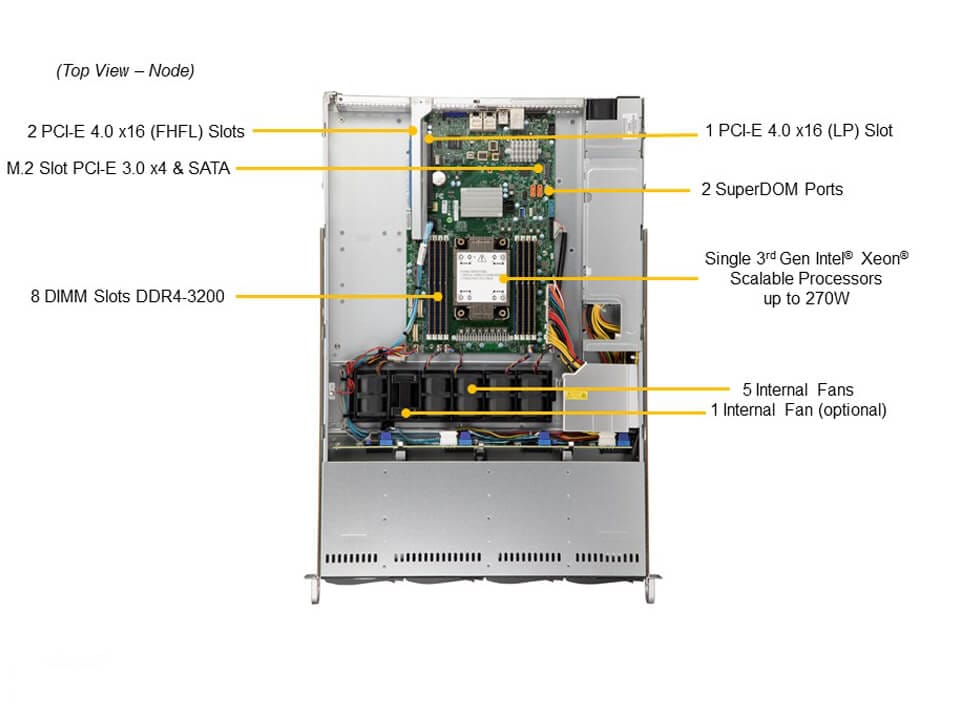

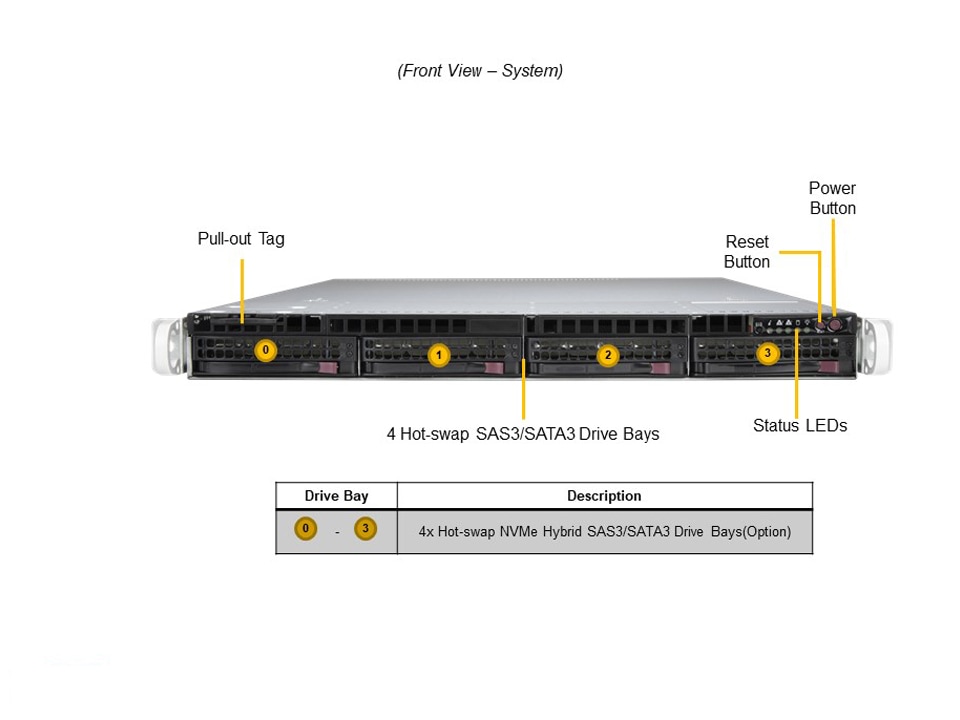

SYS-510P-WT Main SYS-510P-WT Angle SYS-510P-WT Top SYS-510P-WT Front SYS-510P-WT Rear
Integrated Board: X12SPW-TF
Learn more

Key Applications

  • Virtualization
  • Cloud Computing
  • Enterprise Server
  • Data Center Optimized

Key Features

  1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
  2. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM
  3. 2 PCIe 4.0 x16 (FHFL) slots, 1 PCIe 4.0 x16 (LP) slot
  4. Intel® Ethernet Controller X550 2x 10GbE RJ45
  5. 4x hot-swap 3.5'' Hybrid SATA3/NVMe drive bays, SAS3 with additional SAS controller card; Onboard 1x NVMe/SATA M.2
  6. Single Platinum 600W Power Supply
...
...
SYS-510P-WT
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-510P-WT
Motherboard
Super X12SPW-TF
Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 single-width GPU
Supported GPU
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
Chipset
  • Intel® C621A
Network Connectivity
Input / Output
LAN
  • 2 RJ45 1 GBASE-T LAN ports
  • 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB
  • 2 USB 2.0 ports(header)
  • 2 USB 3.2 Gen1 Type-A ports(rear)
  • 2 USB 2.0 Type-A ports(rear)
  • 2 USB 3.2 Gen1 ports(Header)
  • 1 USB 3.2 Gen1 Type-A port
Video
  • 1 VGA 2 port
Serial
  • 1 COM port(Rear)
  • 1 COM port(Header)
DOM
  • 2 SuperDOM (Disk on Module) portswith built-in power
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-815TS-605WBP2
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.6" (650 mm)
Package
  • 8.5" (H) x 23.5" (W) x 33.7" (D)
Weight
  • Gross Weight: 46 lbs (20.87 kg)
  • Net Weight: 22 lbs (9.98 kg)
Available Color
  • Black
Front Panel
LED
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • System Reset
  • UID button
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays
    • 4 front hot-swap 3.5" PCIe 4.0 NVMe*/SAS*/SATA drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables)
  • View NVMe Options
  • View Drive Options
M.2
  • 1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280/22110; VROC required for RAID)
  • View M.2 Options
Peripheral Bays
  • 2 2.5" bays (optional)
System Cooling
Fans
  • 5 counter-rotation PWM 40x40x56mm Fan(s)
  • 1 AOC cooling Fan(s) (optional)
Power Supply
1x 600W
1x 600W Platinum Level (92%) power supply
Dimension (WxHxL)76 x 40.4 x 279.4 mm
Total Output Power
AC Input600W: 100-240Vac
600W: 100-240Vac / 50-60Hz
+12VMax: 49A / Min: 0.5A (100Vac-240Vac)
Max: 49A / Min: 0.5A
5V SBMax: 3A / Min: 0A
Output Type24pin ATX
CertificationPlatinum Level Certified  Platinum Level

[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12SPW-TF

CSE-815TS-605WBP2 		1

1 		Super X12SPW-TF Motherboard

1U Chassis
Backplane BPN-SAS3-815TQ-N4 1 1U 4-Port Hybrid Backplane Support 4x3.5"SAS3/SATA3
Cable CBL-SAST-0699 1 MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG,Ro
CBL-0335L 1 FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
CBL-PWCD-0160-IS 1 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
Fan FAN-0141L4 5 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
Manual MNL-2266-QRG 1 510P-WT/WTR Quick Reference Guide
Riser Card RSC-W-66G4 1 1U LHS WIO Riser card with two PCIe 4.0 x16 slots,HF,RoHS
RSC-WR-6 1 1U RHS WIO Riser card with one PCIe 4.0 x16 slot,HF,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077P 1 1U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
*Power Supply PWS-605P-1H 1 1U 600W Multi Output Power Supply PMbus
*Fan Holder CSE-PT0135 1 FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS
MCP-340-00035-0B 2 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
*Peripheral Drive CSE-PT93L-B 1 Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
*Front Panel FPB-FP815U 1 815 UIO front control board (U)
*Parts MCP-120-00030-0N 1 Blank LP L-bracket (1 raw of capsule hole)
MCP-120-00053-0N 2 Blank FH L bracket w/o SCSI cutout for SC825,836,846,743
*Drive Tray(s) MCP-220-00075-0B 4 Black gen 5.5 hot-swap 3.5" HDD tray
*Rear Window MCP-240-00097-0N 1 WIO rear window for SC113,SC116, SC815 Single PWS
*Rail Set MCP-290-00016-0N 1 1U open rack bracket set for CSE-PT51L,MCP-290-00054-0N
MCP-290-00054-0N 1set Rail set, quick/quick, optional for 1U 17.2
*Air Shroud MCP-310-19001-0N 1 SC815/113/116 Intel DP X9, X8 PC air shroud,1368x13/12x13MB
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
3.5" to 2.5" Converter Tray(s) MCP-220-00043-0N • - Hot-swap Gen-4 3.5" to 2.5" HDD tray, Black
3.5'' to 2.5" NVMe Drive Tray(s) MCP-220-00138-0B • - Tool-less Hot-swap Gen-5.5 NVMe 3.5'' to 2.5'' drive tray, Orange tab, Black
Add-on Card for additional M.2 AOC-SLG3-2H8M2 - Standard LP, PCIe 3.0 x8, supports 2x NVMe/SATA M-Key M.2 Modules; RAID 0,1
CacheVault BTR-CV3916-1U1 (For S3908) 1 CacheVault for Broadcom 3908 with SuperCap mounting in 1U 40x56 fan tray
BTR-CVPM05 + MCP-240-00203-0N • (For S3908) 1 CacheVault for Broadcom 3908 with SuperCap mounting bracket for PCIe location
BTR-TFM8G-LSICVM02 • + MCP-240-00203-0N • (For S3108) 1 CacheVault for Broadcom 3108 with SuperCap mounting bracket for PCIe location
BTR-CV3108-1U1 (For S3108) 1 CacheVault for Broadcom 3108 with SuperCap mounting in 1U 40x56 fan tray
Cooling Fan FAN-0141L4 • 1 40x40x56 mm, 20.5K RPM / 17.6K RPM, Counter-rotating Fan
DVD-ROM / DVD-RW DVM-TEAC-DVDRW-SBT5 1 PHILPS slim DVD-RW SATA drive
DVM-TEAC-DVD-SBT5 1 TEAC slim DVD-ROM SATA drive
DVD-ROM Accessory MCP-220-81502-0N • + 1pc CBL-0099 • (max 1pc) 1 Slim SATA DVD mounting kit
Front Bezel CSE-PTFB-813-02B 1 Black Front Bezel w/ Round Venting Holes
CSE-PTFB-813LB 1 Black Front Bezel
Hot-swap 2.5" kit (DVD slot) MCP-220-81506-0N + 1pc CBL-0099 • (max 1pc) 1 Single 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor
Hot-swap 2.5" kit (FDD slot) MCP-220-81504-0N • 1 Single 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor
Inlet Thermal Sensor MCP-280-00034-0N 1 Universal Thermal sensor kit with 40cm I2C cable
Intel VROC RAID Key for NVMe AOC-VROCINTMOD 1 Intel SSD Only Upgrade module; RAID 0/1/10/5
AOC-VROCPREMOD 1 Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
AOC-VROCSTNMOD 1 Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
NVMe Cable (Drive Bay 0-1) CBL-SAST-1149-85 1 SLIMLINE x8 (RE) to 2x Oculink x4,INT, 49CM, 85 OHM
NVMe Cable (Drive Bay 2-3) CBL-SAST-1154-85 • 1 SLIMLINE x8 (RE) to 2x Oculink x4,INT, 54CM, 85 OHM,RoH
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Storage Control Card and Cable(s) AOC-S3008L-L8I 1 Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 63HDD; RAID 0, 1, 10
AOC-S3108L-H8iR-16DD 1 Standard LP, 8 Internal ports (12Gb/s) PCIe 3.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
AOC-S3908L-H8iR-16DD + 1x CBL-SAST-1275A-100 1 Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
Storage Control Card and Cable(s) (HBA) AOC-S3808L-L8IT + 1x CBL-SAST-1275A-100 1 Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
AOC-S3008L-L8E 1 Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 122HDD; HBA
TPM AOM-TPM-9670V-S-O 1 TPM 2.0, vertical form factor, provisioned for server
AOM-TPM-9671V-S-O 1 TPM 1.2, vertical form factor, provisioned for server

UP SuperServer SYS-510P-WT
