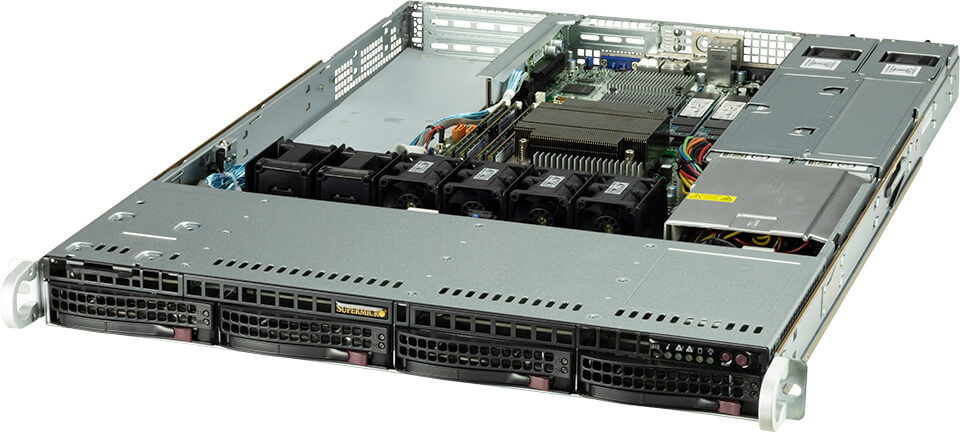

Platinum LevelCertain products may not be available in your region
Key Applications
Key Features
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Standard Parts (Parts Included) | |||
| Part Number | Qty | Description | |
| Motherboard / Chassis |
MBD-X12STW-TF CSE-815TS-R504WBP7 |
1 1 |
Super X12STW-TF Motherboard 1U Chassis |

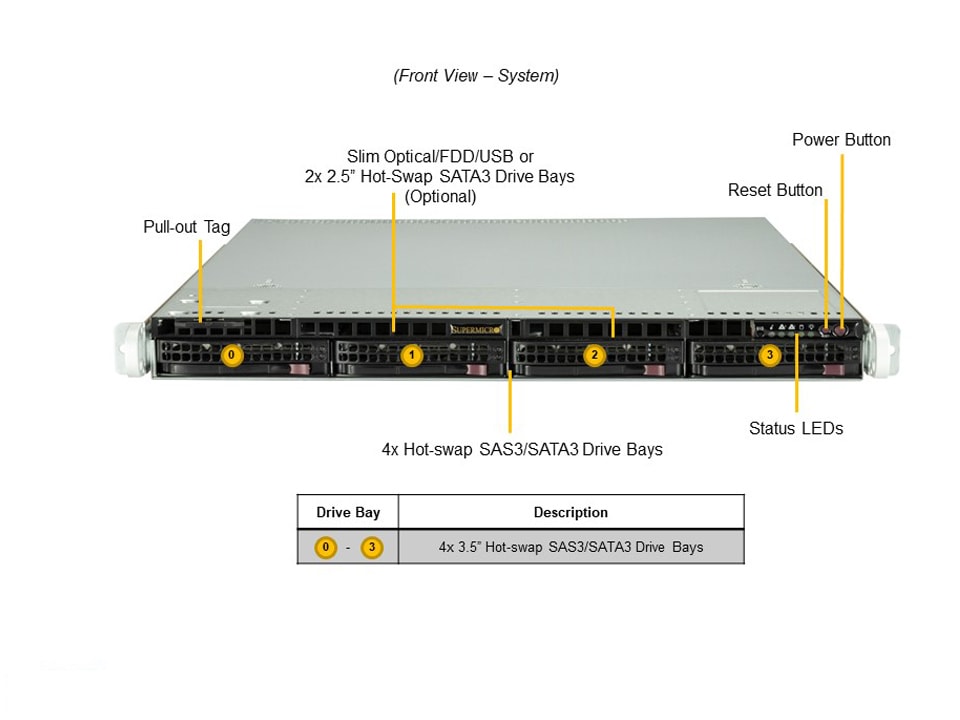

| Backplane | BPN-SAS3-815TQ-N4 | 1 | 1U 4-Port Hybrid Backplane Support 4x3.5"SAS3/SATA3 |
| Cable | CBL-SAST-0699 | 1 | MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG,Ro |
| CBL-0335L | 1 | FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF | |
| Manual | MNL-2422-QRG | 1 | 510T-WTR Quick Reference Guide |

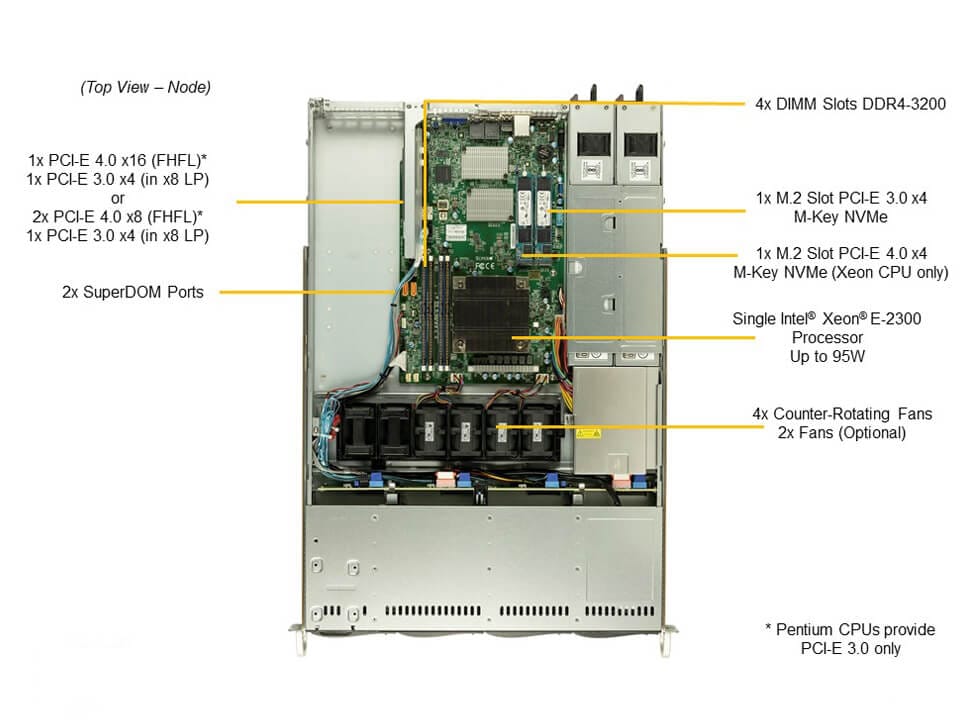

| Riser Card | RSC-R1UW-E8R | 1 | 1U RHS WIO Riser card with one PCIe x8 slot |
| RSC-W-68G4 | 1 | 1U LHS WIO Riser card with one PCIe4.0X16 and onePCI-E4 | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management |
| Heatsink / Retention | SNK-P0049P | 1 | 1U Passive Enhanced Performance CPU Heat Sink for Intel Socket H Series Processors |
| *Power Supply | PWS-504P-1R2 | 2 | 1U Redundant 500W/600W, Platinum efficiency, AC inlet: C14,RoHS |
| MCP-250-81502-0N | 1 | SC815 Redundant Power Distributor Cover | |
| *Power Distributor | PDB-PT112-S2424 | 1 | WIO X11 Support,PDB-PT112-S2424 is based on PDB-PT112-2424 |
| *Fan Holder | CSE-PT0135 | 1 | FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS |
| MCP-340-00035-0B | 2 | Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective) | |
| *Peripheral Drive | CSE-PT93L-B | 1 | Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS |
| *Front Panel | FPB-FP815U | 1 | 815 UIO front control board (U) |
| *Parts | MCP-120-00030-0N | 1 | Blank LP L-bracket (1 raw of capsule hole) |
| MCP-120-00053-0N | 2 | Blank FH L bracket w/o SCSI cutout for SC825,836,846,743 | |

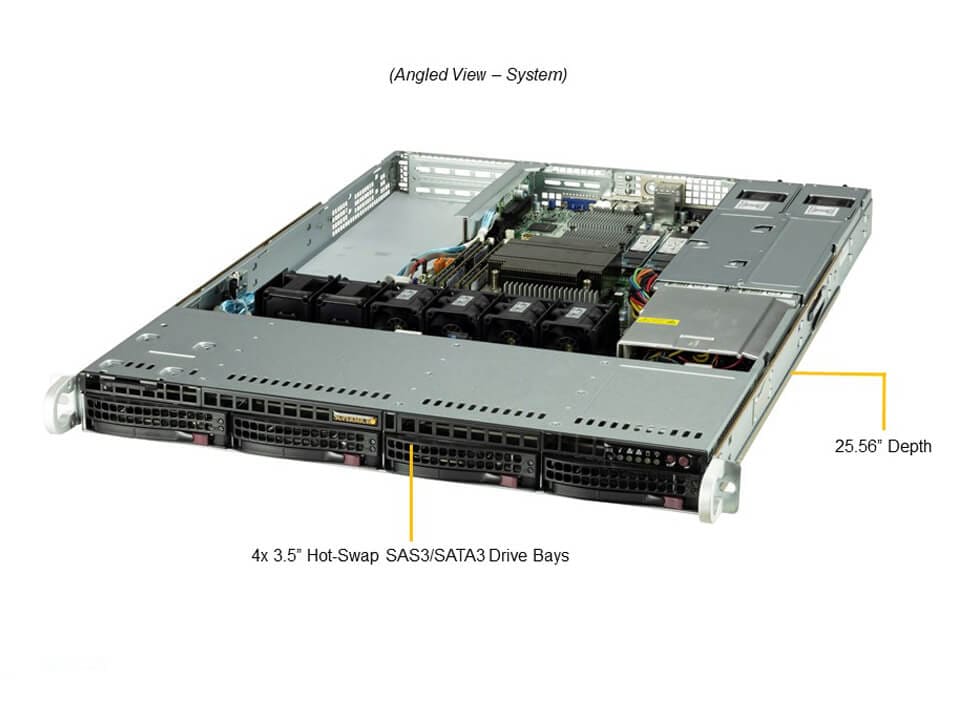

| *Drive Tray(s) | MCP-220-00075-0B | 4 | Black gen 5.5 hot-swap 3.5" HDD tray |
| *Rear Window | MCP-240-00098-0N | 1 | WIO rear window for SC113,SC116, SC815 Redundant PWS |
| *Rail Set | MCP-290-00016-0N | 1 | 1U open rack bracket set for CSE-PT51L,MCP-290-00054-0N |
| MCP-290-00054-0N | 1set | Rail set, quick/quick, optional for 1U 17.2 | |
| *Air Shroud | MCP-310-19002-0N | 1 | SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB |
| *Fan | FAN-0156L4 OR | 4 | 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH |
| FAN-0086L4 | 40x56 4Pin PWM, Primary for SC815, Secondary for SC818, 825M | ||
Notes:
|
|||
| Optional Parts List | |||
| Part Number | Qty | Description | |
| 3.5" to 2.5" Converter Tray(s) | MCP-220-00043-0N • |
- | Hot-swap Gen-4 3.5" to 2.5" HDD tray, Black |
| CacheVault | BTR-CV3916-1U1 (For S3908) | 1 | CacheVault for Broadcom 3908 with SuperCap mounting in 1U 40x56 fan tray |
| BTR-CVPM05 • + MCP-240-00203-0N • (For S3908) |
1 | CacheVault for Broadcom 3908 with SuperCap mounting bracket for PCIe location | |
| BTR-TFM8G-LSICVM02 • + MCP-240-00203-0N • (For S3108) |
1 | CacheVault for Broadcom 3108 with SuperCap mounting bracket for PCIe location | |
| BTR-CV3108-1U1 (For S3108) | 1 | CacheVault for Broadcom 3108 with SuperCap mounting in 1U 40x56 fan tray | |
| Cooling Fan | FAN-0156L4 • |
1 | 40x40x56 mm, 13K RPM / 11K RPM, Counter-rotating Fan |
| DVD-ROM / DVD-RW | DVM-TEAC-DVDRW-SBT5 | 1 | PHILPS slim DVD-RW SATA drive |
| DVM-TEAC-DVD-SBT5 | 1 | TEAC slim DVD-ROM SATA drive | |
| DVD-ROM Accessory | MCP-220-81502-0N • + 1pc CBL-0099 • (max 1pc) |
1 | Slim SATA DVD mounting kit |
| Front Bezel | CSE-PTFB-813LB | 1 | Black Front Bezel |
| CSE-PTFB-813-02B | 1 | Black Front Bezel w/ Round Venting Holes | |
| Hot-swap 2.5" kit (DVD slot) | MCP-220-81506-0N + 1pc CBL-0099 • (max 1pc) |
1 | Single 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor |
| Hot-swap 2.5" kit (FDD slot) | MCP-220-81504-0N • |
1 | Single 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor |
| Inlet Thermal Sensor | MCP-280-00034-0N | 1 | Universal Thermal sensor kit with 40cm I2C cable |
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Storage Control Card and Cable(s) | AOC-S3908L-H8iR-16DD + 1x CBL-SAST-1275A-100 | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60 |
| AOC-S3108L-H8iR-16DD | 1 | Standard LP, 8 Internal ports (12Gb/s) PCIe 3.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60 | |
| AOC-S3008L-L8I | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 63HDD; RAID 0, 1, 10 | |
| Storage Control Card and Cable(s) (HBA) | AOC-S3808L-L8IT + 1x CBL-SAST-1275A-100 | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA |
| AOC-S3008L-L8E | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 122HDD; HBA | |
| TPM | AOM-TPM-9670V-O • |
1 | TPM 2.0, vertical form factor |
| AOM-TPM-9671V-O | 1 | TPM 1.2, vertical form factor | |
