SuperServer SYS-511E-WR (Complete System Only)

1U UP WIO with 4 hot-swap 3.5" SAS/SATA bays and 3 PCIe 5.0 slots

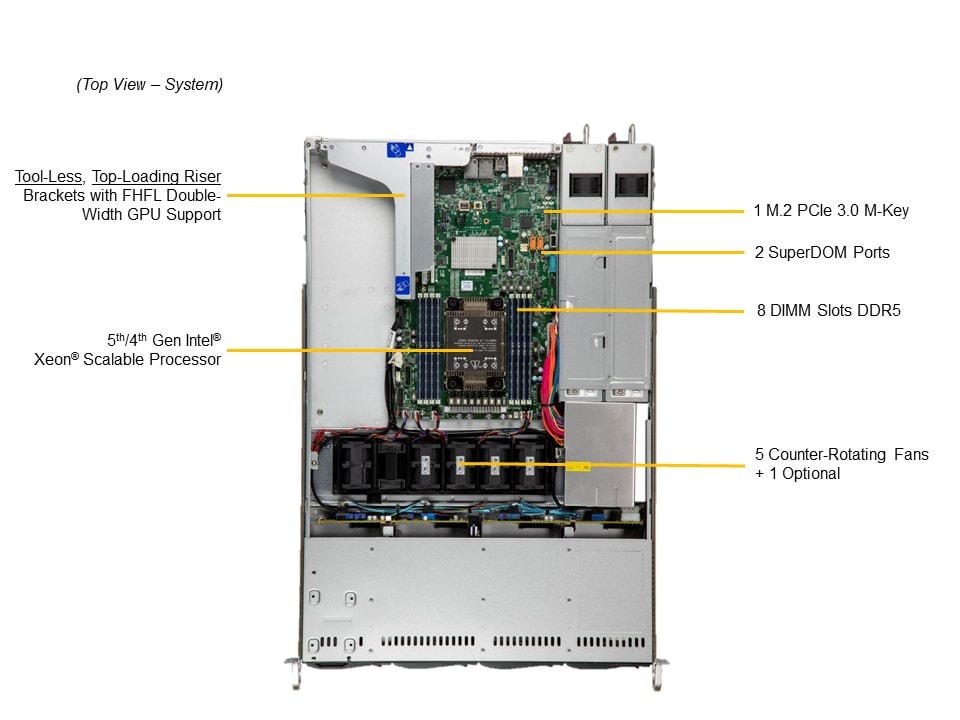

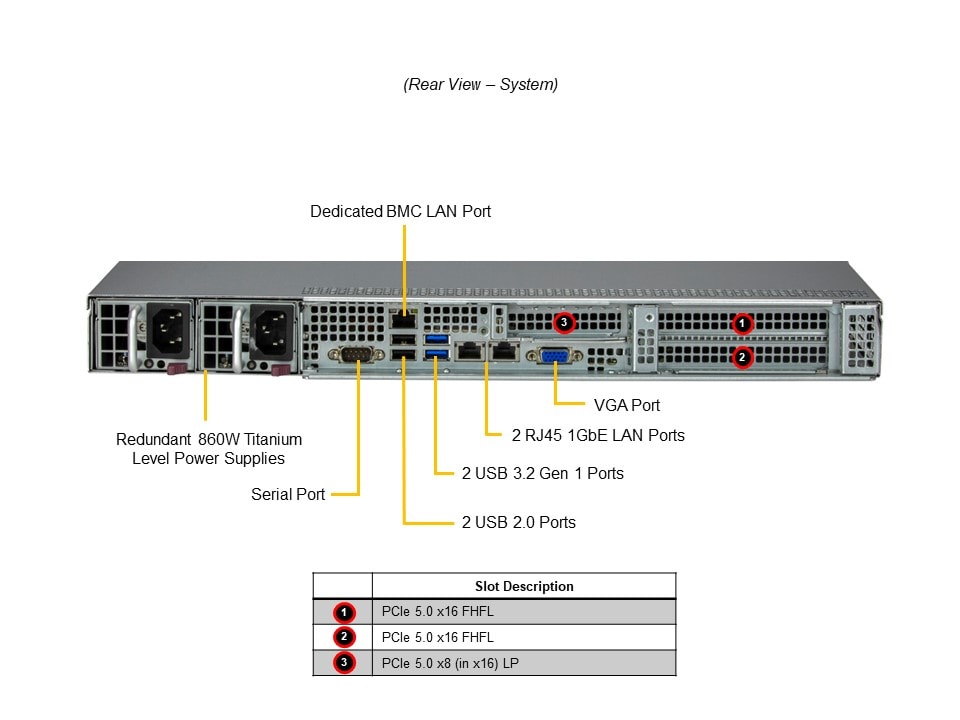

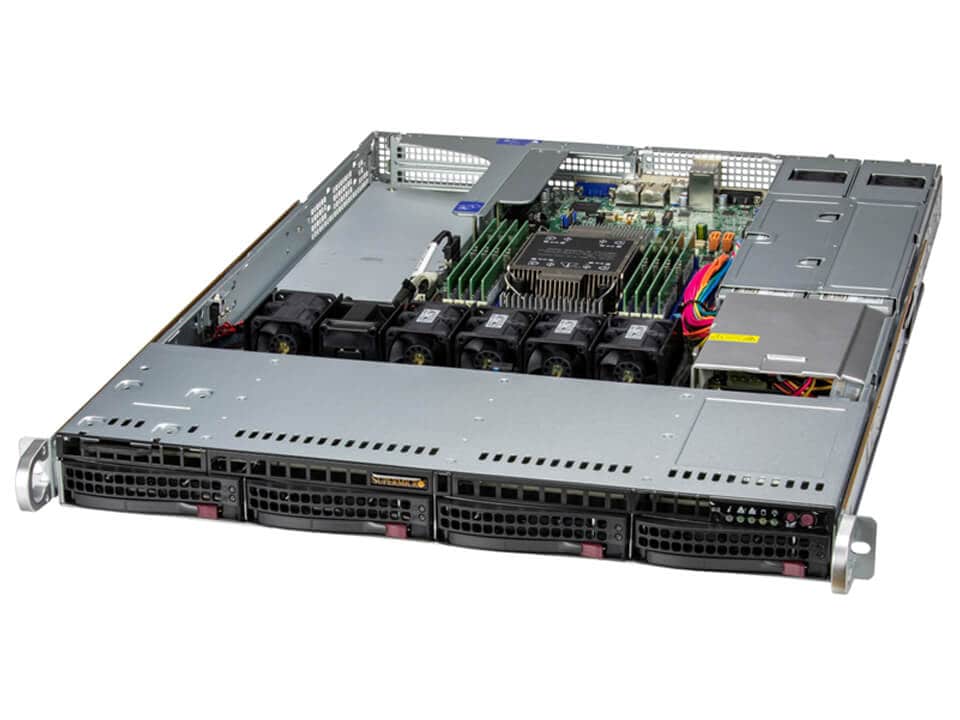

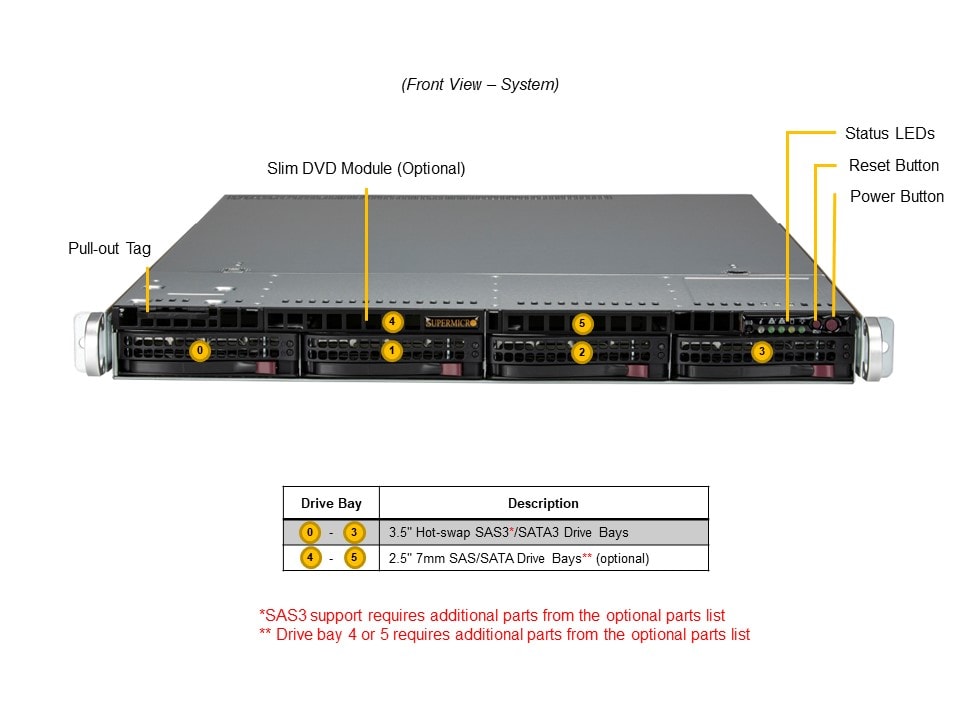

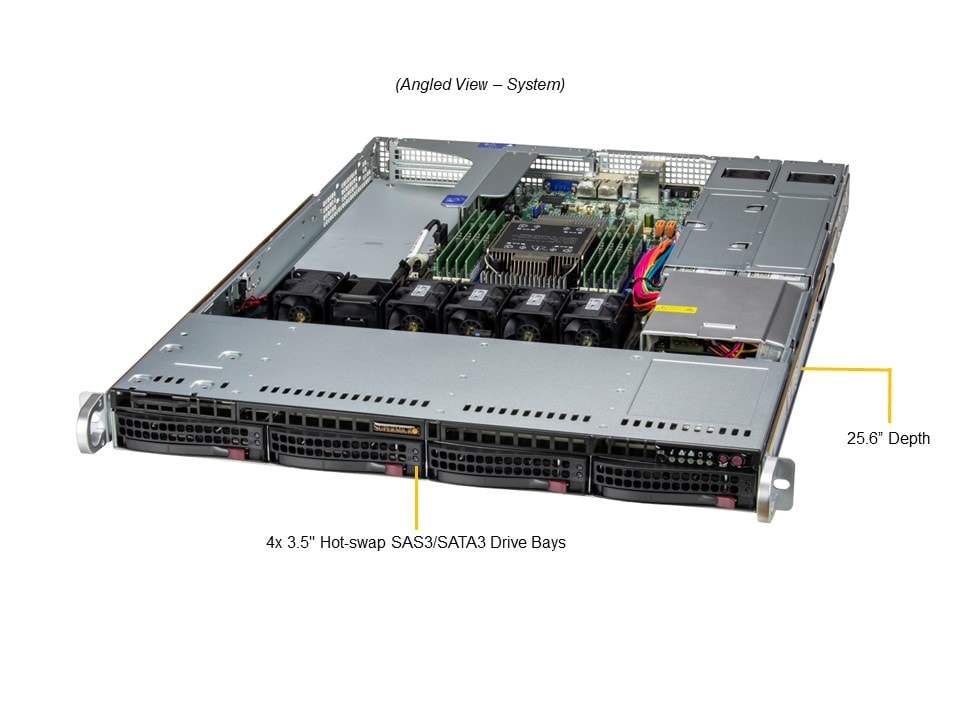

SYS-511E-WR Main SYS-511E-WR Angle SYS-511E-WR Top SYS-511E-WR Front SYS-511E-WR Rear
Integrated Board: X13SEW-F
Learn more

Key Applications

  • Virtualization
  • Cloud Computing
  • Data Center Optimized
  • Entry GPU server
  • Value IaaS

Key Features

  1. Single Socket E (LGA-4677) 4th/5th Gen Intel®  Xeon® Scalable processors. Up to 300W TDP
  2. Intel® C741 Chipset
  3. 8 DIMMs; Supports 3DS DDR5 RDIMM. Up to 5600 MHz
  4. Onboard 1G LAN ports (Intel® i210), 1 dedicated IPMI LAN
  5. 4x front hot-swap 3.5" SATA3 drive bays, SAS3 with additional SAS controller card
  6. Redundant Now Titanium 860W Power Supplies
...
...
SYS-511E-WR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-511E-WR
Motherboard
Super X13SEW-F
Processor
CPU
Core Count
  • Up to 52C/104T; Up to 300MB Cache
Note
  • Supports up to 300W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width or 2 single-width GPUs
Supported GPU
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 8 DIMM slots/8 Channels
  • Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset
  • Intel® C741
Network Connectivity
Input / Output
LAN
  • 2 RJ45 1 GbE LAN ports
  • 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB
  • 2 USB 3.2 Gen1 Type-A ports(rear)
  • 2 USB 2.0 Type-A ports(rear)
  • 1 USB 2.0 Type-A port(Header)
  • 2 USB 3.2 Gen1 ports(Header)
Video
  • 1 VGA port
Serial
  • 1 COM port(Rear)
  • 1 COM port(Header)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 8 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U
Model
  • CSE-815BTS-R000WNP
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.6" (650 mm)
Package
  • 8.5" (H) x 23.5" (W) x 33.7" (D)
Weight
  • Gross Weight: 34.5 lbs (15.46 kg)
  • Net Weight: 21.5 lbs (9.75 kg)
Available Color
  • Black
Front Panel
LED
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Network Activity LEDs
  • Power status LED
  • Unit Identification (UID) LED
Buttons
  • Power On/Off button
  • System Reset button
  • Unit Identification (UID) button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 5.0 x16 FHFL slots
    • 1 PCIe 5.0 x8 (in x16) LP slot
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays
    • 4 front hot-swap 3.5" SAS*/SATA drive bays
  • (*SAS support may require additional storage controller and/or cables)
  • View Drive Options
M.2
Peripheral Bays
  • 2 2.5" peripheral bays (optional)
System Cooling
Fans
  • 5 middle cooling PWM 40x40x56mm Fan(s)
  • 1 AOC cooling Fan(s) (optional)
Power Supply
2x 860W
2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)54.5 x 40.25 x 322 mm
AC Input800W: 100-127Vac / 50-60Hz
860W: 200-240Vac / 50-60Hz
860W: 240Vdc / 50-60Hz
+12VMax: 66.67A / Min: 0A (100Vac-127Vac)
Max: 71.67A / Min: 0A (200Vac-240Vac)
Max: 71.67A / Min: 0A (Vdc-240Vdc)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
Environmental / Recycling
Recycle
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
3.5" to 2.5" Converter Tray(s) MCP-220-00043-0N • - Hot-swap Gen-4 3.5" to 2.5" HDD tray, Black
CacheVault BTR-CV3916-1U1 (For S3908) 1 SuperCap kit mounting in 1U 40x56 fan tray
BTR-CVPM05 • + MCP-240-00203-0N • (For S3908) 1 SuperCap mounting bracket for PCIe location
Cooling Fan FAN-0163L4 • 1 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT5 1 TEAC slim DVD-ROM SATA drive
DVM-TEAC-DVDRW-SBT5 1 PHILPS slim DVD-RW SATA drive
DVD-ROM Accessory MCP-220-81502-0N • 1 Slim SATA DVD mounting kit
Front Bezel CSE-PTFB-813LB 1 Black Front Bezel
CSE-PTFB-813-02B 1 Black Front Bezel w/ Round Venting Holes
Hot-swap 2.5" kit (DVD slot) MCP-220-81506-0N • 1 Single 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor
Hot-swap 2.5" kit (FDD slot) MCP-220-81504-0N • 1 Single 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor
Inlet Thermal Sensor MCP-280-00033-0N 1 Inlet Thermal sensor kit with 80cm I2C cable
Intel VROC RAID Key for NVMe AOC-VROCPREMOD 1 Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
AOC-VROCSTNMOD 1 Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Storage Control Card and Cable(s) AOC-S3908L-H8iR-16DD 1 Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
Storage Control Card and Cable(s) (HBA) AOC-S3808L-L8IT 1 Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
TPM AOM-TPM-9670V-S-O 1 TPM 2.0, vertical form factor, provisioned for server

UP SuperServer SYS-511E-WR (Complete System Only )
