SuperServer SYS-512B-WR (Complete System Only)

1U UP WIO with 4 hot-swap 3.5” NVMe/SAS/SATA bays and 3 PCIe 5.0 slots

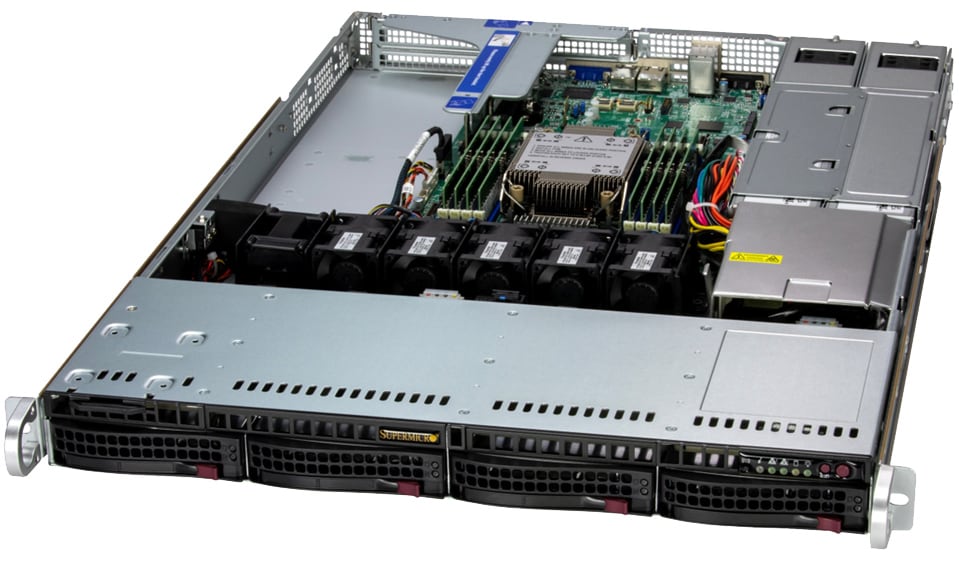

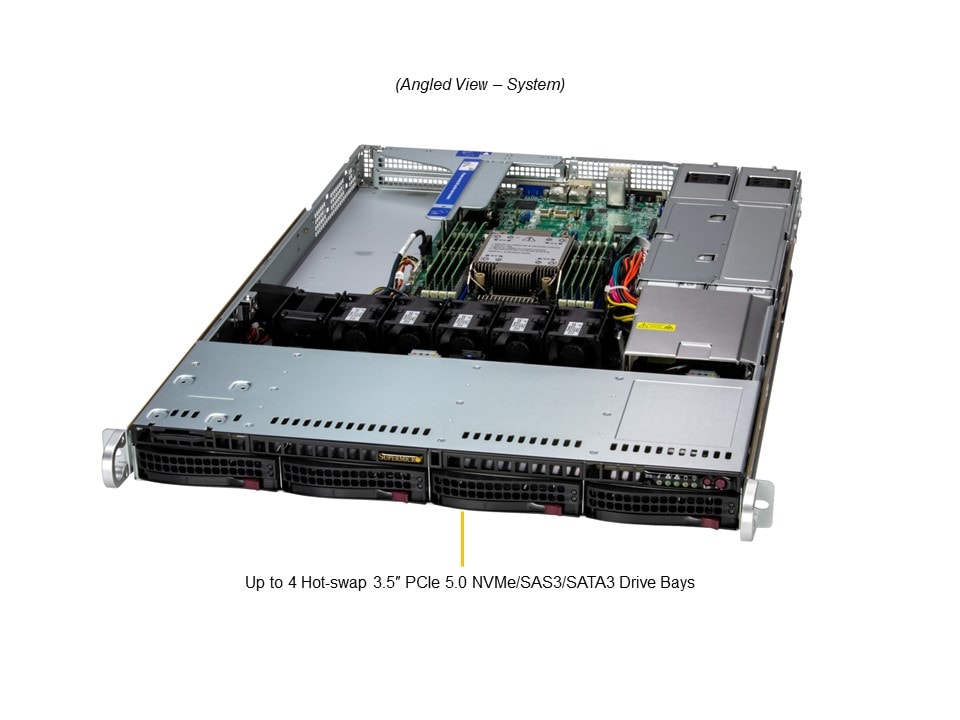

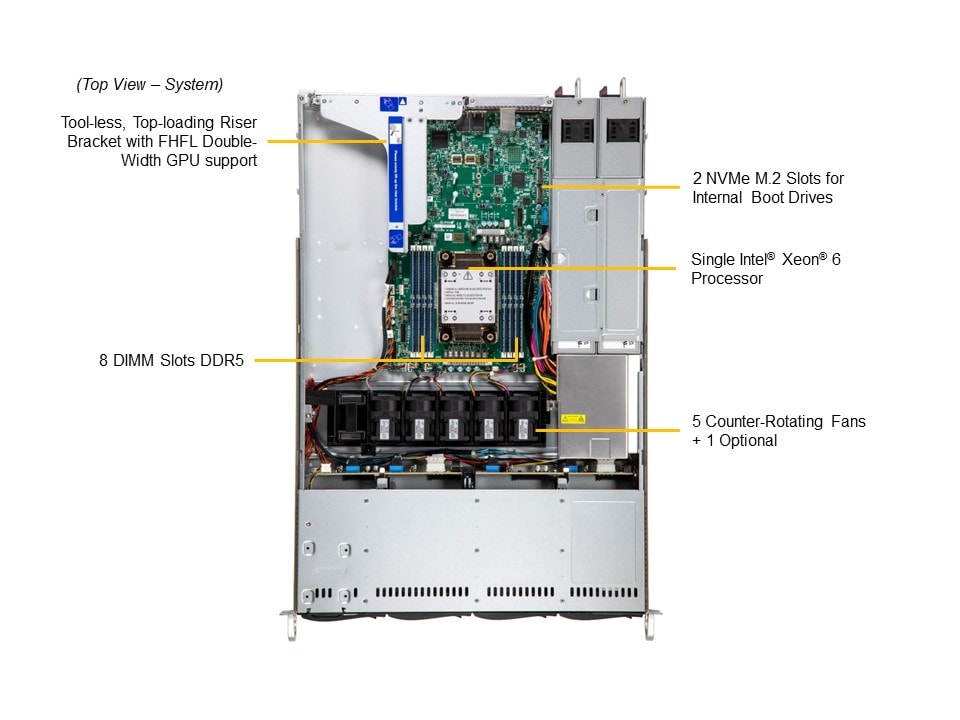

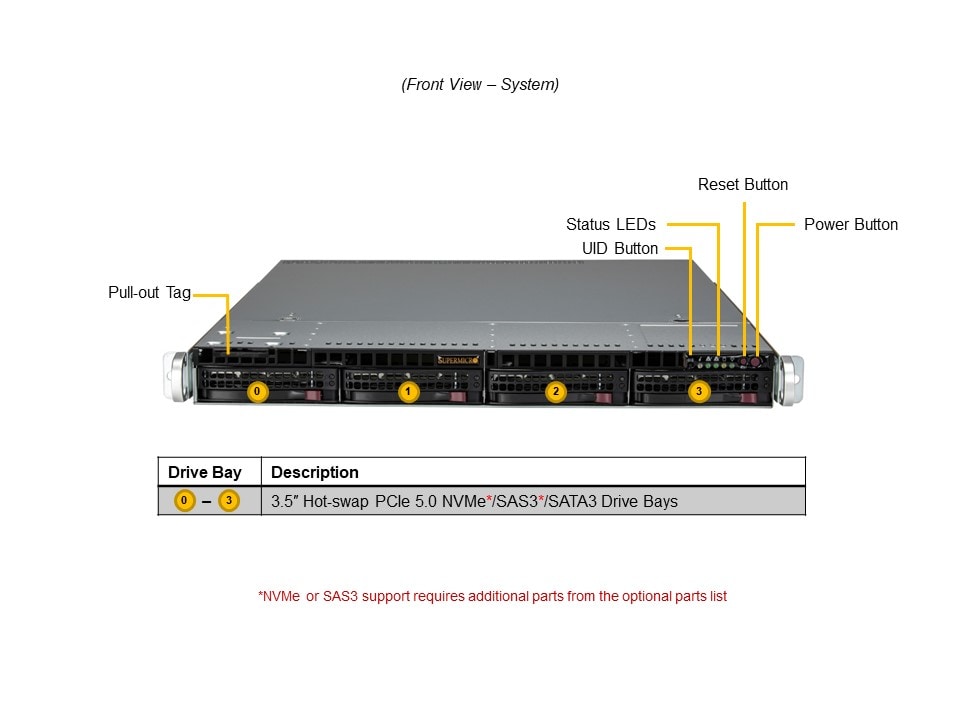

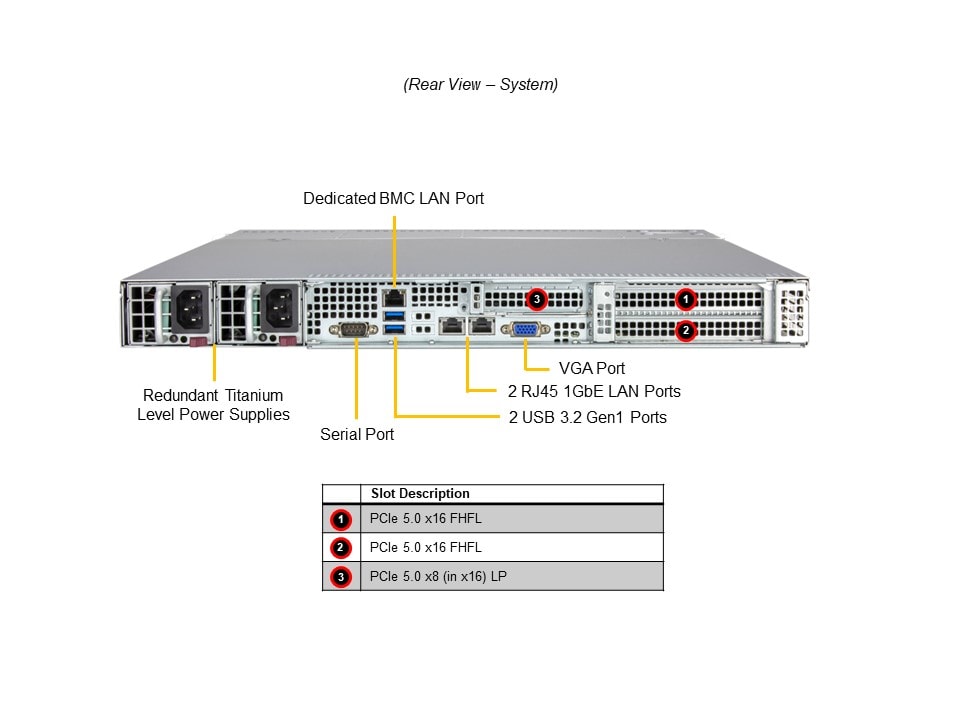

SYS-512B-WR Main SYS-512B-WR Angle SYS-512B-WR Top SYS-512B-WR Front SYS-512B-WR Rear
Integrated Board: X14SBW-F
Learn more

Key Applications

  • Enterprise Applications
  • General Purpose Computing
  • Cloud Computing
  • Web/Hosting Application
  • Network Appliance
  • Database/Storage
  • Storage Headnode
  • Entry GPU server

Key Features

  1. WIO systems offer flexible I/O configurations in a cost-effective architecture to deliver truly optimized systems for specific enterprise requirements.
  2. Single Intel® Xeon® 6 6700 series processor with E-cores
  3. 8 DIMM slots supporting up to 1TB of memory (6700E series CPU).
  4. Tool-less, Top-loading riser design support 3 PCIe 5.0 Expansion (2x FHFL + 1x LP).
  5. Native SATA drives supported, with option PCIe 5.0 NVMe and SAS.
  6. Trusted Platform Module (TPM) 2.0 onboard.
...
...
SYS-512B-WR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-512B-WR
Motherboard
Super X14SBW-F
Processor
CPU
Core Count
  • Up to 144C/144T; Up to 108MB Cache
Note
  • Supports up to 300W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width or 2 single-width GPUs
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 8 DIMM slots/8 Channels
  • Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM
  • View Memory Options
On-Board Devices
SATA
  • SATA (6Gbps)
NVMe
Chipset
  • System on Chip
Network Connectivity
Input / Output
LAN
  • 2 RJ45 1 GbE LAN ports
  • 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB
  • 2 USB 3.2 Gen1 Type-A ports(rear)
  • 2 USB 3.2 Gen1 ports(Header)
Video
  • 1 VGA port
Serial
  • 1 COM port(Rear)
  • 1 COM port(Header)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 8 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U
Model
  • CSE-815BTS-R000WNP
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.6" (650 mm)
Package
  • 8.5" (H) x 23.5" (W) x 33.7" (D)
Weight
  • Gross Weight: 34.5 lbs (15.46 kg)
  • Net Weight: 21.5 lbs (9.75 kg)
Available Color
  • Black
Front Panel
LED
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Network Activity LEDs
  • Power status LED
  • Unit Identification (UID) LED
Buttons
  • Power On/Off button
  • System Reset button
  • Unit Identification (UID) button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 5.0 x16 FHFL slots
    • 1 PCIe 5.0 x8 (in x16) LP slot
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays
    • 4 front hot-swap 3.5" SATA drive bays
  • Option A: Total 4 bays
    • 4 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays
  • Option B: Total 4 bays
    • 4 front hot-swap 3.5"/2.5" SAS* drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
  • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110; VROC required for RAID)
  • View M.2 Options
Peripheral Bays
  • 2 slim peripheral bays
System Cooling
Fans
  • 1 AOC cooling Fan(s) (optional)
  • 5 middle cooling PWM 40x40x56mm Fan(s)
Air Shroud
  • 1 CPU Air Shroud
Power Supply
2x 860W
2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)54.5 x 40.25 x 322 mm
AC Input800W: 100-127Vac / 50-60Hz
860W: 200-240Vac / 50-60Hz
860W: 240Vdc / 50-60Hz
+12VMax: 66.67A / Min: 0A (100Vac-127Vac)
Max: 71.67A / Min: 0A (200Vac-240Vac)
Max: 71.67A / Min: 0A (Vdc-240Vdc)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
CacheVault BTR-CVPM05 • + MCP-240-00203-0N • (For S3908/S3916) 1 SuperCap mounting bracket for PCIe location
BTR-CV3916-1U1 (For S3908/S3916) 1 SuperCap kit mounting in 1U 40x56 fan tray
Cooling Fan FAN-0163L4 • 1 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
Front Bezel MCP-210-11603-0B 1 Black Front Bezel
Intel VROC RAID Key for NVMe AOC-VROCSTNMOD 1 Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
AOC-VROCPREMOD 1 Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
NVMe Cable (Drive Bay 0-1) CBL-MCIO-1235M5Y • 1 MCIO (x8 to x8) STR,65CM,85 OHM
NVMe Cable (Drive Bay 2-3) CBL-MCIO-1260M5Y • 1 MCIO (x8 to x8) STR,26CM,85 OHM
NVMe Drive Tray(s) MCP-220-00138-0B • 4 Tool-less Hot-swap Gen-3 NVMe drive tray, Orange tab, Black
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Storage Control Card and Cable(s) AOC-S3908L-H8iR-16DD 1 Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
Storage Control Card and Cable(s) (HBA) AOC-S3808L-L8IT 1 Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
