SuperServer SYS-520P-WTR

2U WIO with 8 hot-swap 3.5" SAS/SATA bays and up to 5 PCIe 4.0 slots

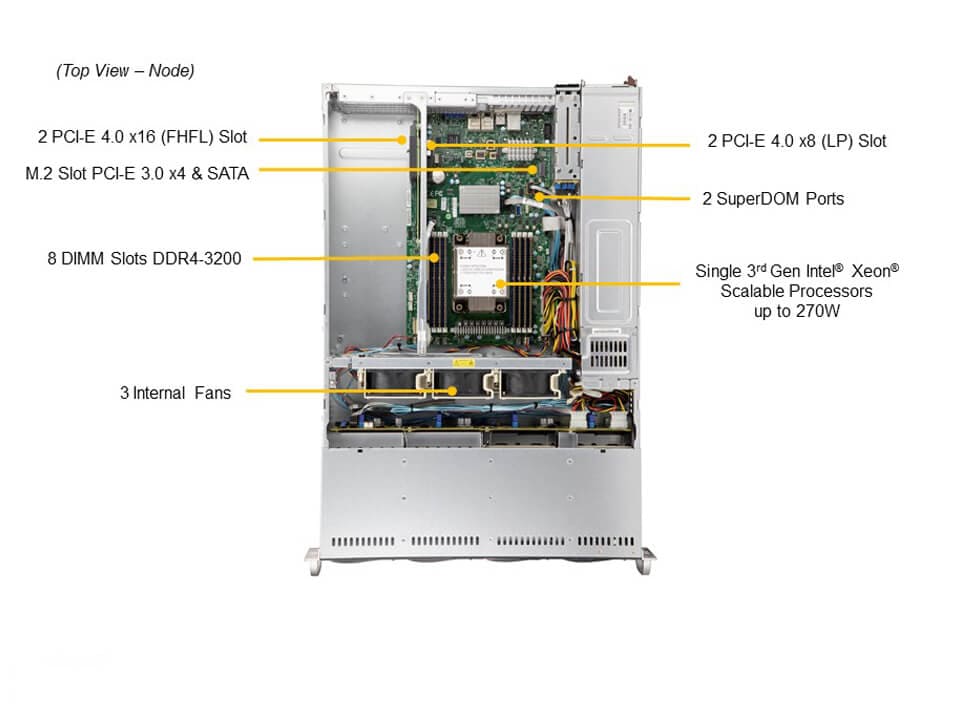

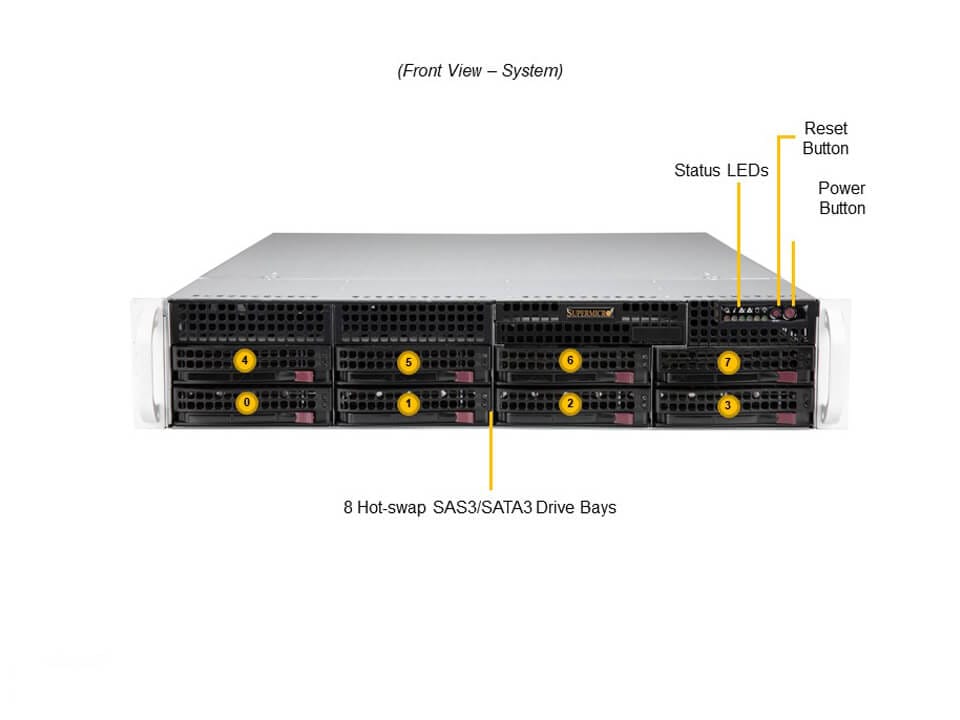

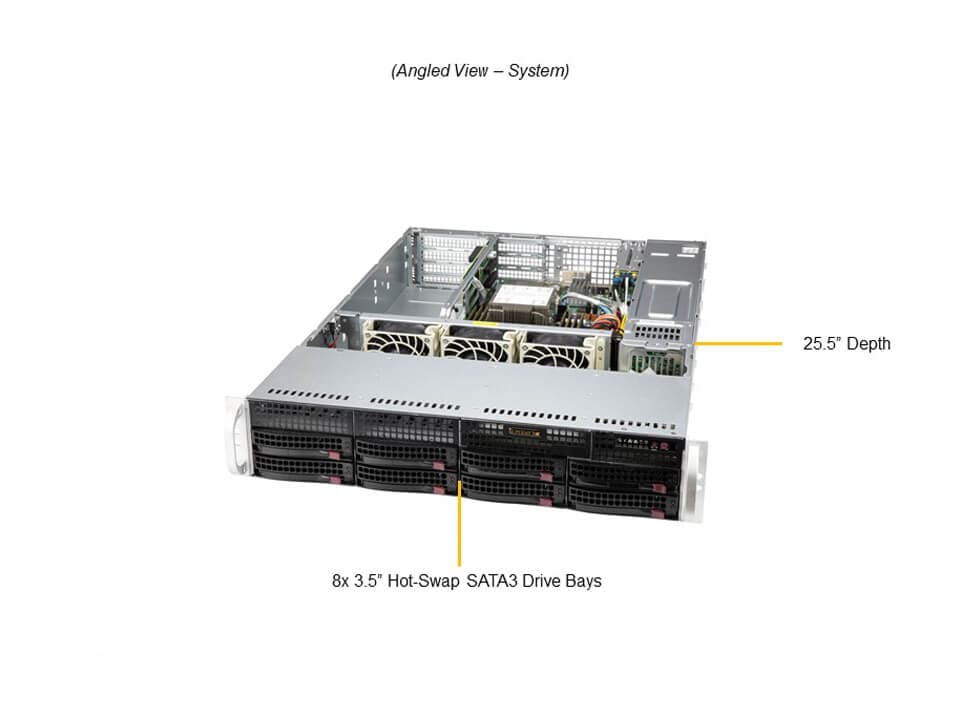

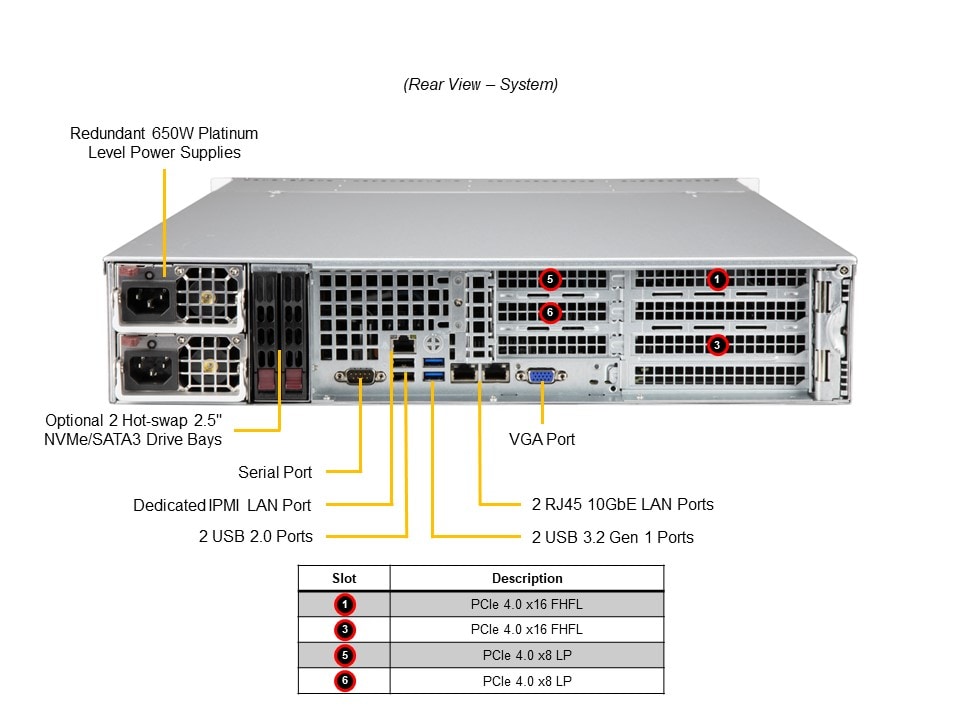

SYS-520P-WTR Main SYS-520P-WTR Angle SYS-520P-WTR Top SYS-520P-WTR Front SYS-520P-WTR Rear
Integrated Board: X12SPW-TF
Learn more

Key Applications

  • Data Center Optimized
  • Database Processing and Storage
  • Network Appliance

Key Features

  1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
  2. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM
  3. 2 PCIe 4.0 x16 (FHFL) slots, 2 PCIe 4.0 x8 (LP) slots
  4. Intel® Ethernet Controller X550 2x 10GbE RJ45
  5. 8x hot-swap 3.5'' SATA3 drive bays, SAS3 with additional SAS controller card, Optional 2x 2.5'' Gen4 NVMe drives at rear; Onboard 1x NVMe/SATA M.2
  6. Redundant Platinum 650W Power Supply
...
...
SYS-520P-WTR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-520P-WTR Standard version with PWS-609P-1R2 (Platinum Level)
SuperServer SYS-520P-WTR-EU European version with PWS-802A-1R (Titanium Level)
Motherboard
Super X12SPW-TF
Processor
CPU
  • Single Socket P+ (LGA-4189)
  • Intel® Xeon® Scalable Processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width or 1 single-width GPU
Supported GPU
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
Chipset
  • Intel® C621A
Network Connectivity
Input / Output
LAN
  • 2 RJ45 1 GbE LAN ports
  • 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB
  • 2 USB 2.0 ports(header)
  • 2 USB 3.2 Gen1 Type-A ports(rear)
  • 2 USB 2.0 Type-A ports(rear)
  • 2 USB 3.2 Gen1 ports(Header)
  • 1 USB 3.2 Gen1 Type-A port
Video
  • 1 VGA 2.0 port
Serial
  • 1 COM port(Rear)
  • 1 COM port(Header)
DOM
  • 2 SuperDOM (Disk on Module) portswith built-in power
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-825BTS-R609WP
Dimensions and Weight
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.5" (647 mm)
Package
  • 11" (H) x 26.5" (W) x 34" (D)
Weight
  • Gross Weight: 59 lbs (26.76 kg)
  • Net Weight: 34 lbs (15.42 kg)
Available Color
  • Black
Front Panel
LED
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power Failure LED
  • Power status
  • System information
Buttons
  • Power On/Off
  • System Reset
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 4.0 x16 FHFL slots
    • 2 PCIe 4.0 x8 LP slots
  • Option A*
    • 1 PCIe 4.0 x16 FHFL double-width slot
    • 2 PCIe 4.0 x8 FHFL slots
    • 2 PCIe 4.0 x8 LP slots
  • Option B*
    • 4 PCIe 4.0 x8 FHFL slots
    • 2 PCIe 4.0 x8 LP slots
  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays
    • 8 front hot-swap 3.5" SAS*/SATA drive bays
  • Option A: Total 10 bays
    • 8 front hot-swap 3.5" SAS*/SATA drive bays
    • 2 rear hot-swap 2.5" PCIe 4.0 NVMe*/SAS*/SATA drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
  • 1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280/22110; VROC required for RAID)
  • View M.2 Options
System Cooling
Fans
  • 3 heavy duty PWM 80x80x38mm Fan(s)
Power Supply
2x 650W
2x 650W Redundant (1 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL)76 x 40 x 336 mm
Total Output Power
AC Input600W: 100-127Vac / 50-60Hz
650W: 200-240Vac
650W: 200-240Vac / 50-60Hz
650W: 200-240Vdc / 50-60Hz (for CCC only)
+12VMax: 50A / Min: 0A (100Vac-127Vac)
Max: 54.16A / Min: 0A (200Vac-240Vac)
Max: 54.16A / Min: 0A (200Vdc-240Vdc) (for CCC only)
Max: 54A / Min: 0.5A
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12SPW-TF

CSE-825BTS-R609WP 		1

1 		Super X12SPW-TF Motherboard

2U Chassis
Backplane BPN-SAS3-825TQ 1 2U 8-Slot 12G Backplane for 8x3.5" SAS/SATA HDD/SSD
Cable CBL-SAST-0699 2 MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG,Ro
CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
CBL-PWEX-1078 3 PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
Manual MNL-2264-QRG 1 520P-WTR Quick Reference Guide
Riser Card RSC-W2-66G4 1 2U LHS WIO Riser card with two PCIe 4.0 x16 slots,HF,RoHS
RSC-W2R-88G4 1 2U RHS WIO Riser card with two PCIe 4.0 x8 slots,HF,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0078P 1 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
*Power Supply PWS-609P-1R2 2 1U, platinum efficiency, 600W/650W, AC input: 100-127/200-240Vac.
*Power Distributor PDB-PT825-8824 1 SC825 24PIN REDUNDANT POWER DISTRIBUTOR
*Fan FAN-0181L4 3 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis
*Front Panel FPB-FP836-D 1 Front control board Dual color LED(FP836-D)forSC823M,825,825
*Drive Tray(s) MCP-220-00023-01 1 Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836
MCP-220-00075-0B 8 Black gen 5.5 hot-swap 3.5" HDD tray
MCP-220-82502-0B 2 Black fixed 3.5\" HDD tray or FDD dummy tray
MCP-290-82607-0N 1 826B/216B rear dummy cover for 2 X 2.5" HDD cage,RoHS
*Rear Window MCP-240-82609-0N 1 SC826B, 216B WIO rear window
*Peripheral Drive MCP-290-00007-01 1 Black DVD dummy cover for SC825, 836
*Rail Set MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2"W
MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack
*Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
2x 2.5" NVMe Cage (Rear) MCP-220-82619-0N + 1x CBL-SAST-1154-85 • 1 Rear hot-swap 2x 2.5" NVMe drive kit
2x 2.5" SATA/SAS Cage (Rear) MCP-220-82616-0N • 1 Rear hot-swap 2x 2.5" SATA/SAS drive kit
3.5" to 2.5" Converter Tray(s) MCP-220-00043-0N • - Hot-swap Gen-4 3.5" to 2.5" HDD tray, Black
Add-on Card for additional M.2 AOC-SLG3-2H8M2 - Standard LP, PCIe 3.0 x8, supports 2x NVMe/SATA M-Key M.2 Modules; RAID 0,1
Cable for Internal HDD CBL-0289L 1 Y split, big 4 pin to two RA SATA power estenstion 30cm
CBL-0484L • 2 55cm 30AWG SATA straight to straigh cable
CacheVault BTR-CVPM05 • + MCP-240-00203-0N • (For S3908) 1 CacheVault for Broadcom 3908 with SuperCap mounting bracket for PCIe location
BTR-TFM8G-LSICVM02 • + MCP-240-00203-0N • (For S3108) 1 CacheVault for Broadcom 3108 with SuperCap mounting bracket for PCIe location
BTR-TFM8G-LSICVM02 • + MCP-240-00127-0N (For S3108) 1 CacheVault for Broadcom 3108 with SuperCap mounting bracket for internal fixed bay
BTR-CVPM05 • + MCP-240-00127-0N (For S3908) 1 CacheVault for Broadcom 3908 with SuperCap mounting bracket for internal fixed bay
DVD-ROM / DVD-RW DVM-TEAC-DVDRW-SBT5 1 PHILPS slim DVD-RW SATA drive
DVM-TEAC-DVD-SBT5 1 TEAC slim DVD-ROM SATA drive
DVD-ROM Accessory MCP-220-81502-0N • 1 Slim SATA DVD mounting kit
Front Bezel MCP-210-82503-0B • 1 Black Front Bezel
Inlet Thermal Sensor MCP-280-00033-0N 1 Universal Thermal sensor kit with 80cm I2C cable
Intel VROC RAID Key for NVMe AOC-VROCINTMOD 1 Intel SSD Only Upgrade module; RAID 0/1/10/5
AOC-VROCPREMOD 1 Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
AOC-VROCSTNMOD 1 Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Storage Control Card and Cable(s) AOC-S3008L-L8I 1 Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 63HDD; RAID 0, 1, 10
AOC-S3108L-H8iR-16DD 1 Standard LP, 8 Internal ports (12Gb/s) PCIe 3.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
AOC-S3908L-H8iR-16DD + 1x CBL-SAST-1270S-100 1 Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
Storage Control Card and Cable(s) (HBA) AOC-S3008L-L8E 1 Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 122HDD; HBA
AOC-S3808L-L8IT + 1x CBL-SAST-1270S-100 1 Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
TPM AOM-TPM-9670V-S-O 1 TPM 2.0, vertical form factor, provisioned for server
AOM-TPM-9671V-S-O 1 TPM 1.2, vertical form factor, provisioned for server
WIO Riser Card RSC-W2-688G4 1 2U LHS WIO Riser card with 1x (PCIe 4.0 x16) and 2x (PCIe 4.0 x8) slots
RSC-W2-8888G4 1 2U LHS WIO Riser card with 4x (PCIe 4.0 x8) slots
