SuperServer SYS-530A-IL

UP mid-tower workstation for content creation and 3D design

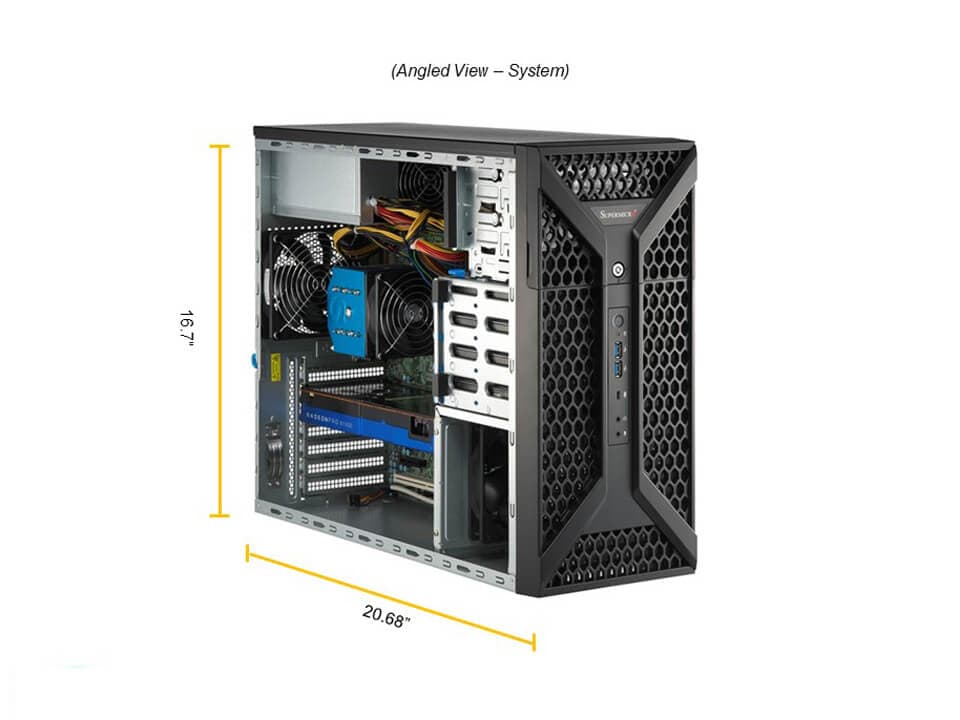

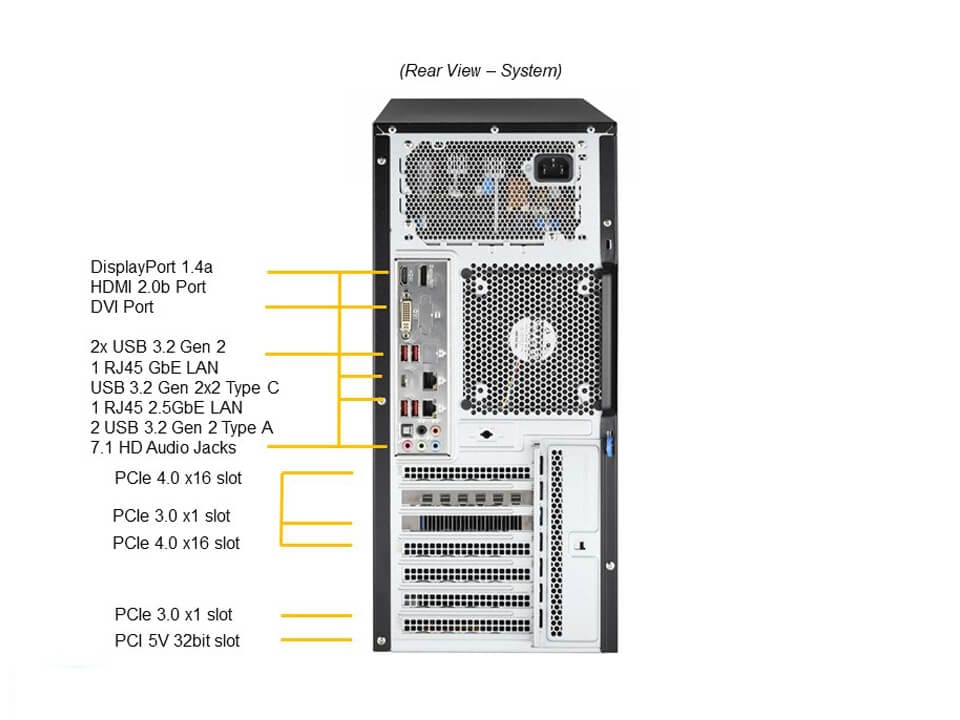

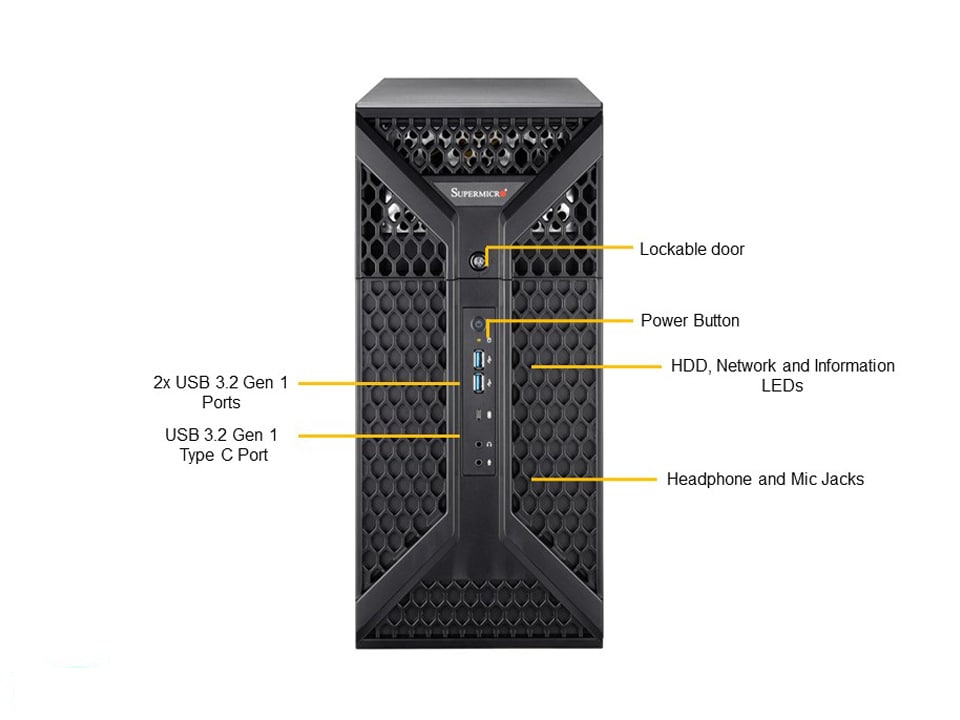

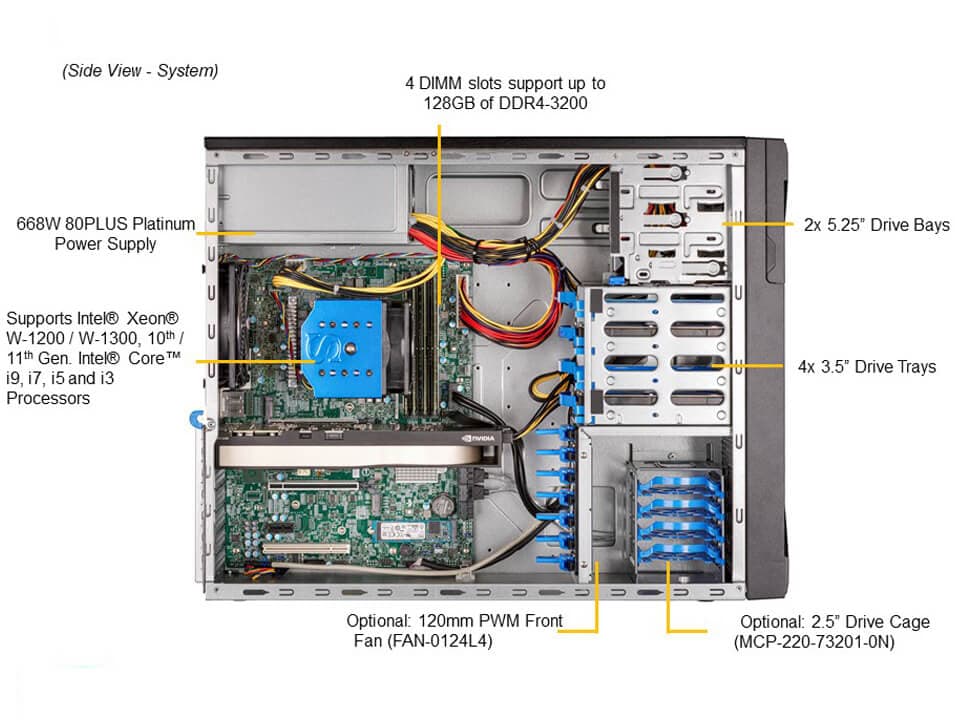

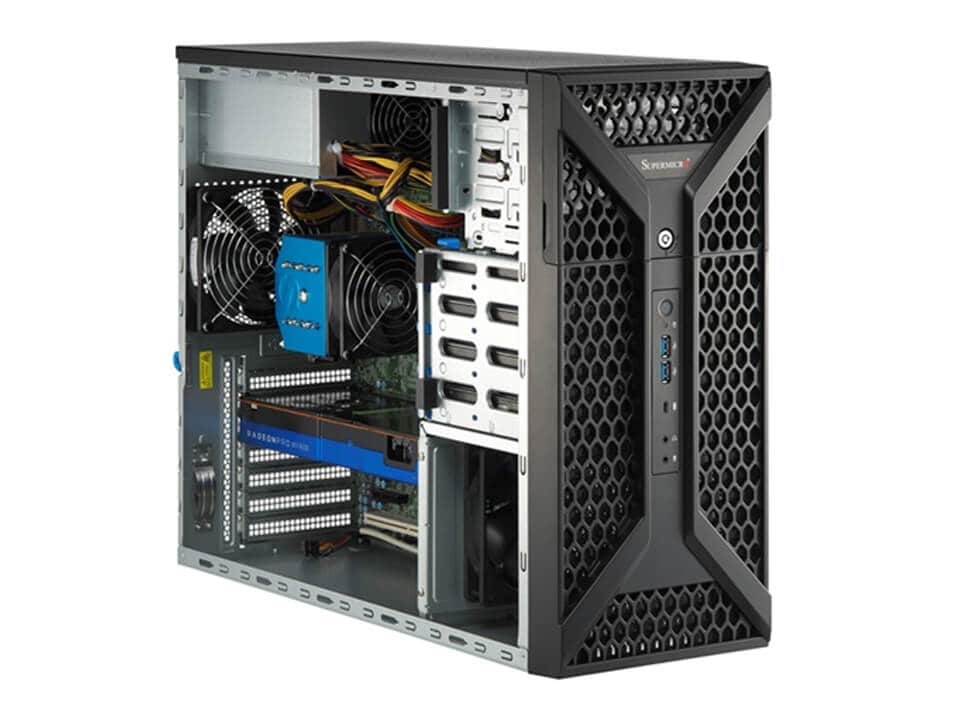

SYS-530A-IL Main SYS-530A-IL Angle SYS-530A-IL Front SYS-530A-IL Rear SYS-530A-IL Side
Integrated Board: X12SAE-5
Learn more

Key Applications

  • Entry-Level Workstation
  • Designed for CAD and 3D Modeling Applications
  • 2D/3D Content Creation

Key Features

  1. 2022 Version: Supports both Intel® Xeon® W-1200/W-1300 Series and 10th/11th Generation Intel® Core™ Processors
  2. Dual LAN ports, 1 GbE and 2.5 GbE
  3. 12cm PWM quiet exhaust fan and optional 12cm front intake fan
  4. 668W 80PLUS Platinum Power Supply
...
...
SYS-530A-IL
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperWorkstation SYS-530A-IL
Motherboard
Super X12SAE-5
Processor
CPU
  • Single Socket H5 (LGA-1200)
  • 11th Gen Intel® Core™ Processors
Core Count
  • Up to 10C/20T; Up to 20MB Cache
Note
  • Supports up to 125W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width GPU
System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • Intel® W580
Network Connectivity
  • 1 RJ45 1GbE with Intel® I219-LM
  • 1 RJ45 2.5GbE with Intel® I225-V
  • View AOC Options
Input / Output
Video
  • 1 HDMI 2.0b port
  • 1 DVI-D port
  • 1 DisplayPort 1.4a port
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
Power configurations
  • ACPI 6.0 Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Other Features
  • 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, Voltage and Frequency Overclocking, WOL
Chassis
Form Factor
  • Mid-Tower
Model
Dimensions and Weight
Height
  • 16.7" (424 mm)
Width
  • 7.6" (193 mm)
Depth
  • 21.1" (536 mm)
Package
  • 11.97" (H) x 21.38" (W) x 25.28" (D)
Weight
  • Gross Weight: 30 lbs (13.61 kg)
  • Net Weight: 28 lbs (12.7 kg)
Available Color
  • Black
Front Panel
Port
  • Audio Jack(s)
  • USB 3.0 Port(s)
  • USB 3.2 Gen 2 Type C
LED
  • HDD activity LED
  • Power LED
Buttons
  • Power On/Off button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 4.0 x8 (in x16) FHFL slots
    • 2 PCIe 3.0 x1 FHFL slots
  • Option A
    • 1 PCIe 4.0 x16 FHFL slot
    • 2 PCIe 3.0 x1 FHFL slots
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
M.2
  • 2 M.2 NVMe slots (M-key 2280/22110)
  • 1 M.2 NVMe slot (M-key 2280/22110)
  • View M.2 Options
Peripheral Bays
  • 2 5.25" bays
System Cooling
Fans
  • 1x 120mm Fan(s)
  • 1x 120mm Fan(s) (optional)
Power Supply
1x 668W
1x 668W Platinum Level (92%) power supply
Dimension (WxHxL)150 x 86 x 185 mm
AC Input100-240Vac
668W: 100-240Vac / 50-60Hz
+12VMax: 54A / Min: 0.2A (100Vac-240Vac)
Max: 54A (100Vdc-240Vdc)
5V SBMax: 2A / Min: 0A
Output Type24pin ATX
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12SAE-5

CSE-735D4-668B 		1

1 		Super X12SAE-5 Motherboard

Mid-Tower Chassis
Cable CBL-0044L 4 7pin SATA (STR to STR), 57.5cm, Flat, PBF
CBL-PWCD-0160-IS 1 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
CBL-0453L 1 USB3.0 Internal Cable-60cm(19pin Female to 19pin Female)
CBL-CDAT-0560 1 Audio Cable HD / AC97 -80cm, 28AWG,HF,RoHS/REACH,PBF
CBL-CDAT-0680-55 1 NCSI,2x10F to 2x10F,IDC,PH2.54,55cm,shield,28AWG,RoHS
CBL-CUSB-0999-45 OR 1 [NR] USB3.2 Gen2X2 TypeC INT 20M to TypeC 24F,45CM,30u",RoHS
CBL-CUSB-0999-45M USB3.2 Gen2X2 TypeC INT 20M to TypeC 24F,45CM,30AWG,RoHS
Parts MCP-260-00151-0N 1 STD I/O Shield for X12SAE with EMI Gasket
*Power Supply PWS-668-PQ 1 PS2 668W Multi-Output 80Plus Platinum Power Supply with 24pi
*Fan FAN-0221L4 1 120x120x25 mm, 2.2K RPM, Cooling Fan for GS7 Project,RoHS
*Front Panel FPB-FP735 1 Front control board for CSE735,RoHS
*Front Bezel MCP-210-73503-0B 1 CSE-735D4 front brezel assembly - Black
MCP-210-73504-0B 1 735 front control I/O bezel
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
DVD Kit CBL-SAST-0624 • 1 70cm SATA Cable S-S 30AWG
CBL-0082L • 1 Y SPLIT SATA POWER ADAPTER
DVM-TEAC-DVDRW24-HBT 1 BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE (Please also add CBL-SAST-0624 and CBL-0082L)
Fan FAN-0077L4-1 1 120x120x38 mm, High Performance, 4K RPM, Optional Rear or Front Fan
FAN-0124L4 • 1 120x120x25 mm, Quiet, 1850RPM, Optional Front Intake Fan
HDD Converter MCP-220-73102-0N • 1 2.5" to 3.5" SSD/HDD Adapter Tray for 731, 732, DS3, 842
Heatsink SNK-P0051AP4 • 1 High Performance CPU Heatsink
Mobile Rack CSE-M14TQC 1 SAS3/SATA mobile rack for 4x 2.5" drives
