SuperServer SYS-530MT-H8TNR

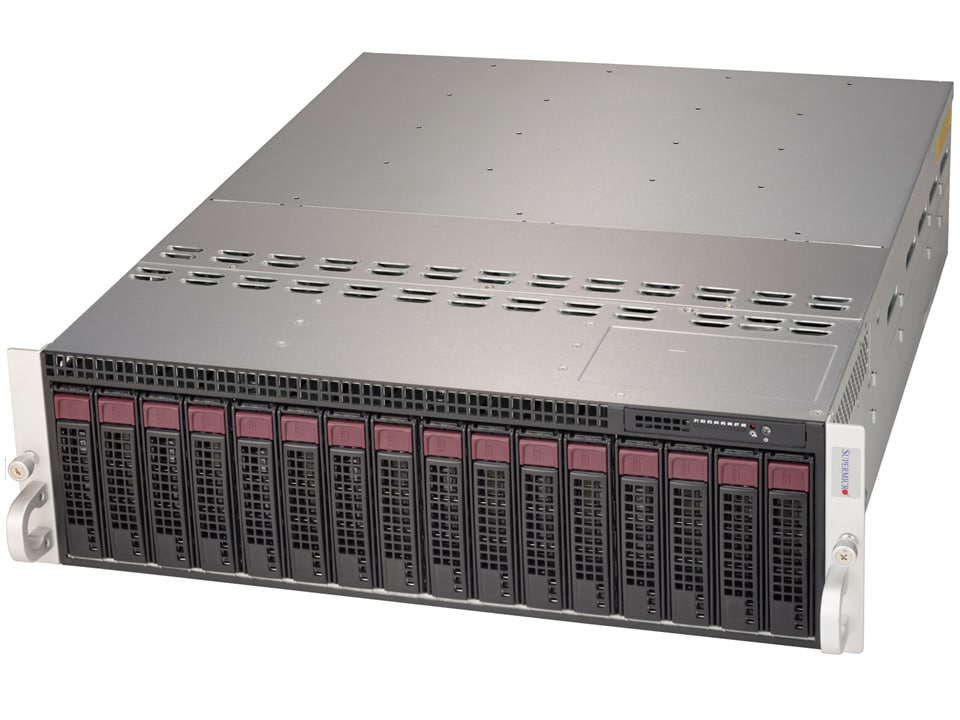

SYS-530MT-H8TNR Main SYS-530MT-H8TNR Angle SYS-530MT-H8TNR Node SYS-530MT-H8TNR Front SYS-530MT-H8TNR Rear
Integrated Board: X12STD-F
Learn more

Key Applications

  • Cloud Computing
  • Web Hosting, VM
  • Online Game Server Hosting
  • IT Infrastructure
  • Web Cache
  • Social Networking

Key Features

  1. 8 set of Intel® Xeon® E-2300 series and Pentium processor
  2. Intel® C256
  3. 8 set of Up to 128GB ECC/non ECC UDIMM; DDR4 3200MHz, in 4 DIMM sockets
  4. 8 set of PCIe 4.0 x8 (in x16 slot) low profile slot and 8 set of Micro-LP slots (MicroLP upgradable)
  5. 8 set of Dual 1GbE LAN Ports
  6. 8 set of 2x Front Hot-swappable 3.5" SATA3 HDD or Hybrid 2x 2.5" SAS/SATA3/NVMe U.2 drives w/ option kits
  7. 2000W Redundant Titanium Level high-efficiency power supplies
...
...
SYS-530MT-H8TNR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-530MT-H8TNR
Motherboard
Super X12STD-F
Processor (per Node)
CPU
  • Single Socket H5 (LGA-1200)
  • Intel® Xeon® processor E-2300 series and 10th Gen. Pentium® Processors
Core Count
  • Up to 8C/16T; Up to 16MB Cache
Note
  • Supports 80W - 95W TDP CPUs (Air Cooled)
GPU (per Node)
Max GPU Count
  • Up to 1 single-width GPU
Supported GPU
System Memory (per Node)
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
  • View Memory Options
On-Board Devices (per Node)
SATA
  • SATA (6Gbps) via Intel® C256; RAID 0/1/5/10 support
Chipset
  • Intel® C256
Network Connectivity
Input / Output (per Node)
LAN
  • 2 RJ45 1 GbE LAN ports
USB
  • 2 USB 2.0 ports
  • 1 Type-C port(front)
Video
  • 1 port
System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI 6.0 Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
Temperature
  • Monitoring for CPU and chassis environment
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN
  • Fan speed control, Dual Cooling Zone
Chassis
Form Factor
  • 3U Rackmount
Model
  • CSE-938NH-R2K04BP2
Dimensions and Weight
Height
  • 5.21" (132 mm)
Width
  • 17.26" (438 mm)
Depth
  • 23.2" (589 mm)
Package
  • 11.65" (H) x 26.26" (W) x 34" (D)
Weight
  • Gross Weight: 88 lbs (39.92 kg)
  • Net Weight: 62.2 lbs (28.21 kg)
Available Color
  • Black

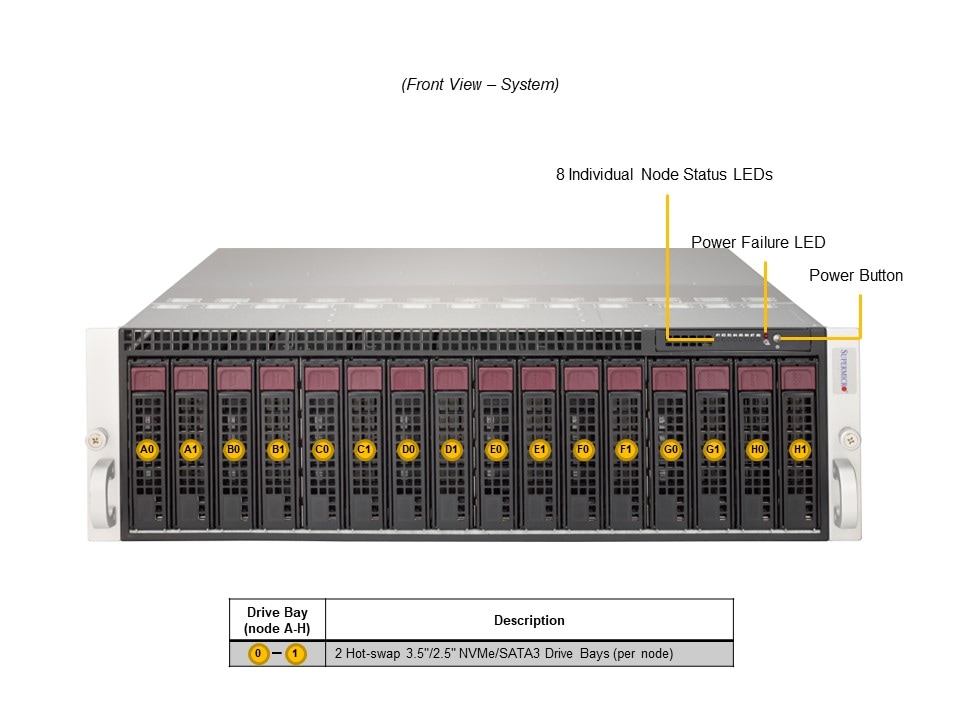

Front Panel
LED
  • 8 Individual Node Status Indicators
  • Power Failure
Buttons
  • Power On/Off

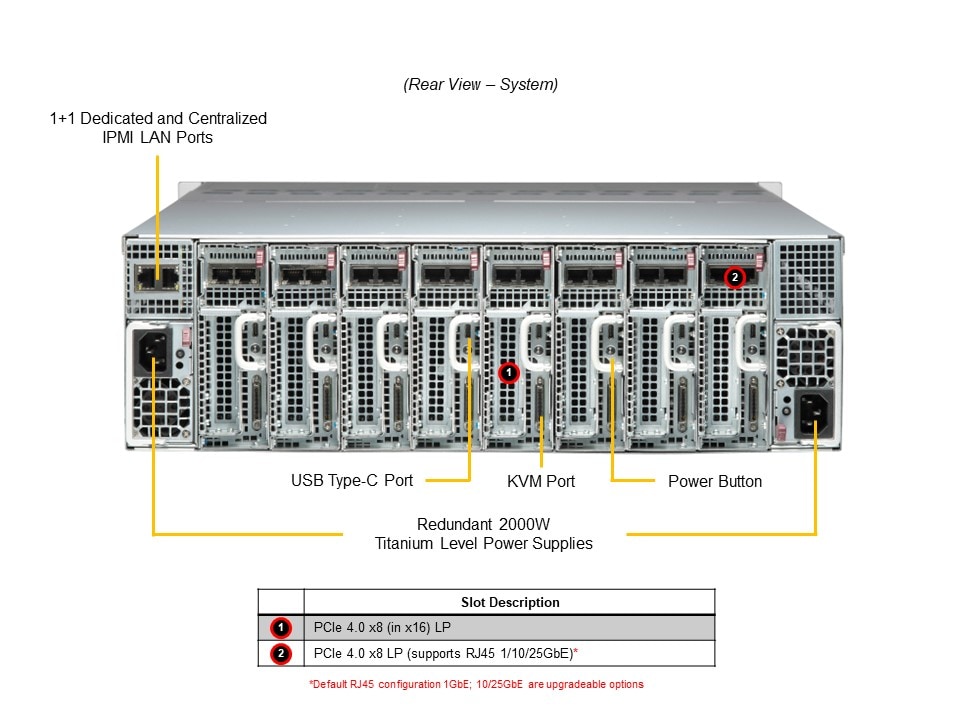

Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 4.0 x8 MicroLP slot
    • 1 PCIe 4.0 x8 (in x16) LP slot
  • View AOC Options
Drive Bays / Storage (per Node)
Drive Bays Configuration
M.2
System Cooling
Fans
  • 4 Heavy Duty 8cm Fan(s)
Power Supply
2x 2000W
2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)76 x 40 x 336 mm
AC Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
2000W: 200-240Vac
2000W: 200-240Vac / 50-60Hz (for UL/cUL only)
1980W: 220-230Vac / 50-60Hz
2000W: 230-240Vac / 50-60Hz
+12VMax: 83.3A / Min: 0A (100Vdc-127Vdc)
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 166.7A / Min: 0A (200Vdc-240Vdc)
Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166.7A / Min: 0A (230Vac-240Vac)
5V SBMax: 1A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12STD-F

CSE-938NH-R2K04BP2 		8

1 		Super X12STD-F Motherboard

3U Chassis
Add-on Card / Module AOC-CGP-I2-P 8 MicroLP 2-port GbE RJ45, Intel i350
AOM-BPN-938NH-P 1 AOM-BPN-938NH, Backplane module for 8-node Microcloud system
AOM-LAN-MC8-P 1 AOM-LAN-MC8, LAN front panel module for 8-node Microcloud sy
AOM-PDB-PT938-LSG-P 1 AOM-PDB-PT938-LSG, PDB module for 8-node Microcloud system,H
AOM-PDB-PT938-RSG-P 1 AOM-PDB-PT938-RSG, PDB module for 8-node Microcloud system,H
Cable CBL-0218L 1 11.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB
CBL-PWCD-0578-1 OR 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS
CBL-PWCD-0578-IS PWCD,US,IEC60320 C14 TO C13,910mm,14AWG,15A,250V,Black, RoHS
CBL-0355L 2 RJ45 C5E 2ft Green With Cover
CBL-0458L 1 20 cm 30 pin to 30 pin Front control cable with tube. 28AWG
CBL-CDAT-0662 1 8 Pin to 8 Pin Round SGPIO Cable, 61.5cm, 28AWG, Pinout 1-1
Riser Card RSC-S-6G4 8 1U LHS Standard riser card with one PCIe 4.0 x16 slot,HF,Ro
Software SFT-OOB-LIC 8 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P1041V 8 1U Prop. Passive CPU HS for 6U 10-blade SuperBlade Series
Fan FAN-0213L4 OR 4 80x80x38 mm, 14.4K RPM Cooling Fan for 3U8N Microcloud Serie
FAN-0194L4 80x80x38 mm, 13.5K RPM Cooling Fan for 3U8N Microcloud Serie
*Power Supply PWS-2K04A-1R 2 AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, +12V/+5Vsb, 360x76x40mm,HF,RoHS/REACH
*Drive Tray(s) MCP-220-00094-0B 16 Black gen 6.5 hot-swap 3.5 inch HDD Tray
*Control Board MCP-280-93801-0B 1 Control panel module
*Rail Set MCP-290-00057-0N 1 Rail set, quick/quick, default for 4U 17.2" W
*Air Shroud MCP-310-93805-0B 16 Mylar air shroud for 2-DIMMs (quick install on DIMM latch)
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Cable CBL-SAST-0616 • - For AOC-S3008L-L8i/AOC-SAS3-9361-4I
CBL-SAST-1230T4S1-100 - For AOC-S3908L-H8iR-16DD
Drive Tray(s) MCP-220-00158-0B • - Black gen 6.5 hot-swap 3.5-to-2.5 Tool-less drive tray
MCP-220-93801-0B • - Black gen 6 hot-swap 3.5-to-2.5 HDD tray
Global Services & Support OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
OSNBD3/2/1 - 3/2/1-year onsite NBD service
Network Card(s) AOC-CTG-B2T - MicroLP 2-port 10G RJ45, based on Broadcom BCM57416. RoHS
AOC-STGN-i2S - Standard LP, 2x 10GbE SFP+, PCIe x8, Intel 82599ES
AOC-STGN-i1S - Standard LP, 1x 10GbE SFP+, PCIe x8, Intel 82599EN
AOC-STG-i2T - Standard LP, 2x 10GbE RJ45, PCIe x8, Intel X540
AOC-STG-i2 - Standard LP, 2x 10GbE CX4, PCIe x8, Intel 82598EB
AOC-SGP-i4 - Standard LP, 4x GbE RJ45, PCIe x4, Intel i350
AOC-SGP-i2 - Standard LP, 2x GbE RJ45, PCIe x4, Intel i350AM2
AOC-S40G-i2Q - Standard LP 2-port 40GbE controller, Intel Fortville XL710
AOC-CTG-i2S - MicroLP, 2 x 10GbE SFP+, PCIe 2.0 x8, Intel® 82599EN
AOC-CTG-i1S - MicroLP, 1 x 10GbE SFP+, PCIe 2.0 x8, Intel® 82599EN
AOC-CTGS-i2T - MicroLP, 2x 10GbE Base-T, PCIe 3.0 x4, Intel® X550
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Storage Controller Card(s) AOC-SAS3-9361-4I - Std LP, 4 ports, 12Gb/s Gen3, RAID 0/1/5/6/10/50/60
AOC-S3008L-L8i - Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/10
AOC-S3908L-H8IR-16DD - 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS
