SuperServer SYS-610U-TNR (Complete System Only)

1U Ultra with 4 NVMe/SAS/SATA bays

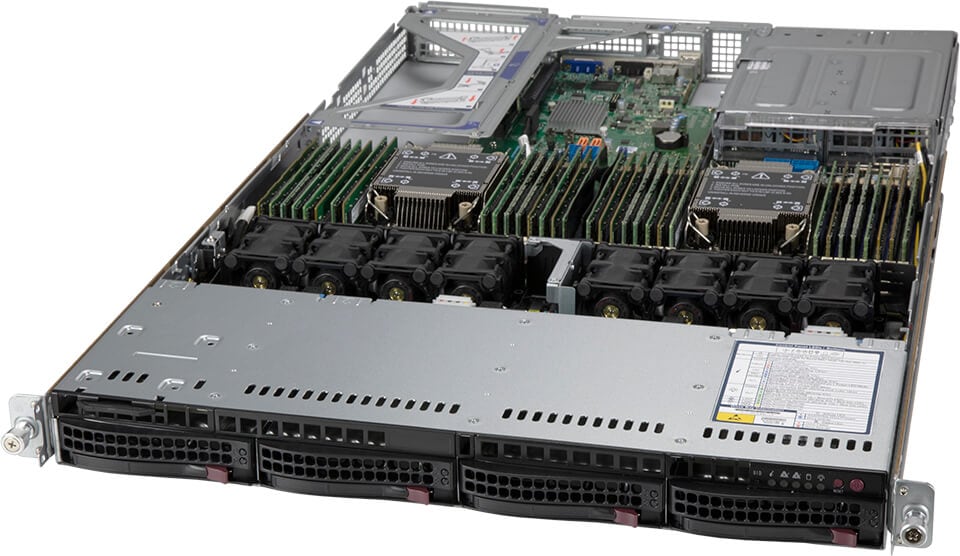

SYS-610U-TNR Main SYS-610U-TNR Angle SYS-610U-TNR Top SYS-610U-TNR Front SYS-610U-TNR Rear
Integrated Board: X12DPU-6
Learn more

Key Applications

  • Virtualization
  • HPC
  • Cloud Computing
  • High End Enterprise Server
  • Software Defined Storage
  • Application Tier Service Provider
  • 5G/Telco

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
  4. 2 PCIe 4.0 x16 (FH, 10.5"L)
    1 PCIe 4.0 x16 (LP)
    1 Internal PCIe 4.0 x16
  5. Flexible networking options

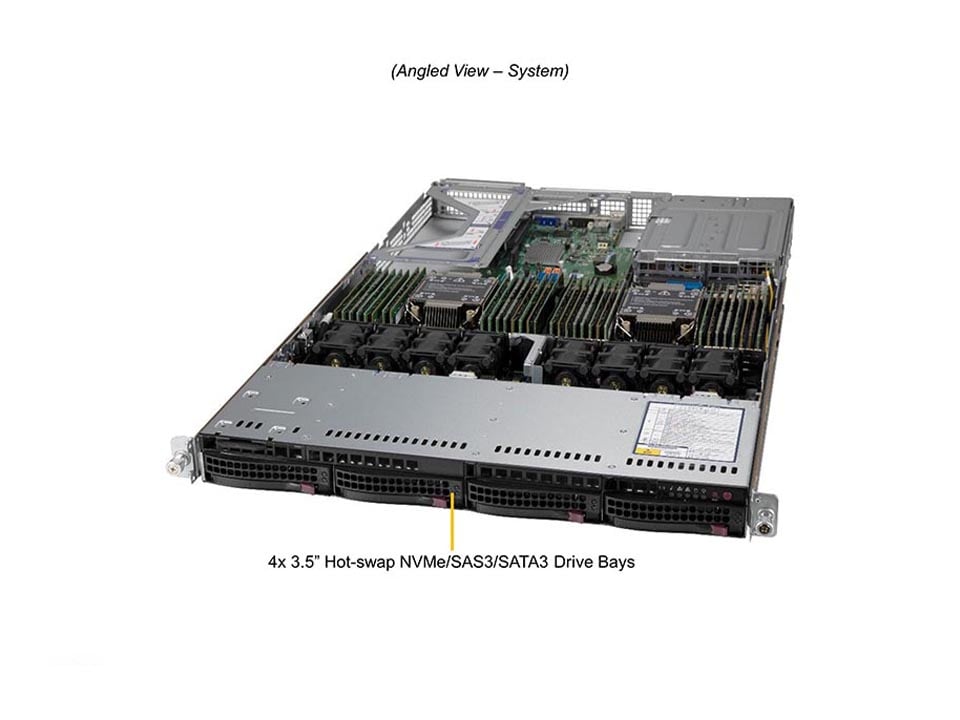

  6. 4x3.5" hot-swap hybrid NVMe/SATA/SAS drive bays
  7. 8 heavy duty fans with optimal fan speed control
  8. 1200W redundant Titanium level power supplies
...
...
SYS-610U-TNR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-610U-TNR
Motherboard
Super X12DPU-6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width or 2 single-width GPUs
Supported GPU
System Memory
Memory

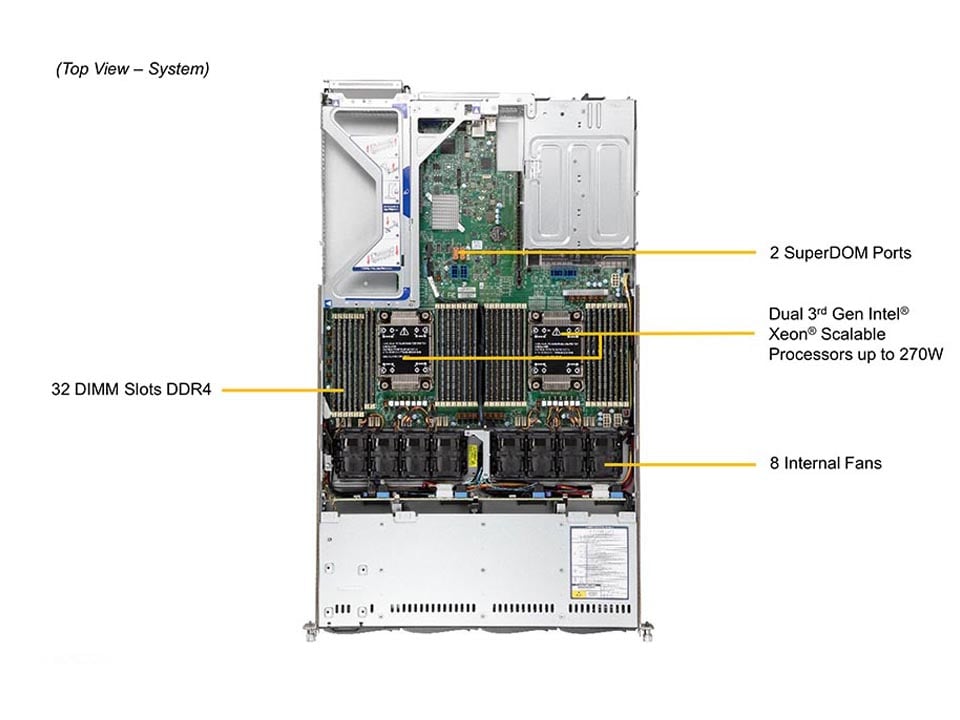

  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
Chipset
  • Intel® C621A
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 +1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-819U3TS-R1K22P-T
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 29.7" (754 mm)
Package
  • 7.99" (H) x 23.81" (W) x 37.4" (D)
Weight
  • Gross Weight: 44.5 lbs (20.2 kg)
  • Net Weight: 29.5 lbs (13.4 kg)
Available Color
  • Black Front & Silver Body

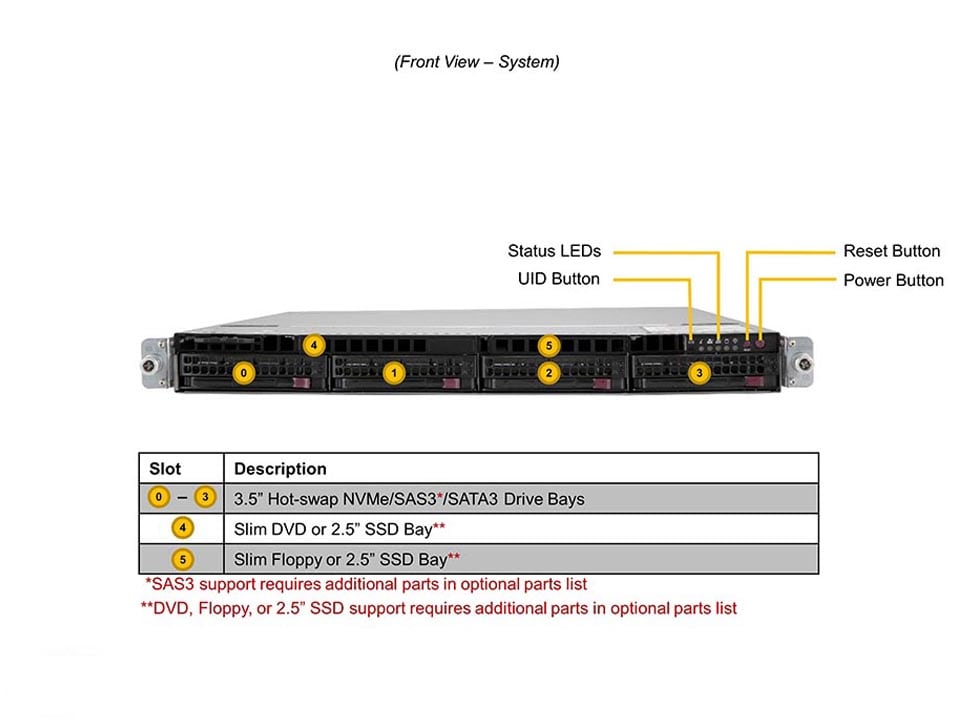

Front Panel
LED
  • HDD activity
  • LAN1 activity
  • LAN2 acticity
  • Power status
  • System information (overheat/UID)
Buttons
  • Power On/Off
  • UID button
Expansion Slots

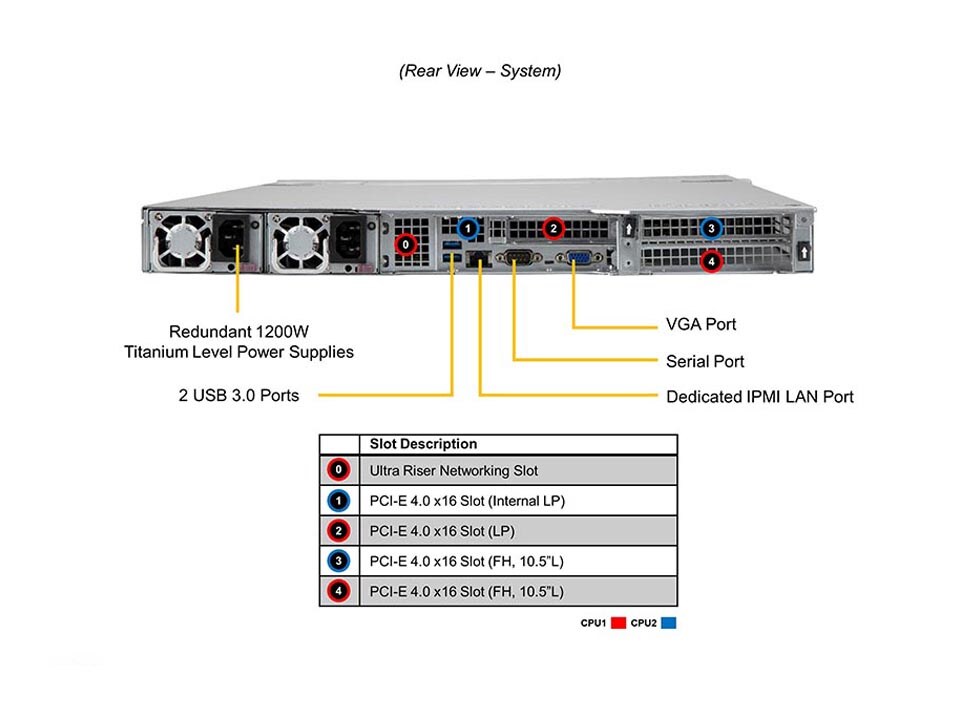

PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 4.0 x16 (in x16) LP slot
    • 1 PCIe 4.0 x16 (in x16) LP slot
    • 2 PCIe 4.0 x16 (in x16) FH/10.5"L slots
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays
    • 4 front hot-swap 2.5" NVMe*/SAS*/SATA drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 8x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shrouds
Power Supply
1x 1200W
1x 1200W Redundant Titanium Level (96%) Hot-plug power supply
Dimension (WxHxL)73.5 x 40 x 203 mm
AC Input800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vdc (For CCC Only)
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12VMax: 66.7A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc) (For CCC Only)
12V SBMax: 2.1A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
1U Cable Management Arm MCP-290-00165-0N • 1 1U Supermicro Cable Management Arm 3rd Gen
Add-on card for M.2 support AOC-SLG3-2H8M2-O - 2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS
CacheVaults BTR-CVPM05 • + BKT-BBU-BRACKET-05 - CacheVault for Broadcom 3908/3916 with Supercap
BTR-CV3108-1U1 - CacheVault for Broadcom 3108 with Supercap mounting in 1U 40x56 fan tray
Drive Tray MCP-220-00138-0B 1 ~ 4 Black gen-5.5 tool-less NVMe 3.5-to-2.5 drive tray, Orange tab (For NVMe)
MCP-220-00118-0B • 1 ~ 4 Black gen-5.5 tool-less 3.5-to-2.5 drive tray, Red tab (For SATA/SAS)
DVD-ROM/DVD-RW DVM-TEAC-DVDRW-SBT5 1 BLACK TEAC SLIM DVD-RW SATA DRIVE, HF, RoHS
DVM-TEAC-DVD-SBT5 1 BLACK TEAC SLIM DVD SATA DRIVE, HF, RoHS
DVD-ROM/DVD-RW Installation Kit MCP-220-81502-0N + CBL-0161L + CBL-PWEX-0702 1 Slim SATA DVD kit
Global Services & Support OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
OSNBD3/2/1 - 3/2/1-year onsite NBD service
Hot-Swap 2.5" Slim HDD Tray (DVD Slot) MCP-220-81506-0N & CBL-0161L & CBL-PWEX-0650 1 12G 2.5" Hot-swap Slim DVD Size Drive Kit w/Status LED
Hot-Swap 2.5" Slim HDD Tray (FDD Slot) MCP-220-81504-0N • & CBL-0161L & CBL-PWEX-0650 1 12G 2.5" Hot-swap Slim Floppy Size Drive Kit w/Status LED
Intel® VROC RAID Key Options AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10
AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10
AOC-VROCINTMOD 1 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
Internal 2.5" Slim HDD Tray (DVD slot) MCP-290-00036-0B & CBL-0484L & CBL-0080L • & CBL-PWEX-0650 1 12G 2.5" Internal Slim DVD Size Drive Kit
Internal 2.5" Slim HDD Tray (FDDD slot) MCP-220-83601-0B & CBL-0484L & CBL-0080L • & CBL-PWEX-0650 1 12G 2.5" Internal Slim Floppy Size Drive Kit
Internal Drive Tray for Two 2.5" Drives CBL-PWEX-0650CBL-0080L 12 Power Cable for Two internal 2.5" drives
CBL-0484L OrCBL-SAST-0654 OrCBL-SAST-0948 211 SATA3 S-S CableminiSAS(iPass) to 4 SATA CableminiSAS HD to 4 SATA Cable
MCP-120-82916-0N 1 2.5” Internal Drive Bay (Slim DVD Tray)
Network Card(s) AOC Compatibility Matrix - Standard Networking AOC Matrix
NVMe Support Cable Kit CBL-KIT-610U-TNR-4 1 4 NVMe Cable Kit for X12 Ultra SYS-610U-TNR
Optional Storage Controller Card + Cable(s) AOC-S3908L-H8iR-16DD-O + 1x CBL-SAST-1251-100 - Standard LP, 8 internal ports (12Gb/s) Gen-4; RAID 0, 1, 5, 6, 10, 50, 60
AOC-S3808L-L8iT-O + 1x CBL-SAST-1251-100 - Standard LP, 8 internal ports (12Gb/s) Gen-4; HBA
AOC-S3108L-H8iR-16DD + 1x CBL-SAST-0948 • - Standard LP, 8 internal ports (12Gb/s) Gen-3; RAID 0, 1, 5, 6, 10, 50, 60
AOC-S3008L-L8i + 1x CBL-SAST-0948 • - Standard LP, 8 internal ports (12Gb/s) Gen-3; RAID 0,1,1E
AOC-S3008L-L8E+-O + 1x CBL-SAST-0948 • - Standard LP, 8 internal ports (12Gb/s) Gen-3; HBA + I2C
AOC-S3008L-L8E + 1x CBL-SAST-0948 • - Standard LP, 8 internal ports (12Gb/s) Gen-3; HBA
Power Supply PWS-1K62A-1R • 2 1U 1600W, Titanium Level, Redundancy, AC Input: 90 - 264 VAC/47-63Hz
PWS-1K30D-1R 2 1U 1300W, Redundancy, DC Input: -48Vdc
PWS-2K08A-1R • 2 1U 2000W, Titanium Level, Redundancy, AC Input: 90-264VAC/47-63Hz, and wide DC input 180Vdc~300Vdc
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Trusted Platform Module Options AOM-TPM-9670V-S-FIPS-P 1 AOM-TPM-9670V-S-FIPS TPM 2.0 support TAA and FIPS,RoHS
AOM-TPM-9671V-O 1 SPI Capable Vertical TPM 1.2 Module
AOM-TPM-9670V-O • 1 SPI TPM 2.0 using SLB9670
Ultra Riser Card Options + Rear Window AOC-URG4N4-m2TS + MCP-240-81915-0N 1 1U Ultra Riser 2-port 25GbE SFP28, based on Mellanox CX-6 LX, with 1 PCIe 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8),RoHS
AOC-URG4N4-I2XT-O + MCP-240-81909-0N 1 1U Ultra Riser with 2-port 10GBase-T RJ45, based on Intel Carlsville X710-AT2, with 1 PCIe 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8),RoHS
AOC-URG4N4-O 1 1U Ultra Riser without NIC, with 1 PCIe 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8),RoHS
AOC-URG4N4-I4XTS-O + MCP-240-81911-0N 1 1U Ultra Riser with 2-port 10GBase-T RJ45 & 2-port 10G SFP+, based on Intel Carlsville X710-TM4, with 1 PCIe 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8),RoHS
