SuperServer SYS-620BT-DNC8R (Complete System Only)

2U 2-node BigTwin with 6 3.5" NVMe/SAS/SATA bays per node

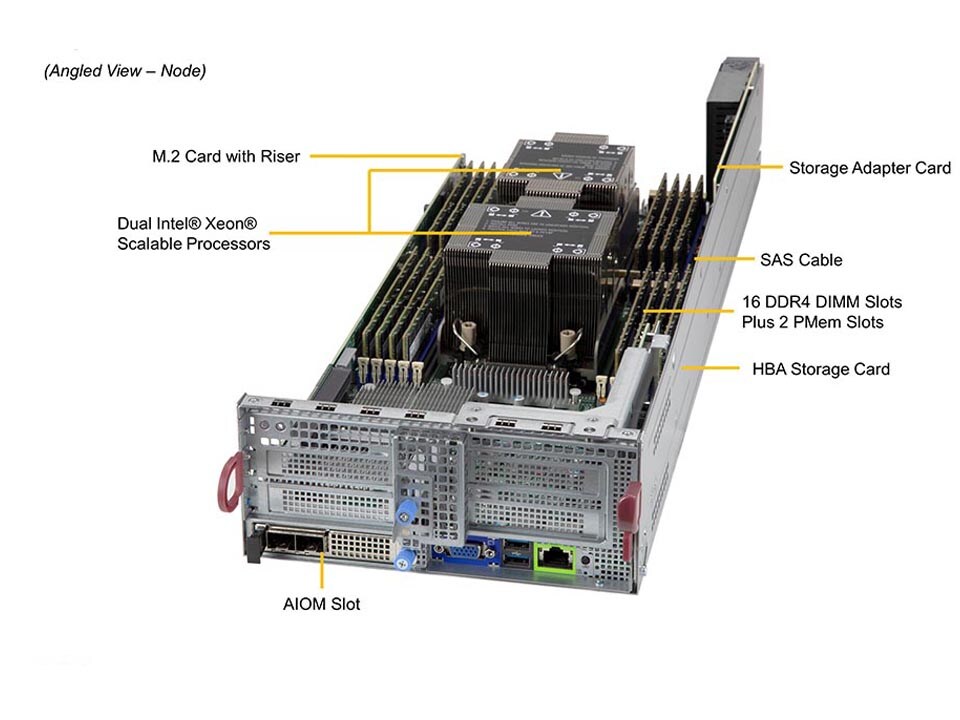

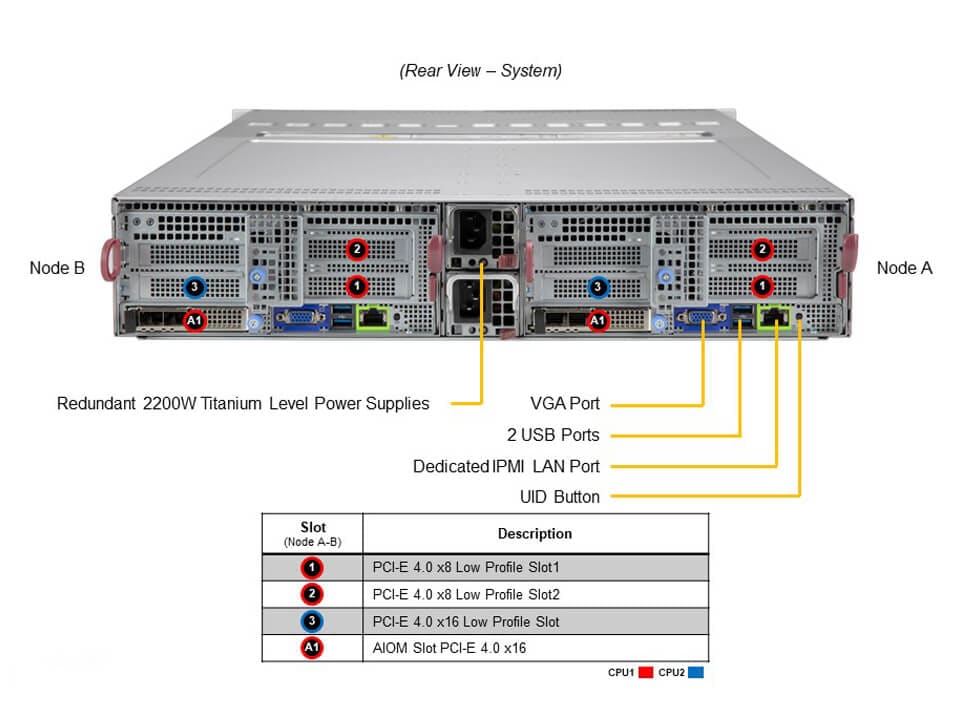

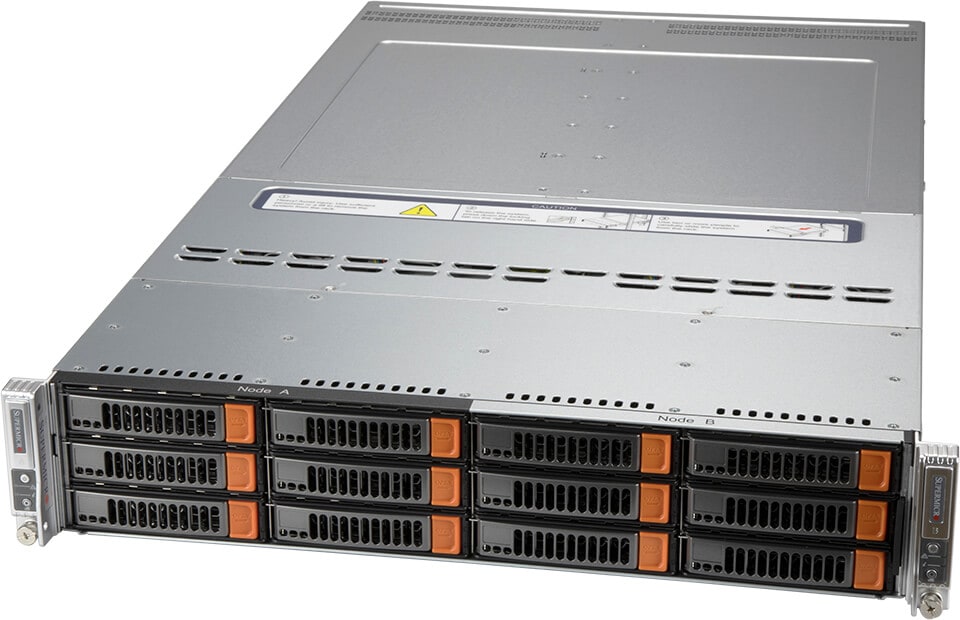

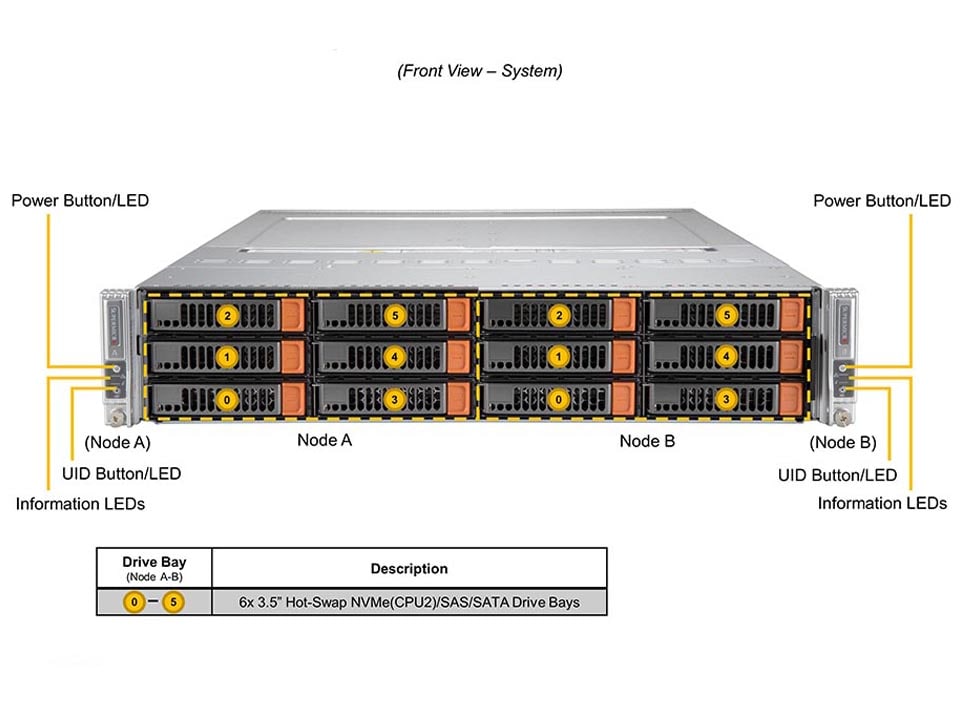

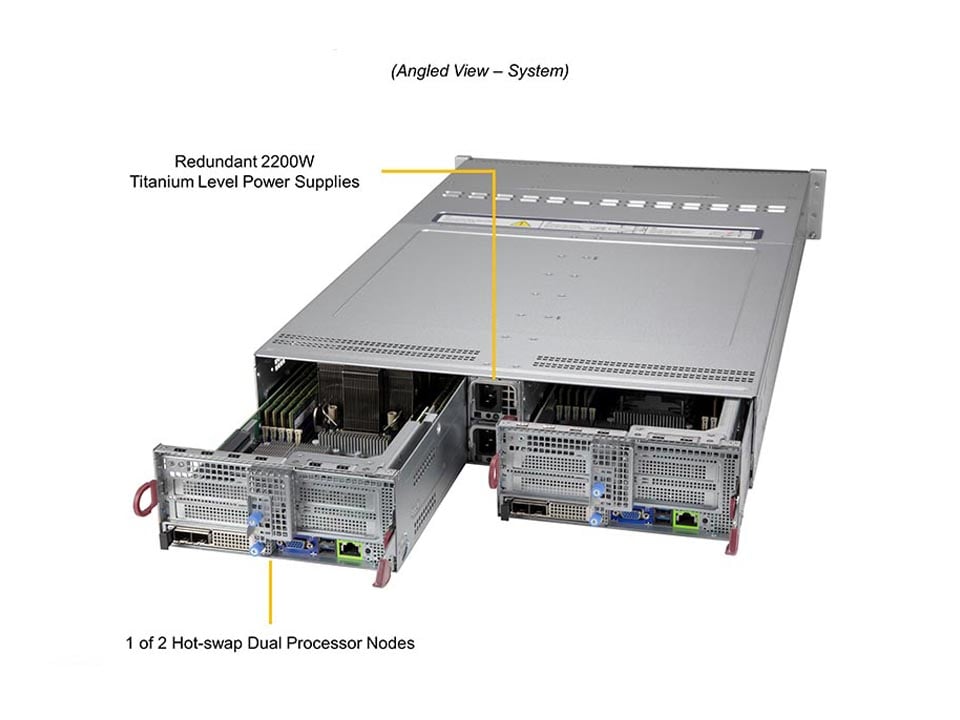

SYS-620BT-DNC8R Main SYS-620BT-DNC8R Angle SYS-620BT-DNC8R Node SYS-620BT-DNC8R Front SYS-620BT-DNC8R Rear
Integrated Board: X12DPT-B6
Learn more

Key Applications

  • Hyperconverged Infrastructure
  • Scale-Out Object Storage
  • Back-up & Recovery

Key Features

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

  1. Socket P+ (LGA 4189) support 3rd Gen Intel® Xeon® Scalable processors
  2. Intel® C621A
  3. 20 DIMM Slots (16 DIMM Slots + 4 Intel® Optane™ Persistent Memory Slots)
  4. Optional 2U Riser for Slot 1, CPU1 x16 PCIe 4.0 (RSC-P2R-6G4)
    1 PCIe 4.0 x16 (LP) slot;
    2 PCIe 4.0 x8 (LP) slot;
    Tool-less support
    Optional HW RAID Boot Controller via AOC-SMG3-2M2-B (NVMe Only)
    Internal PCIe 3.0 for 2 x4 M.2 NVMe/SATA support onboard
  5. Network connectivity via AIOM (OCP 3.0 compliant)
  6. 6 Hot-swap 3.5" drive bays; 6 PCIe 4.0 NVMe/SAS/SATA 3.5" drives
  7. 2 cooling fans per node, 14.9K RPM
  8. 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
  9. Built-in SAS3 Support via Broadcom 3808; IT Mode
...
...
SYS-620BT-DNC8R
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-620BT-DNC8R
Motherboard
Super X12DPT-B6
Processor (per Node)
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 36C/72T; Up to 54MB Cache per CPU
Note
  • Supports up to 250W TDP CPUs (Air Cooled)
GPU (per Node)
Max GPU Count
  • Up to 1 double-width GPU
System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM
  • Supports Intel® Optane™ persistent memory 200 series
  • View Memory Options
On-Board Devices (per Node)
SAS
  • SAS (12Gbps) via Broadcom® 3808; (IT mode)
Chipset
  • Intel® C621A
Network Connectivity
Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 Type-A ports(Rear)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB Flash ROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 7+1 Phase-switching voltage regulator
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-827BD-000NP
Dimensions and Weight
Height
  • 3.47" (88 mm)
Width
  • 17.68" (449 mm)
Depth
  • 30.5" (774 mm)
Package
  • 9.76" (H) x 24.65" (W) x 45.28" (D)
Weight
  • Gross Weight: 80.7 lbs (36.6 kg)
  • Net Weight: 55.1 lbs (25 kg)
Available Color
  • Black
Front Panel
LED
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Buttons
  • Power On/Off button
  • UID button
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
Drive Bays / Storage (per Node)
Drive Bays Configuration
M.2
  • 2 M.2 PCIe 3.0 x4 NVMe/SATA slots (M-key 2280(default); VROC required for RAID)
  • View M.2 Options
System Cooling
Fans
  • 4x 14.9K RPM Heavy Duty 8cm Fan(s)
Power Supply
2x 2200W
2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)45 x 40 x 480 mm
Total Output Power
for CCC only
AC Input1200W: 100-127Vac
1200W: 100-127Vac / 50-60Hz
2090W: 180-220Vac (for UL/cUL only)
2090W: 180-220Vac / 50-60Hz (for UL/cUL safety rating only)
1800W: 200-220Vac
1800W: 200-220Vac / 50-60Hz (for TUV/CB/others safety rating only)
1980W: 220-230Vac
1980W: 220-230Vac / 50-60Hz (for TUV/CB/others safety rating only)
2200W: 220-240Vac (for UL/cUL only)
2200W: 220-240Vac / 50-60Hz (for UL/cUL safety rating only)
2090W: 230-240Vac
2090W: 230-240Vdc (for CCC only)
2090W: 230-240Vdc / 50-60Hz (for CQC safety rating only)
2090W: 230-240Vac / 50-60Hz (for TUV/CB/others safety rating only)
+12VMax: 100A / Min: 0A (100Vac-127Vac) (for TUV/CB/others safety rating only)
Max: 174.17A / Min: 0A (180Vac-220Vac) (for UL/cUL safety rating only)
Max: 150A / Min: 0A (200Vac-220Vac) (for TUV/CB/others safety rating only)
Max: 165A / Min: 0A (220Vac-230Vac) (for TUV/CB/others safety rating only)
Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL safety rating only)
Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CQC safety rating only)
Max: 174.17A / Min: 0A (230Vac-240Vac) (for TUV/CB/others safety rating only)
Max: 100A / Min: 0A (100-127Vac)
Max: 150A / Min: 0A (200-220Vac)
Max: 165A / Min: 0A (220-230Vac)
Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)
Max: 174.17A / Min: 0A (230-240Vac)
Max: 174.17A / Min: 0A (230-240Vdc, CCC only)
Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)
12V SBMax: 2.1A / Min: 0A
Output TypeBackplanes (connector)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
2U Riser for Slot 1, CPU1 x16 PCIe 4.0 RSC-P2R-6G4 - expansion slots
3.5-to-2.5" HDD Conversion Tray MCP-220-00140-0B • - Black gen 8 hot-swap 3.5-to-2.5 Tool-less HDD tray, orange tab (Qty as Needed)
M.2 NVMe RAID Controller AOC-SMG3-2M2-B-P - 2x M.2 NVMe RAID Controller Card, x8 Gen3
SPI Capable TPM Options AOM-TPM-9670H-S 1 SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor (Qty per Node)
AOM-TPM-9671H-S 1 SPI Capable TPM 1.2 Provisioned for Server, Horizontal Form Factor (Qty per Node)
AOM-TPM-9670H-FIPS 1 SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor, Supporting FIPS 140-2 (Qty per Node)
SuperCloud Composer License SFT-SDDC-SINGLE - SDDC Monitor License - Single License per Monitored host
System Management Suite SFT-DCMS-Single - Supermicro System Management Software Suite node
VROC Options AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10 (Qty per Node)
AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10 (Qty per Node)
