SuperServer SYS-620H-TN12R (Complete System Only)

2U Hyper with 12 NVMe/SAS/SATA bays and up to 8 PCIe slots with GPU support

SYS-620H-TN12R Main SYS-620H-TN12R Angle SYS-620H-TN12R Top SYS-620H-TN12R Front SYS-620H-TN12R Rear
Integrated Board: X12DHM-6
Learn more

Key Applications

  • Virtualization
  • Software-defined Storage
  • AI Inference and Machine Learning
  • Cloud Computing
  • Enterprise Server

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
  3. Optional PCIe slot configurations up to 8 PCIe 4.0 x8 or 4 PCIe 4.0 x16 slots with support for double-width GPU/Accelerator cards
  4. Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
  5. 4 heavy duty hot-swap fans with optimal fan speed control
...
...
SYS-620H-TN12R
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-620H-TN12R
Motherboard
Super X12DHM-6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 4 double-width GPUs
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4
  • Supports Intel® Optane™ persistent memory 200 series
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
Chipset
  • Intel® C621A
Network Connectivity
  • 2 RJ45 1GbE with Intel® I350-AM2 (optional)
  • 4 RJ45 1GbE with Intel® I350-AM4 (optional)
  • 4 SFP 1GbE with Intel® I350-AM4 (optional)
  • 2 RJ45 10GBASE-T with Intel® X550-AT2 (optional)
  • 2 SFP+ 10GbE with Intel® X710-BM2 (optional)
  • 4 SFP+ 10GbE with Intel® XL710-BM1 (optional)
  • 4 SFP+ 10GbE with Intel® X710-TM4 (optional)
  • 2 SFP28 25GbE with Broadcom® BCM57414 (optional)
  • 4 SFP28 25GbE (optional)
  • 2 QSFP28 100GbE with Broadcom® BCM57508 (optional)
  • View AIOM Options
  • View AOC Options
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-HS829-R1K24P
Dimensions and Weight
Height
  • 3.5" (88.9 mm)
Width
  • 17.2" (437 mm)
Depth
  • 31.6" (803 mm)
Package
  • 10.4" (H) x 23.8" (W) x 43.6" (D)
Weight
  • Gross Weight: 63 lbs (28.6 kg)
  • Net Weight: 37 lbs (16.8 kg)
Available Color
  • N/A
Front Panel
LED
  • HDD activity
  • LAN1 activity
  • Power
  • System information
Buttons
  • Power On/Off
  • UID button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default*
    • 8 PCIe 4.0 x8 (in x16) FH/10.5"L slots
    • 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
  • Option A*
    • 2 PCIe 4.0 x8 (in x16) FH/10.5"L slots
    • 3 PCIe 4.0 x16 FH/10.5"L slots
    • 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)

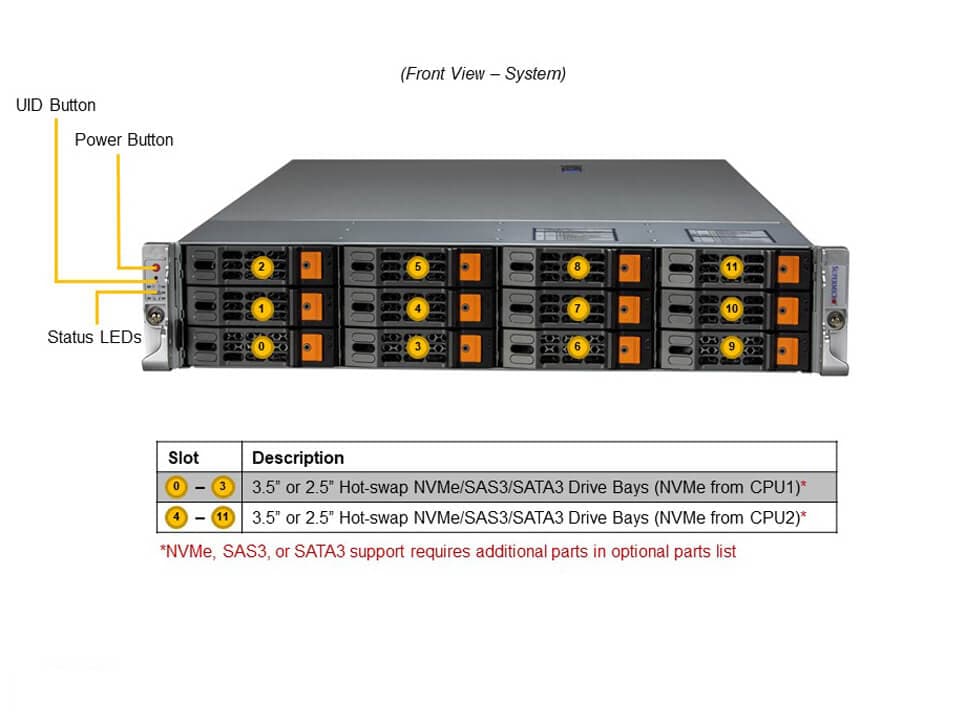

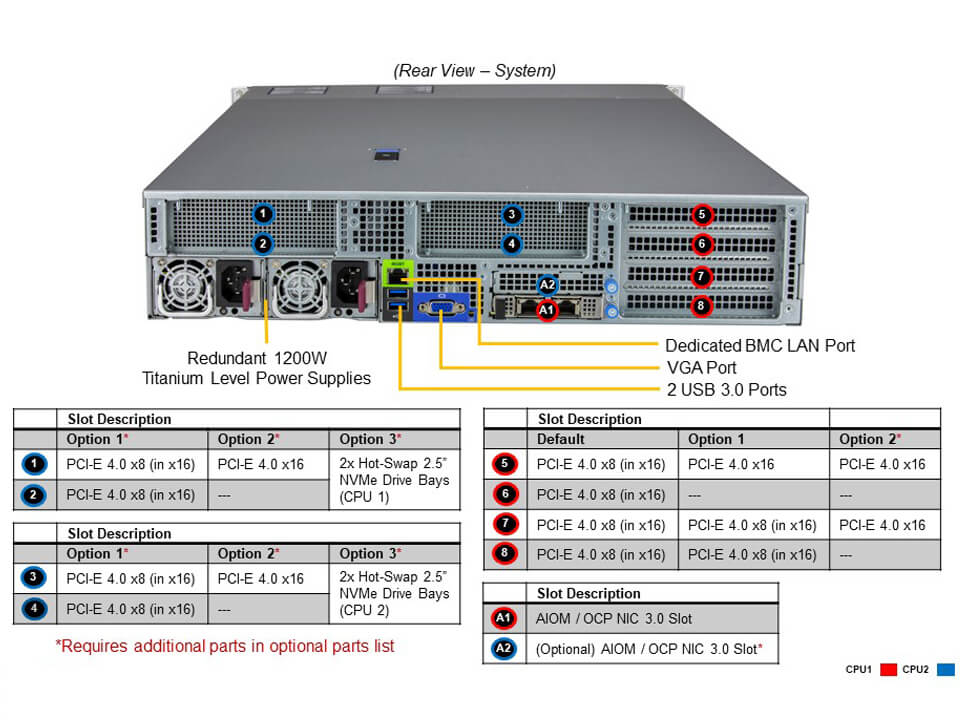

  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bays
    • 12 front hot-swap 3.5" NVMe*/SAS*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shrouds
Power Supply
2x 1200W
2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)73.5 x 40 x 265 mm
AC Input800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12VMax: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SBMax: 2.1A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
2nd AIOM/OCP NIC 3.0 Slot Refer to User's Manual - AIOM slot A2 kit
Cable Management Arm + Rail Set MCP-290-00168-0N + MCP-290-11901-0N - 7.5" cable management arm + 41" long ball-bearing rail set
Drive Bay Configuration Options Refer to User's Manual - Drive bay configuration options for NVMe, SAS, or SATA support
Global Services & Support OS4HR3/2/1 - Gold Level, 3/2/1-year onsite 24x7x4 SLA
OSNBD3/2/1 - Silver Level, 3/2/1-year onsite NBD SLA
SMSAD3/2/1 - Bronze Level, 3/2/1-year 3BD SLA
Intel® VROC RAID Key Options AOC-VROCINTMOD 1 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10
AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10
PCIe Slot Configuration Options Refer to User's Manual - PCIe slot configuration options to enable PCIe slots 1-8
Power Supply MCP-250-00025-0N - Single Power Supply Dummy Cover (W73.5mm) for 1U/2U Hyper Chassis
PWS-2K63A-1R • - 1U 2600W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C20 inlet
PWS-1K63A-1R • - 1U 1000W/1600W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C14 inlet
PWS-1K24A-1R • (included in the system) - 1U 800W/1200W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C14 inlet
Rail Set MCP-290-11903-0N • 1 30.5" ball-bearing rail set for Hyper servers
MCP-290-11902-0N (included in the system ) 1 35.25" ball-bearing rail set for Hyper servers
MCP-290-21103-0N 1 21.65" ball-bearing rail set for Hyper servers
MCP-290-11901-0N 1 41" ball-bearing rail set for Hyper servers
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Trusted Platform Module Options AOM-TPM-9671V-O 1 SPI capable vertical TPM 1.2
AOM-TPM-9670V-O • 1 SPI capable vertical TPM 2.0
AOM-TPM-9670V-S-FIPS-O 1 AOM-TPM-9670V-S-FIPS TPM 2.0 support TAA and FIPS

Hyper SuperServer SYS-620H-TN12R (Complete System Only )

Certain products may not be available in your region
