SuperServer SYS-820GH-TNR2 (Complete System Only)

8U AI training platform with 8 Gaudi®2 accelerators

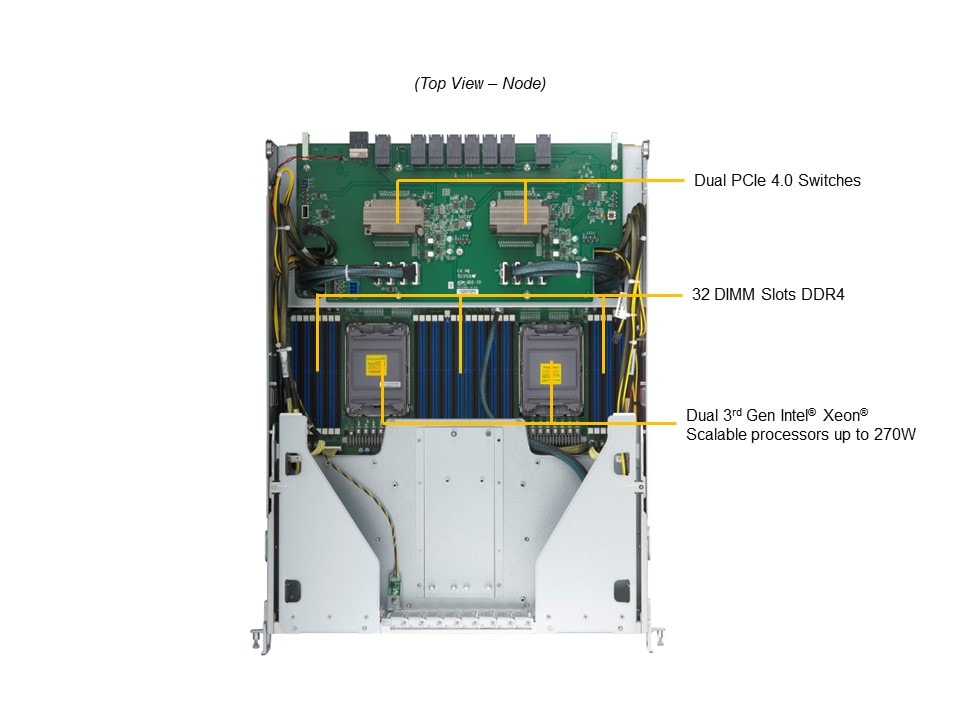

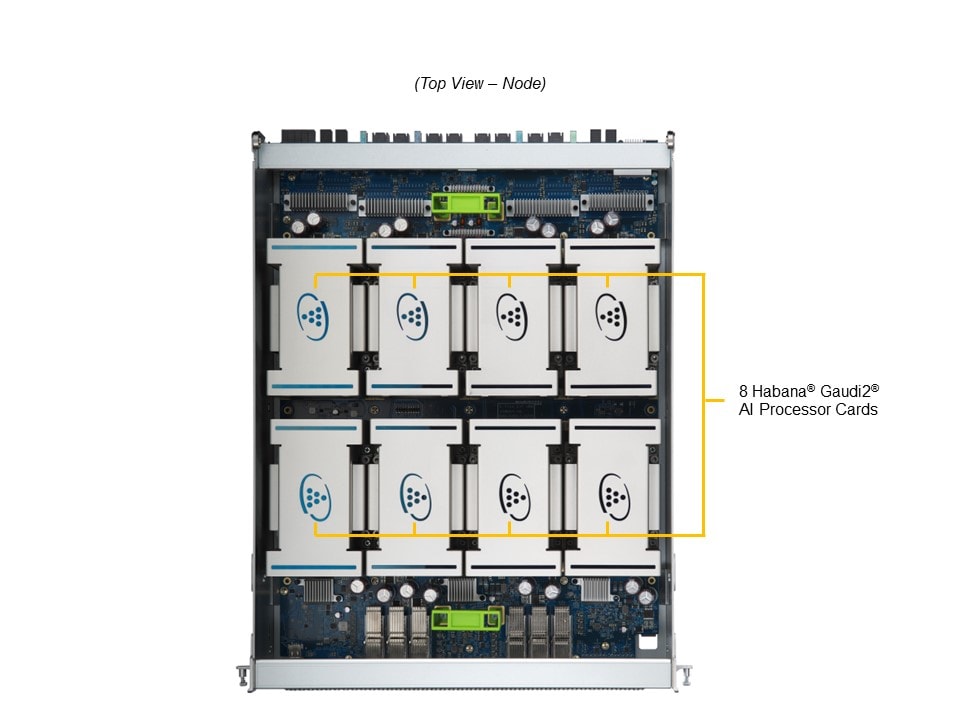

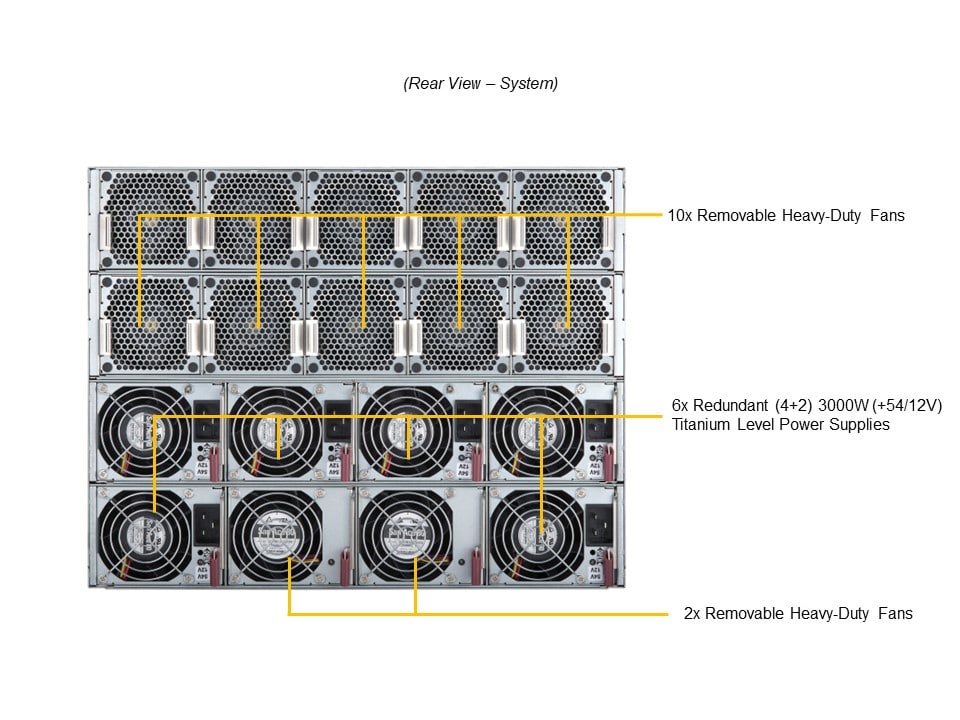

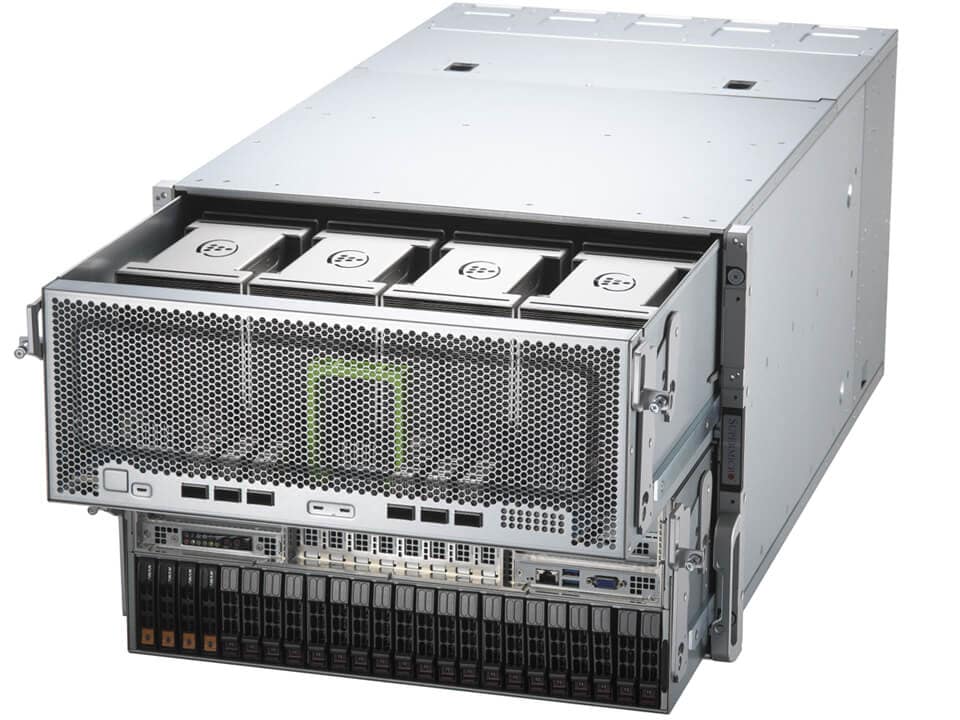

SYS-820GH-TNR2 Main SYS-820GH-TNR2 Angle SYS-820GH-TNR2 Top SYS-820GH-TNR2 Top1 SYS-820GH-TNR2 Front SYS-820GH-TNR2 Rear
Integrated Board: X12DPG-OA6-GD2
Learn more

Key Applications

  • Computer Vision
  • Natural Language Processing
  • Recommendation
  • Purpose Built for AI/Deep Learning Training

Key Features

  1. Dual Intel® Xeon® 3rd Gen Scalable Processors (Ice Lake) TDP up to 270W
  2. Intel® C621A Chipset
  3. 32x DIMM slots, up to 8TB Registered ECC DDR4 3200MHz SDRAM
  4. 2x PCIe 4.0 x16 FHFL slot and 2x PCIe 4.0 x8 FHFL slot
  5. 6x 400GbE QSFP-DD for scale-out and 1x 1GbE BaseT (dedicated IPMI port)
  6. 4x 2.5”NVMe Hot-Swap Drive Bays
    Up to 8x 2.5" SATA Hot-Swap Drive Bays
    Up to 16x 2.5" SATA Hot-Swap Drive Bays (Additional SAOC is required)
  7. 12x Removable Heavy-Duty FANs (Includes 2x Dummy PSU FAN)
  8. 6x 3000W(54V+12V) Redundant Power Supplies, Titanium Level
...
...
SYS-820GH-TNR2
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-820GH-TNR2
Motherboard
Super X12DPG-OA6-GD2
Processor
CPU
  • Dual Socket P+ (LG-4189)
  • 3rd Gen Intel® Xeon® Scalable Processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 8 double-width GPUs
Supported GPU
CPU-GPU Interconnect
  • PCIe Gen4 x16
GPU-GPU Interconnect
  • 21x 100GbE PAM4 SerDes Links
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® C621A
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE LAN port
USB
  • 2 USB 3.0 ports
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 8U Rackmount
Model
  • CSE-GP802TS-R000NP
Dimensions and Weight
Height
  • 14" (356 mm)
Width
  • 17.6" (447 mm)
Depth
  • 31.5" (800 mm)
Package
  • 26.8" (H) x 40" (W) x 55.2" (D)
Weight
  • Gross Weight: 282 lbs (128 kg)
Available Color
  • Silver
Front Panel
LED
  • HDD Information LED
  • Information LED
  • Power Failed LED
  • Power On LED
  • PSU Failed LED
Buttons
  • Power On/Off button
  • Reset button
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bays
    • 4 front hot-swap 2.5" NVMe drive bays
    • 8 front hot-swap 2.5" SATA drive bays
  • Option A: Total 20 bays
    • 4 front hot-swap 2.5" NVMe drive bays
    • 16 front hot-swap 2.5" SATA* drive bays
  • (*SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 2 Removable Heavy-Duty 106.5 x 203.5 x 82.4mm Fan(s)
  • 10 Removable Heavy-Duty 80 x 80 x 80mm Fan(s)
Power Supply
6x 3000W
6x 3000W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)106.5 x 82.4 x 203.5 mm
Total Output Power
AC Input2880W: 200-207Vac
2880W: 200-207Vac / 50-60Hz
3000W: 207.1-240Vac
3000W: 207.1-240Vac / 50-60Hz
3000W: 240Vdc
3000W: 240Vdc / 50-60Hz
+12VMax: 91.66A / Min: 0A (200Vac-240Vac)
Max: 91.66A / Min: 0A (Vdc-240Vdc)
12V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
Intel® VROC RAID Key Options AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10
AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10
AOC-VROCINTMOD 1 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
Network Card(s) AOC-653105A-HDAT 1 MCX653105A-HDAT, CX-6 VPI,HDR,200GbE,1xQSFP56,PCIe4x16
AOC-623106AC-CDAT 1 Mellanox MCX623106AC-CDAT PCIe2-port100GbE QSFP56Gen4x16
AOC-SGP-I2 1 Std LP 2-port GbE RJ45, Intel i350
AOC-SGP-I4 1 Std LP 4-port GbE RJ45, Intel i350
AOC-STGF-I2S-O 1 Std LP 2-port 10G SFP+, Intel X710
AOC-S25G-B2S-O 1 Std LP 2-port 25G SFP28, Broadcom BCM57414
AOC-S25G-M2S-O • 1 Std LP 2-port 25G SFP28, Mellanox ConnectX-4 L
AOC-S100G-B2C-O 1 Standard low-profile card based on Broadcom BCM57508
AOC-S100G-M2C-O • 1 Std LP 2-port 100G QSFP28,Mellanox ConnectX-4 EN
AOC-S100GC-I2C-O 1 Standard PCIe 4.0 x 16 dual port 100GbE with QSFP28 based on Intel E810-CAM2,RoHS
AOC-653105A-ECAT 1 Mellanox MCX653105A-ECAT PCIe 1-port IB-HDR100 & 100GbE QSFP56 Gen3.0/4.0 x16 CX-6 VPI. HF, RoHS.
AOC-653106A-ECAT 1 Mellanox MCX653106A-ECAT ConnectX-6 VPI 100Gb/s InfiniBand & Ethernet Adapter Card, dual ports, QSFP56, PCIe 3.0/4.0 x16. HF, RoHS
AOC-653106A-HDAT 1 Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card dual ports, QSFP56 PCIe 3.0/4.0 x16. HF, RoHS
Storage Control Card and Cable(s) CBL-SAST-1276F-100 • (2pcs for S3916L or S3816L) 2 Slimline x8 (LE) to 2x Slimline x4 (STR), FFC, 76/76CM, 100-Ohm
TPM Security Module AOM-TPM-9670V 1 SPI capable vertical TPM 2.0 provisioned for client,RoHS

AI Training SuperServer SYS-820GH-TNR2 (Complete System Only )

Certain products may not be available in your region
