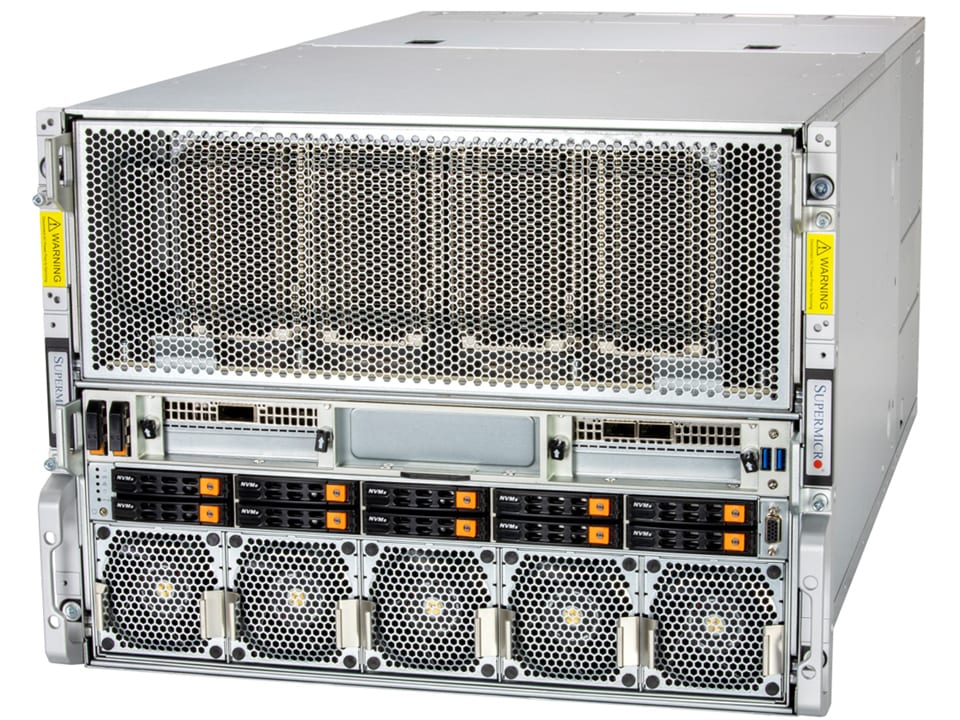

SuperServer SYS-822GA-NBRT (Complete System Only)

DP Intel 8U System with NVIDIA HGX H100/H200 8-GPU and Rear I/O

Key Applications

High Performance Computing
AI/Deep Learning Training
Industrial Automation, Retail
Healthcare
Conversational AI
Business Intelligence & Analytics
Drug Discovery
Climate and Weather Modeling
Finance & Economics

Key Features

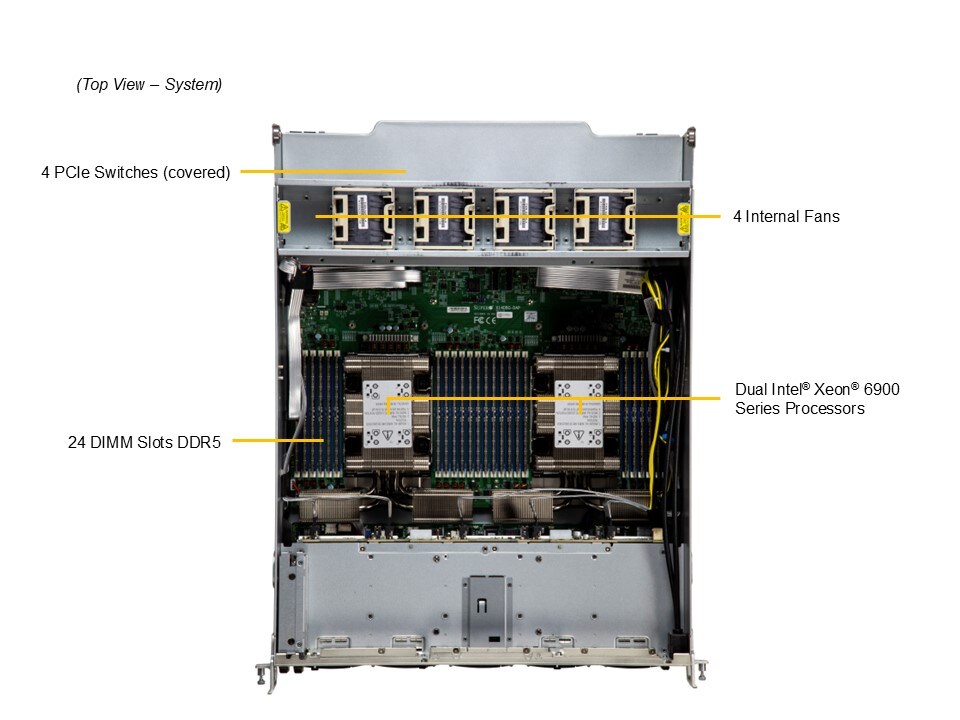

Dual Intel® Xeon® 6900 series processors with P-cores, up to 500W TDP, 6UPI
Support for up to 8 onboard SXM GPU accelerator cards
24 DIMM slots, ECC DDR5 designed for up to 6400MT/s (1DPC only)

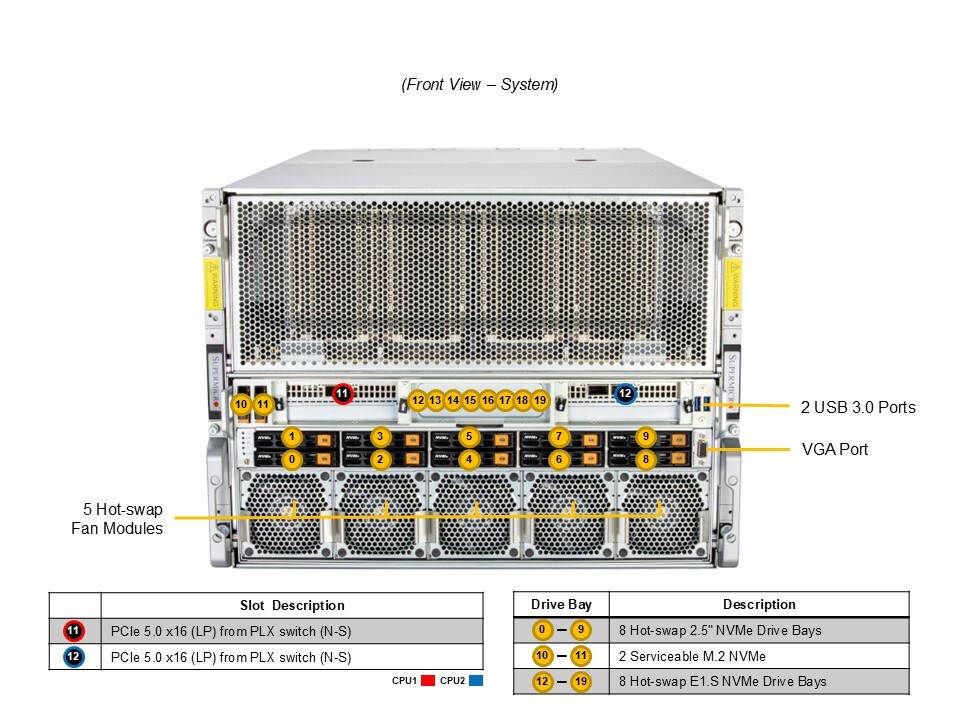

2 10G NIC (X710), 1 VGA, 2 USB 3.0, and 1 Dedicated IPMI
8 PCIe 5.0 x16 LP and 2 PCIe 5.0 x16 FHHL

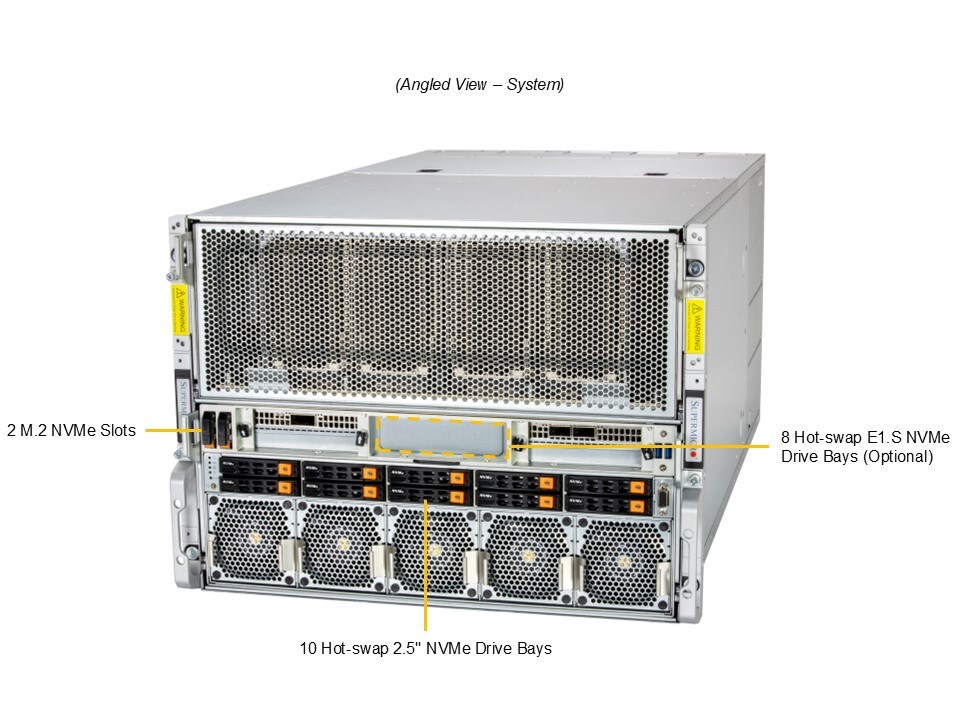

10 PCIe 5.0 NVMe U.2 and 2 NVMe M.2

...

...

SYS-822GA-NBRT

Compare

Specifications

Product SKUs
SuperServer SYS-822GA-NBRT

Motherboard
Super X14DBG-DAP

Processor
CPU	Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores
Core Count	Up to 128C/256T; Up to 504MB Cache per CPU
Note	Supports up to 500W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 8 onboard GPUs
Supported GPU	NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB)
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink® with NVSwitch™

System Memory
Memory	Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM

On-Board Devices
Chipset	System on Chip
Network Connectivity	2 RJ45 10GbE with Intel® X710-AT2

Input / Output
Video	1 VGA port

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	8U Rackmount
Model	CSE-GP805TS-R000NPF

Dimensions and Weight
Height	13.8" (356 mm)
Width	17.6" (447 mm)
Depth	33.2" (843 mm)
Package	27.6" (H) x 51" (W) x 29.5" (D)
Weight	Gross Weight: 158.73 lbs (72 kg) Net Weight: 105.82 lbs (48 kg)
Available Color	Silver

Front Panel
LED	HDD activity Network activity LEDs System information (overheat/UID) UID
Buttons	Power On/Off UID/ Reset button

Expansion Slots
PCI-Express (PCIe) Configuration	Default 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots

Drive Bays / Storage
Drive Bays Configuration	Default: Total 10 bays 10 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays
M.2	2 M.2 NVMe slots (M-key)

System Cooling
Fans	14 heavy duty fans with optimal fan speed control

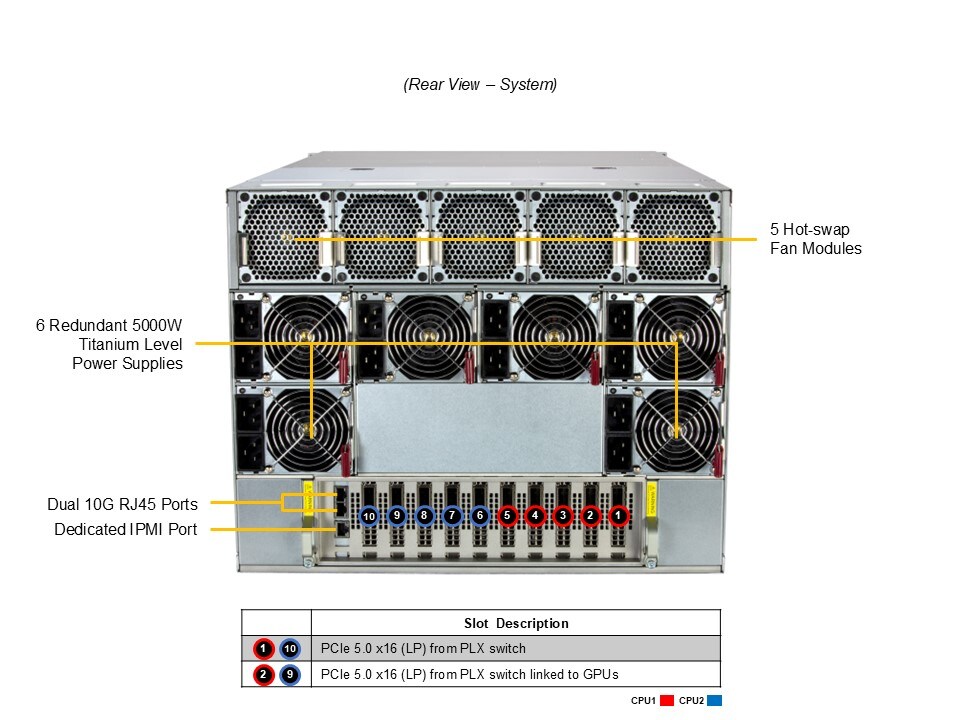

Power Supply

6x 5250W

6x 5250W Redundant (3 + 3) Titanium (certification pending) Level (96%) power supplies

Dimension (WxHxL)	106.5 x 82.1 x 245.3 mm
AC Input	5250W: 200-240Vac / 50-60Hz
+12V	Max: 125A / Min: 0A (200Vac-240Vac)
12V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium (certification pending) Level [ Test Report ]

Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

GPU SuperServer SYS-822GA-NBRT (Complete System Only ) Coming Soon
