SuperServer E302-9A

  Products  Systems   Embedded/IoT   [ E302-9A ]




Integrated Board
A2SDi-4C-HLN4F

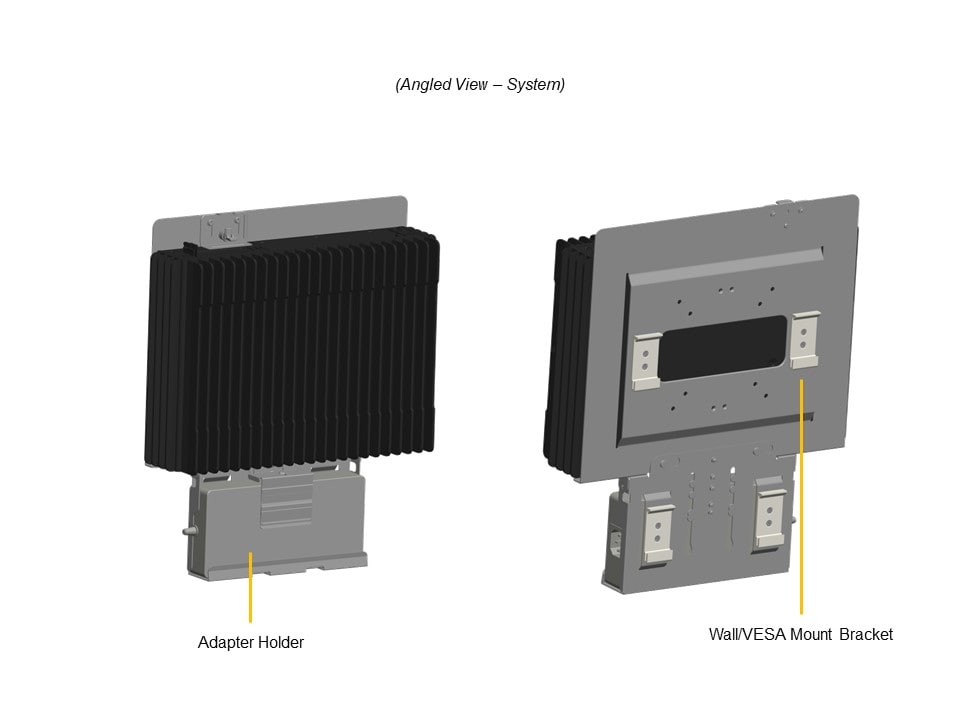

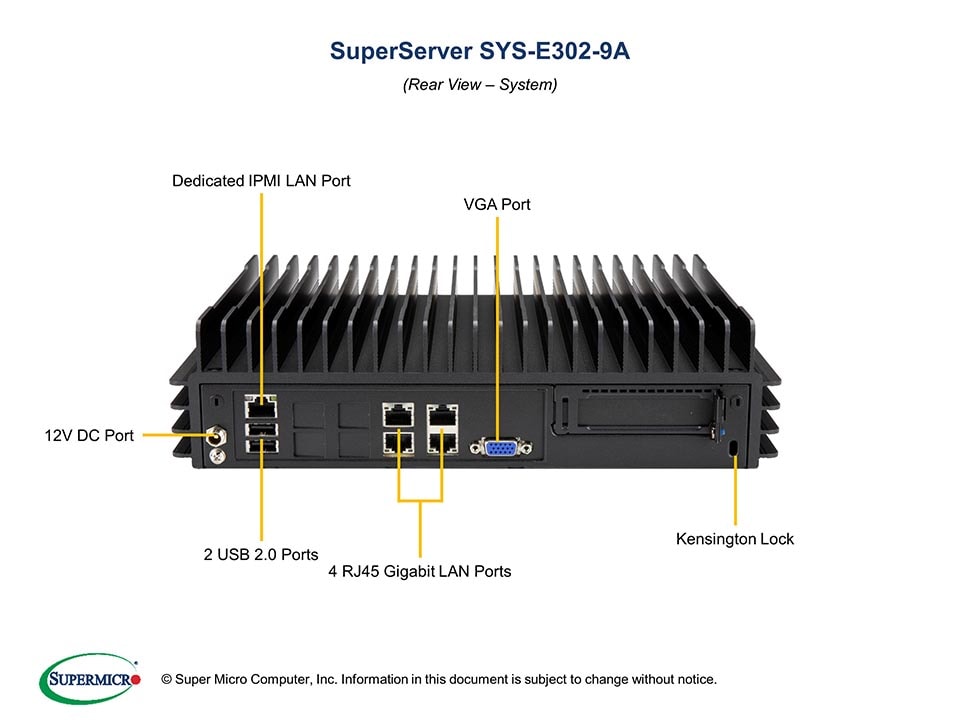

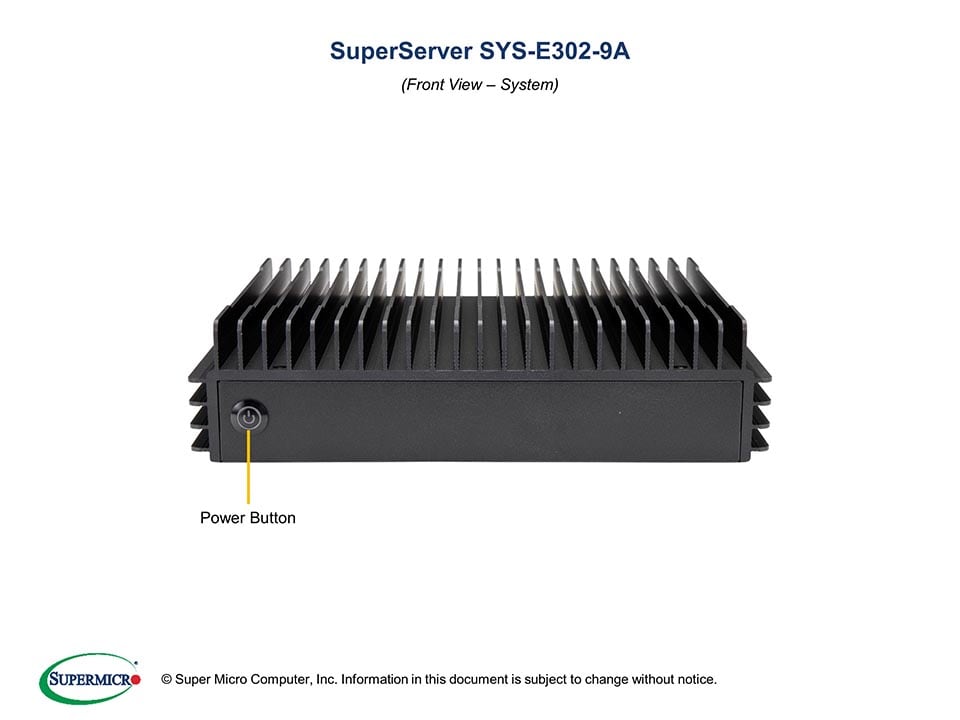

Views: | Angled View | Angled View | Front View | Rear View |
" class="video-embed-field-launch-modal">



Key Applications
  - IoT Edge Computing
  - Retail, Smart Medical Expert Systems
  - Networking Appliance
  - Industrial Automation & Control
  - Embedded IoT Gateway


Key Features
1. Intel® Atom® processor C3558,
    Single socket FCBGA 1310
2. System on Chip
3. 2x 2.5" 7mm fixed drive bay
4. Up to 256GB registered ECC,
    up to 64GB unbuf. ECC/non-ECC,
    DDR4-2133MHz, in 4 DIMM slots
5. 1 M.2 M Key 2242/2280 (PCI-E 3.0 x2)
6. 4 GbE LAN ports w/ Intel C3000 SoC
7. 2 USB 2.0, 1 VGA via BMC
8. Fanless
9. Lockable 12V DC 60W power adapter


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   Drive Options   Manuals

Product SKUs
SYS-E302-9A
  • SuperServer E302-9A (Black)

Motherboard

Super A2SDi-4C-HLN4F

Processor/Cache
CPU
  • Intel® Atom® processor C3558
  • 4 Cores, 2.2GHz
  • CPU TDP support 16W
  • FCBGA 1310

System Memory
Memory Capacity
  • 4x DDR4 DIMM sockets
  • Supports up to 256GB DDR4 ECC RDIMM
  • Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type
  • 2133/1866MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes
  • 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors
      (using ECC memory)

On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for SATA3 (6Gbps) ports
Network Controllers
  • Quad Gigabit Ethernet LAN via Intel® C3000 SoC
Graphics
  • Aspeed AST2400 BMC

Input / Output
SATA
  • 2 SATA3 (6Gbps) ports
LAN
  • 4 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 2.0 ports (rear)
Display
  • 1 VGA port
TPM
  • TPM header
Chassis
Form Factor
  • Compact
Model
  • CSE-E302IL

Dimensions
Width
  • 11.6" (295mm)
Height
  • 3" (76mm)
Depth
  • 8.1" (206mm)
Weight
  • Gross Weight: 7.5 lbs (3.4 kg)
  • Net Weight: 3.45 lbs (1.56 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED (Hard drive activity LED)

Expansion Slots
PCI-Express
  • 1x M.2 M Key 2242/2280 (PCI-E 3.0 x2)

Drive Bays / Storage
Internal
  • 2x 2.5" 7mm fixed drive bay
M.2
  • Interface: PCI-E 3.0 x2 & SATA
  • Form Factor: 2242, 2280
  • Key: M-Key

System Cooling

  • Fanless

Power Supply
Lockable 12V DC 60W power adapter

System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • UEFI 2.4
  • SMBIOS 2.7.1

Management
Software
Power Configurations
  • ACPI / APM Power Management
  • CPU thermal trip support for processor protection
  • Power-on mode for AC power recovery

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       0°C to 40°C (32°F to 104°F) with 0.7 m/s air flow
       with wide temperature
       M.2 or SSD (0°C to 85°C)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)
  Part Number Qty Description
Motherboard / Chassis MBD-A2SDi-4C-HLN4F
CSE-E302iL 		1
1		 Super A2SDi-4C-HLN4F Motherboard
Fan-less Embedded BOX for Flex-ATX, Mini-ITX 1.5U H w/o PWS
Tray MCP-220-30201-0B 1 Black, Fixed HDD tray 2.5in(2x7/1x15mm) for CSE-E302
Heat Sink MCP-350-30201-0N - Thermal block 64.5*43*12.7mm AL6063 for CSE-E302
Power Adapter MCP-250-10134-0N 1 60W DC power adapter with US power cord 18AWG 6ft
Optional Parts List
  Part Number Qty Description
Cable CBL-SAST-1034 1 SATA Splitter Cable with Power to Support Dual Storage Devices
Thermal Solution for NVMe M.2 drives MCP-350-30204-0N 1 Required with NVMe M.2 drives
Wall mount/VESA mount MCP-290-30201-0B 1 WALL / VESA mount kit with adapter holder
