SuperServer E302-9D (Complete System Only)

  Products  Systems   Embedded/IoT   [ E302-9D ]




Integrated Board
Super X11SDV-4C-TP8F-01

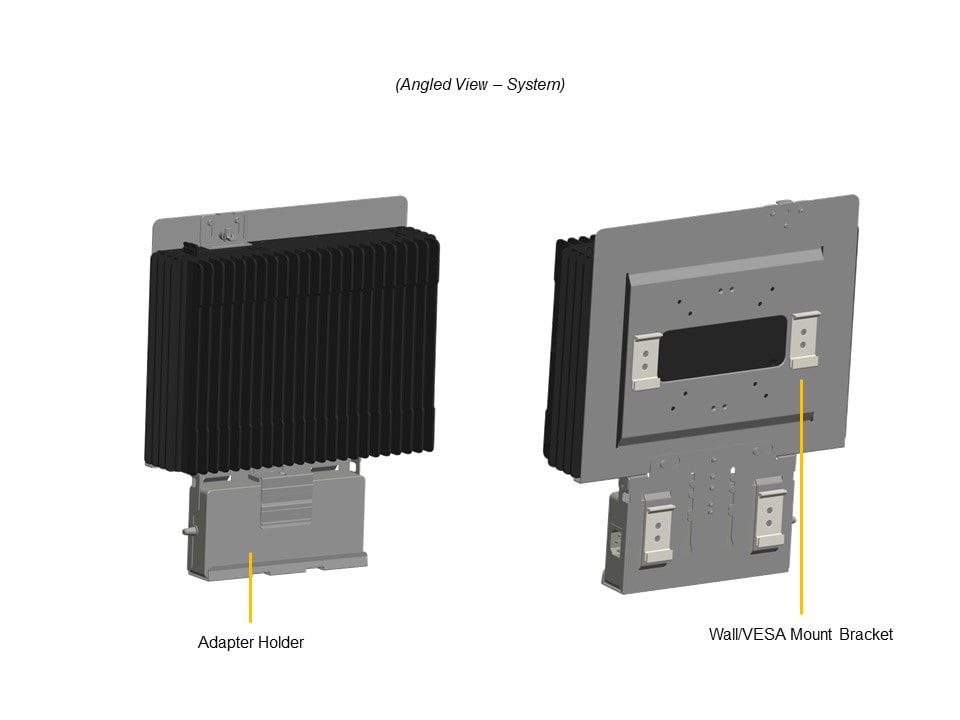

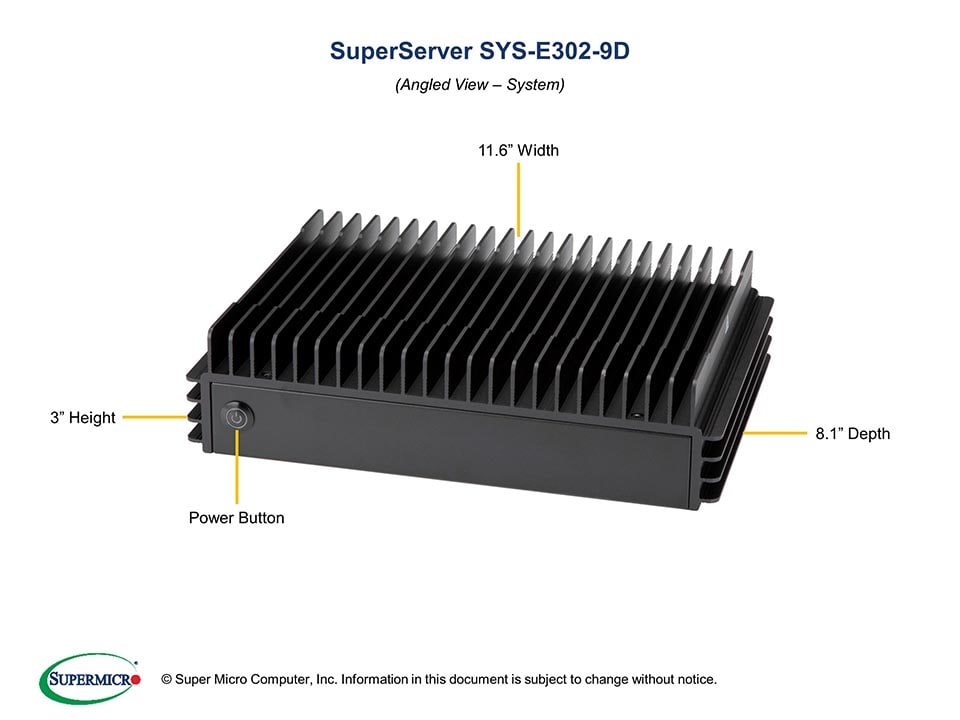

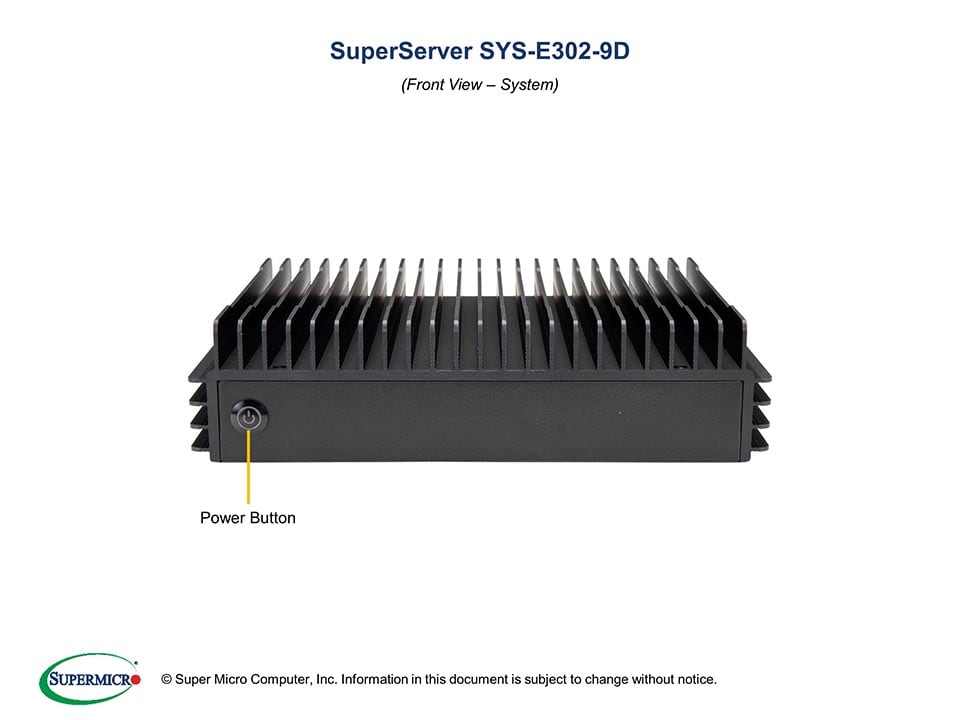

Views: | Angled View | Angled View | Front View | Rear View |
" class="video-embed-field-launch-modal">



Key Features
  - IoT Edge Computing
  - Industrial Automation, Retail
  - Smart Medical Expert Systems
  - Artificial Intelligence (AI) on Edge
  - Machine Learning (ML)
  - FireWall Applications
  - Network Appliance

1. Intel® Xeon® processor D-2123IT,
    4-Core, 8 Threads, 60W
2. System on Chip
3. 1 Fixed 2.5" drive bay with bracket
    (Wide Temp required)
4. M.2: 1 PCI-E 3.0 x4 and
    1 SATA/PCI-E 3.0 x2,
    1 M Key 2280, 1 B-Key 2242/3042
    with Nano SIM Slot
5. Up to 256GB ECC/non-ECC RDIMM
    DDR4-2666Mz; in 4 DIMM slots
6. 4x 1GbE, 2x 10GBase-T, 2x 10G SFP+
    and 1 dedicated LAN for IPMI 2.0
7. 1 VGA, 2 USB 3.0
8. Fanless cooling
9. 150W 12V Lockable DC Power Adapter

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum, 1 DIMMs, 1 M.2 or SSD).

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List  Drive Options   Manuals

Product SKUs
SYS-E302-9D
  • SuperServer E302-9D (Black)

Motherboard

Super X11SDV-4C-TP8F-01

Processor/Cache
CPU
  • Intel® Xeon® processor D-2123IT,
    CPU TDP support 60W
Cores / Cache
  • 4 Cores, 8 Threads

System Memory
Memory Capacity
  • Up to 256GB DDR4 ECC/non-ECC RDIMM
  • 4 DIMM slots
Memory Type
  • 2666/2400/2133MHz ECC DDR4 ECC/Non-ECC RDIMM
  • Operating speed up to 2400MHz
DIMM Sizes
  • RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors
      (using ECC memory)

On-Board Devices
Chipset
  • System on Chip
SATA
  • SATA3 (6Gbps) ports via SoC controller
Network Controllers
  • Quad 1GbE with Intel I350-AM4
  • Dual 10GBase-T with Intel X557
  • Dual 10G SFP+ via SoC
IPMI
  • Support for Intelligent Platform
  • Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • Aspeed AST2500 BMC

Input / Output
SATA
  • SoC controller for 2 SATA3 (6Gbps) ports
LAN
  • 2x 10G SFP+ ports
  • 2x 10GBase-T LAN ports
  • 4x 1GbE LAN ports
  • 1 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Display
  • 1 VGA port
TPM
  • 1 TPM 2.0 header
Chassis
Form Factor
  • Compact
Model
  • CSE-E302iL

Dimensions
Width
  • 11.6" (295mm) / 15" (381mm) - pkg.
Height
  • 3" (76mm) / 10.87" (276mm) - pkg.
Depth
  • 8.1" (206mm) / 5.59" (142mm) - pkg.
Weight
  • Gross Weight: 7.5 lbs (3.4 kg)
  • Net Weight: 3.45 lbs (1.56 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED (Hard drive activity LED)

Drive Bays
Internal
  • 1 Fixed 2.5" drive bay with bracket (when AOC area is not occupied) (Wide Temp required)
M.2
  • 1 M.2 M-Key 2280
  • 1 M.2 B-Key 3042 with Nano SIM Slot

System Cooling
  • Fanless

Power Supply
150W 12V Lockable DC Power Adapter (Optional: 180W 12V Lockable DC Power Adapter)

System BIOS
BIOS Type
  • 128Mb SPI Flash with AMI BIOS
BIOS Features
  • PCI 3.0
  • ACPI 5.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.8
  • UEFI 2.4
  • RTC (Real Time Clock) Wakeup

Management
Software
  • Intel® Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SUM
  • SuperDoctor® 5
  • Watch Dog
Power Configurations
  • ACPI Power Management
  • +12V DC Power Input
  • Control of power-on for recovery from AC power loss
  • CPU thermal trip support for processor protection
  • M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       0°C to 40°C (32°F to 104°F) (with additional external 0.7m/s)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)
  Part Number Qty Description
Motherboard / Chassis MBD-X11SDV-4C-TP8F-01
CSE-E302iL 		1
1		 Super X11SDV-4C-TP8F-01 Motherboard
Embedded Server BOX for Flex-ATX, Mini-ITX 1U height
Power Adapter MCP-250-10128-0N 1 150W Lockable Power Adapter with US power cord
Thermal Solution for SATA M.2 Drives MCP-350-30206-0N 1 Required with SATA M.2 drives (Able to support SSD when equipped)
Memory Thermal Solution MCP-350-TP08-0E 1 Required for 8GB / 16GB / 32GB DIMMs with head spreader
Optional Parts List
  Part Number Qty Description
Cable CBL-SAST-0886 - SATA 15pin x2 to 4pin /P2.5,40CM,22AWG
Cable CBL-0483L - 29CM 30AWG SATA S/S CBL
Chassis Part MCP-290-30201-0B - Black, wall mount kit for CSE-E302
Thermal Solution for NVMe M.2 Drives MCP-350-30205-0N 1 Required with NVMe M.2 drives (Not able to support SSD when equipped)
Hide Parts List
