SuperServer SYS-F511E2-RT (Complete System Only)

4U 8-Node FatTwin with 6 hot-swap 2.5" NVMe/SAS/SATA drives per node

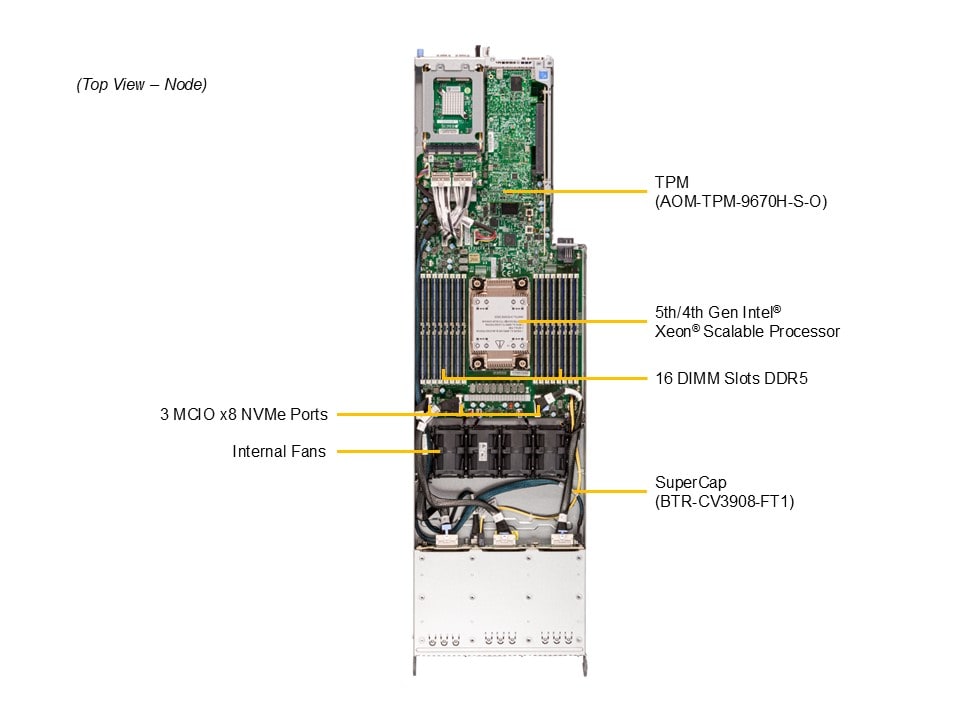

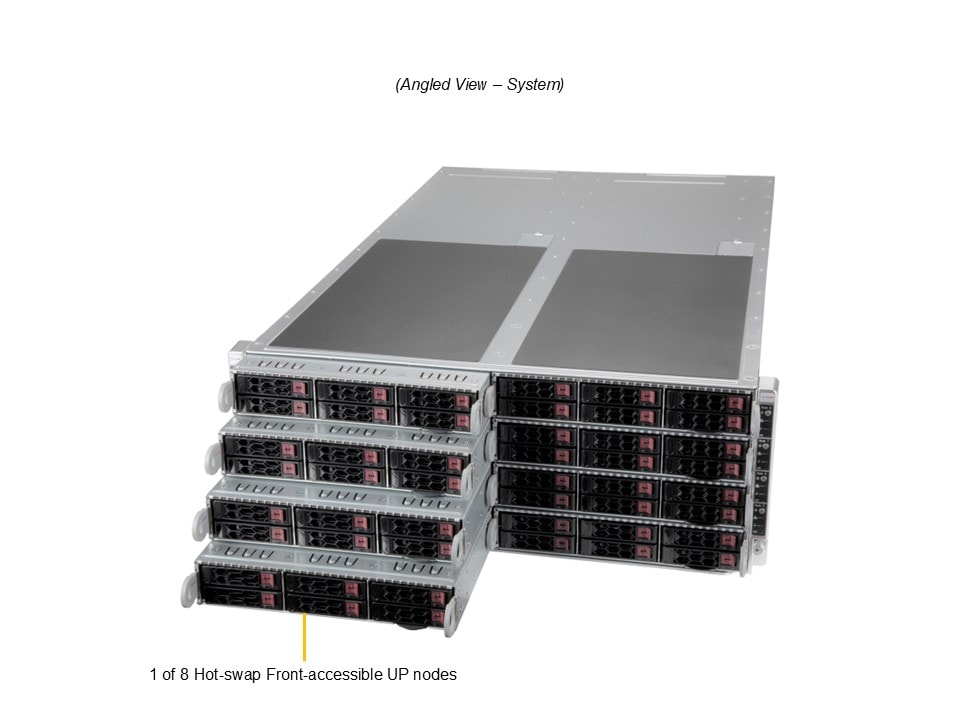

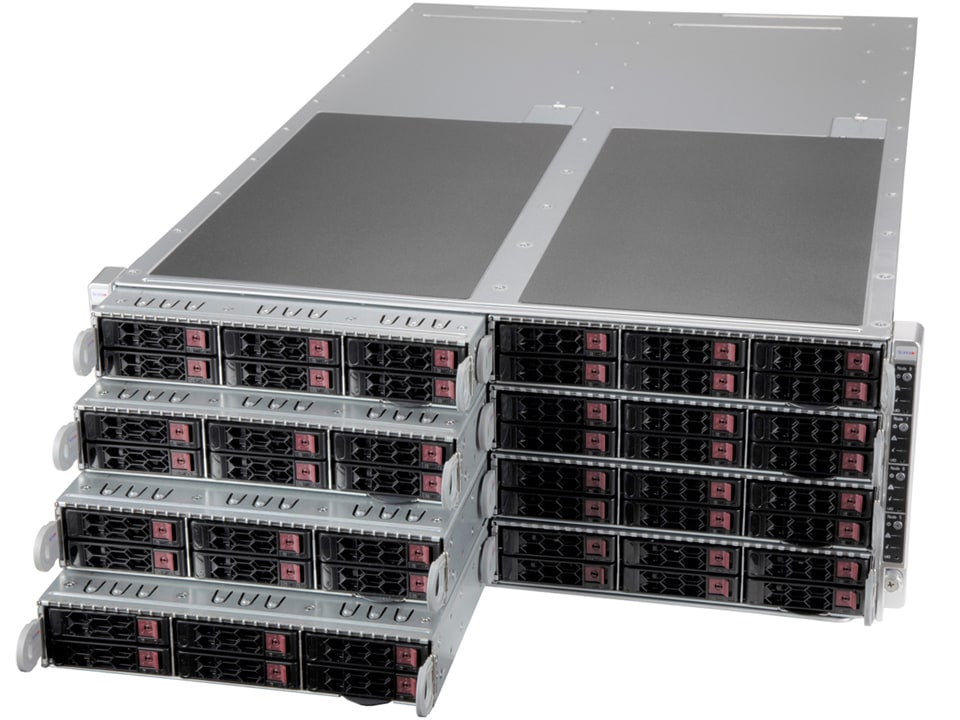

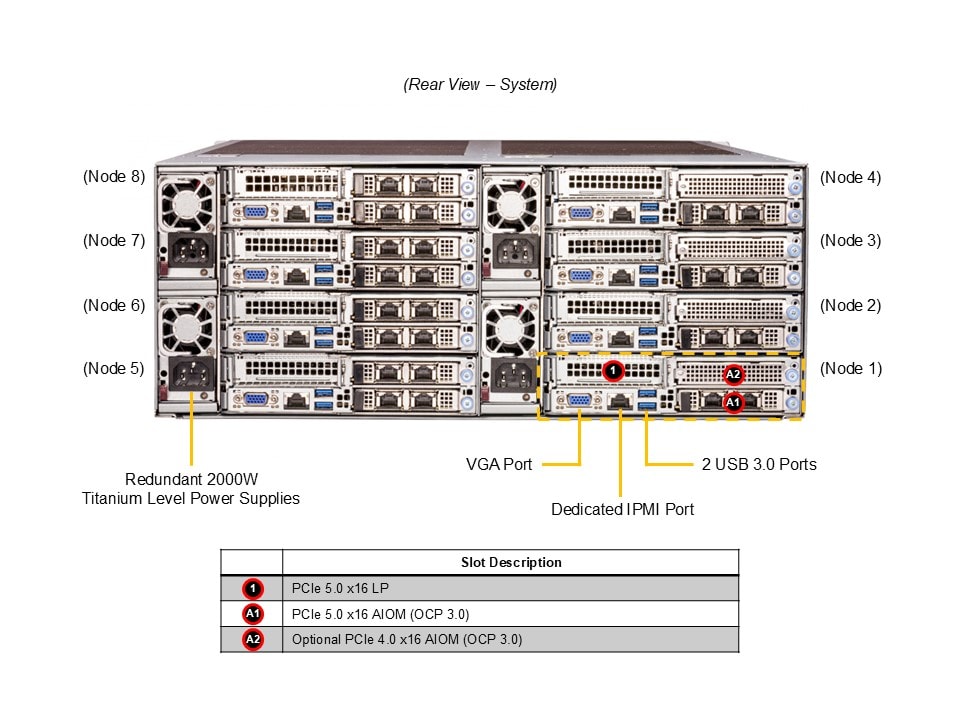

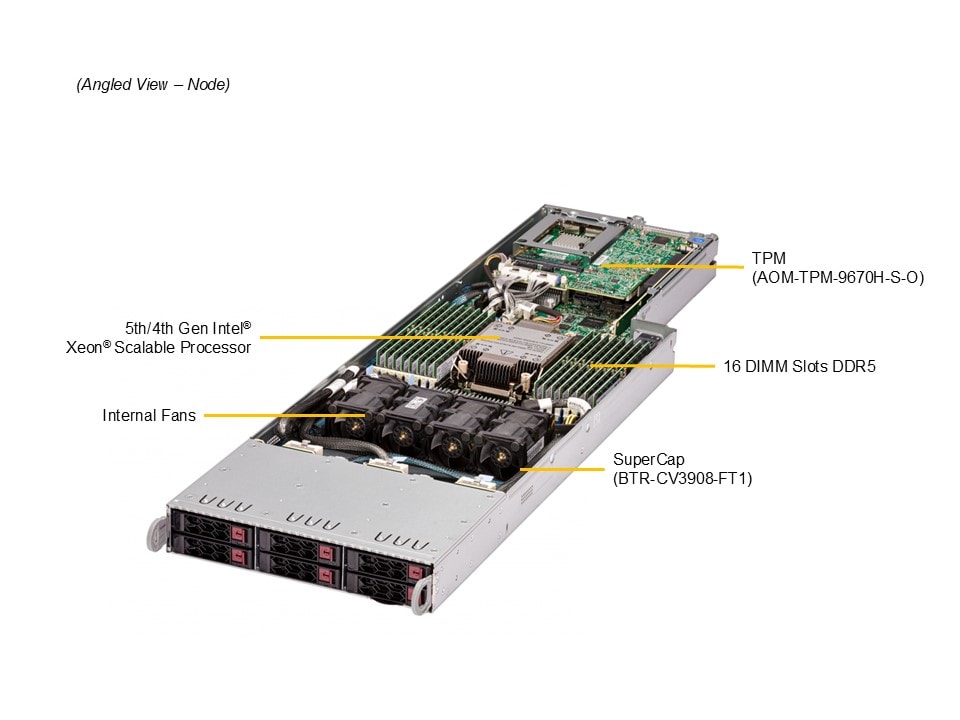

SYS-F511E2-RT Main SYS-F511E2-RT Angle SYS-F511E2-RT Top SYS-F511E2-RT Node SYS-F511E2-RT Rear
Integrated Board: X13SEFR-A
Learn more

Key Applications

  • Hyperscale / Hyperconverged
  • HPC and Big Data
  • Data Center Enterprise Applications
  • Telco Data Center

Key Features

Eight hot-pluggable systems (nodes) in a 4U form factor. Each node supports the following:

  1. Single Socket E (LGA-4677) Supports 4th/5th Gen Intel® Xeon® Scalable Processor
  2. C741 Chipset
  3. Two M.2 Internal Drives
  4. NVMe/SATA/SAS options
  5. AIOM and M.2 support; 2 AIOM card support (PCIe 5.0)
  6. Up to 6x SAS/SATA/NVMe Hot Swap 2.5” Drives
...
...
SYS-F511E2-RT
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-F511E2-RT
Motherboard
Super X13SEFR-A
Processor (per Node)
CPU
Core Count
  • Up to 60C/120T; Up to 112.5MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
Memory Voltage
  • 1.1V
On-Board Devices (per Node)
Chipset
  • Intel® C741
Network Connectivity
Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
  • 4 40 mm Heavy Duty Fans per Node
Temperature
  • Monitoring for CPU and chassis environment
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 8+1 Phase-switching voltage regulator
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-F418BC4-R2K08BP
Dimensions and Weight
Height
  • 6.96" (177 mm)
Width
  • 17.63" (448 mm)
Depth
  • 29" (737 mm)
Package
  • 15" (H) x 28.3" (W) x 42.4" (D)
Weight
  • Gross Weight: 200 lbs (90.71 kg)
  • Net Weight: 150 lbs (68.04 kg)
Available Color
  • Silver
Front Panel
LED
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Buttons
  • Power On/Off button
  • UID button
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 5.0 x16 LP slot
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
    • 1 PCIe 4.0 x16 AIOM slot (OCP 3.0 compatible)
  • View AOC Options
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 6 bays
    • 6 front hot-swap 2.5" NVMe*/SAS*/SATA drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 4x 4cm Fan(s)
Power Supply
1x 2000W
1x 2000W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)73.5 x 40 x 203 mm
AC Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc
2000W: 230-240Vac
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for China only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
12V SBMax: 3.5A / Min: 0A
Max: 3.5A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: °C ~ °C (°F ~ °F)
  • Non-operating Temperature: °C to °C (°F to °F)
  • Operating Relative Humidity: % to % ()
  • Non-operating Relative Humidity: % to % ()
