SuperServer SYS-F620P3-RTBN (Complete System Only)

4U 4-node FatTwin with 8 3.5" SAS/SATA (optional 6 NVMe) per node

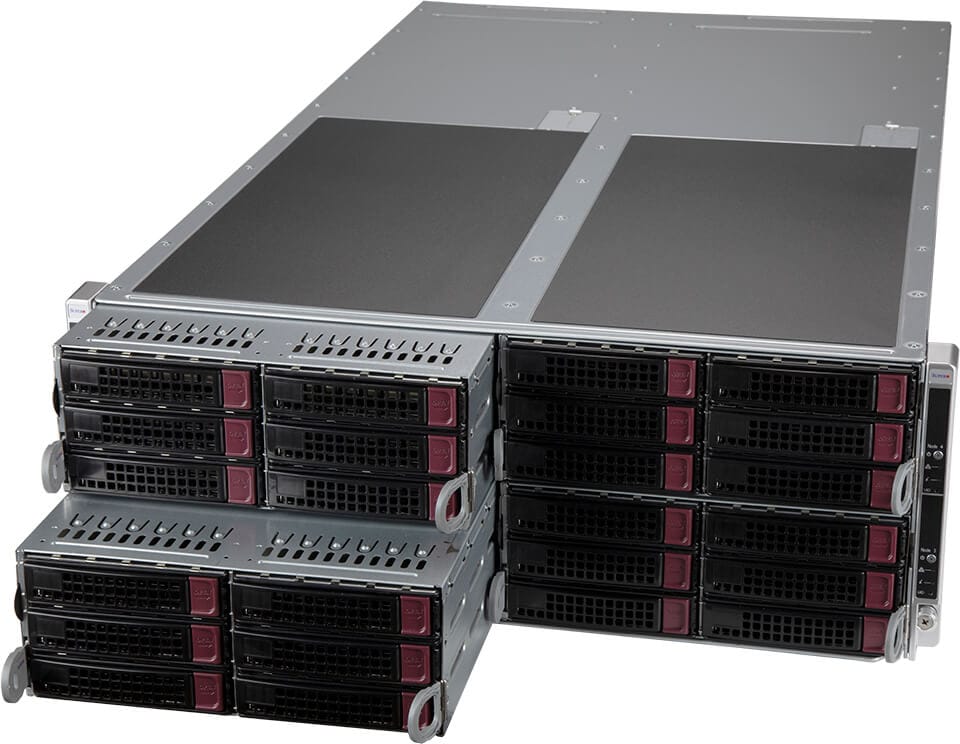

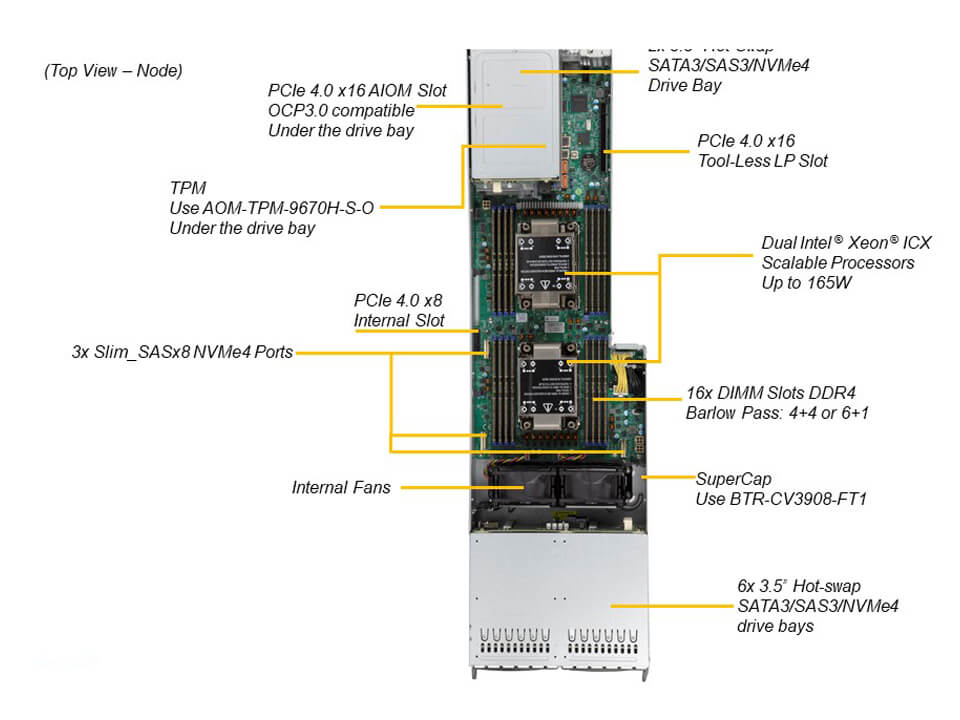

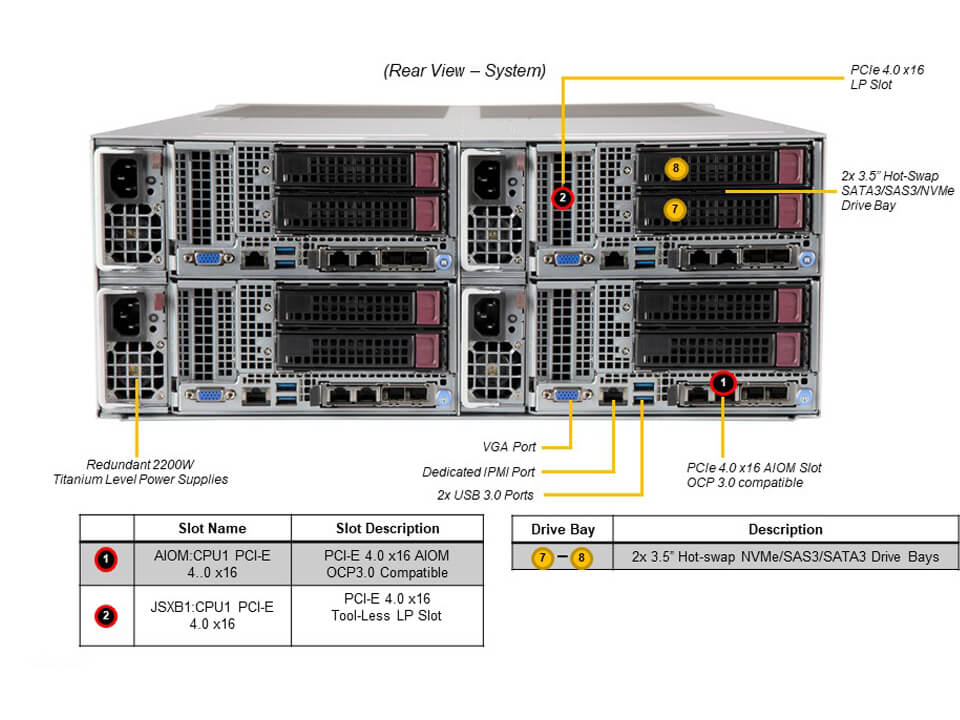

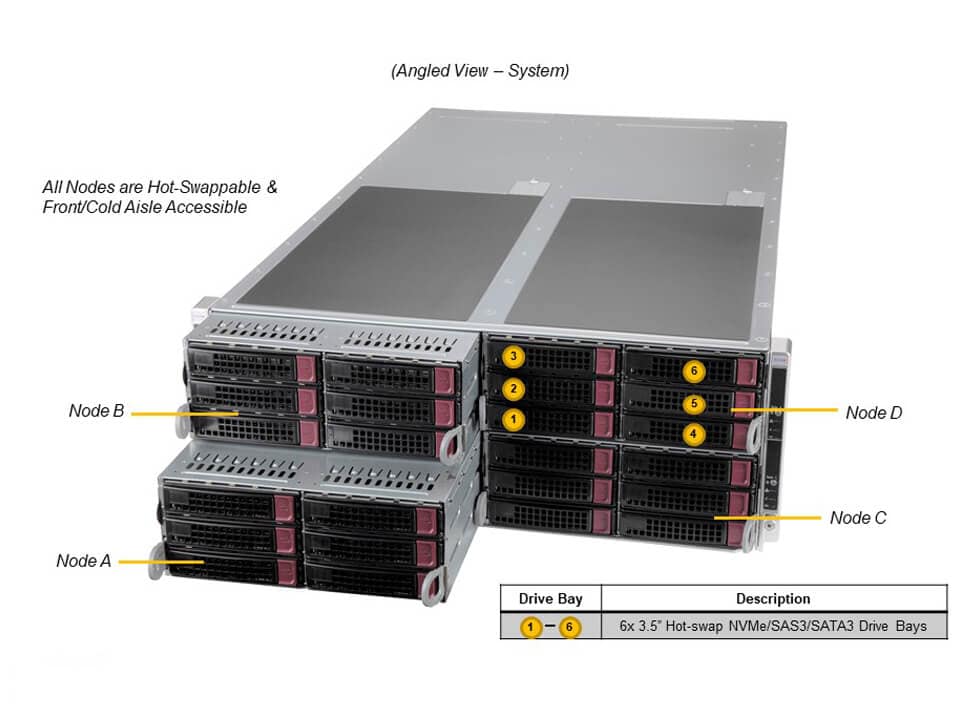

SYS-F620P3-RTBN Main SYS-F620P3-RTBN Angle SYS-F620P3-RTBN Top SYS-F620P3-RTBN Node SYS-F620P3-RTBN Rear
Integrated Board: X12DPFR-AN6
Learn more

Key Applications

  • Hyperscale / Hyperconverged
  • HPC and Big Data
  • Data Center Enterprise Applications
  • High Capacity and Ultra Dense Storage
  • Virtualization Server (VSAN)
  • Telco Data Center

Key Features

Four hot-pluggable systems (nodes) in a 4U form factor. Each node supports the following:

  1. Socket P+(LGA 4189) Supports 3rd Generation Intel® Scalable Processors (Dual Socket)
  2. Two M.2 Internal Drives
  3. NVMe/SATA/SAS options
  4. AIOM and M.2 support; 1 AIOM card support (PCIe 4.0)
  5. Front access node for better serviceability; 8x 3.5” hot-swap HDDs per node
    Up to 8x SAS/SATA Hot Swap 3.5” Drives, or up to 6x NVMe Hot Swap 2.5” Drives + 2x SAS/SATA Hot Swap 3.5” Drives
...
...
SYS-F620P3-RTBN
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-F620P3-RTBN
Motherboard
Super X12DPFR-AN6
Processor (per Node)
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 36C/72T; Up to 54MB Cache per CPU
Note
  • Supports up to 205W TDP CPUs (Air Cooled)
GPU (per Node)
Max GPU Count
  • Up to 1 double-width GPU
System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 2TB non-ECC
  • Supports Intel® Optane™ persistent memory 200 series
  • View Memory Options
On-Board Devices (per Node)
Chipset
  • Intel® C621A
Network Connectivity
Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-F424AS3-R2K20BP
Dimensions and Weight
Height
  • 6.96" (177 mm)
Width
  • 17.63" (448 mm)
Depth
  • 29" (737 mm)
Package
  • 15" (H) x 28.3" (W) x 42.4" (D)
Weight
  • Gross Weight: 200 lbs (90.71 kg)
  • Net Weight: 150 lbs (68.04 kg)
Available Color
  • Silver
Front Panel
LED
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Buttons
  • Power On/Off button
  • UID button
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 4.0 x16 LP slot
    • 1 PCIe 4.0 x16 AIOM slot (OCP 3.0 compatible)
  • View AOC Options
Drive Bays / Storage (per Node)
Drive Bays Configuration
M.2
System Cooling
Fans
  • 2x 8cm Fan(s)
Power Supply
1x 2200W
1x 2200W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)76 x 40 x 336 mm
Total Output Power(for CCC only)
(for UL/cUL use only)
AC Input1200W: 100-127Vac
1200W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
1980W: 220-230Vac / 50-60Hz
2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
2200W: 230-240Vac
2090W: 230-240Vac / 50-60Hz
2090W: 230-240Vdc / 50-60Hz (for CCC only)
+12VMax: 100A / Min: 0A (100Vdc-127Vdc)
Max: 100A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
Max: 183.3A / Min: 0A (220Vac-240Vac)
Max: 174.17A / Min: 0A (230Vac-240Vac)
Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
Max: 183.33A / Min: 0A (230Vdc-240Vdc)
5V SBMax: 1A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: °C ~ °C (°F ~ °F)
  • Non-operating Temperature: °C to °C (°F to °F)
  • Operating Relative Humidity: % to % ()
  • Non-operating Relative Humidity: % to % ()
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
Component BTR-CV3908-FT1 - SuperCap for 3908 with bracket and 24in extension cable
AOC-SMG4-2M2-F - 2x M.2 NVMe carrier card (NO SATA)
MCP-220-42435-0N - Changes from 3.5” Rear BPN with 1 x16 PCIe slot to a 2.5” Rear BPN with a RSC that supports 2 x8 PCIe slots
MCP-250-42426-0N - This ADP will supply power to the front drives, therefore lessing power draw from the backplane
CBL-KIT-FRB20-10BAY - Additional x2 internal SATA SSDs per node
MCP-220-00158-0B • - 3.5” to 2.5” Tool-less Conversion Tray; Red Tab (SAS/SATA only
MCP-220-00140-0B • - 3.5” to 2.5” Tool-less Conversion Tray; Orange Tab (NVMe only)
CBL-KIT-FRI20-NVME2R - Supports up to 2 NVMe drives in the Rear BPN. For 2U systems.
CBL-KIT-FRI20-NVME2F - Supports up to 2 NVMe drives in the Front BPN. For 2U systems.
CBL-KIT-FRI20-NVME4F - Supports up to 4 NVMe drives in the Front BPN. For 2U systems.
CBL-KIT-FRI20-NVME6F - Supports up to 6 NVMe drives in the Front BPN. For 2U systems.
SCC-KIT-FRB20-3808 - Supports 3808 SW/HBA RAID w/ cables. For 2U systems.
AOC-KIT-FRB20-3908 - Supports 3908 HW RAID w/ cables. For 2U systems.
SNK-P0078P • - 2U passive CPU heat sink. For CPU1 when using Dual 205W CPUs.
