Unimaginable, shared, and parallel file systems to maximize your storage performance for the most extreme demands!
Solution Overview
With the storm of data raining down on today’s enterprise systems, flooding the capacity, and challenging the IT infrastructure to distribute the data out to the application that need it, feeding data-starved applications and extracting maximum value gets more and more challenging.
Supermicro and WEKA together deliver a high-performance, and ultra-low latency shared and parallel file storage solution leveraging NVMe flash. The bundle solution runs on Supermicro’s selected NVMe systems supporting the highest-performance processors, memory, storage, and networking. It is specifically designed and optimized for NVMe flash and cloud-native to accelerate today’s data centers and power breakthrough innovation.
Get ready to unlock the full capabilities of your data center with unprecedented speed and performance, no matter the scale.
Solution Benefits
The WekaFS, the underlying filesystem of The WEKA Data Platform, unifies your entire data lake into a shared global namespace where you can easily access and manage trillions of files from one directory. It instantly adapts to any new workload, has no knobs to tune, and no expertise is required. WEKA lives anywhere your data does, whether on-premises, in the public cloud or shared across both.
Built For The Cloud
Seamlessly run on-premises, in the cloud and burst between platforms
Shared Storage Architecture
Enjoy shared access from any application to a single data namespace
Optimized For NVMe
Achieve lowest possible latency and highest bandwidth and IOPS performance
Multi-Protocol Ready
Supports Linux, Windows and native POSIX access to data
Built-In Durability
Uses distributed data protection and instant backup to S3 cloud for rapid recovery
Advanced Security
Keeps your data completely safe with integrated encryption, key management and access control
Use Cases
Artificial intelligence and machine learning
Life sciences including genomics and Cryo-EM
Financial trading, including backtesting, time-series analysis, and risk management
Engineering DevOps
Electronic Design & Automation
Media rendering and visual effects (VFX)
High-performance computing (HPC)
High performance data analytics such as Cassandra, SAS and Splunk
Product Brief
The Supermicro-NVMe Reference Architecture implements the next-generation of intelligent infrastructure platforms designed to provide applications with all of the raw performance you can expect from local storage — and all of the flexibility, manageability and scalability typically experienced with traditional storage area network-based solutions. Leveraging the latest NVMe and PCIe standards, this reference architecture uses a low-latency, high-bandwidth networking to connect compute and storage together in a flexible way that will fit almost any application’s architecture requirements. Deploy this RA in storage-centric, compute-centric or mixed storage and compute configurations, and integrate it with existing data center application servers as desired.
Reference Architecture - AMD & Intel PCI-E 5.0 Systems

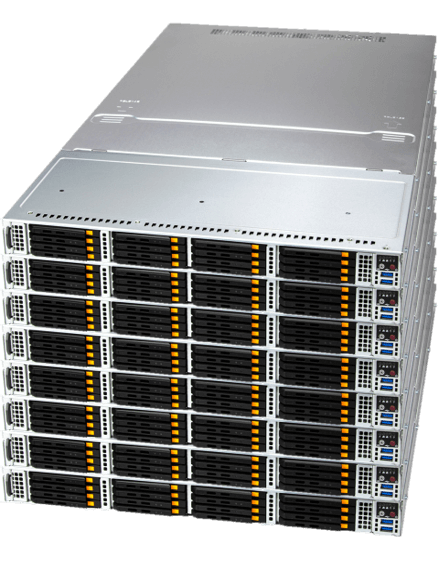

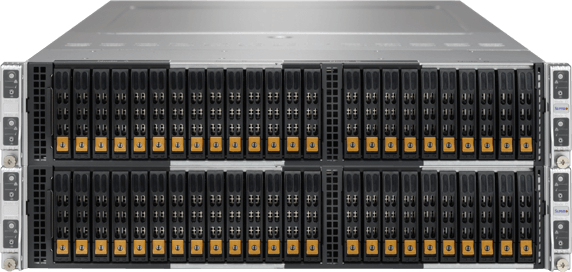

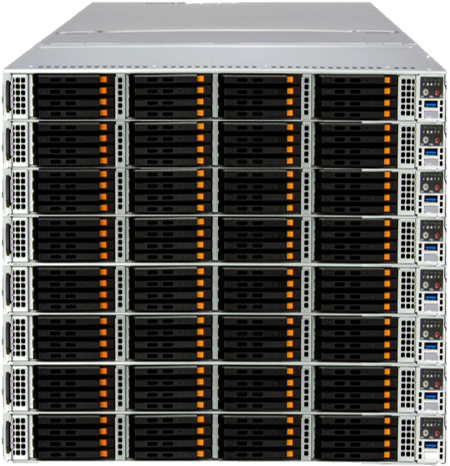

| System Generation | H13 (AMD PCIe Gen5) | X13 (Intel PCIe Gen5) | |||
|---|---|---|---|---|---|
| Image |  |  |  |  |  |
| Form Factor | 8U | 8U | 4U | 4U | 8U |

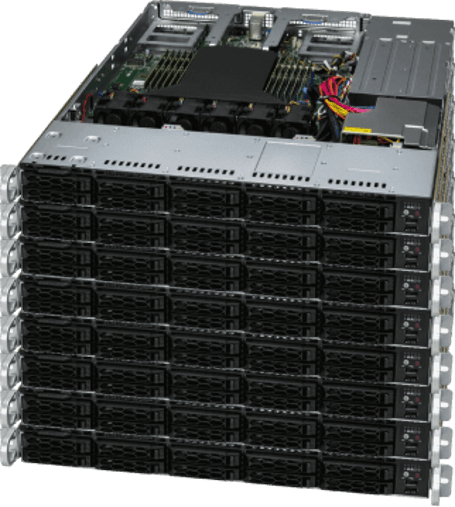

| Supermicro Weka Bundle SKU* | *** 8x AS -WK1032C-GEN5 (1U 1N) or 8x AS -WK1048C-GEN5 (1U 1N) | *** 8x ASG-WK1032C-NE3 (1U 1N) or 8x ASG-WK1048C-NE3 (1U 1N) | 2x AS -2115GT-WK4N (2U 4N) | *** 2x SYS-221BT-WK4N (2U 4N) | *** 8x SSG-WK1248C-NE3 (1U 1N) |
| CPU per node | 1x AMD Genoa 32C or 1x AMD Genoa 48C | 1x AMD Genoa 32C or 1x AMD Genoa 48C | 1x AMD Genoa 32C or 1x AMD Genoa 48C | 2x Intel SPR 16C | 2x Intel SPR 24C |
| Storage Media NVMe | 80x (up to 10x NVMe per node) 2.5" | 128x (up to 16x NVMe per node) E3.S | 48x (up to 6x NVMe per node) 2.5" | 48x (up to 6x NVMe per node) 2.5" | 128x (up to 16x NVMe per node) E3.S |
| Network** | 16x Single -port Mellanox CX-7 400G VPI | 16x Single -port Mellanox CX-7 400G VPI | 8x Dual -port Mellanox CX-7 200G VPI | 16x Single -port Mellanox CX-7 400G VPI | 16x Single -port Mellanox CX-7 400G VPI |
| Weka License | 1yr, 3yr, 5yr options | 1yr, 3yr, 5yr options | 1yr, 3yr, 5yr options | 1yr, 3yr, 5yr options | 1yr, 3yr, 5yr options |
*Supermicro bundle SKU already includes CPU, Memory, boot devices, MGMT NIC, Supermicro Management Software Suite (DCMS) and OS installation service required for Weka storage solution.
**Network: option w/ 200G is available.
***A Weka cluster requires a minimum of 8x nodes

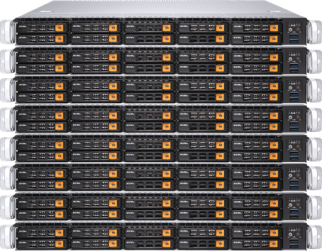

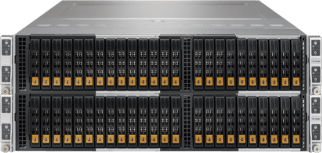

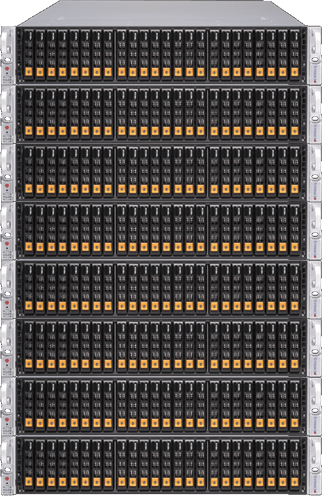

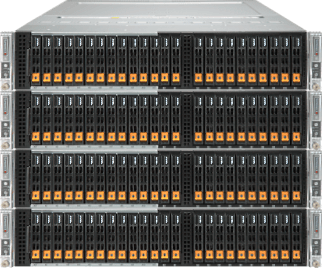

Reference Architecture – AMD and Intel Systems with PCI-E 4.0
| System Generation | H12 (AMD with PCI-E 4.0) | X12 (Intel with PCI-E 4.0) | ||
|---|---|---|---|---|
| Image |  |  |  |  |
| Supermicro SKU | 8x AS -1114S-WN10RT (1U 1-Node) | 8x AS -2114S-WN24RT (2U 1-Node) | 2x SYS-220BT-HNTR (2U 4-Node) | 4x SYS-220BT-DNTR (2U 2-Node) |
| Form Factor | 8U | 16U | 4U | 8U |
| Usable Capacity | 345TB | 691TB | 207TB | 414TB |
| Storage Media NVMe* | 80x(10x 7.68TB/node) Gen4 NVMe | 160x (20x 7.68TB/node) Gen4 NVMe | 48x (6x 7.68TB/node) Gen4 NVMe | 96x (12x 7.68TB/node) Gen4 NVMe |
| CPU | 8x AMD EPYC™ 7003/7002 | 8x AMD EPYC™ 7003/7002 | 16x 3th Gen Intel (IceLake) | 16x 3th Gen Intel (IceLake) |
| Memory | 2048GB | 2048GB | 2048GB | 2048GB |
| Network | 16x single-port Mellanox CX-6 200G VPI | 16x single-port Mellanox CX-6 200G VPI | 16x single-port Mellanox CX-6 200G VPI | 16x single-port Mellanox CX-6 200G VPI |
| IOPS** | 10.2M (1.275M per node) | 8.4M (1.05M per node) | 8.5M (1.06M per node) | 11.28M (1.41M per node) |
| Bandwidth** | 235GB/s (29.4GB/s per node) | 280GB/s (35GB/s per node) | 202GB/s (25GB/s per node) | 286GB/s (35.8GB/s per node) |
| I/O Latency | < 200μs | < 200μs | < 200μs | < 200μs |
| SW Subscription | 1yr, 3yrs, 5yrs | 1yr, 3yrs, 5yrs | 1yr, 3yrs, 5yrs | 1yr, 3yrs, 5yrs |
* To request drives of a different capacity, please contact weka-pm@supermicro.com or _nl_weka-pm@supermicro.com (for EMEA region) or APAC_weka-pm@supermicro.com (for APAC region).
** 3rd Gen AMD EPYC™ 7003 Processors are available.
*** Estimated; number varies based on actual components used.
Reference Architecture – AMD and Intel Delta GPU Systems with GPUDirect storage enable
| Image |  | |
|---|---|---|
| Supermicro SKU | 1x AS -4124GO-NART (AMD Delta GPU System) | 1x SYS-420GP-TNAR (Intel Delta GPU System) |
| CPU | 2x AMD EPYC 7H12 CPU 64C @2.6GHz | 2x Intel Xeon 8380 CPU 40C @3.4GHz |
| GPU | 8x NVIDIA A100-SXM4-80GB | 8x NVIDIA A100-SXM4-80GB |
| Memory | 2TB DDR4-3200 | 2TB DDR4-3200 |
| OS | OS: Ubuntu 20.04.3 OS Disk: 7.68TB NVMe | OS: Ubuntu 20.04.3 OS Disk: 7.68TB NVMe |
| NVMe | Optional | Optional |
| GDS Enable SKU | PRD-STORAGE, SFT-LT-15S01000300 | PRD-STORAGE, SFT-LT-15S01000300 |
*To enable GPUDirect for the GPU system, please add 1x PRD-STORAGE & SFT-LT-15S01000300 per system
Hassle-free GPU Framework Installation utility (SFT-LT-15S01000300) can also be sold alone with other GPU systems. Please contact weka-pm@supermicro.com for details.
Certified Servers for Weka Reference Architecture
AS -2115GT-HNTR
2U24 4-Node GRAND TWIN
AMD with PCIe 5.0
AS -2115GT-HNTR
- Four hot-pluggable systems (nodes) in a 2U form factor. Each node includes:
- Single 4th Generation AMD EPYC™ 9004 Series Processors
- 12 DIMM slots up to 3TB 3DS ECC RDIMM DDR5-4800MHz
- 2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
- 6x 2.5" hot-swap hybrid NVMe/SATA drive bays
AS -1115CS-TNR
1U10 1-Node CloudDC
AMD with PCIe 5.0
AS -1115CS-TNR
- Single 4th Generation AMD EPYC™ 9004 Series Processors
- 12 DIMM slots up to 3TB 3DS ECC RDIMM DDR5-4800MHz
- 2 PCIe 5.0 x16 FHHL, Dual AIOM with NCSI (OCP 3.0) for networking
- 10x 2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
- 860W redundant Platinum level power supplies
ASG-1115S-NE316R
1U16 1-Node Petascale Storage
AMD with PCIe 5.0
ASG-1115S-NE316R
- Single AMD EPYC™ 9004 Series processors. Up to 300W TDP
- 24 DIMMs slots with 2DPC, up to 6TB 3DS RDIMM/RDIMM DDR5-4800MHz
- 2 PCIe 5.0 x16 slots & two AIOM connectors (OCP 3.0 SFF compliant)
- 16x hot-swap E3.S (7.5mm) NVMe drive bays
- Redundant Titanium 1600W Power Supplies
SYS-221BT-HNR
2U24 4-Node BigTwin
Intel with PCIe 5.0
SYS-221BT-HNR
- Four hot-pluggable nodes in 2U. Each node supports:
- Dual 5th/4th Gen Intel® Xeon® Scalable processors
- 16 DIMM Slots supporting up to 4TB of memory; ECC RDIMMs up to DDR5-5600
- 2 PCIe 5.0 x16 (LP) slot; 1x Network connectivity via AIOM (OCP 3.0 compliant)
- 6 hot-swap PCIe 5.0 NVMe 2.5" drives; All Flash NVMe
- 3000W Redundant Power Supplies Titanium Level
SSG-121E-NE316R
1U16 1-Node Petascale Storage
Intel with PCIe 5.0
SSG-121E-NE316R
- Dual 5th/4th Generation Intel® Xeon® Scalable processors. Up to 270W TDP
- 32 DIMMs with 2DPC, up to 8TB RDIMM DDR5-5600 ECC memory
- 2 PCIe 5.0 x16 slots & two AIOM connectors (OCP 3.0 SFF compliant)
- 16x hot-swap E3.S (7.5mm) NVMe drive bays
- Redundant Titanium 1600W Power Supplies
AS -1114S-WN10RT
1U 1-Node WIO
AMD with PCI-E 4.0
AS -1114S-WN10RT
- Single AMD EPYC™ 7003/7002 Series Processor
- 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
- 2 PCI-E 4.0 x16 (FHHL) slots, 1 PCI-E 4.0 x16 (LP) slot
- 10 Hot-swap NVMe/SATA3 hybrid drive bays
- 750W Redundant Platinum Level Power Supplies
AS -2114S-WN24RT
2U 1-Node WIO
AMD with PCI-E 4.0
AS -2114S-WN24RT
- Single AMD EPYC™ 7003/7002 Series Processor
- 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
- 1 PCI-E 4.0 x16 (FH/HL) slot
- 24 Hot-swap NVMe/SATA3 drive bays
- 1200W Redundant Titanium Level Power Supplies
AS -F1114S-RNTR
4U 8-Node FatTwin®
AMD with PCI-E 4.0
AS -F1114S-RNTR
- 8 hot-pluggable nodes in 4U; each node supports:
- Single AMD EPYC™ 7003/7002 Series Processor
- 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
- 1 PCI-E 4.0 x16 (LP Riser) slot, 1 PCI-E 3.0 x16 (for AIOM)
- 6 Hot-swap 2.5" NVMe/SATA3 drive bays: 2 NVMe/SATA3 + 4 SATA3 (optional NVMe)
- 2200W Redundant Titanium Level Power Supplies
SYS-220BT-HNTR
2U 4-Node BigTwin®
Intel with PCI-E 4.0
SYS-220BT-HNTR
- 4 hot-pluggable nodes in 2U; each node supports:
- Dual 3rd Gen Intel® Xeon® Scalable processors
- 20 DIMMs; Up to 6TB DDR4-3200: Intel® Optane™ Persistent Memory 200 Series; Up to 4TB ECC DDR4-3200: RDIMM
- 2 PCI-E 4.0 x16 (LP) slots
- 6 Hot-swap 2.5" NVMe/SATA drive bays
- 2600W Redundant Titanium Level Power Supplies
SYS-220BT-DNTR
2U 2-Node BigTwin®
Intel with PCI-E 4.0
SYS-220BT-DNTR
- 2 hot-pluggable nodes in 2U; each node supports:
- Dual 3rd Gen Intel® Xeon® Scalable processors
- 20 DIMMs; Up to 6TB DDR4-3200: Intel® Optane™ Persistent Memory 200 Series; Up to 4TB ECC DDR4-3200: RDIMM
- 1 PCI-E 4.0 x16 (LP) slot, 2 PCI-E 4.0 x8 slots
- 12 Hot-swap 2.5" NVMe/SATA drive bays
- 2200W Redundant Titanium Level Power Supplies
SYS-1029U-TN10RT
1U 1-Node Ultra
Intel with PCI-E 3.0
SYS-1029U-TN10RT
- Dual 2nd Gen Intel® Xeon® Scalable processors
- 24 DIMMs; Up to up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM; supports Intel® Optane™ DCPMM
- 2 PCI-E 3.0 x16 slots (FH, 10.5" L)
- 10 Hot-swap 2.5" NVMe drive bays
- 1000W Redundant Titanium Level Power Supplies
SYS-2029BT-HNR
2U 4-Node BigTwin®
Intel with PCI-E 3.0
SYS-2029BT-HNR
- 4 hot-pluggable nodes in 2U; each node supports:
- Dual 2nd Gen Intel® Xeon® Scalable processors
- 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM; Supports Intel® Optane™ DCPMM
- 2 PCI-E 3.0 x16 (LP) slots
- 6 Hot-swap 2.5" NVMe drive bays
- 2200W Redundant Titanium Level Power Supplies

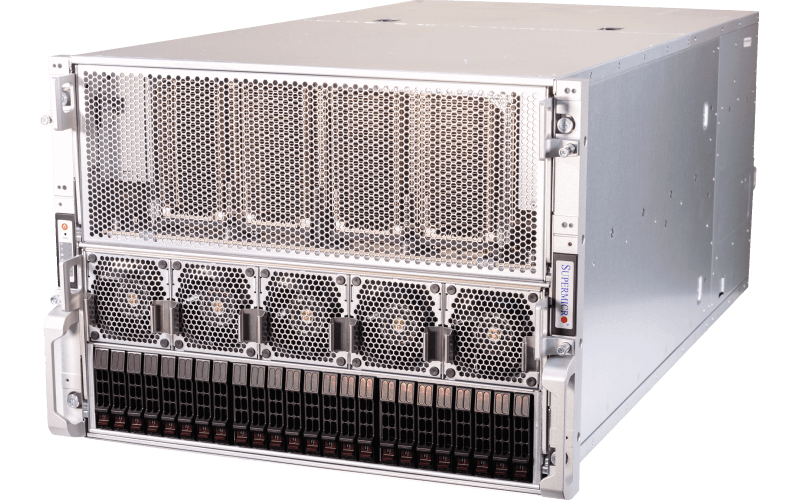

| System Generation | HGX H100 Servers | MGX GH200 Servers | Weka-Certified MGX GH200 Servers | |
|---|---|---|---|---|
| Image |  |  | |  |
| Supermicro SKU | SYS-821GE-TNHR (8U Intel HGX H100 8-GPU Server) | AS -4124GO-NART (4U AMD Delta GPU System) | SYS-420GP-TNAR (4U Intel Delta GPU System) | ARS-111GL-NHR (1U ARM-based GH200 GPU System) |
| Description |
|
|
|
|
| Learn more button | ||||
