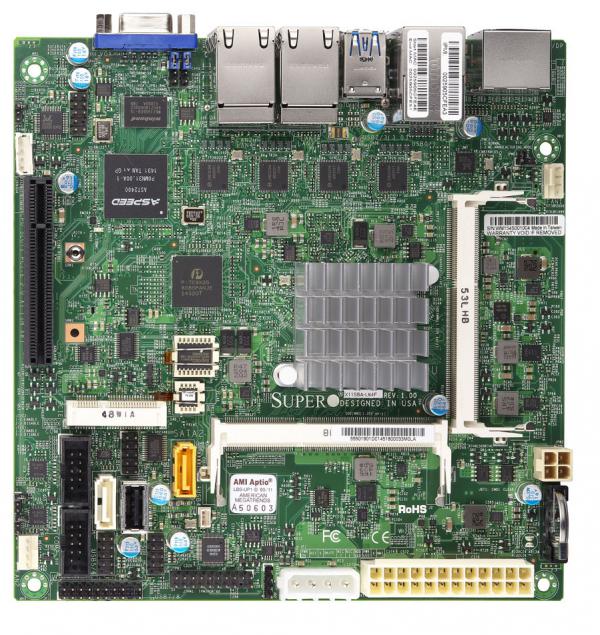

X11SBA-F

Embedded
IPMI

Key Features


  1. Intel® Pentium™ Processor N3710., Single Socket FCBGA1170 supported, CPU TDP support 6W
  2. Up to 8GB 1600MHz DDR3 Non-ECC SO-DIMM in 2 sockets
  3. 1 PCIe 2.0 x1 (in x8),
    1 Mini-PCIe (mSATA support)
  4. Dual GbE LAN with Intel® i210-AT
  5. Supports 12V DC power input
  6. System-on-Chip
  7. 1 HDMI, 1 DP, Intel HD Graphics,
    VGA port for BMC
  8. 2 USB 3.0 ports (2 rear), 7 USB 2.0 (2 rear, 4 via header(s), 1 Type A)
  9. I/O: 1 SATA DOM, 2 COM, TPM 1.2 header, ALC 888S HD Audio
  10. IPMI 2.0 with dedicated Port and KVM
...
...
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X11SBA-F
Physical Stats
Form Factor
  • Mini-ITX
Dimension
  • 6.7" x 6.7" (17.02cm x 17.02cm)
Processor
CPU
  • Intel® Pentium™ Processor N3710
  • Single Socket FCBGA-1170 supported, CPU TDP supports Up to 6W TDP
System Memory
Memory Capacity
  • 2 DIMM slots
  • Up to 8GB Unbuffered non-ECC SODIMM, DDR3-1600MT/s
Memory Type
  • 1600/1333/1066 MT/s non-ECC DDR3 SODIMM Unbuffered 204-pin gold-plated DIMMs
DIMM Sizes
  • 2GB, 4GB, 8GB
Memory Voltage
  • 1.35V
On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 2 SATA3 (6 Gbps) ports
IPMI
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Audio
  • ALC 888S HD Audio
Graphics
  • 1 ASPEED AST2400 BMC port(s)
  • 1 SoC port(s)
Network Controllers
  • Dual LAN with Intel® Ethernet Controller I210-AT
Input / Output
SATA
  • 2 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 7 USB 2.0 port(s) (4 via header; 2 rear; 1 Type A)
  • 2 USB 3.0 port(s) (2 rear)
Video Output
  • 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s)
Serial Port
  • 2 COM Port(s) (2 header)
TPM
  • 1 TPM header
Expansion Slots
PCIe
  • 1 PCIe 2.0 x1 (in x8 slot)
  • 1 Mini-PCIe with mSATA support
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • Plug and Play (PnP)
  • ACPI 5.0
  • UEFI 2.3.1
  • SMBIOS 2.7.1
  • DMI 2.3
  • USB Keyboard support
  • RTC (Real Time Clock) Wakeup
Management
Software
  • SuperDoctor® 5, NMI, KVM with dedicated LAN, IPMI2.0, Watchdog
System Management Software
  • SuperDoctor 5, IPMIView for Linux/Windows
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management
PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, +1.8V
LED
  • Standby alert LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
FAN
  • 2x 4-pin fan headers (up to 2 fans)
  • Thermal control tachometer fan connectors, System level control, PWM fan speed control, Fan speed control, Pulse Width Modulated (PWM) fan connectors, Overheat LED indication
Other Features
  • WOL, UID, System level control, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, 4-pin 12v DC power connector
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
Resources
Chassis
Component Options
Software
Documentation
Parts List

X11SBA-F
