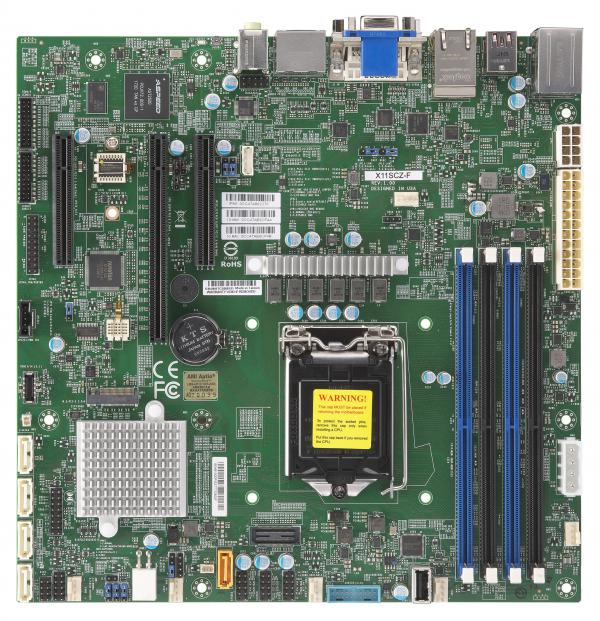

X11SCZ-F

Embedded
High Performance
IPMI

Key Features

8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor.
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
Intel® C246
Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller
Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
1 PCIe 3.0 x16,
2 PCIe 3.0 x4 (in x8 slot)
1 M.2 M-Key SATA/PCIe 3.0 x4, 2280/22110
Intel® C246 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10
1 VGA D-Sub Connector port, 1 DVI - I port, 2 DP (DisplayPort) ports,
3 Independent Displays

...

...

Optimized Servers

SYS-1019C-HTN2 SYS-5019C-MHN2

Specifications

Product SKUs
MBD-X11SCZ-F

Physical Stats
Form Factor	uATX
Dimension	9.6" x 9.6" (24.38cm x 24.38cm)

Processor
CPU	8th/9th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP A graphic integrated CPU is required to have onboard video from the DVI and DP ports

System Memory
Memory Capacity	4 DIMM slots Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MT/s
Memory Type	2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin
DIMM Sizes	4GB, 8GB, 16GB, 32GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	Intel® C246
SATA	Intel® C246 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2500
Audio	ALC 888S HD Audio
Graphics	1 Intel® HD Graphics port(s) 1 ASPEED AST2500 BMC port(s) 3 Independent Displays
Network Controllers	Single LAN with Intel® PHY I219LM LAN controller Single LAN with Intel® Ethernet Controller I210-AT

Input / Output
LAN	2 RJ45 Gigabit Ethernet LAN ports
USB	6 USB 3.1 Gen2 port(s) (2 via header; 3 rear type A; 1 rear type C) 7 USB 2.0 port(s) (6 via header; 1 Type A) 2 USB 3.1 Gen1 port(s) (2 via header)
Video Output	1 VGA D-Sub Connector port(s), 2 DP (DisplayPort) port(s), 1 DVI - I port(s)
Serial Port	4 COM Port(s) (4 header)
DOM	1 SATA DOM (Disk on Module) power connector support
TPM	1 TPM Header & Chip both

Expansion Slots
PCIe	1 PCIe 3.0 x16, 2 PCIe 3.0 x4 (in x8 slot)
M.2	M.2 Interface: 1 SATA/PCIe 3.0 x4 Form Factor: 2280/22110 Key: M-Key

System BIOS
BIOS Type	AMI UEFI
BIOS Features	ACPI 6.1 SMBIOS 3.1 PCI FW 3.0 UEFI 2.6 RTC (Real Time Clock) Wakeup

Management
Software	SuperDoctor® 5, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
System Management Software	IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations	ACPI Power Management, ATX Power connector, +12V DC Power Input

PC Health Monitoring
Voltage	VBAT, System temperature, Monitors CPU voltages, Chassis intrusion header, 6 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED	UID/Remote UID
Temperature	Thermal Control for 6 Fan Connectors
FAN	6x 4-pin fan headers (up to 6 fans) Fan speed control Dual Cooling Zone 6 fans with tachometer status monitoring
Other Features	UID, RoHS, M.2 NGFF connector, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source

Operating Environment
Operating Temperature Range	0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range	-40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range	10% - 85% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)
