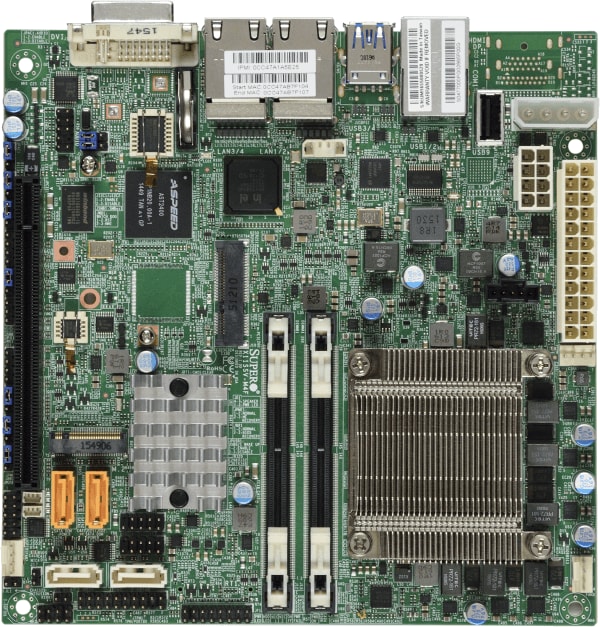

X11SSV-M4F

X11SSV-M4F
Skylake-H
Intel® QSV &
VHD with GT4e
IPMI

Key Features


  1. Intel Xeon processor E3-1585 v5,
    Single socket FCBGA 1440,
    4-Core, 8 Threads, 65W
  2. Intel® C236 chipset
  3. Integrated IPMI 2.0 and KVM with
    Shared LAN (Intel I210AT)
  4. Supports Intel VHD and 12V DC power input
  5. Up to 32GB ECC Unbuffered SO-DIMM DDR4 2133MHz; 2 DIMM slots
  6. 1 PCIe 3.0 x16, 1 Mini-PCIe (mSATA support), 1 M.2 PCIe 3.0 x4 (SATA support), M Key 2242/80
  7. 4x 1GbE LAN w/ Intel I219LM, I210AT, I350AM2
  8. 1 DVI-A, Graphics from AST2400
  9. 4 SATA3 (6Gbps) via C236;
    RAID 0, 1, 5, 10
  10. 2 SATA DOM, 1 COM (in RJ45),TPM header, ALC 888S HD Audio
...
...

Optimized Servers


SYS-5019S-TN4
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X11SSV-M4F
Physical Stats
Form Factor
  • Mini-ITX
Dimension
  • 6.7" x 6.7" (17.02cm x 17.02cm)
Processor
CPU
  • Intel® Xeon® processor E3-1585 v5
  • Single Socket FCBGA-1440 supported, CPU TDP supports Up to 65W TDP
Core
  • Up to 4 cores, 8 threads
System Memory
Memory Capacity
  • 2 DIMM slots
  • Up to 32GB Unbuffered ECC SODIMM, DDR4-2133MT/s
Memory Type
  • 2133/1866/1600 MT/s ECC DDR4 SODIMM Unbuffered
DIMM Sizes
  • 4GB, 8GB, 16GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C236
SATA
  • Intel® C236 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Intel RSTe
IPMI
  • ASPEED AST2400 BMC
Audio
  • ALC 888S HD Audio
Graphics
  • 1 ASPEED AST2400 BMC port(s)
  • *Intel Iris Pro P580 for VHD*
Network Controllers
  • Single LAN with Intel® Ethernet Controller I210-AT
  • Dual LAN with Intel® Ethernet Controller I350-AM2
  • Single LAN with Intel® PHY I219LM LAN controller, IPMI Shared LAN with I210-AT
Input / Output
SATA
  • 4 SATA3 (6Gbps) port(s)
LAN
  • 2
USB
  • 5 USB 2.0 port(s) (4 via header; 1 Type A)
  • 4 USB 3.2 Gen1 port(s) (4 rear)
Video Output
  • 1 DVI - A port(s)
DOM
  • 2 SuperDOM (Disk on Module) port with build power
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 3.0 x16
  • Mini PCIe with mSATA support Bifurcation support on PCIE x16 slot
M.2
  • M.2 Interface: SATA
  • Form Factor: 2280, 2242
System BIOS
BIOS Type
  • 128MB SPI Flash with AMI BIOS
BIOS Features
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • DMI 2.3
  • PCI 3.0
  • Plug and Play (PnP)
  • SMBIOS 2.7.1
  • UEFI 2.3.1
  • RTC (Real Time Clock) Wakeup
  • USB Keyboard support
Management
Software
System Management Software
  • SuperDoctor 5, IPMIView for Linux/Windows
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management
PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 3 -fan status, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
FAN
  • 3x 4-pin fan headers (up to 3 fans)
  • Thermal control tachometer fan connectors, System level control, PWM fan speed control, Fan speed control, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control)
Other Features
  • WOL, System level control, RoHS, Node Manager Support, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source, VHD
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
