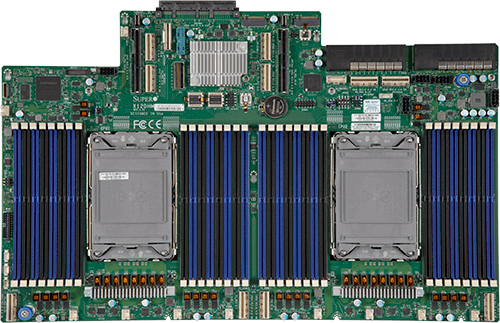

X12DHM-6

Hyper Series

Key Features


  1. 3rd Gen Intel® Xeon® Scalable processors
    Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
  2. Intel® C621A
  3. Up to 8TB 3DS ECC  RDIMM, DDR4-3200MHz; Up to 8TB 3DS ECC  LRDIMM, DDR4-3200MHz
    Up to 8TB Intel® Optane™ Persistent Memory, DDR4-3200MHz, in 32 DIMM slots
  4. 5 PCIe 4.0 x16,
    8 PCIe 4.0 NVMe x4
    M.2 Interface: 2 SATA/PCIe 3.0 x2, RAID 0 & 1
    M.2 Form Factor: 2280/22110
    1 PCIe 4.0 x16, AIOM (OCP3.0 Compliant)
  5. Intel® C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  6. 1 VGA D-Sub Connector port
...
...

Optimized Servers


Specifications Resources Parts List
Specifications
Product SKUs
MBD-X12DHM-6
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 17" x 10.7" (43.18cm x 27.18cm)
Processor
CPU
  • 3rd Gen Intel® Xeon® Scalable processors
  • Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core
  • Up to 40 cores
System Memory
Memory Capacity
  • 32 DIMM slots
  • Up to 8TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MT/s
  • Up to 8TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 8TB 3DS ECC RDIMM, DDR4-3200MT/s
Memory Type
  • ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
  • LRDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
  • RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C621A
SATA
  • Intel® C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Graphics
  • 1 ASPEED AST2600 BMC port(s)
Network Controllers
  • N/A
Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 3.2 Gen1 port(s) (4 via header)
Video Output
  • 1 VGA D-Sub Connector port(s)
Serial Port
  • 1 COM Port(s) (1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 4.0 x16, AIOM (OCP3.0 Compliant),
  • 5 PCIe 4.0 x16
M.2
  • M.2 Interface: 2 SATA/PCIe 3.0 x2, RAID 0 & 1
  • Form Factor: 2280/22110
System BIOS
BIOS Type
  • AMI UEFI
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • PCH temperature, Monitors CPU voltages, Memory temperature, CPU temperature, Chassis intrusion header, 3.3V standby, +5V standby, +12V, VRM temperature, Monitors for CPU Cores, Memory Voltages, 10 -fan status, +1.8V PCH
LED
  • UID/Remote UID
  • BMC/IPMI Heartbeat LED
FAN
  • 10x 6-pin fan headers (up to 10 fans)
  • 10x fans with tachometer monitoring
Other Features
  • WOL, UID, Node Manager Support, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ACPI power management, RoT, RoHS, Halogen Free, NCSI header
Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
