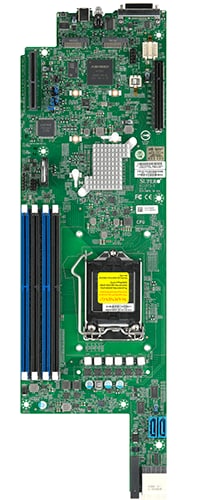

X12STD-F

X12STD-F

Key Features


  1. Intel® Pentium®, Intel® Xeon® E-2300 Series Processor, Single Socket LGA-1200 (Socket H5) supported,CPU TDP supports Up to 95W TDP.
  2. Intel® C256.
  3. Up to 128GB ECC/non-ECC Unbuffered DIMM, DDR4-3200MHz, in 4 DIMM slots.
  4. 1 PCIe 4.0 x8 (Micro Low Profile)
    1 PCIe 4.0 x8 (Low Profile).
  5. M.2 Interface: 2 SATA/PCIe 3.0 x4,M.2 Form Factor: 2280/22110.
  6. 1 VGA Port;2 USB 2.0 Ports; 1 Serial Port via KVM Connector.
  7. Intel® C256 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1,5,10.
  8. 1 LAN port;Realtek RTL8211FS PHY for dedicated IPMI.
...
...

Optimized Servers


SYS-530MT-H8TNR
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X12STD-F
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 4.75" x 15.69" (12.07cm x 39.85cm)
Processor
CPU
  • Intel® Pentium®, Intel® Xeon®  E-2300 Processor
  • Single Socket Socket H5 (LGA-1200) supported, CPU TDP supports Up to 95W TDP
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MT/s
Memory Type
  • 3200/2933/2666 MT/s
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V
Error Detection
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C256
SATA
  • Intel® C256 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Network Controllers
  • Single LAN with ASPEED AST2600 BMC
Input / Output
SATA
  • 2 SATA3 port(s)
USB
  • 3 USB port(s) (2 type A Via KVM connector; 1 type C)
Video Output
  • 1 VGA port(s) Via KVM connector
Serial Port
  • 1 COM Port(s) (1 Serial Port Via KVM connector)
TPM
  • 1 TPM Header & Chip both
Expansion Slots
PCIe
  • 1 PCIe 4.0 x8 (Low Profile),
  • 1 PCIe 4.0 x8 (Micro Low Profile)
M.2
  • M.2 Interface: 2 SATA/PCIe 3.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • 256MB SPI Flash with AMI BIOS
BIOS Features
  • ACPI 6.0 or later
  • Plug and Play (PnP)
  • BIOS rescue hot keys
  • SMBIOS 3.0 or later
Management
Software
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LAN
PC Health Monitoring
LED
  • UID/Remote UID
  • Power LED
  • BMC/IPMI Heartbeat LED
  • CPU / System Overheat LED
FAN
  • Low noise fan speed control
Operating Environment
Operating Temperature Range
  • 0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
  • -20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
Resources
Servers (Optimized for X12STD-F)
SYS-530MT-H8TNR
...
Component Options
Tested AOC List
Tested HDD / SSD List
Tested M.2 List
Tested Memory List
Software
BMC Firmware
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Update Your BIOS
Documentation
Motherboard Manual
Quick Reference Guide
Parts List

X12STD-F
