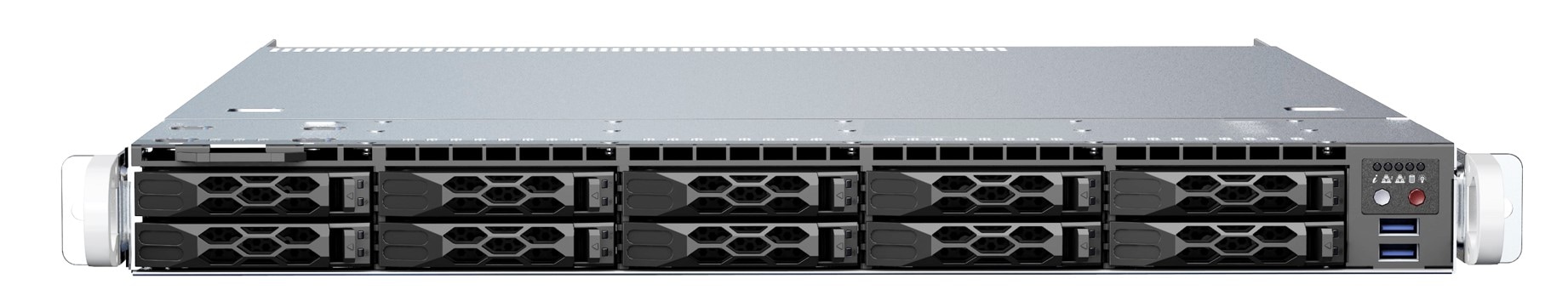

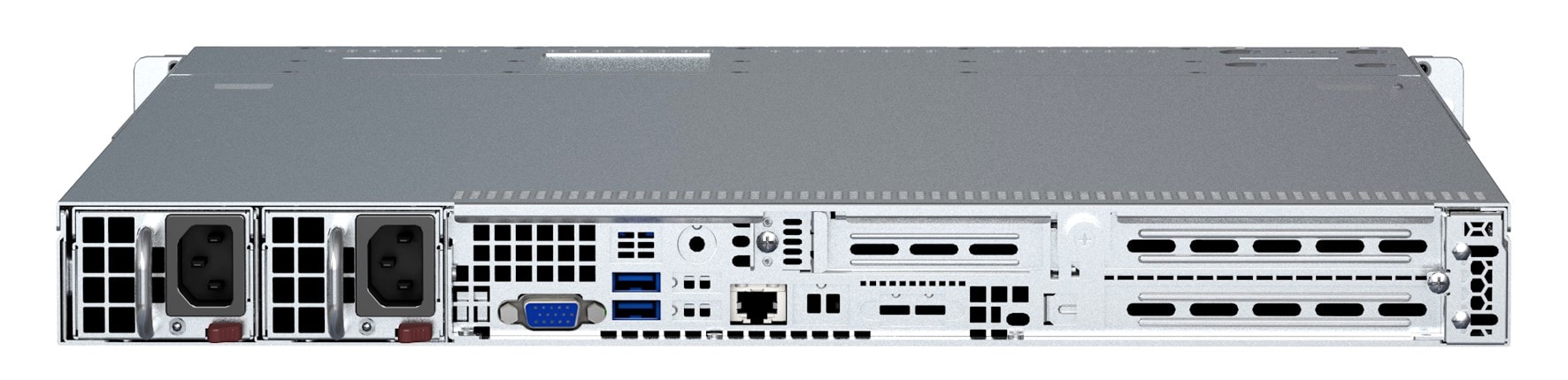

SuperChassis LB16AC2-R504WSuperChassis LB16AC2-R504W

Key Features


  1. SAS3 12Gb/s and NVMe support

    Optimized for WIO (W series) motherboards, support MB size up to 12.3" x 13.4"
  2. 10 x 2.5"(tool-less) hot-swap SAS3/SATA drive bay
  3. SAS or enterprise SATA HDD only recommended
  4. 1U SAS/SATA Backplane with SES2 support
  5. 1U 500W Redundant power supply Platinum level, 24Pin output
  6. 2x full-height & full-length expansion slot(s) 1x low-profile expansion slot
  7. 3 x 40x56mm counter-rotation PWM fan(s)
  8. Support Service Tag for system information
  9. OEM Only, MOQ Applies
Specifications Resources Parts List
Specifications
Product SKUs
SuperChassis LB16AC2-R504W
Form Factor
  • Optimized for WIO (W series) motherboards, support MB size up to 12.3" x 13.4"
Processor Support
  • Dual and Single Intel® and AMD processors
Dimensions
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 23.5" (597 mm)
Gross Weight
  • 40 lbs (18.14 kg)
Packaging (W x H x L)
  • 23.1" (587 mm) x 6.9" (175 mm) x 32.2" (818 mm)
Available Color
  • Black
Expansion Slots
  • 2x Full-height expansion slot(s)
  • 1x Low-profile expansion slot(s)
Drive Bays
  • 10x 2.5" hot-swap SAS3/SATA drive bay
Backplane
  • 10-Port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
Front Panel
Button
  • Power On/Off button
  • Unit Identification (UID) button
LED
  • Power status LED
  • HDD activity LED
  • 2 Network Activity LEDs
  • Unit Identification (UID) LED
Port
  • 2x USB 3.0 Port(s)
Systems Cooling
Fans
  • 3x 40x56mm counter-rotation PWM fan(s)
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
1U 500W/600W redundant single output 80PLUS Platinum
Power Efficiency
  • 92%
Total Output Power and Input
  • 600W with Input 200 - 240Vac
  • 500W with Input 100 - 127Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 322 x 54.5 x 40.25 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 50A / Min: 0A (200Vac - 240Vac)
  • Max: 42A / Min: 0A (100Vac - 127Vac)
  • Max: 50A / Min: 0A
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT116-L8824
  • O/P: 12V/80
  • +5V Max: 25A
  • +3.3V Max: 25A
  • -12V Max: 0.6A
Certification
  • Platinum Certified  Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • CCC
  • CE/EMC
  • FCC
  • TUV/CB
  • UL/CUL
Resources
Motherboard (for CSE-LB16AC2-R504W)
Motherboard Name
H12SSW-NTH12SSW-iNX12SPW-TFX12SPW-F
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Documentation
Chassis Manual
