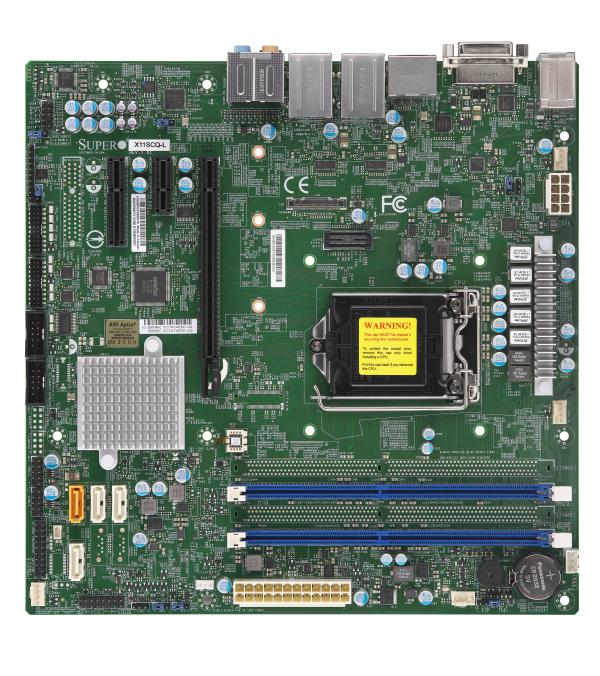

X11SCQ-L

High Performance
Workstation
2667MHz DDR4

Key Features


  1. 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor
    Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
  2. Single LAN with Intel® Ethernet Controller I210-AT
    Single LAN with Intel® PHY I219LM LAN controller
  3. Intel® H310
  4. Up to 32GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 2 DIMM slots
  5. 1 PCIe 3.0 x16
    1 PCIe 2.0 x4
    1 PCIe 2.0 x1
  6. Intel® H310 controller for 4 SATA3 (6 Gbps) ports;
  7. 1 DVI - D port, 1 HDMI port, 1 DP (DisplayPort) port, 1 eDP (Embedded DisplayPort) port,
    2 Independent Displays
...
...
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X11SCQ-L
Physical Stats
Form Factor
  • uATX
Dimension
  • 9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU
  • 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor
  • Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
System Memory
Memory Capacity
  • 2 DIMM slots
  • Up to 32GB Unbuffered non-ECC UDIMM, DDR4-2666MT/s
Memory Type
  • 2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin
DIMM Sizes
  • 4GB, 8GB, 16GB
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® H310
SATA
  • Intel® H310 controller for 4 SATA3 (6 Gbps) ports
Audio
  • 7.1 HD Audio
Graphics
  • 1 Intel® HD Graphics port(s)
Network Controllers
  • Single LAN with Intel® PHY I219LM LAN controller
  • Single LAN with Intel® Ethernet Controller I210-AT
Input / Output
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 6 USB 2.0 port(s) (4 via header; 2 rear)
  • 4 USB 3.1 Gen1 port(s) (2 rear type A; 2 rear type C)
Video Output
  • 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s), 1 eDP (Embedded DisplayPort) port(s)
Serial Port
  • 6 COM Port(s) (6 header)
DOM
  • 1 SuperDOM (Disk on Module) port with build power
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 3.0 x16
  • 1 PCIe 2.0 x4
  • 1 PCIe 2.0 x1
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.1
  • SMBIOS 3.1
  • UEFI 2.6
  • PCI FW 3.0
Management
Software
  • SuperDoctor® 5, NMI, Watchdog
System Management Software
  • SuperDoctor 5
Power Configurations
  • ACPI Power Management, ATX Power connector
PC Health Monitoring
Voltage
  • VBAT, System temperature, Monitors CPU voltages, Chassis intrusion header, 4 fans with tachometer monitoring, 1.2V (VDIMM), +5V, +3.3V, +12V, Memory Voltages
LED
  • Power LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
FAN
  • 4x 4-pin fan headers (up to 4 fans)
  • Fan speed control
  • 4 fans with tachometer monitoring
Other Features
  • WOL
  • RoHS
  • Chassis intrusion header
  • ATX Power connector
  • ACPI power management
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
