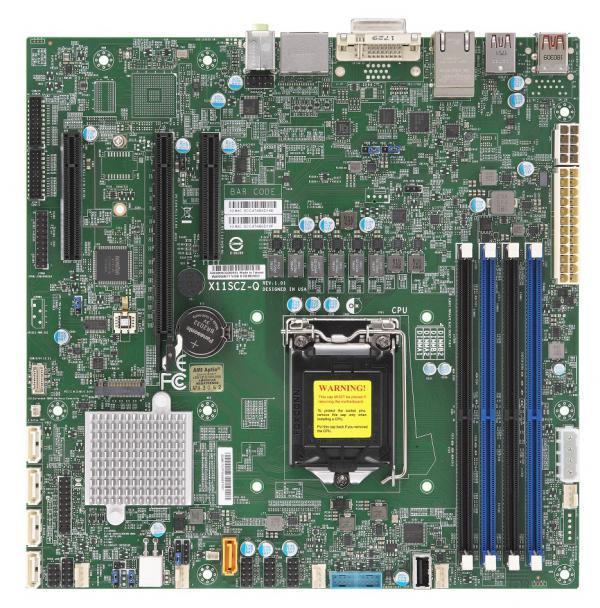

X11SCZ-Q

vPro AMT
High Performance
2667MHz DDR4

Key Features


  1. 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor.
    Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
  2. Intel® Q370
  3. Single LAN with Intel® Ethernet Controller I210-AT
    Single LAN with Intel® PHY I219LM LAN controller
  4. Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
  5. 1 PCIe 3.0 x16,
    2 PCIe 3.0 x4 (in x8 slot)
    M.2 Interface: 1 SATA/PCIe 3.0 x4
    M.2 Form Factor: 2280/22110
    M.2 Key: M-Key
  6. Intel® Q370 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  7. 1 DVI - I port, 2 DP (DisplayPort) ports,
    3 Independent Displays
...
...
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X11SCZ-Q
Physical Stats
Form Factor
  • uATX
Dimension
  • 9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU
  • 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor
  • Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2666MT/s
Memory Type
  • 2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® Q370
SATA
  • Intel® Q370 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Audio
  • ALC 888S HD Audio
Graphics
  • 1 Intel® HD Graphics port(s)
Network Controllers
  • Single LAN with Intel® PHY I219LM LAN controller
  • Single LAN with Intel® Ethernet Controller I210-AT
Input / Output
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 6 USB 3.1 Gen2 port(s) (2 via header; 3 rear type A; 1 rear type C)
  • 7 USB 2.0 port(s) (6 via header; 1 Type A)
  • 2 USB 3.1 Gen1 port(s) (2 via header)
Video Output
  • 2 DP (DisplayPort) port(s), 1 DVI - I port(s)
Serial Port
  • 4 COM Port(s) (4 header)
DOM
  • 1 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header & Chip both
Expansion Slots
PCIe
  • 1 PCIe 3.0 x16,
  • 2 PCIe 3.0 x4 (in x8 slot)
M.2
  • M.2 Interface: 1 SATA/PCIe 3.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.1
  • SMBIOS 3.1
  • PCI FW 3.0
  • UEFI 2.6
  • RTC (Real Time Clock) Wakeup
Management
Software
  • SuperDoctor® 5, NMI, AMT, vPro, Watchdog
System Management Software
  • SuperDoctor 5
Power Configurations
  • ACPI Power Management, ATX Power connector, +12V DC Power Input
PC Health Monitoring
Voltage
  • 5 -fan status, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V
Temperature
  • Thermal Control for 5 Fan Connectors
FAN
  • 5x 4-pin fan headers (up to 5 fans)
  • Dual Cooling Zone
  • 5 fans with tachometer status monitoring
Other Features
  • RoHS, M.2 NGFF connector, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
