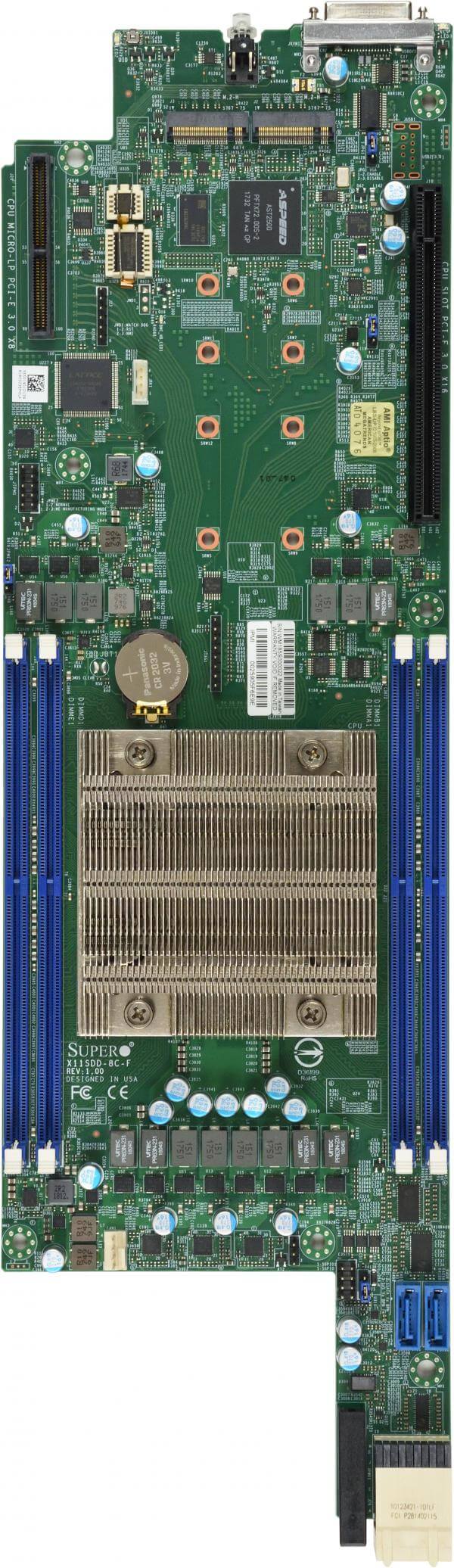

X11SDD-18C-F

MicroCloud

Key Features


  1. Intel® Xeon® processor D-2191, Single socket FCBGA 2518, 18-Core, 86W
  2. Up to 256GB ECC RDIMM DDR4 2400MHz or 512GB LRDIMM in 4 Sockets
  3. 1 PCIe 3.0 x16, 1 PCIe 3.0 x8 (Micro LP)
  4. 2 M.2 PCIe 3.0 x4 with SATA M-Key in 2242/80/110
  5. 2 SATA3 (6Gbps ports)
  6. 1 VGA, 2 USB 2.0, 1 COM via KVM dongle
  7. Integrated IPMI 2.0 and KVM with Dedicated LAN
  8. Network option via Micro LP card
...
...
Specifications Resources Parts List
Specifications
Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs.
MBD-X11SDD-18C-F
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 4.66" x 18.5" (11.84cm x 46.99cm)
Processor
CPU
  • Intel® Xeon® Processor D-2191
  • Single Socket FCBGA-2518 supported, CPU TDP supports Up to 86W TDP
Core
  • Up to 18 cores, 36 threads
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 512GB ECC LRDIMM, DDR4-2400MT/s; Up to 256GB ECC RDIMM, DDR4-2400MT/s
Memory Type
  • 2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM (Operating speed up to 2400MHz)
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
SATA
  • 2 SATA3 (6 Gbps) ports
IPMI
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Support for Intelligent Platform Management Interface v.2.0
Graphics
  • 1 ASPEED AST2500 BMC port(s)
  • Via KVM Connector
Network Controllers
  • Single LAN with Realtek RTL8211E PHY (dedicated IPMI), via Backplane
Input / Output
USB
  • 2 USB 2.0 port(s) (2 rear)
Video Output
  • 1 VGA port(s)
Serial Port
  • 1 fast UART 16550 Serial
  • 1 COM Port(s) (1 rear), Via KVM Connector
TPM
  • 1 TPM Header
Others
  • 1 KVM Connector for 2USB 20
  • 1 VGA and COM Ports
Expansion Slots
PCIe
  • 1 PCIe 3.0 x16,
  • 1 PCIe 3.0 x8 (Micro Low Profile)
M.2
  • M.2 Interface: 2 SATA/PCIe 3.0 x4
  • Form Factor: 2242/2260/2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • 256MB SPI Flash with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • ACPI 6.2
  • SMBIOS 3.1
  • SMBIOS 2.8
  • UEFI 2.7
  • PCI FW 3.2
Management
Software
  • NMI, SUM, KVM with dedicated LAN, Intel® Node Manager, IPMI2.0, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SuperDoctor® III
System Management Software
  • SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support, SSM, SUM
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection, Main Switch Override Mechanism
PC Health Monitoring
Voltage
  • System temperature, System level control, Supports system management utility, Monitors CPU voltages, Memory, HT, 3.3V standby, 1.2V (VDIMM), +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED
  • UID/Remote UID
  • BMC/IPMI Heartbeat LED
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • Adaptive Thermal Monitor, PECI 3.0
FAN
  • Thermal control tachometer fan connectors, System level control, PWM fan speed control, Fan speed control, Pulse Width Modulated (PWM) fan connectors, Overheat LED indication
Other Features
  • WOL, UID, System level control, RoHS, Node Manager Support, M.2 NGFF connector, CPU thermal trip support for processor protection, ACPI power management, SDDC, Hyper-Speed Technology hardware acceleration
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
Resources
Parts List

X11SDD-18C-F (For SuperServer Only)
