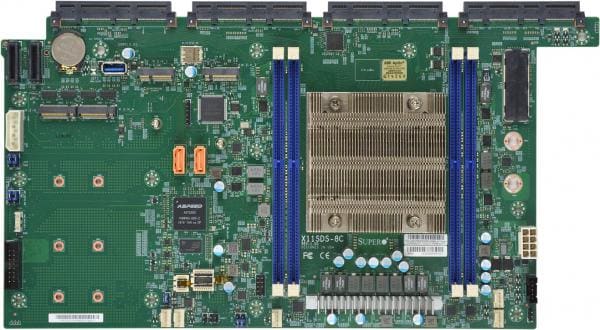

X11SDS-16C

16-Core
Skylake-D
Dual 10GbE
Dual 10G SFP+
Advanced I/O Module

Key Features


  1. Intel® Xeon® Processor D-2183IT,
    16-Core, 32 Threads, 100W
  2. Up to 256GB Registered ECC RDIMM or 512GB ECC LRDIMM, DDR4-2400MHz in 4 DIMM slots
  3. 4 AIOM Slot for PCIe 3.0 x8 Expansion Modules
  4. 2 PCIe EDSFF-Short Drive Slots
  5. M.2 Slots:
    2 M-Keys 2242/80/110 (PCIe 3.0 x4/SATA)
    1 B-Key 3042 (PCIe 3.0 x4/SATA)
    1 E-Key 2230 (PCIe 3.0 x2)
  6. Dual SFP+
    Dual 10GBase-T RJ45
    Single 1GBase-T RJ45
    *Using AOM-SMF-TP4F
  7. System on Chip
...
...

Optimized Servers


Specifications Resources Parts List
Specifications
Product SKUs
MBD-X11SDS-16C
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 13.9" x 7.25" (35.31cm x 18.42cm)
Processor
CPU
  • Intel® Xeon® Processor D-2183IT
  • Single Socket FCBGA-2518 supported, CPU TDP supports Up to 100W TDP
Core
  • Up to 16 cores, 32 threads / 22MB Cache
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 512GB ECC LRDIMM, DDR4-2400MT/s; Up to 256GB ECC RDIMM, DDR4-2400MT/s
Memory Type
  • 2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM (Operating speed up to 2400MHz)
DIMM Sizes
  • LRDIMM: 16GB, 32GB, 64GB, 128GB
  • RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 2 SATA3 (6 Gbps) ports
IPMI
  • ASPEED AST2500
Graphics
  • 1 ASPEED AST2500 BMC port(s)
Network Controllers
  • Dual LAN with 10G SFP+
  • Dual LAN with 10Gbase-T, *via AOM-SMF-TP4F
  • Single LAN with 1GbE with Intel® I210
Input / Output
LAN
  • 2 10G SFP+ LAN ports
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Gigabit Ethernet LAN ports
USB
  • 1 USB 3.2 Gen1 port(s) (1 type A)
  • * Two additional USB3.0 ports via AOM-SMF-TP4F
Video Output
  • 1 VGA port(s)
DOM
  • 1 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header & Chip both
Expansion Slots
PCIe
  • 4 AIOM Expansion Slots suppporting PCIe 3.0 x8 Modules
  • 2 PCIe EDSFF-Short Drive Slots (Shared with M.2 M-Keys)
M.2
  • M.2 Interface: 1 SATA/PCIe 3.0 x2/USB 3.0; 2 SATA/PCIe 3.0 x4; 1 PCIe 3.0 x2
  • Form Factor: 3042, 2242/2280/22110, 2230
  • Key: B-Key, M-Key, E-Key
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.2
  • SMBIOS 3.1
  • UEFI 2.7
  • PCI FW 3.2
Management
Software
  • SuperDoctor® 5, NMI, SUM, SPM, Intel® Node Manager, SSM, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • ACPI Power Management, +12V DC Power Input
PC Health Monitoring
Voltage
  • VBAT, System temperature, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 5 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, Memory Voltages
LED
  • UID/Remote UID
  • BMC/IPMI Heartbeat LED
Temperature
  • Thermal Control for 5 Fan Connectors
  • Monitoring for CPU and chassis environment
FAN
  • 5x 4-pin fan headers (up to 5 fans)
  • Fan speed control
  • 5 fans with tachometer status monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Support 3-pin fans (w/o speed control)
Other Features
  • UID, RoHS, Node Manager Support, M.2 NGFF connector, Chassis intrusion header, ACPI power management, 8-pin 12v DC power connector
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
