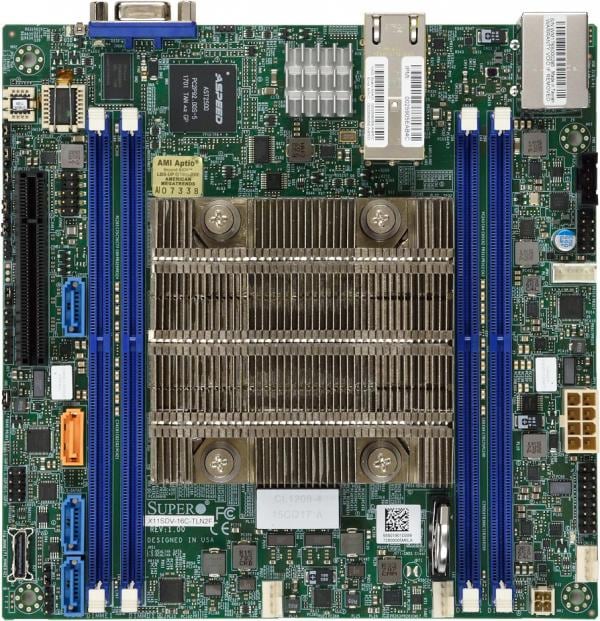

X11SDV-4C-TLN2F

X11SDV-4C-TLN2F
Skylake-D
Quad Core
NVMe
Dual 10GbE

Key Features


  1. Intel® Xeon® Processor D-2123IT,
    4-Core, 8 Threads, 60W
  2. Up to 256GB Registered ECC RDIMM or 512GB ECC LRDIMM, DDR4-2400MHz in 4 DIMM slots
  3. 1 PCIe 3.0 x8
    1 PCIe 3.0 x4 NVMe Internal Port via OCuLink
  4. Up to 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    4 SATA ports via OCuLink (or PCIe 3.0 x4 for NVMe)
  5. Dual LAN with 10GBase-T via Intel® SoC
  6. System on Chip
  7. 2 USB 3.0 ports (rear)
    2 USB 2.0 ports (via header)
  8. 12V DC or ATX Power Input
...
...

Optimized Servers


SYS-E300-9D
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X11SDV-4C-TLN2F
Physical Stats
Form Factor
  • Mini-ITX
Dimension
  • 6.75" x 6.75" (17.15cm x 17.15cm)
Processor
CPU
  • Intel® Xeon® Processor D-2123IT
Core
  • Up to 4 cores, 8 threads / 8MB Cache
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 512GB ECC LRDIMM, DDR4-2400MT/s; Up to 256GB ECC RDIMM, DDR4-2400MT/s
Memory Type
  • 2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM (Operating speed up to 2400MHz)
DIMM Sizes
  • LRDIMM: 16GB, 32GB, 64GB, 128GB
  • RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • 4 SATA ports via OCuLink (or PCIE3.0 x4 for NVMe)
IPMI
  • ASPEED AST2500
Graphics
  • 1 ASPEED AST2500 BMC port(s)
Network Controllers
  • Dual LAN with 10Gbase-T
Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ45 10GBase-T ports
USB
  • 2 USB 2.0 port(s) (2 via header)
  • 2 USB 3.0 port(s) (2 rear)
Video Output
  • 1 VGA port(s)
DOM
  • 1 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 3.0 x8
  • 1 PCIe 3.0 x4 NVMe Internal Port via OCuLink
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.1
  • SMBIOS 3.1
  • UEFI 2.6
  • PCI FW 3.2
Management
Software
  • SuperDoctor® 5, SUM, SPM, Intel® Node Manager, SSM, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • ACPI Power Management, +12V DC Power Input
PC Health Monitoring
Voltage
  • VBAT, Supports system management utility, Monitors CPU voltages, 3 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.5V, Memory Voltages
LED
  • UID/Remote UID
  • Power LED
  • BMC/IPMI Heartbeat LED
Temperature
  • Thermal Control for 3 Fan Connectors
FAN
  • 3x 4-pin fan headers (up to 3 fans)
  • Fan speed control
  • Dual Cooling Zone
  • 3 fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Support 3-pin fans (w/o speed control)
Other Features
  • UID, RoHS, Node Manager Support, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
